Gryphon 1000 hex build with ecalc data
- Thread starter Pumpkinguy
- Start date
Pumpkinguy
Member

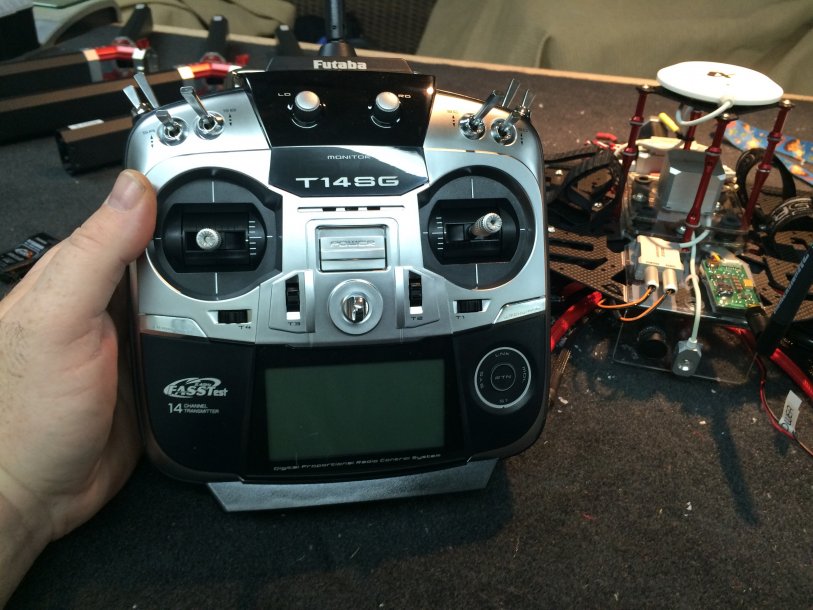

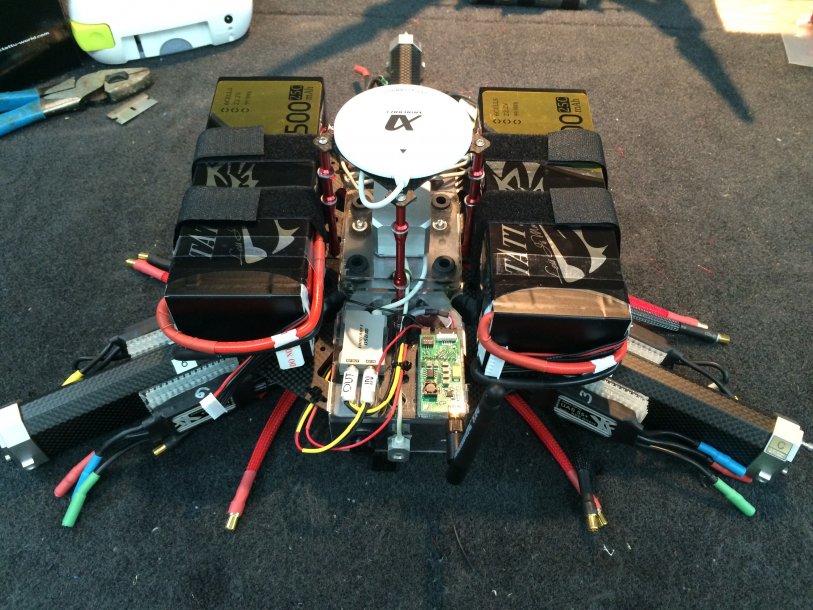

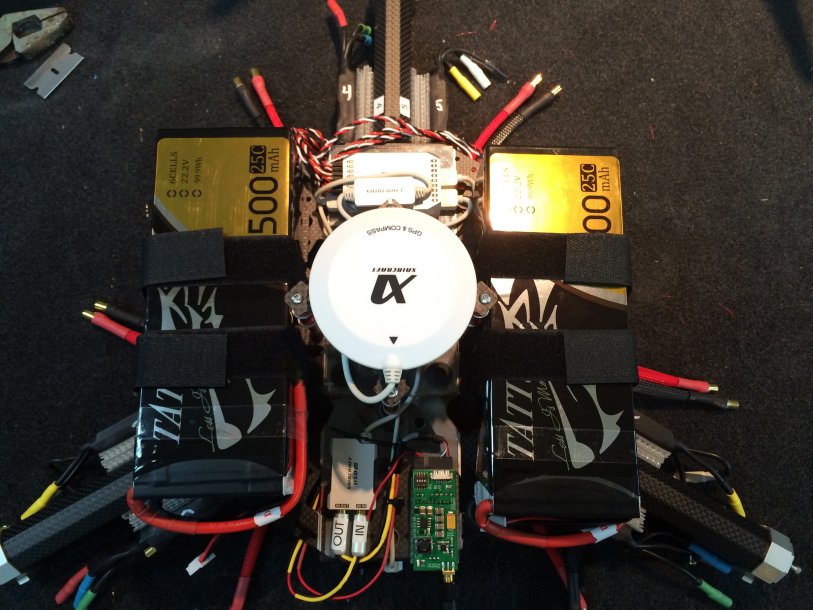

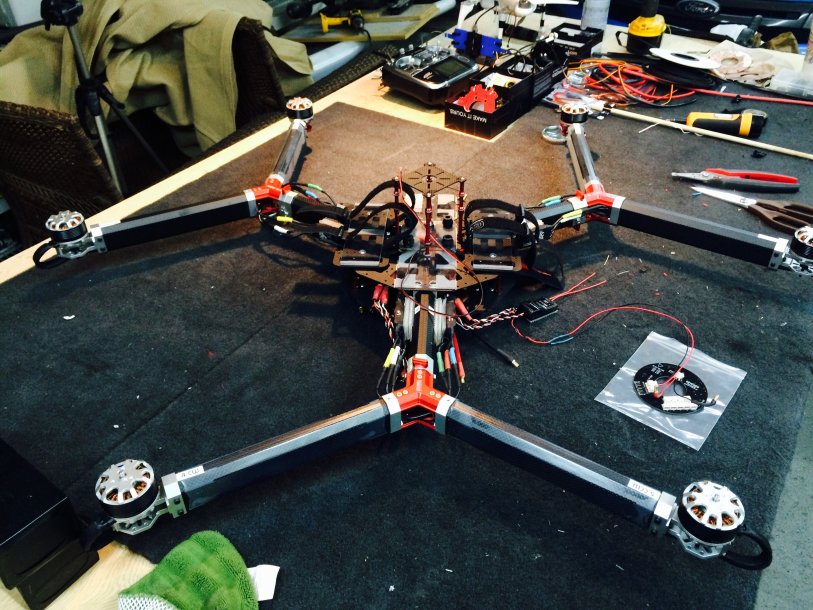

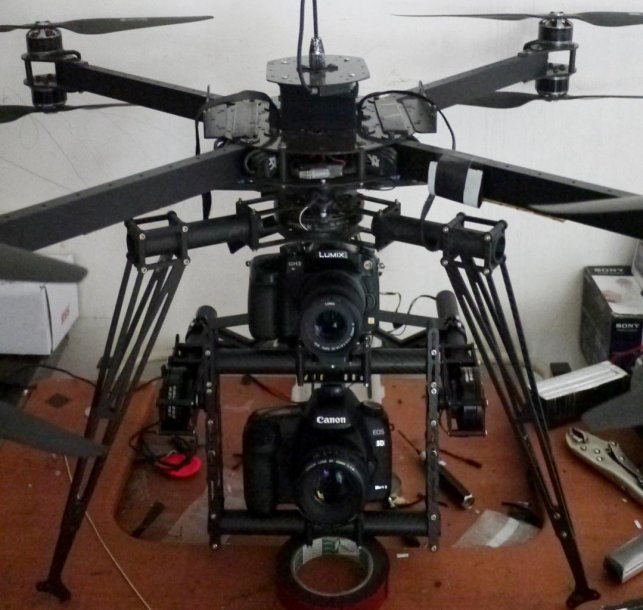

View attachment 22174 View attachment 22175 View attachment 22176 I recieved some parts today.

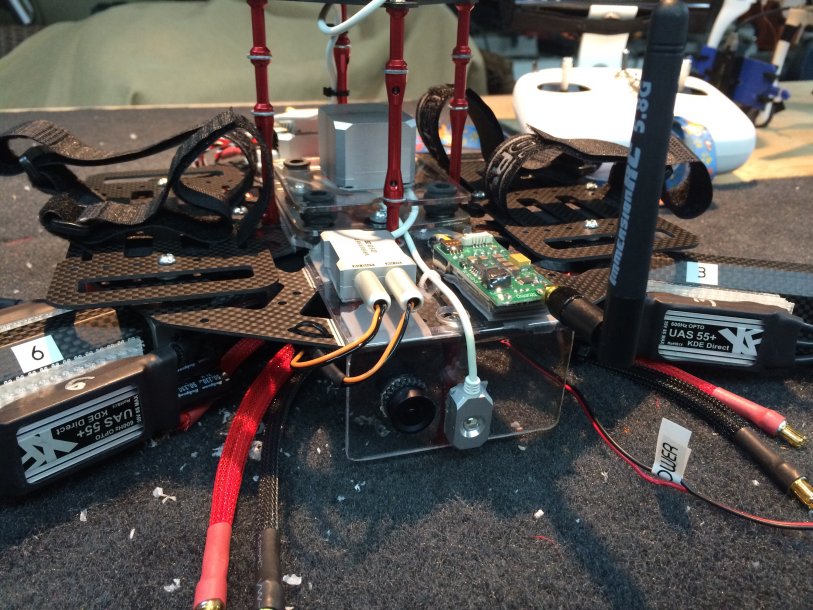

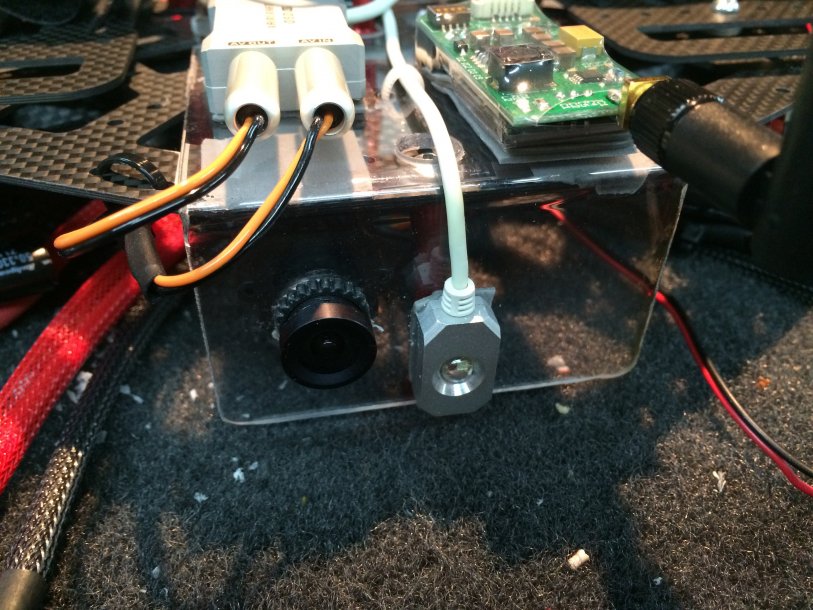

My radio, fpv cam ( 600 line fat shark) that I discretely mounted in the front bent lexan tab and my immersion 600mw vtx for fpv came in today. . Just waiting on power supply stuff from HK and I will be able to start balancing motors.

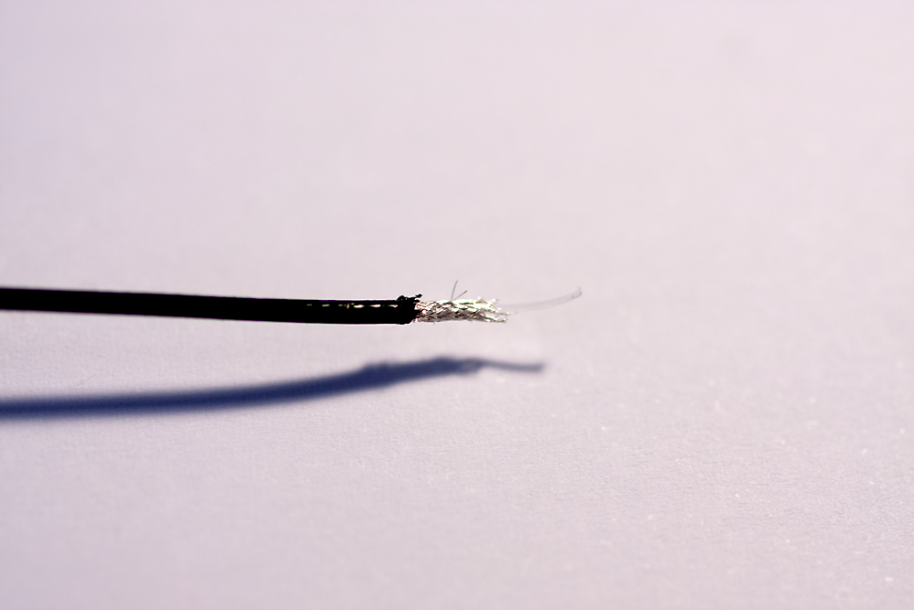

Still torn as where to mount my reciever and antennas. Advise welcome.
Cheers
My radio, fpv cam ( 600 line fat shark) that I discretely mounted in the front bent lexan tab and my immersion 600mw vtx for fpv came in today. . Just waiting on power supply stuff from HK and I will be able to start balancing motors.
Still torn as where to mount my reciever and antennas. Advise welcome.
Cheers
Attachments
Pumpkinguy
Member
Attachments
Pumpkinguy
Member

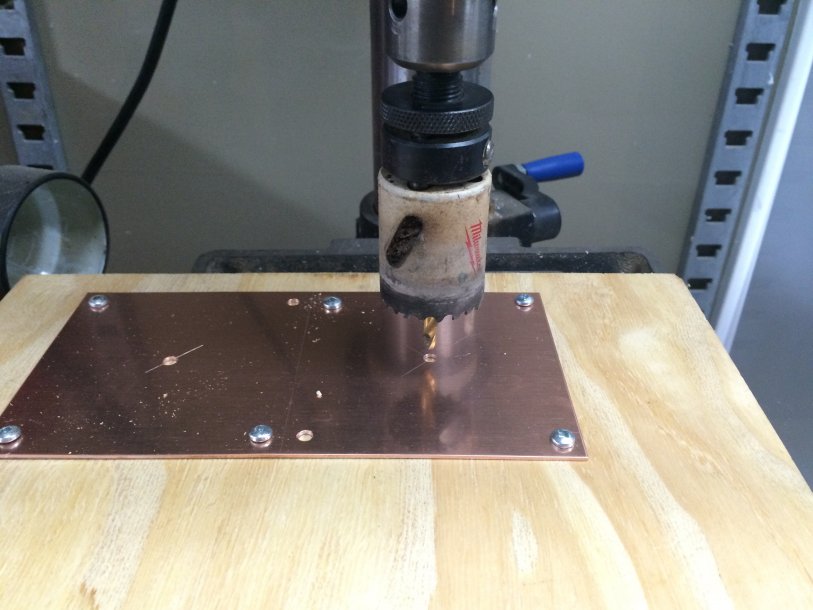

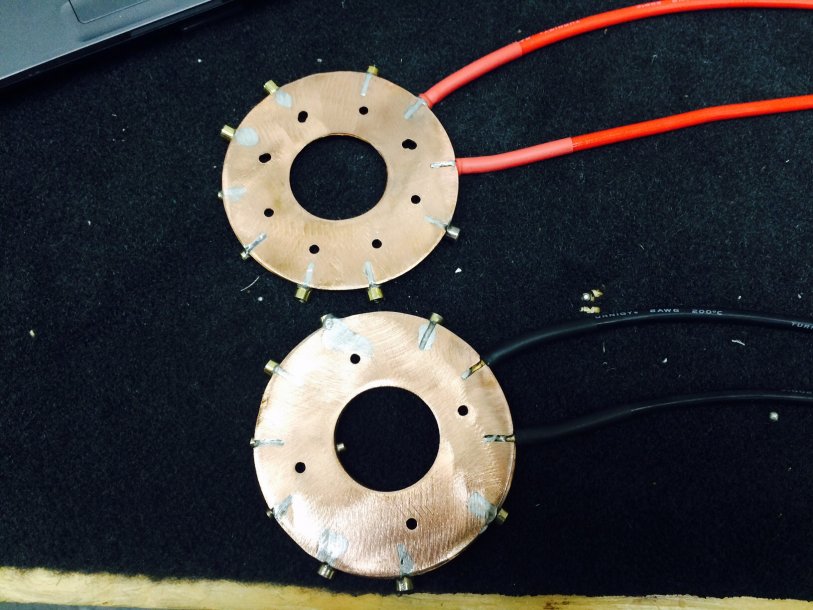

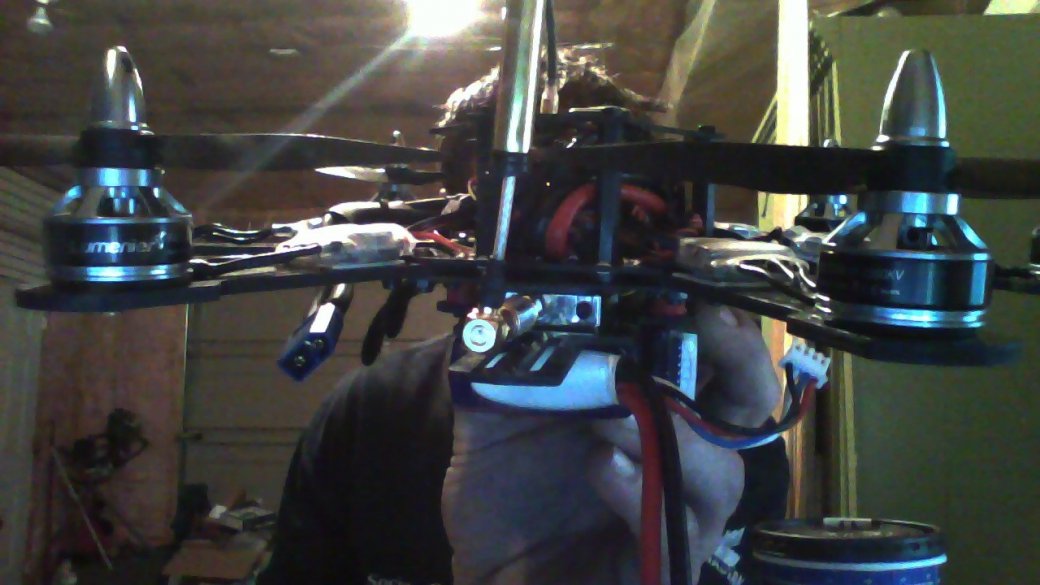

View attachment 22327 View attachment 22328 A couple pics of my PDB. 1.5mm thick oxygen free copper.
Attachments
SamaraMedia
Active Member
Looking good Pumpkin! Did you make your own AV in and out cables? I have the V1 OSD and trying to hook up my Pixim Seawolf FPV cam which needs 12 v, Immersion vtx outputs 5v. Gonna have to run a bec or buc converter I guess.
Pumpkinguy
Member
Didn't need too. My OSD came with them.
Pumpkinguy
Member

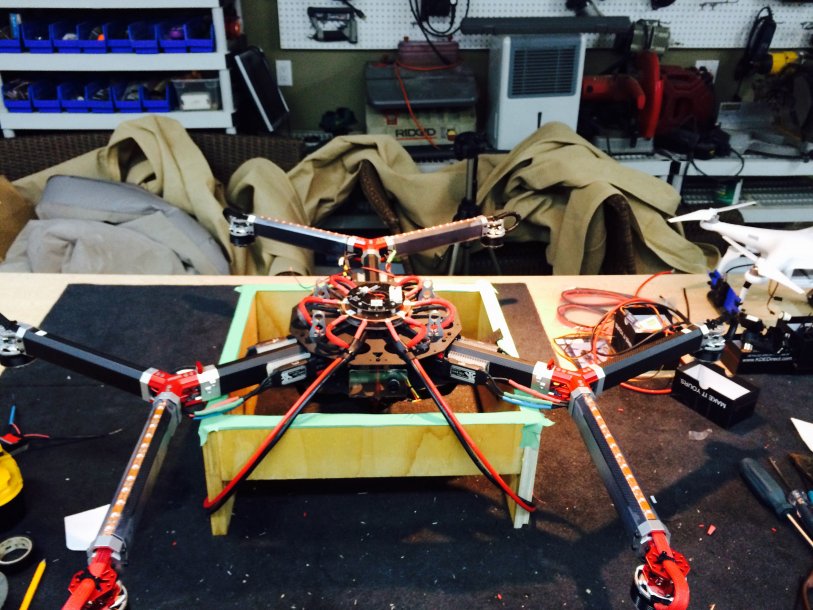

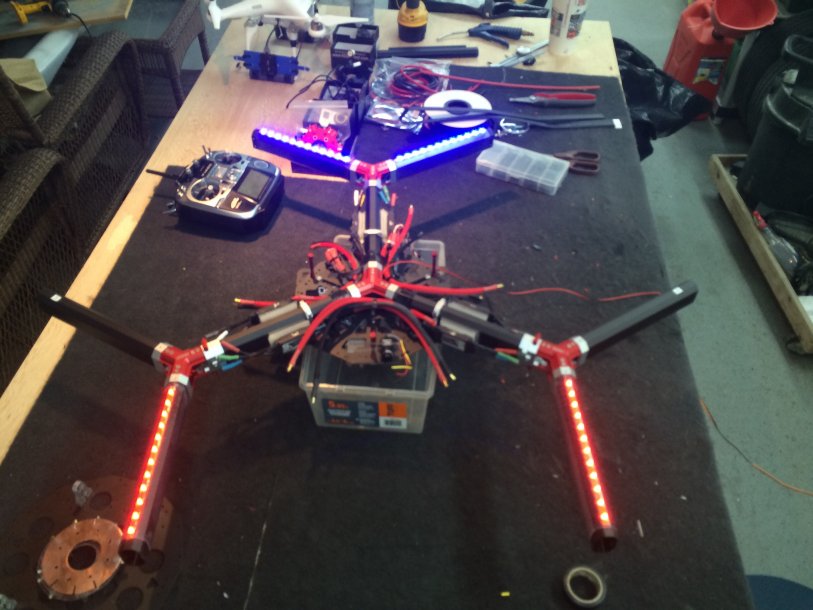

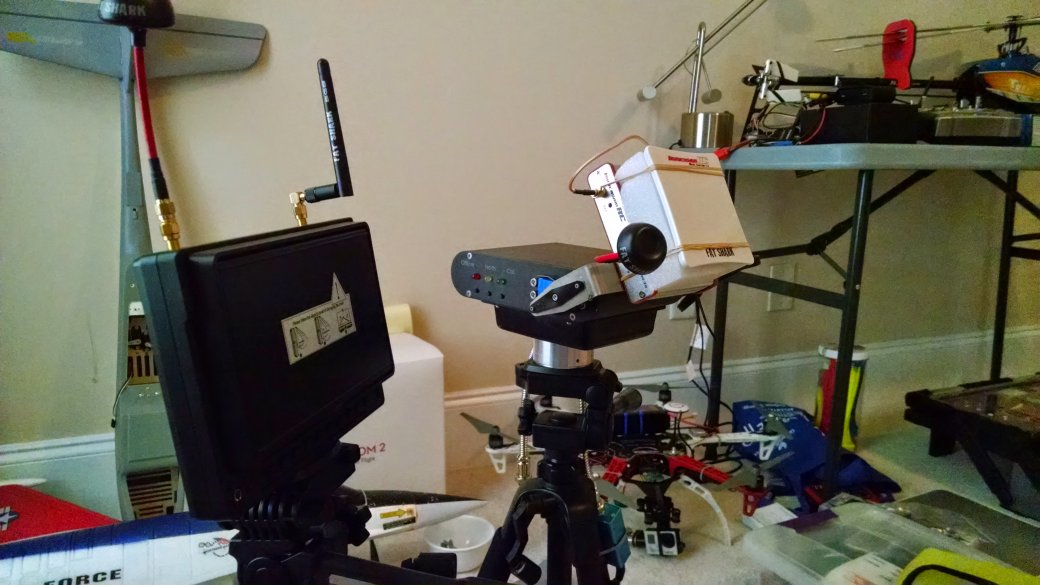

Got my lighting done. The hobby king strips are about 9mm wide. Perfect width for the bottom of my gryphon arms. I've covered them with clear heat shrink to protect them and keep them from ever pealing off. Red for the front. Blue for back. View attachment 22342View attachment 22343
Attachments
Pumpkinguy
Member

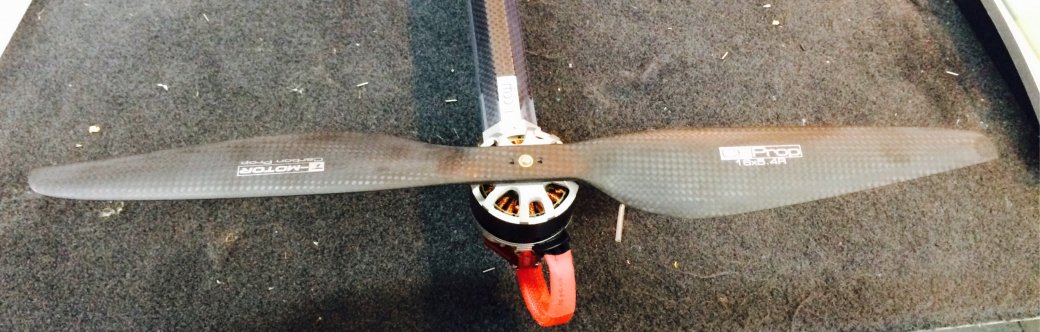

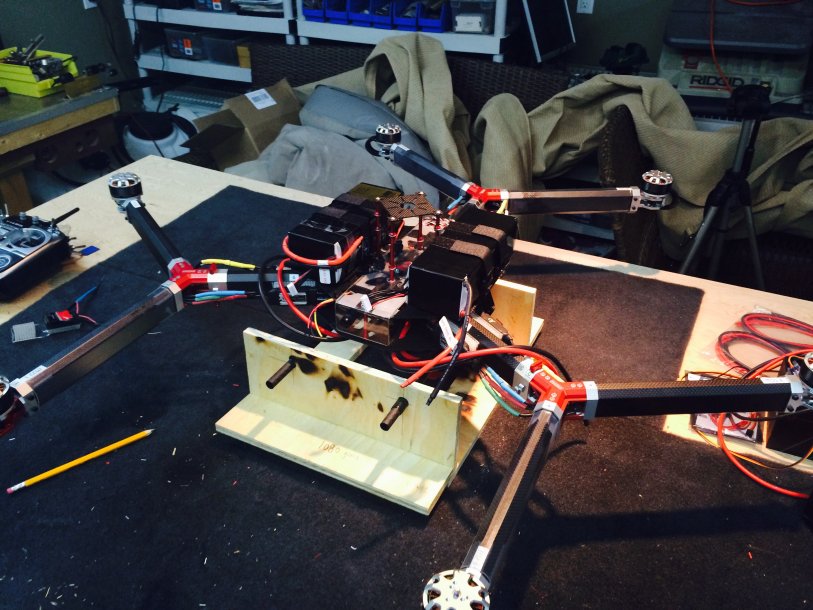

View attachment 22344 Man, for my first build I am pretty impressed with myself that I am within 100 grams of my weight estimate. I am at 7100 grams all in before gimbal. I figured 7000. And 9000-9500 with gimbal and gh4. I have tones of reserve thrust of I decide I want a larger gimbal/camera I can go to a 17 or 18" prop easy.
Attachments
Pumpkinguy
Member
Attachments
Pumpkinguy
Member

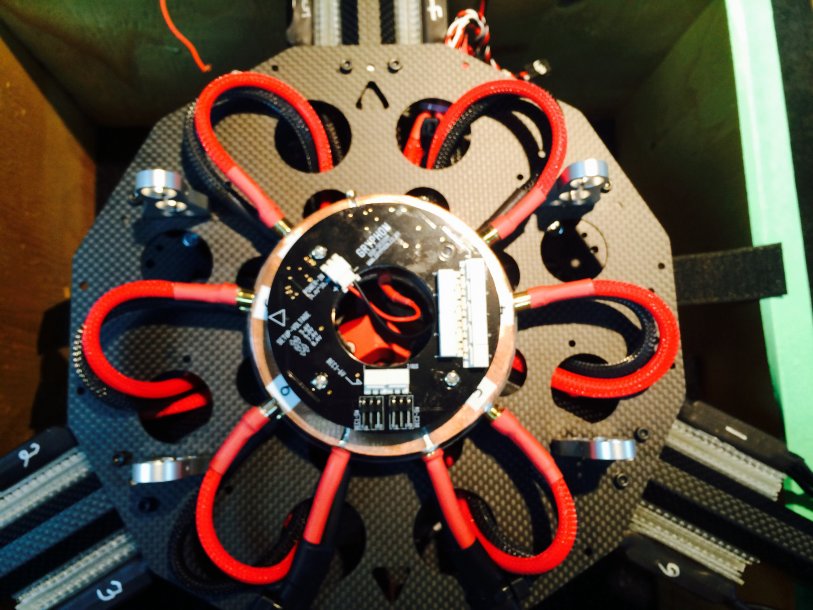

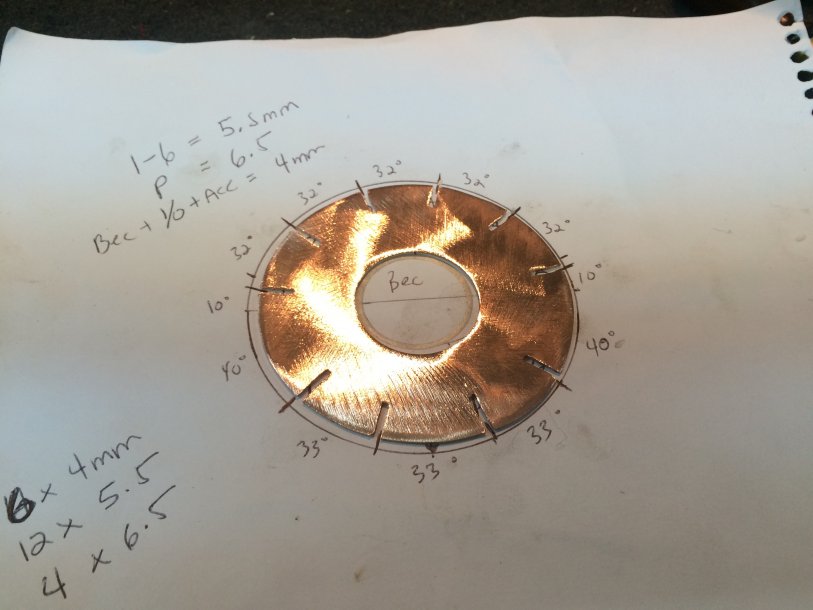

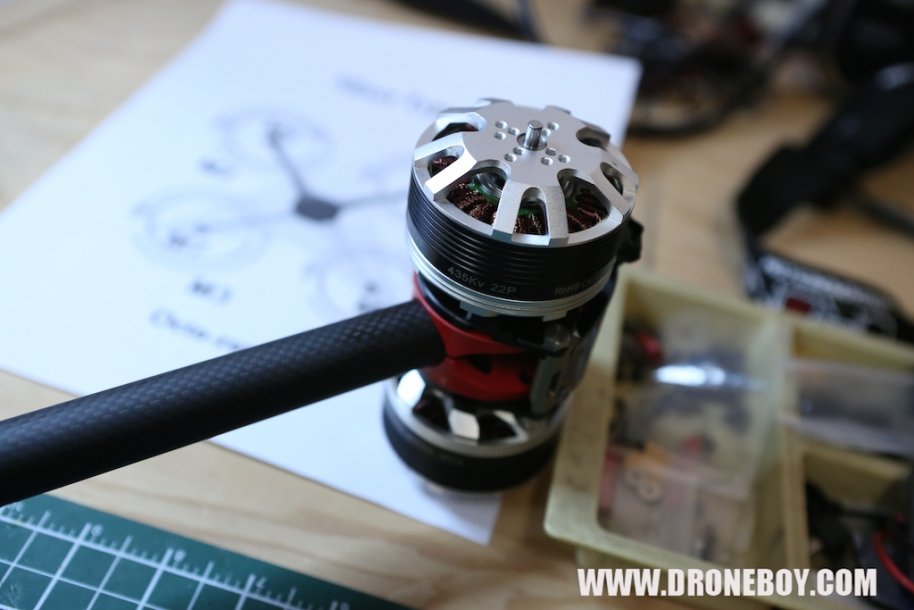

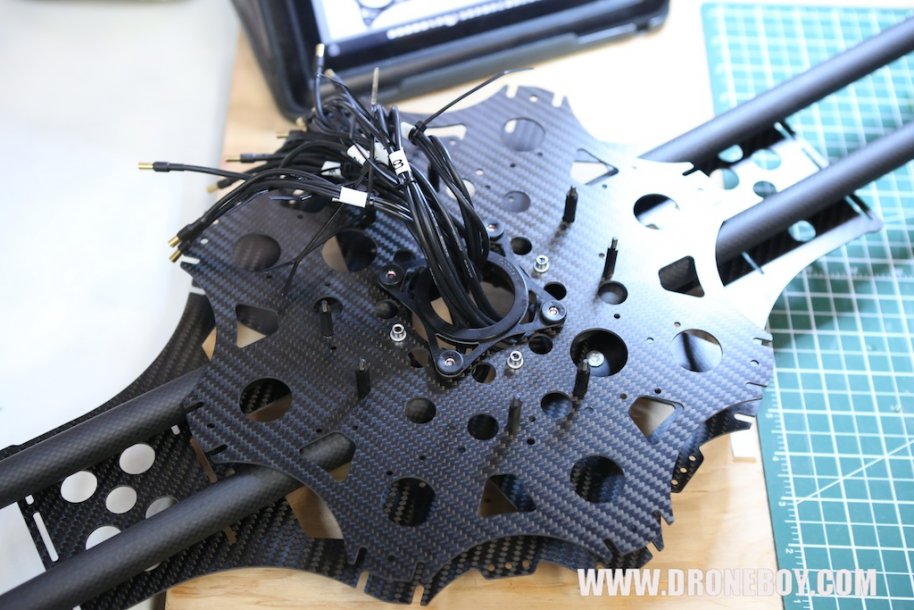

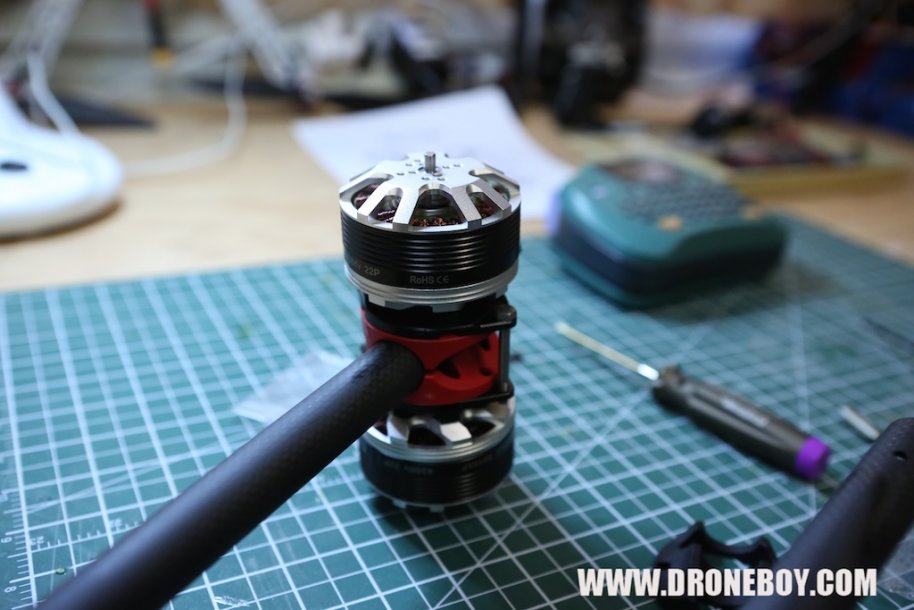

View attachment 22411 View attachment 22412 View attachment 22413 View attachment 22403 View attachment 22404 View attachment 22403 View attachment 22404 View attachment 22405 So here is my finished 1000 amp PDB. 1.5mm oxygen free copper. 5.5mm castle creations bullets for motor wires and 4mm bullets for bec, FC and one spare for accessories. 8 gauge battery leads soldered direct. Copper was clear coated and I've put a layer of 1/8 lexan between +/- just for safety. Cheers.
Attachments
Last edited by a moderator:
Pumpkinguy
Member

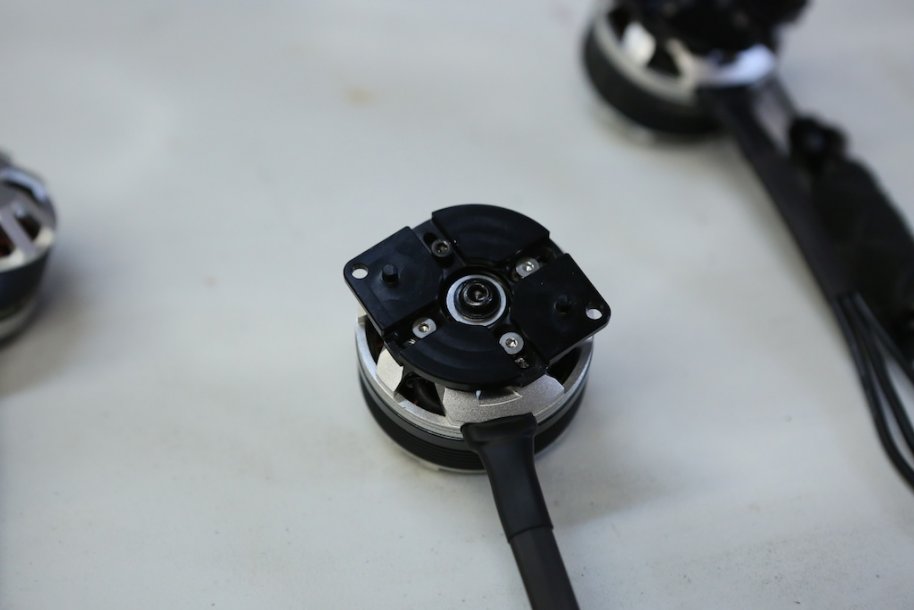

View attachment 22406 How do you guys like my landing gear? Lol. I still have no idea what gimbal I'm using. There are a couple coming out in the next couple months that I will consider. Until then I don't know if I need retracts or if I will have built in legs like on a movi mr. So these will be my legs until then for testing. I will add weight to tune her.
Attachments
Wow that is a monster! A work of engineering too. Very impressive.
I have a SH Spy 750 Y6 with KDE 2814XF-515 motors. AUW 3.1kg; am about ready to ditch the coaxial stuff, too much monkeying around to make them efficient. You did the right thing getting the KDE ESC's for those motors.
Be sure to keep updates coming.
BTW, here's my teeny PDB (the "coffin"), will never see the high side of 60A. I have to keep things simple or will end up a big mess. Your project is commendable to say the least.
I have a SH Spy 750 Y6 with KDE 2814XF-515 motors. AUW 3.1kg; am about ready to ditch the coaxial stuff, too much monkeying around to make them efficient. You did the right thing getting the KDE ESC's for those motors.
Be sure to keep updates coming.
BTW, here's my teeny PDB (the "coffin"), will never see the high side of 60A. I have to keep things simple or will end up a big mess. Your project is commendable to say the least.
Pumpkinguy
Member
Thanks bro. I gotta say from my research you don't see many guys using kde motors with generic esc's. As a matter of fact, I can't remember seeing one.Wow that is a monster! A work of engineering too. Very impressive.
I have a SH Spy 750 Y6 with KDE 2814XF-515 motors. AUW 3.1kg; am about ready to ditch the coaxial stuff, too much monkeying around to make them efficient. You did the right thing getting the KDE ESC's for those motors.
Be sure to keep updates coming.
BTW, here's my teeny PDB (the "coffin"), will never see the high side of 60A. I have to keep things simple or will end up a big mess. Your project is commendable to say the least.
Motopreserve
Drone Enthusiast
Gorgeous build. Very well done!
What are the gimbals/controllers you are considering?
What are the gimbals/controllers you are considering?
Pumpkinguy
Member
I want this build ready for April so I will really need to start researching gimbals. Movi, gstabi are the 2 front runners so far. Any other suggestions will certainly be considered.
Motopreserve
Drone Enthusiast
Not sure if I missed it - but what camera are you planning to lift?
Pumpkinguy
Member
Any full sized Dslr
maxwelltub
Member
Well one thing I can say about the movi is it works great sometimes. But the problem is all the single point of contact on single tube. When you are flying a fully loaded rig it starts to slip very slightly but enough to through the gimbal out of whack. They may have solved this with the M5 and M15 because I think they use dual tubes now and a full cage system. The gStabi looks like a great design, but with out a gps module out dont know how it deals with inertial roll drift. I don't have any experience with these 32bit boards though so maybe its not an issue.
