Wookong M View and Click to Go.

quadcopters

quadcopters

Quadcopters.co.uk Drone Specialists
Yesterday Quadcopters.co.uk took delivery of the first shipments of WKM View and Click to go and with very limited time I have been working on setting it all up.
So far I can say its currently only working on a 32 bit Windows machine , And It is pouring with rain here today so I wont have chance to get out and play with it , but it looks promising so far.
Once I am happy with this myself, I will remove the out of stock status from my website and will be taking orders.
A few pics attached.

Packaging
View attachment 1768
Receiver Module 2.4ghz
View attachment 1769

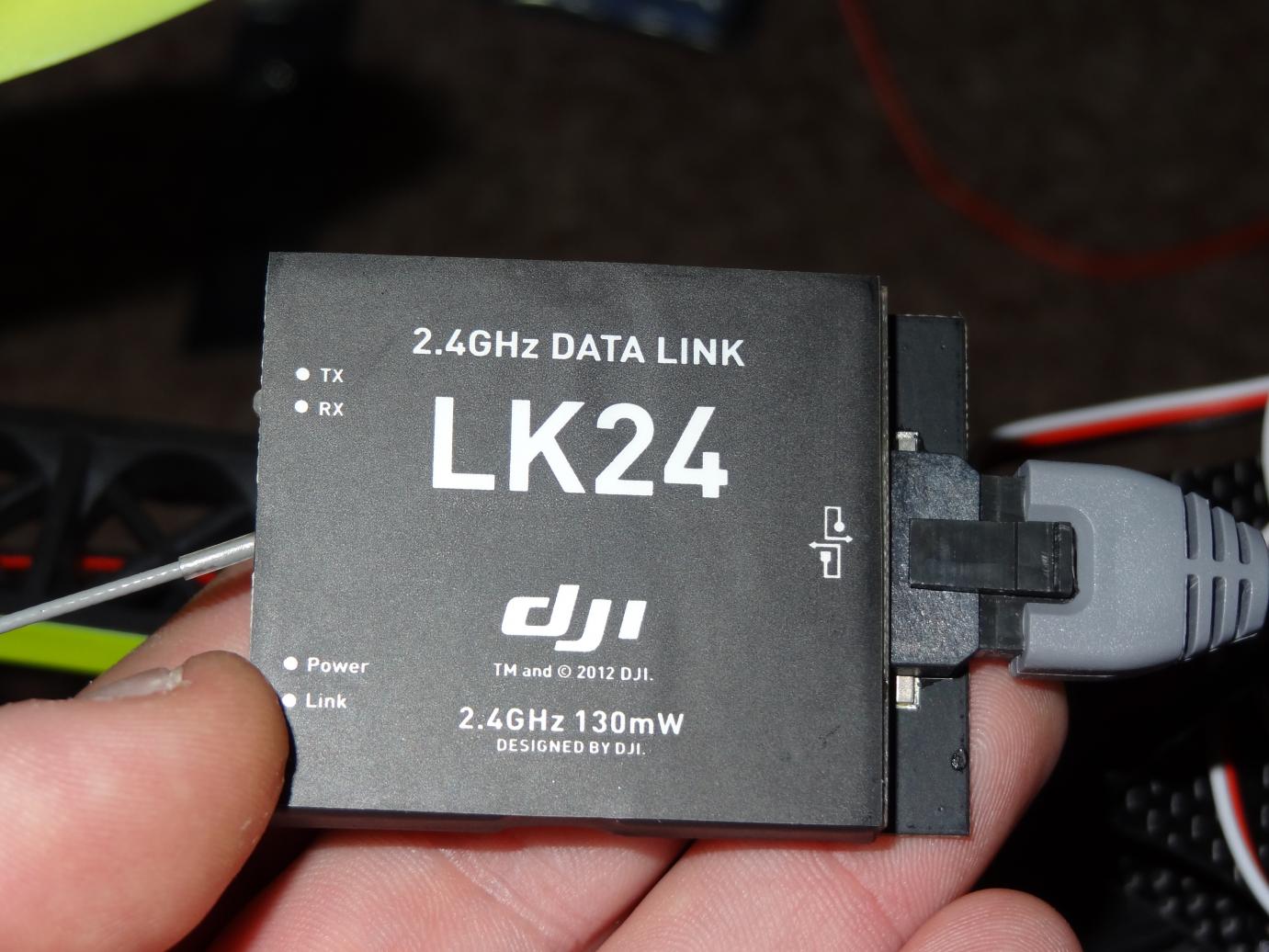

Transmitter module 2.4ghz
View attachment 1770

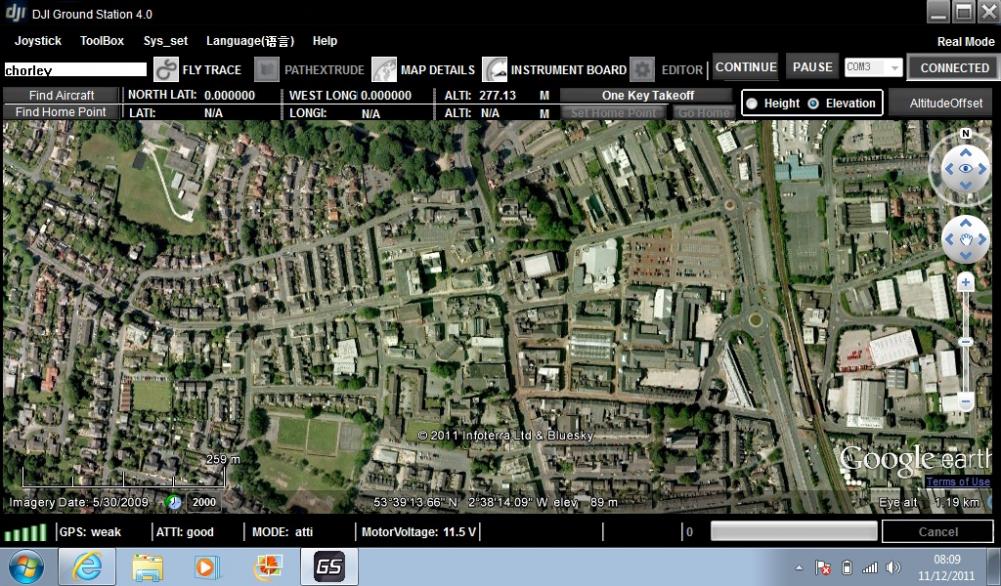

DJI Ground Station 4.0.3 Screen Shot
View attachment 1771

Geoff


Attachments

  • DSC01124.jpg
    123.2 KB · Views: 380
  • DSC01128.jpg
    120.4 KB · Views: 361
  • DSC01129.jpg
    144.9 KB · Views: 421
  • waypoint1.jpg
    148.8 KB · Views: 432

BorisS

BorisS

Drone Enthusiast
HI Geoff,

is there a size difference between the 2.5 and the 900 version ? How big are the modules that go on the copter compared to the PMU for example ?

Thanks

Boris


BorisS

BorisS

Drone Enthusiast
Ah and copter module is only powered by the canbus and the groundstation module by the USB or they both need separate power ?


quadcopters

quadcopters

Quadcopters.co.uk Drone Specialists
I only have the 2.4 version so cant compare sizes sorry , the tx modules are similar length to the PMU but just less than twice as wide so similar size to the MC main controller with a thin single cable antenna about 5" long.
The Tx on the copter is powered by the Canbus and the receiver for the ground station gets power from the USB .
I hope to have some nice weather to test tomorrow.

Geoff



T

Tahoe Ed

Active Member
Very cool Geoff. I hope you get a chance to try it out soon. I am looking at the 900mHz with 1W! Should provide some great long range piloting.


BorisS

BorisS

Drone Enthusiast
it seem like you dont get the info what your gains are in when set from the radio ? that would have been very important for reassurance and just getting to know you copter better in different conditions. If it so its to bad this would have eased the whole setup and trimming procedure.


V

vislaw

Member
I've been tearing my hair out after installing the DJI Groundstation (900mhz downlink) on four machines only to find the Groundstation software hangs on start-up every time. I've disabled Anti-Virus software and have tried running in Safe Mode. After seeing the first post in this thread I am wondering if the problem is all my machines run 64-bit Windows 7 Professional. Could it be this software won't run on 64-bit machines? If so, this is a big problem for me. Has anybody else successfully run Groundstation on a 64-bit machine?


T

Tahoe Ed

Active Member
vislaw said:
I've been tearing my hair out after installing the DJI Groundstation (900mhz downlink) on four machines only to find the Groundstation software hangs on start-up every time. I've disabled Anti-Virus software and have tried running in Safe Mode. After seeing the first post in this thread I am wondering if the problem is all my machines run 64-bit Windows 7 Professional. Could it be this software won't run on 64-bit machines? If so, this is a big problem for me. Has anybody else successfully run Groundstation on a 64-bit machine?
Click to expand...

It states in the manual that it is 32bit only.



B

broadwing

Member
HI guys,

New here but....
We have installed 900 Mhz link, USB-driver, right com poort etc.
Now we get: "access denied"
So we are stucked.............

Any suggestion??


R

RTRyder

Merlin of Multirotors
broadwing said:
HI guys,

New here but....
We have installed 900 Mhz link, USB-driver, right com poort etc.
Now we get: "access denied"
So we are stucked.............

Any suggestion??
Click to expand...

Have you gotten the new serial number to activate it yet? It needs to be activated before it can be used, you should contact the dealer you bought it from with the hardware ID from your WKM and they will get the new serial # from DJI. Once you install the new serial # you will see the functions activated in the Assistant software.

Ken


B

broadwing

Member
Dear Ken,

Thanks for this explaination.
I did not found this in manual and understood that from our dealer!!

I'll contact him and hopefully we get a step furtherm

Thanks and 'll keep you updated,

Koos Maring


quadcopters

quadcopters

Quadcopters.co.uk Drone Specialists
Yes you need to give your hardware Id number to your dealer and they will get you a serial which will activate the view function.

Hope this helps.
Geoff


jetforce

jetforce

FLY HIGH AND STAY HIGH
Hi, which system is recommended, wenn using a 2.5ghz radio ?

the 900mhz or the 2.5ghz M-VIEW ?

BRG

from Denmark

Lars


gadgetkeith

gadgetkeith

likes gadgets
hi Lars

i asked Geoff same thing the other day and looks like you can use 2.4 with 2.4 as its data only

keith


jetforce

jetforce

FLY HIGH AND STAY HIGH
Thanks Keith,

Do you know if it was tested, or is Geoff assuming that there will be no interference.

I`ll like to be 110% sure before buying the upgrade

BRG

Lars


gadgetkeith

gadgetkeith

likes gadgets
i will say i asked about interferance

but Geoff could answer that one for sure if you send him a PM or wait and he will prob reply in here

keith



quadcopters

quadcopters

Quadcopters.co.uk Drone Specialists
I have used the view 2.4ghz with no problems , I am still waiting for a nice day for click to go testing but DJI told me that it is 100% compatible with 2.4ghz radio using the 2.4ghz data link.
I also use 2.4ghz xbee data links with my MK without any issues.
Also 900mhz in the UK is a no no ,,, im sure Vodafone use it .

Hope this helps.
Geoff
