TBS Discovery Homebrew 90 degree tilt Gimble

[usnooz]

Hi guys

I just finished my Tilt Gimble but to get full use of the 90 degrees i need to cut the fromt lip that extends out off.
Does any one know if there are any internal tracks or GND or power planes?

Basicaly i need to cut along the straight edge on the right removing the curved lip.

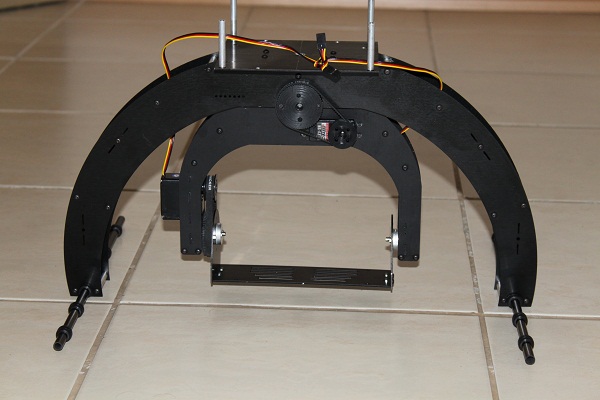

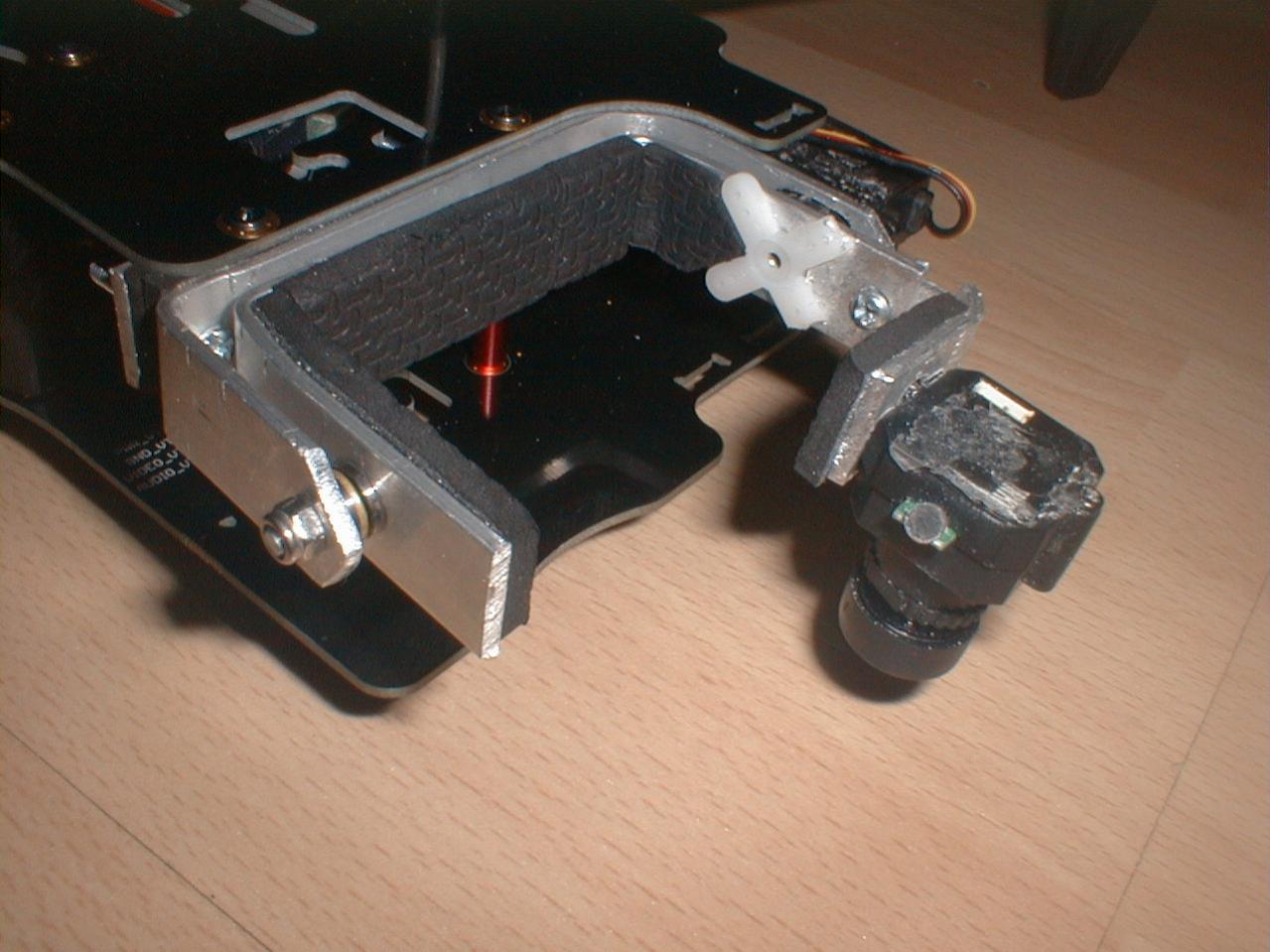

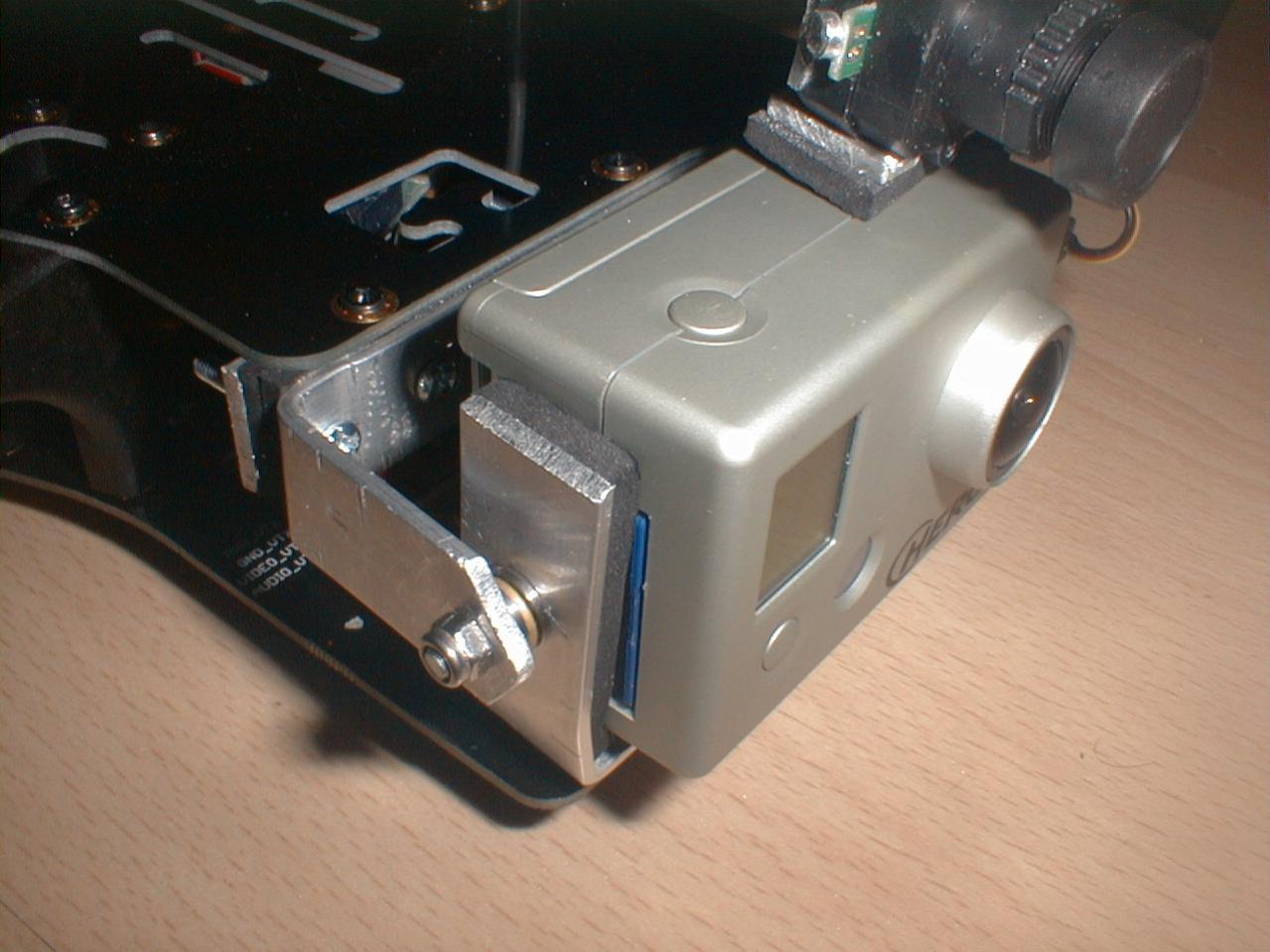

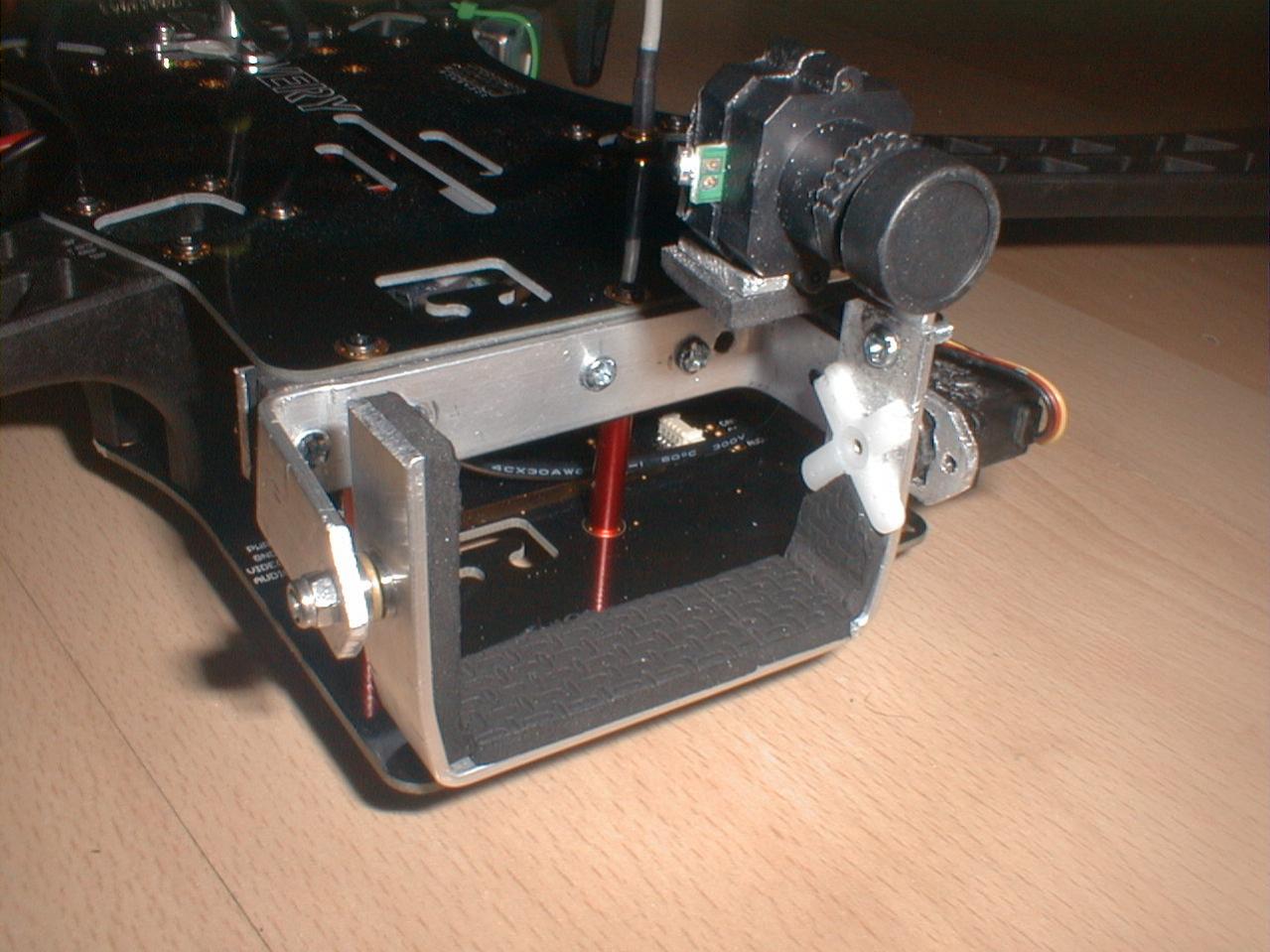

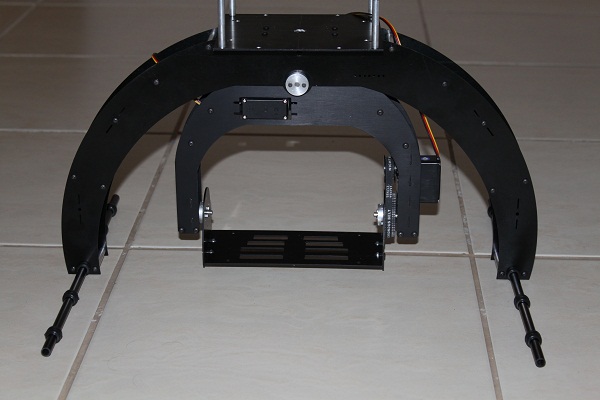

View attachment 7328View attachment 7329View attachment 7330View attachment 7331View attachment 7332



[kloner]

it's all clear through there. file the edges in case any copper crosses the top and bottom when you do it...... i have one thats cutoff 1/4" in front of the bottom boards rubber band mount and the board cam part is just gone.



[usnooz]

Thanks Kloner I'll give it the chop.
