TBS Discovery, FPV Quadro from Team Blacksheep based on DJI Parts
- Thread starter meme
- Start date
Hi Kloner:
TBS Core
TBS 69 FPV Cam
Tuned Lawmate 500 mw VTX
EZUHF
Naza with GPS
Graupners 10"
looking for some Motors to replace the DJI 920s

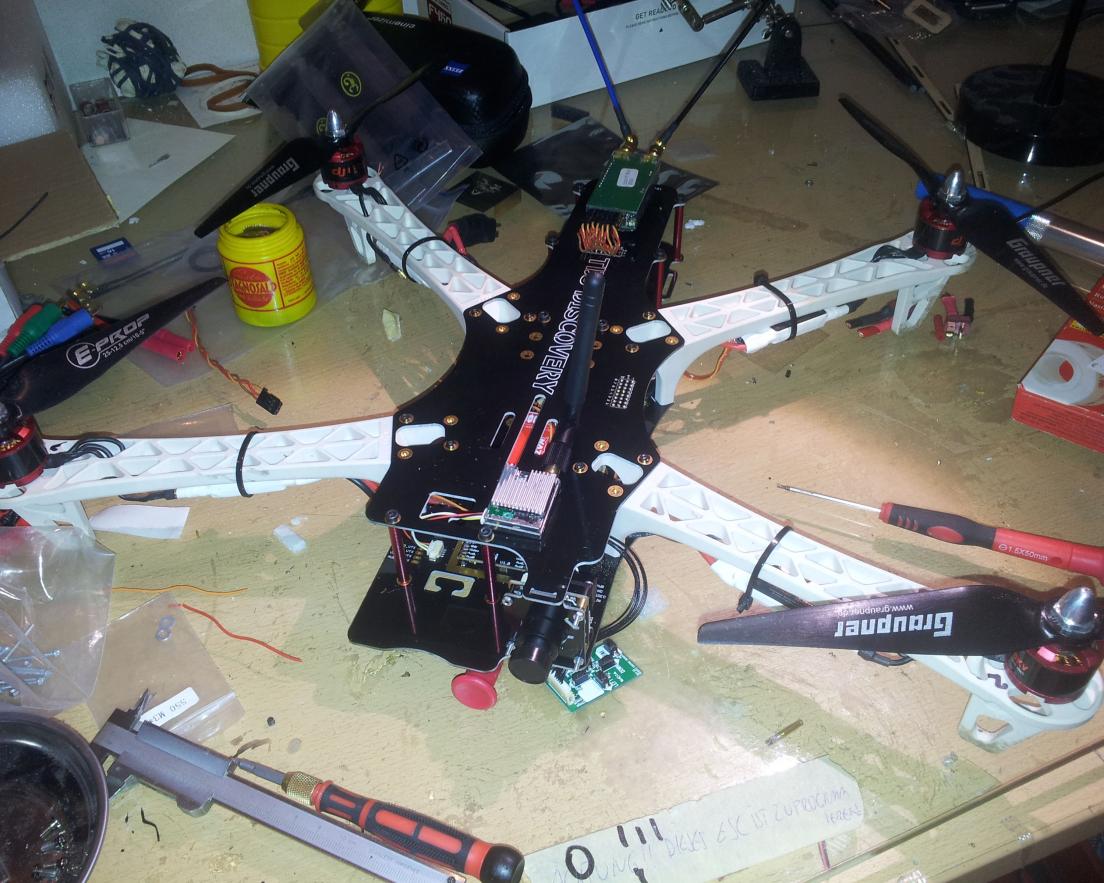

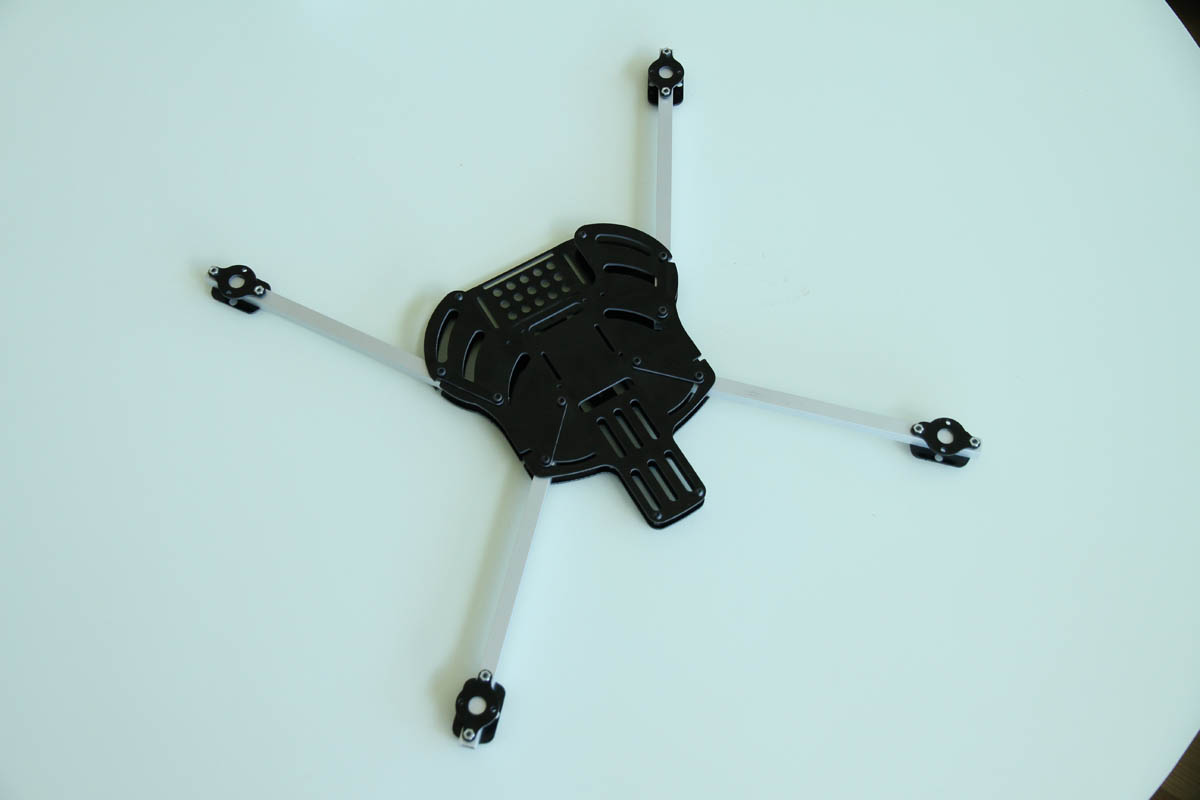

View attachment 4799
cheeers, meme
TBS Core
TBS 69 FPV Cam
Tuned Lawmate 500 mw VTX
EZUHF
Naza with GPS
Graupners 10"
looking for some Motors to replace the DJI 920s
View attachment 4799
cheeers, meme
Attachments
BorisS
Drone Enthusiast
Thanks Meme,
cool than i will order one. My Vc 450 is to cramped up with stuff on it and the TBS frame with the integrated stuff just seems more thought through. Which atennas are you using on the EZUHF and are you using the http://team-blacksheep.com/products/product:118 Tin Shield ?
Thanks
Boris
cool than i will order one. My Vc 450 is to cramped up with stuff on it and the TBS frame with the integrated stuff just seems more thought through. Which atennas are you using on the EZUHF and are you using the http://team-blacksheep.com/products/product:118 Tin Shield ?
Thanks
Boris
Cool, you'll see, the TBS Frame is really clean, love it! U need some screws (16x M3 (short ones for the Spacers) and long 2mm ones for mounting the FPV Cam))
I've got new Antennas from TBS, but this are not the ones in the Pic.
I have the Shield, and damn... you reminded me, i forgot to mount it
Last edited by a moderator:
kloner
Aerial DP
that's good to hear, i hope it's more configurable than the sbus that's there. i had a spektrum rx with sbus and ch1 and 3 were crossed up with no way to change it
Yea, all you need is the rssi for a quad, just remember where you came from
I'm switching over to ezuhf, can't take any more of the DL BS......... what a joke that was to deal with
Yea, all you need is the rssi for a quad, just remember where you came from
I'm switching over to ezuhf, can't take any more of the DL BS......... what a joke that was to deal with
kloner
Aerial DP
probably is, but the guy making them needs to let retailers service his customers. i've waited and waited. they don't answer emails, don't answer there support thread, i'm over it.
bought my system 3-28, then a sec rx 2 days later. got the system early may, still no sign of the second rx, but a rx i bought 3 days ago is sitting here. after 10 posts on his support thread he acknowledged me then ended it with a question, that he has all the info too if he'd just look at the receipts. horrible service, can't support/sponsor that. the 30+ emails i responded to him emailing me never got through. runs a business on a hotmail account.
bought my system 3-28, then a sec rx 2 days later. got the system early may, still no sign of the second rx, but a rx i bought 3 days ago is sitting here. after 10 posts on his support thread he acknowledged me then ended it with a question, that he has all the info too if he'd just look at the receipts. horrible service, can't support/sponsor that. the 30+ emails i responded to him emailing me never got through. runs a business on a hotmail account.
Hello all,
i've had the maiden today and i am very happy with that Copter! It was late and becoming dark so i had only little time. I needed one Lipo to solve some Issues with the Naza GPS, had a lot of Drift in GPS Mode, after repositioning the Antenna and recalibrating the Compass it worked fine.
-I flew the DJI 920 Motors with 4s 3300 Nano`s and 10" Graupners at 26 degrees temperature, both Motors and Lipo went warm, but not hot, i had 8 minutes of flight time with 23% left.
-The Naza GPS locks much faster than the WKM (20 seconds vs. 3-5 minutes)
-TBS 69 with Core works great as expected, also the LM 500 mw VTX, i covered 800 meters with omnidirectional Antennas on VTX and RX, no Snow or Lines in the Image wich was still perfect.
-I forgot the SD Card for the Gopro, so, no Video and no Idea how much Jello or Vibras will be in the Footage.
-It flys like a F450 in Manual and Atti Mode, i see no big difference, maybe the Discovery is a little more nervous in Jaw, the Gains was 170/170/150/120/100/100 today.
cheers, meme

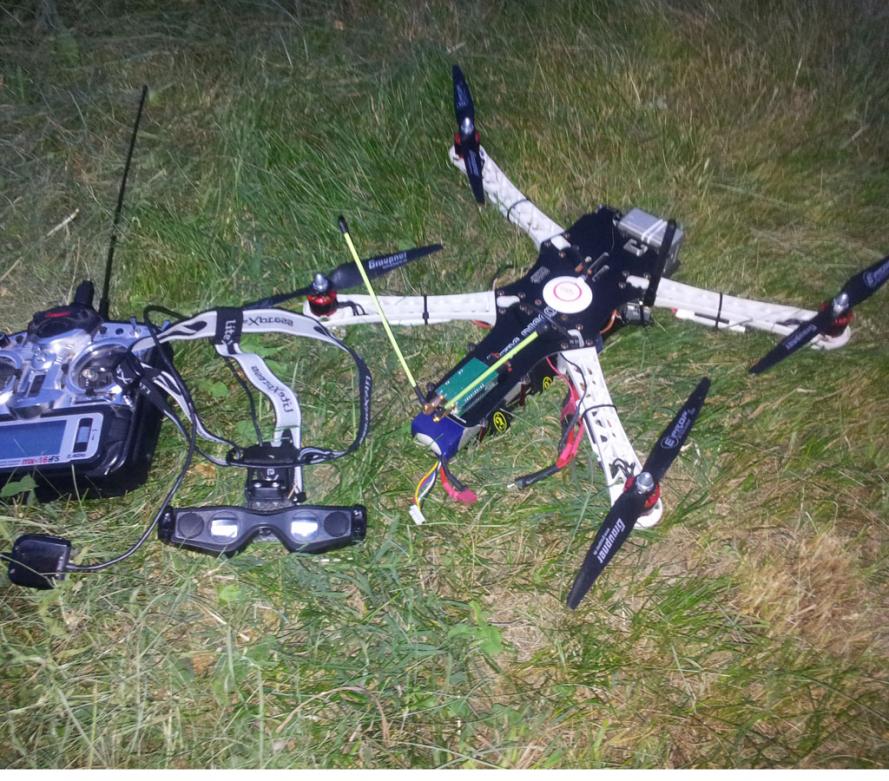

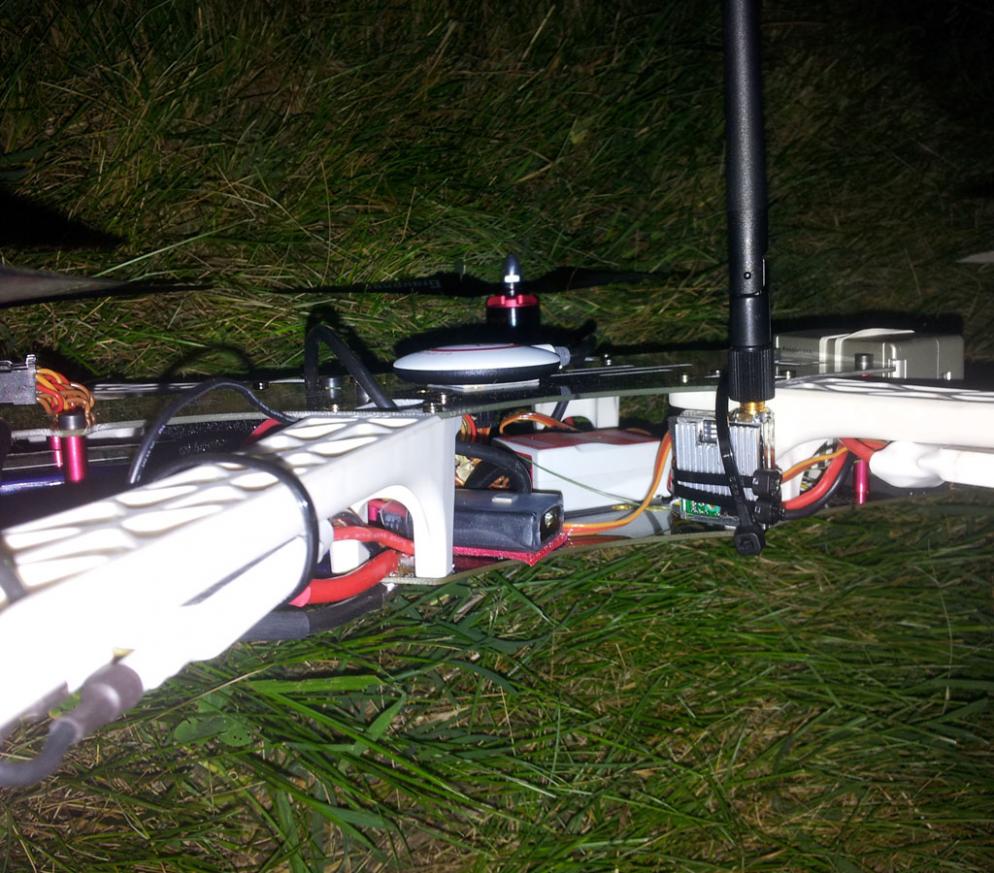

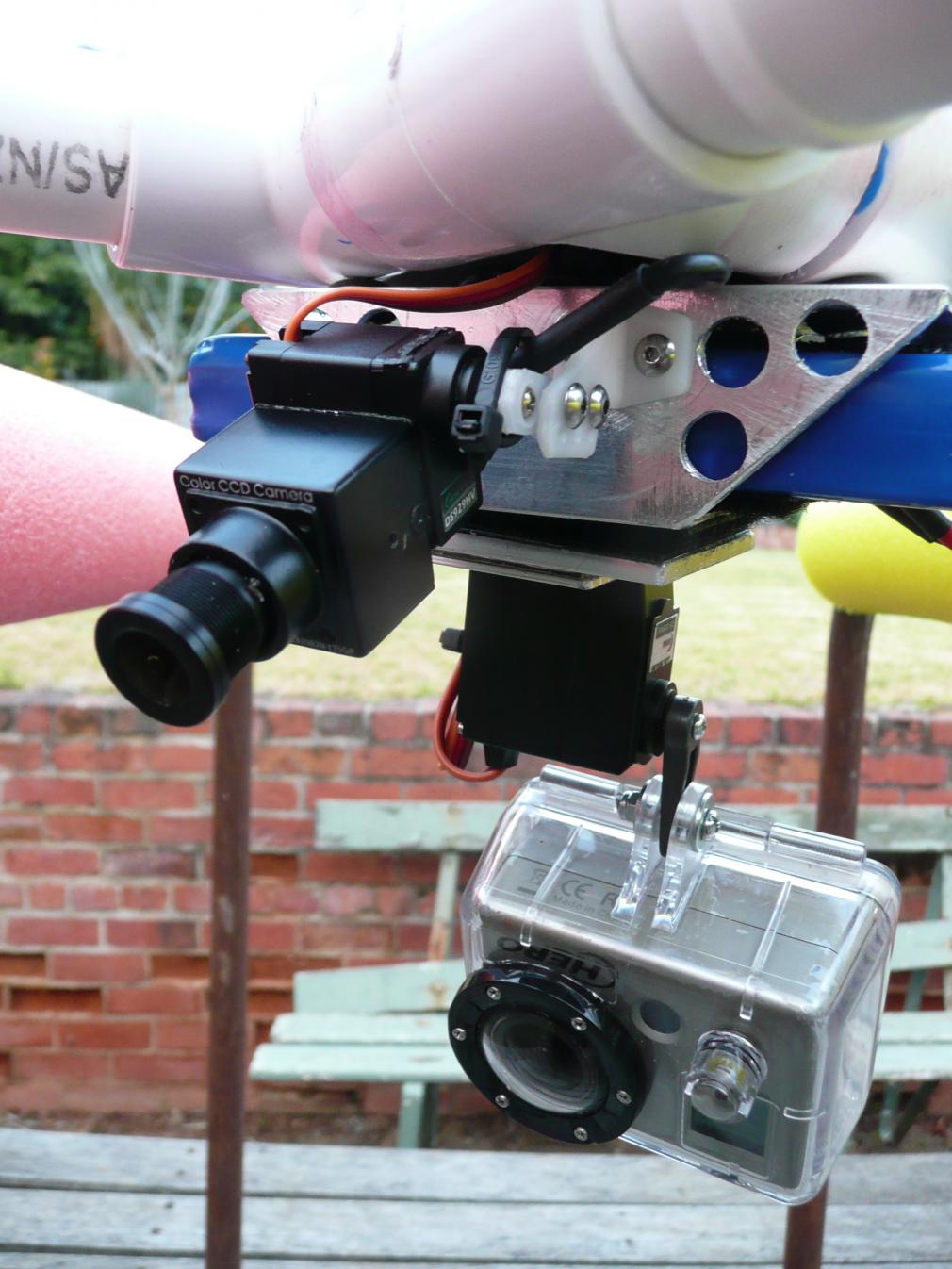

View attachment 4852View attachment 4853
i've had the maiden today and i am very happy with that Copter! It was late and becoming dark so i had only little time. I needed one Lipo to solve some Issues with the Naza GPS, had a lot of Drift in GPS Mode, after repositioning the Antenna and recalibrating the Compass it worked fine.
-I flew the DJI 920 Motors with 4s 3300 Nano`s and 10" Graupners at 26 degrees temperature, both Motors and Lipo went warm, but not hot, i had 8 minutes of flight time with 23% left.
-The Naza GPS locks much faster than the WKM (20 seconds vs. 3-5 minutes)
-TBS 69 with Core works great as expected, also the LM 500 mw VTX, i covered 800 meters with omnidirectional Antennas on VTX and RX, no Snow or Lines in the Image wich was still perfect.
-I forgot the SD Card for the Gopro, so, no Video and no Idea how much Jello or Vibras will be in the Footage.
-It flys like a F450 in Manual and Atti Mode, i see no big difference, maybe the Discovery is a little more nervous in Jaw, the Gains was 170/170/150/120/100/100 today.
cheers, meme
View attachment 4852View attachment 4853
Attachments
Last edited by a moderator:
kloner
Aerial DP
In general rssi is all about how you set it up and there all a little different
if i'm not mistaken the core is based off ezosd....... ezosd and ezuhf use a digital rssi or quality signal. Everything else uses analog. if you are using a different uhf system and need rssi, you need a converter from that cat over at fpv labs, mictronics
on an eagle tree, you can set it so 100% is full signal, then you can either turn it off and let off be 0% or walk it out to right where it starts glitching and reset 0 to be that. I general, you start seeing 20-30% it's past time to turn it around and hang on when you bank her around
when you walk it around and range test, you see what is and isn't critical. in a naza, failsafe comes on or not in a flash and you notice further away, higher works better so always keep that in mind
what r/c system you using
if i'm not mistaken the core is based off ezosd....... ezosd and ezuhf use a digital rssi or quality signal. Everything else uses analog. if you are using a different uhf system and need rssi, you need a converter from that cat over at fpv labs, mictronics
on an eagle tree, you can set it so 100% is full signal, then you can either turn it off and let off be 0% or walk it out to right where it starts glitching and reset 0 to be that. I general, you start seeing 20-30% it's past time to turn it around and hang on when you bank her around
when you walk it around and range test, you see what is and isn't critical. in a naza, failsafe comes on or not in a flash and you notice further away, higher works better so always keep that in mind
what r/c system you using
BorisS
Drone Enthusiast
I have the ImmersionRC EzUhf setup and i am confused because all i have on my OSD is a RSSI value that increases the further the bird is away. But i have no clue how high it is allowed to go and i can't find any reference. You can set an alarm when it reaches a certain amount but no clue what that amount should be.
Boris
Boris
kloner
Aerial DP
seen this, talks about calibrating it, etc
http://www.immersionrc.com/manuals/EzOSDProManual.pdf
noticed theres an analog rssi input,
meme, does core have a analog and digital rssi or just the digital for ezuhf?
http://www.immersionrc.com/manuals/EzOSDProManual.pdf
noticed theres an analog rssi input,
meme, does core have a analog and digital rssi or just the digital for ezuhf?
plingboot
Member
if you look in the ezosd manual, you'll see that the rssi calibration is only required for analogue connections, if you're connecting to an ezuhf receiver with the IRC rssi cable the calibration process is NOT needed.
i'm also foxed by the rssi numbers.
i few my naza/gps equipped ht-fpv again last night and had rssi values from 25 to 52, 0 bad and 100 on the right. ALARM flashed once, but i have no idea what any of that means. add to that little info on tuning antennas for uk legal 459mHz and it's all a bit vague.
the flight was simple - quad about 5m infront of me, then straight up to about 40m where it hovered in gps mode.
i'm also foxed by the rssi numbers.
i few my naza/gps equipped ht-fpv again last night and had rssi values from 25 to 52, 0 bad and 100 on the right. ALARM flashed once, but i have no idea what any of that means. add to that little info on tuning antennas for uk legal 459mHz and it's all a bit vague.
the flight was simple - quad about 5m infront of me, then straight up to about 40m where it hovered in gps mode.
This will make the rssi values of the ezuhf a bit more clear.
The two values on the left are rssi values, they show the received signal strength in db. And they are negative values. So the higher they are the weaker the received signal is. Every 6db is doubling your range, so at twice the range you should see a increase of about 6db. The number next to it is the amount of failsaves you had. And the number all the way on the right is the signal quality. This should stay at 100 or very close to it. You have al these numbers because you could have great signal strength but still have a very bad signal quality. At about 90-100 rssi the signal quality will drop and when it gets to low you will get a failsave and it will say alarm. This is offcourse only with the ezuhf-ezosd link.
The two values on the left are rssi values, they show the received signal strength in db. And they are negative values. So the higher they are the weaker the received signal is. Every 6db is doubling your range, so at twice the range you should see a increase of about 6db. The number next to it is the amount of failsaves you had. And the number all the way on the right is the signal quality. This should stay at 100 or very close to it. You have al these numbers because you could have great signal strength but still have a very bad signal quality. At about 90-100 rssi the signal quality will drop and when it gets to low you will get a failsave and it will say alarm. This is offcourse only with the ezuhf-ezosd link.
