FPV setup, Do these components make sense ?

[plingboot]

nice, as mentioned before i have a similar set-up… in my head.


need to hawk some unused bits to start a fund for it :tennis:



[BorisS]

cool looking forward to exchange some expieriences than !

Did you see any range tests with the immersion ezUHF, what do people achieve with it ?



[plingboot]

im sure i've read that with a high gain antenna 5km or more should be possible.

id maybe consider that kind of range with a flying wing like a zephyr, but i'd be surprised if i ever fly as far as 1km with a quad



[BorisS]

pling are you sure PPM out isnt supported by the receiver ?

check this video of a guy using the Immersion receiver with MK mentioning PPM ?

Around 6:05



[BorisS]

Ah got it thats cool, something that works which wasn't expected rare

Quoted from a OP forum thread:


Most ImmersionRC equipment can be configured using our ImmersionRC tools installed on a PC, the EzUHF Tx and Rx are no exception. Go here for the installation package for the ImmersionRC tools:

http://www.immersionrc.com/EzUHF.htm

After installing the ImmersionRC tools simply go to: Program Files > ImmersionRC > ImmersionRC Tools and connect your EzUHF 8ch. Rx to USB (no need to press any buttons).

You'll be presented with a window featuring a column on the right labelled 'Select Device', there you select the EzUHF 8ch. Rx and in the configure tab you can configure PPM out on CH1 using Mikrokopter mode (other channels will remain working normally).

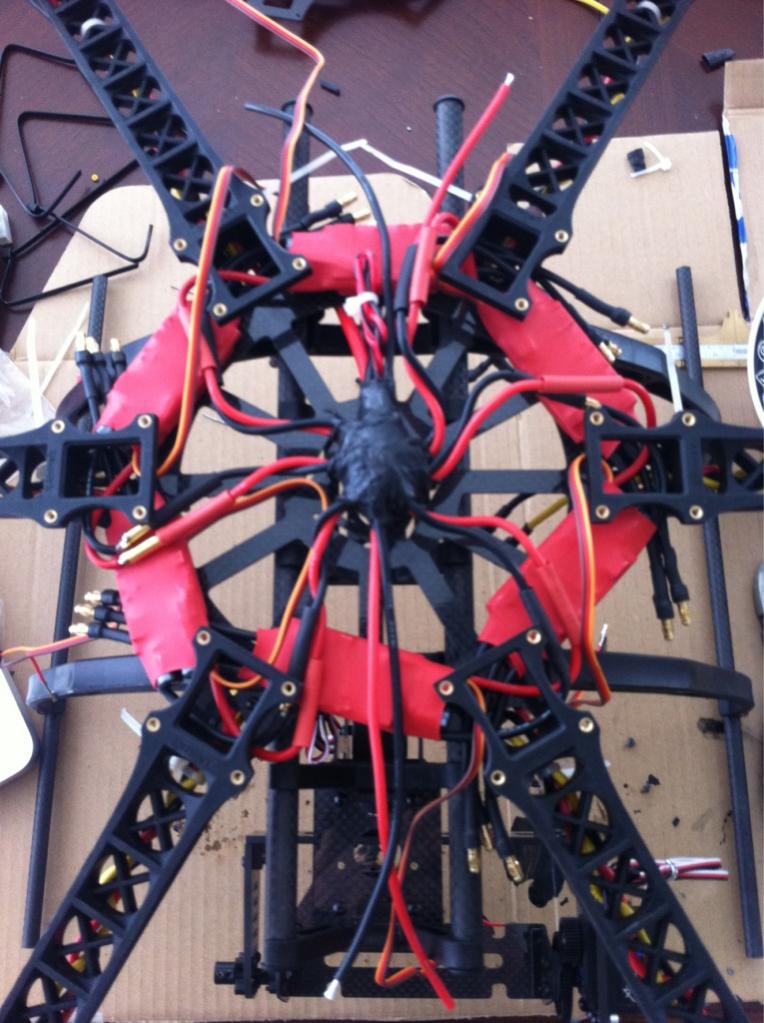

View attachment 3038
