TopXGun Releases X30

Discussion in 'DroneVibes News' started by TopXGun, Jul 9, 2017.

  1. TopXGun

    TopXGun Member

    39
    0
    1
    Dec 29, 2016
    China
    Posted by TopXGun, Jul 9, 2017 #1
    1. Introduction
    http://topxgun.com/en/

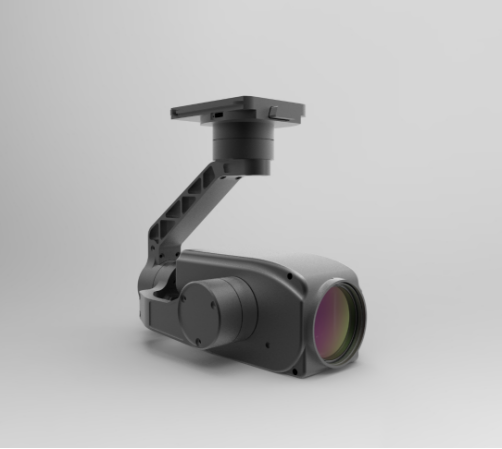

    TopXGun X30 is a set of industrial application solution for professional clients. It is a professional task system integrating technologies such as remote camera, pan tilt, digital image transmission and control, which can be widely used in fields like inspection, survey, monitor, public security and firefighting.





    2. Product features

    Optical zoom

    With 30X optical zoom lenses and 4X digital zoom function, TopXGun X30 can photograph every tiny detail clearly 100 meters away. Equivalent focal length between 28.8 millimeters and 864 millimeters enables you to switch modes freely between wide-angle shooting and remote picturing. In practical application, there is no need for aircrafts to get close to the object and the every detail can be captured from the distance, which to a great extent makes our work easier and also safer.



    Click to enlarge images

    TopXGun X30 can enlarge the selected area automatically by clicking the mouse (enlarge two times by each click) while only central area can be enlarged for traditional zoom camera. It can be very difficult in practical application with the traditional way in consideration of the unmanned aerial vehicle’s pan milt motion. TopXGun X30 pod can adjust the span angle automatically and centralize the selected area to enlarge with interactive operation method, which is so easy to operate. (And it is only for static object for a while.)




    Outstanding night vision

    The large CMOS of 1/1.8 helps to obtain better image quality and it is so easy to get outstanding imaging effect with powerful ability in low-light conditions (color: 0.05Lux/F1.5, black and white: 0.005Lux/F1.5.) All the details can be clearly seen in both day and night, which greatly widens the application range and enhances the work ability of the unmanned aerial vehicle.


    Stable picture

    Extremely stable requirement is necessary for remote photography. TopXGun X30 pod adopts professional stabilizing technology to limit camera shake within 0.01°, which makes it possible to obtain clear picture even 30X focal length away. Three axis pan tilts can not only limit camera shake as much as possible but also compensate the movement of the unmanned aerial vehicle no matter how is moves, hovering or moving fast so as to get stable and fluent pictures.


    Remote transmission

    TopXGun X30 integrates HD digital image transmission equipment up to 8 megabit transmission stream and is equipped with standard antenna. Its transmission distance is up to 5.7 kilometers, satisfying requirement in most industries.


    Making things simple

    Traditional task system need separately configure image transmission module, digital transmission module, pod remote control module and so on. By doing this, these modules bring many problems like more weight, complicated electrical links and radio interference among different frequencies and impedance matching. TopXGun X30 has highly integrated transmission systems like image transmission, data two-way transmission, pan tilt control, which not only reduces equipment weight in the sky to reduce power consumption but also reduce the number of radio communication modules and the risk of interference among transmission modules and the cost of users and makes it less difficult to operate and maintain.





    3. Technical parameters

    General parameters

    Product name

    TopXGun X30

    Size (length, width, height)

    183*145*175mm(temporary)

    weight

    918g(temporary)

    Working voltage

    12V-25V

    Power consumption

    7W

    Environment parameters

    Working temperature

    -10° to 45°

    Storage temperature

    -20° to 60°

    Pan tilt parameters

    Angle shake amount

    ±0.01°

    Installation mode

    detachable

    Controllable rotation range

    pitch:+60° to -120°;course:±160°

    Structure design range

    pitch:±175°course:±175°;roll:+90° to﹣50°

    Maximum controllable speed

    pitch:120º/s; course:180º/s

    Camera parameters

    Sensor

    CMOS:1/1.8″; total pixel:600w

    Camera lens

    30X optical zoom F 6~180mm

    aperture:1.5~4.3

    minimum shooting distance:10mm~1500mm(close focus ~ far focus )

    viewing angle ( horizontal ):61~2.3°




    Digital zoom

    4 times

    Image storage format

    JPEG

    Video storage format

    MP4

    Working mode

    video; picture; replay

    Photograph

    Single shooting; continuously shooting ; camera timer

    Electronic anti-shake

    supported

    Penetrating fog

    supported

    Exposure mode

    Automatic exposure; manual exposure; shutter priority exposure ; the aperture priority exposure

    Screen resolution

    50Hz;25fps(2560*1920)500w

    Lowest light

    color:0.05Lux/F1.5;black-and-white:0.005Lux/F1.5

    Day-night switching mode

    Automatic mode

    2D de-noising

    supported

    3D de-noising

    supported

    Electronic shutter

    1/3~1/30000 second

    exposure

    Automatic mode;manual mode

    Information video overlap(OSD)

    supported

    Clicking zoom

    supported

    Clicking zoom range

    1~30 times optical , 4 times digital

    One-key zoom to single image

    supported

    Supported storage card type

    Micro SD card

    Data transmission,image transmission information

    Frequency range

    2.4g/900 megabit

    Transmission distance

    5.7km no shadow, no interference

    Antenna gain

    5db(sky) 7db(ground)omnidirectional antenna

    Effective omnidirectional radiation power

    100mw~1w adjustable

    Video output interface

    Network interface

    Working temperature

    -45°~+80°

    Tags:
  2. DroneTalk

    DroneTalk R/C Expert Staff Member

    470
    42
    11
    Jul 8, 2015
    new jersey
    Posted by DroneTalk, Jul 20, 2017 #2
    Send on to us for review. :)

  3. TopXGun

    TopXGun Member

    39
    0
    1
    Dec 29, 2016
    China
    Posted by TopXGun, Aug 17, 2017 #3
    Hot summer has gone, let's join with TopXGun to embrace Autumn.

  4. TopXGun

    TopXGun Member

    39
    0
    1
    Dec 29, 2016
    China
    Posted by TopXGun, Aug 30, 2017 #4
    Rainbow R1 Data Chain User’s Manual V1.1 and X30 Optical Zoom Pod User’s Manual V1.1 have been released, for more info, please contact global@topxgun.com.
