SOLD SOLD

Discussion in 'FPV and OSD Equipment For Sale' started by akira23, Dec 28, 2016.

  1. akira23

    akira23 New Member

    4
    0
    1
    Jul 28, 2016
    New Jersey, USA
    Posted by akira23, Dec 28, 2016 #1
    1200.00 OBO (1600 Retail)

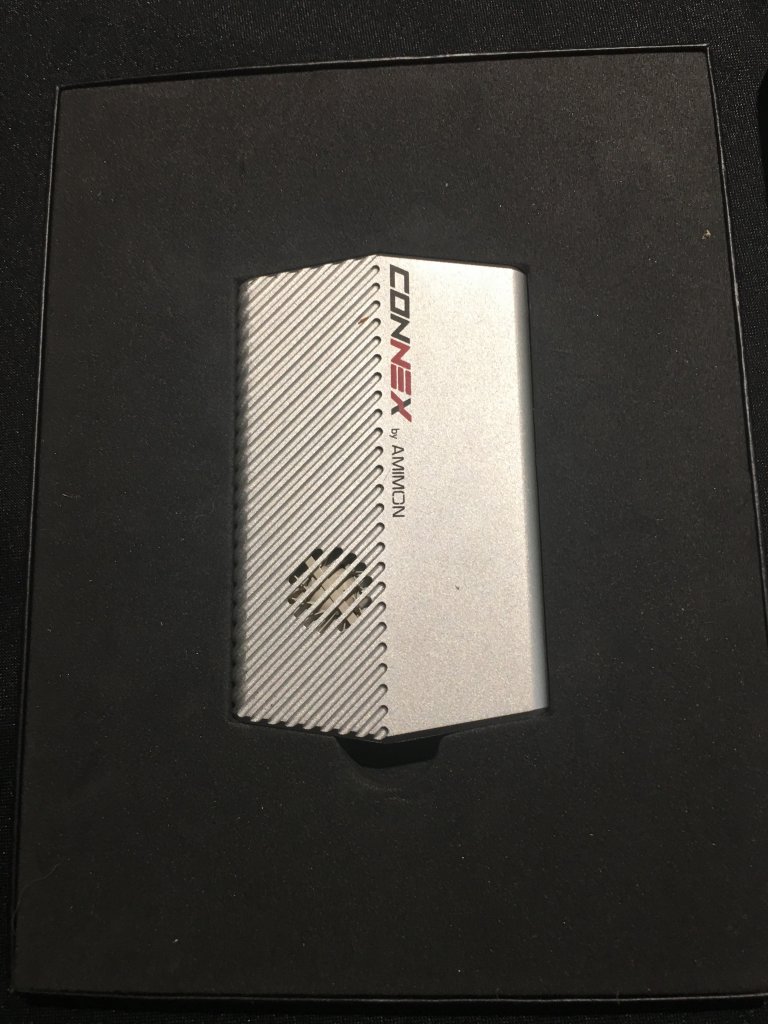

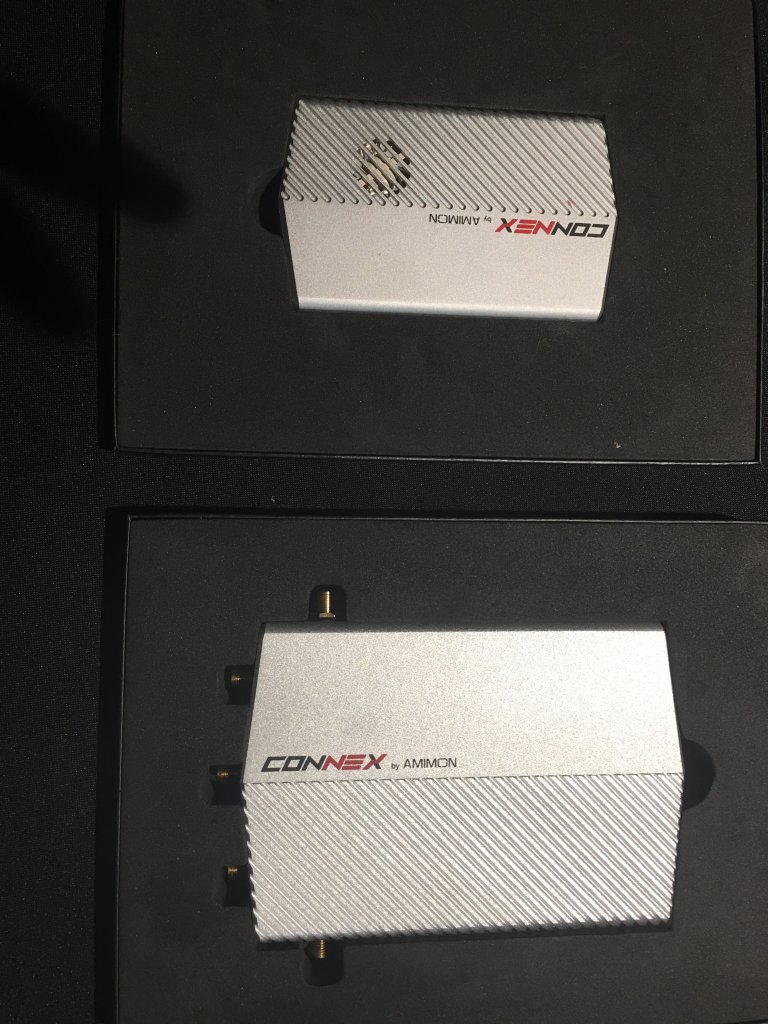

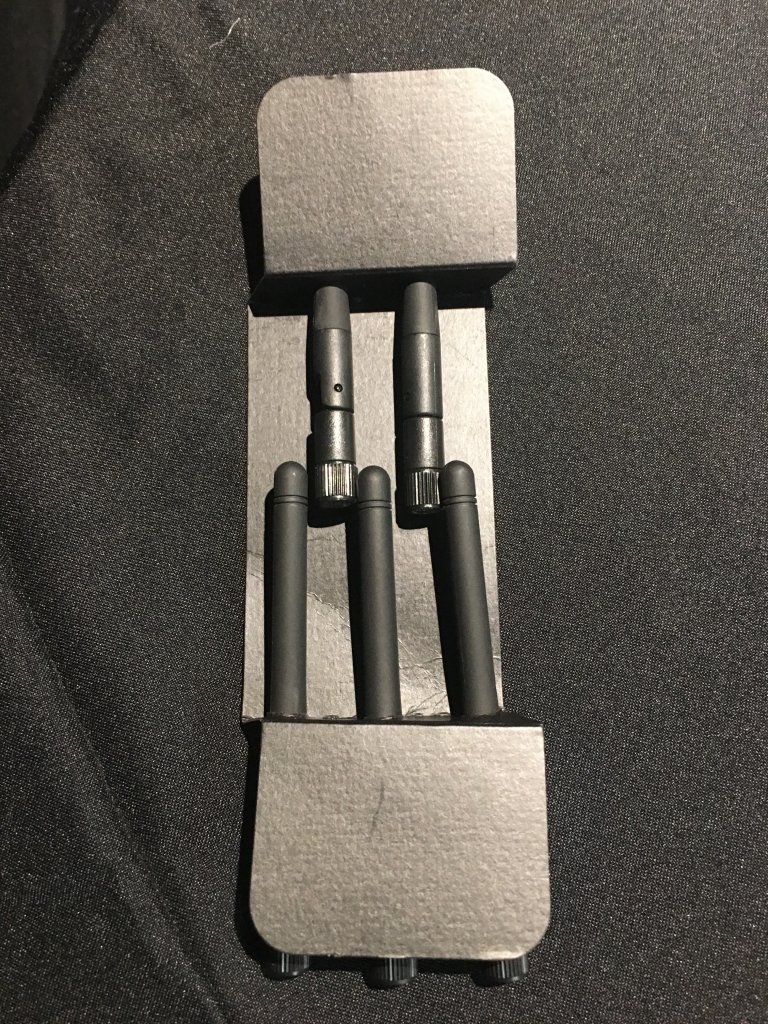

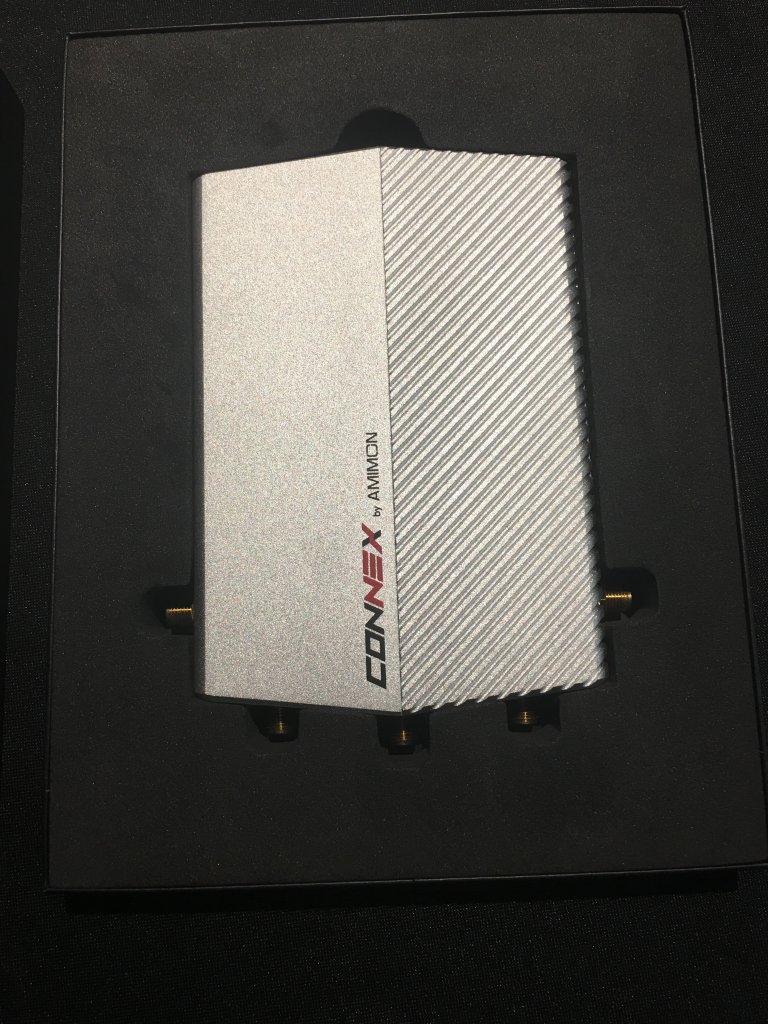

    This is a great unit used, but repackaged exactly as received - including every cable, antenna, etc.. Used a few times, works flawlessly. The signal is robust and is not squashed by interference. I have two of these and only need one.




    Whereas traditional 5.8G analog systems limit you to SD resolution, with the CONNEX Wireless HD Video Link for UAVs from Amimon , you will be able to view a live, near-zero latency, feed from a UAV-mounted camera at up to 1080p60 resolution. Suitable for monitoring, FPV, and gimbal operation, the system features a range of up to 3300' line-of-sight (depending on conditions). It incorporates an S.BUS relay so that gimbal controls for S.BUS-compatible gimbals can be relayed to back to the aircraft (gimbal remote available separately), and can display OSD data from MAVLINK telemetry modules (telemetry system available separately). The video transmission in encrypted to help prevent eavesdropping. The transmitter can link to up to four receivers, for example allowing the pilot and camera operator to each have their own monitor or FPV goggles (additional receivers available separately).

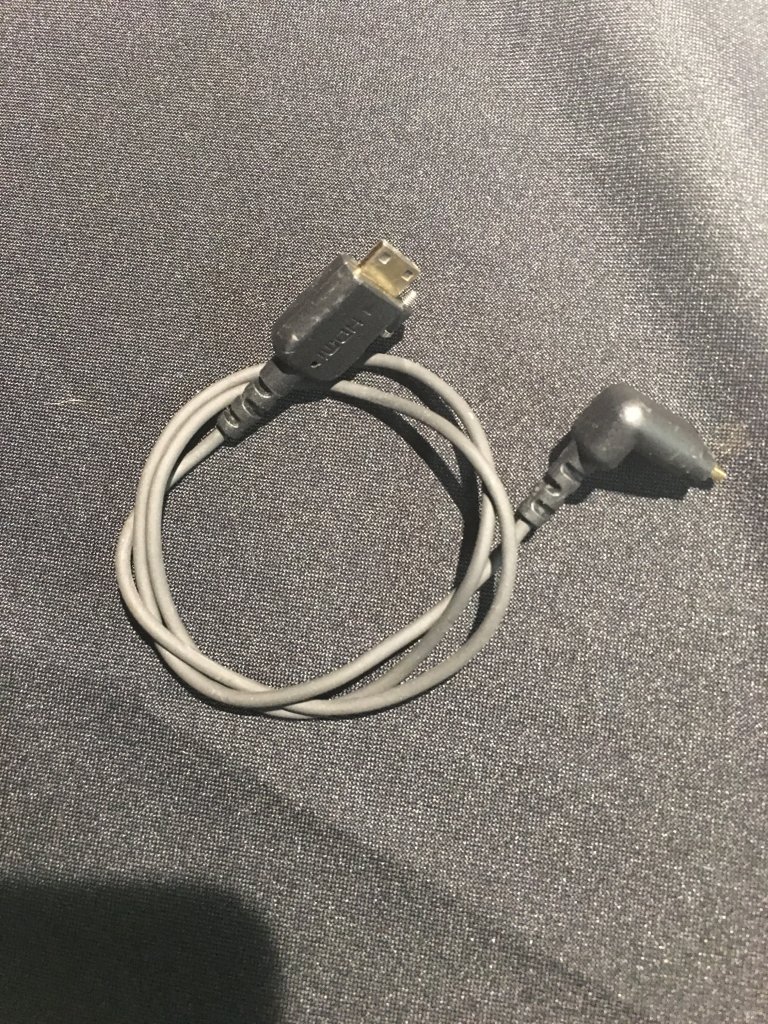

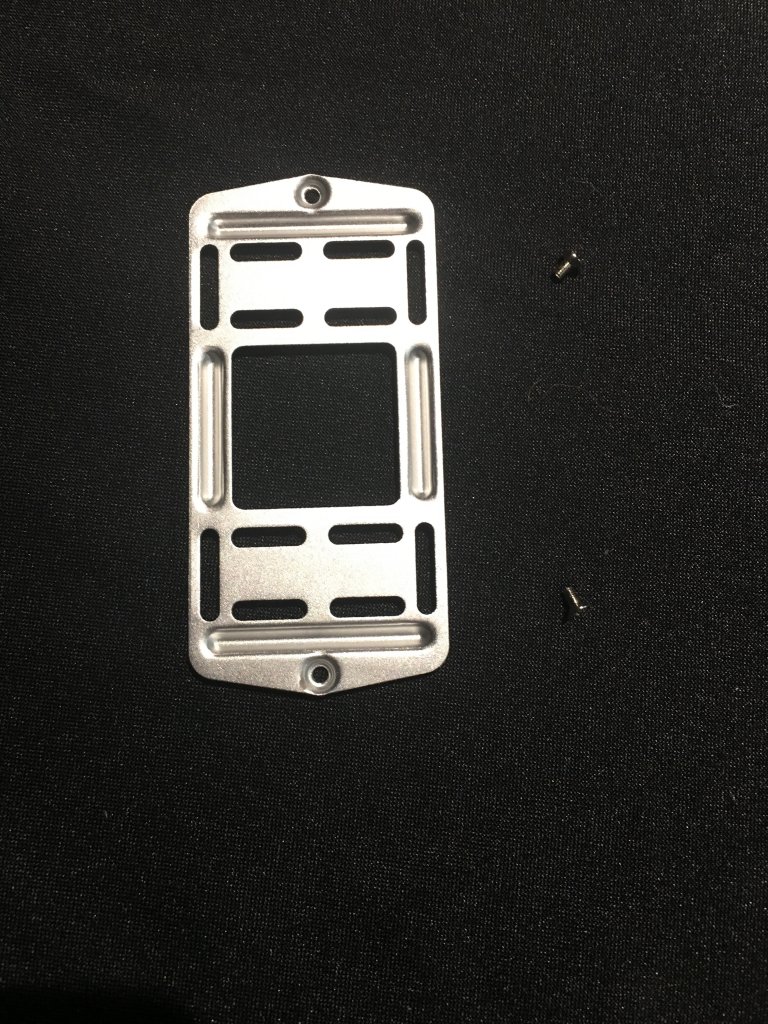

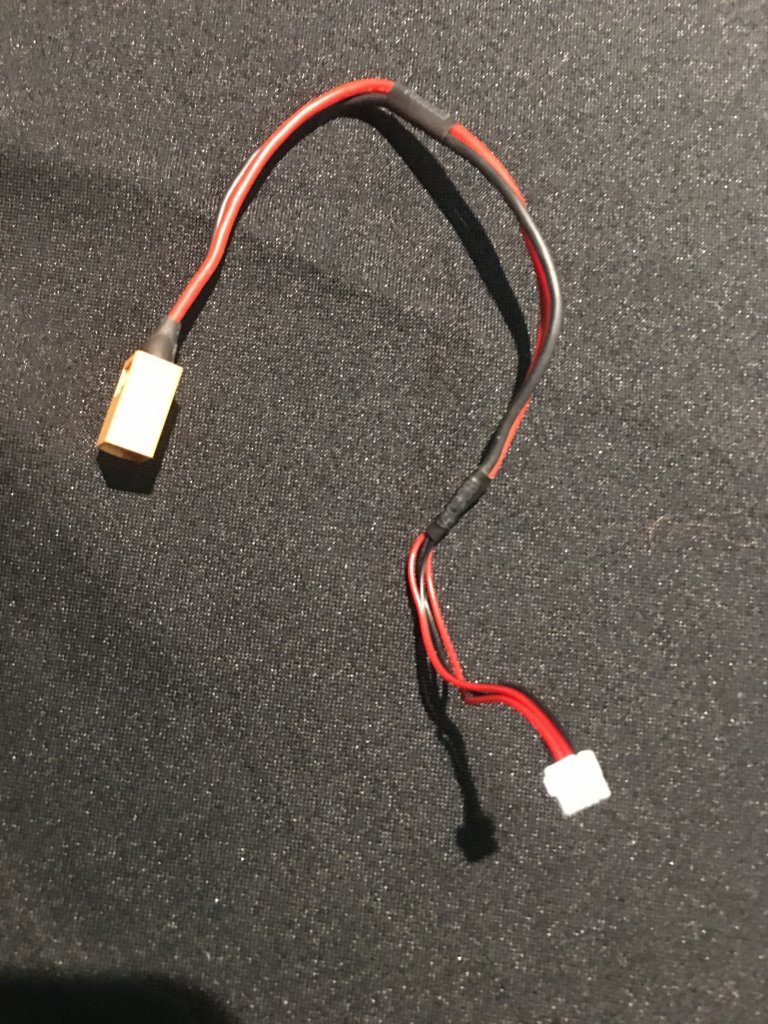

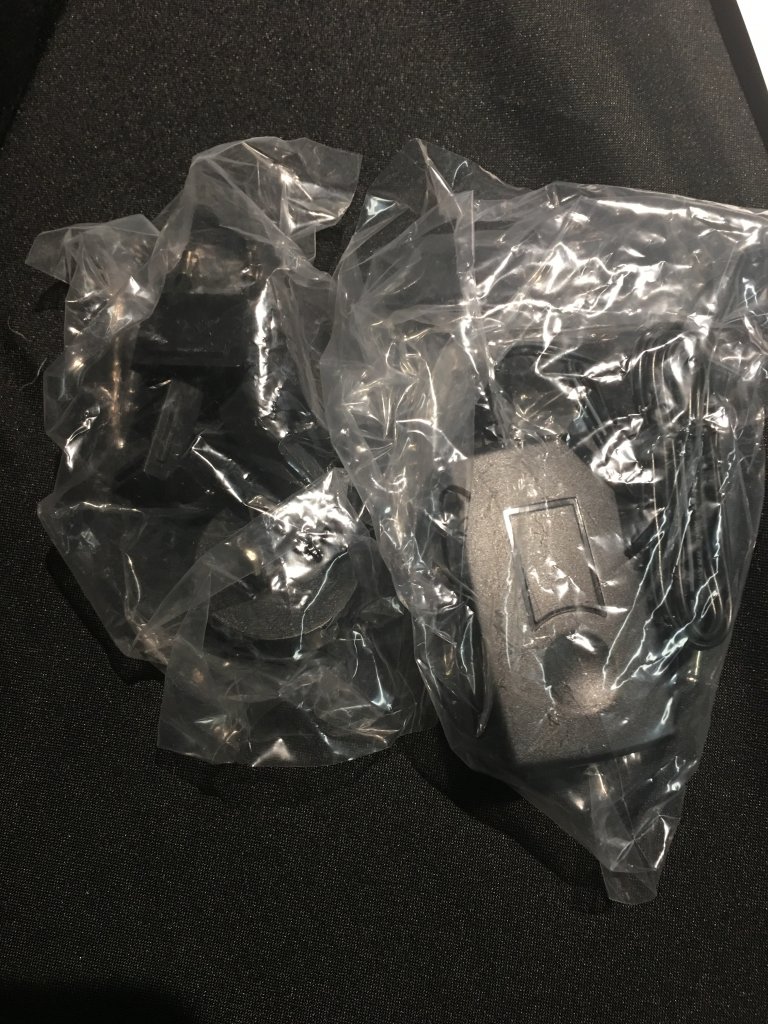

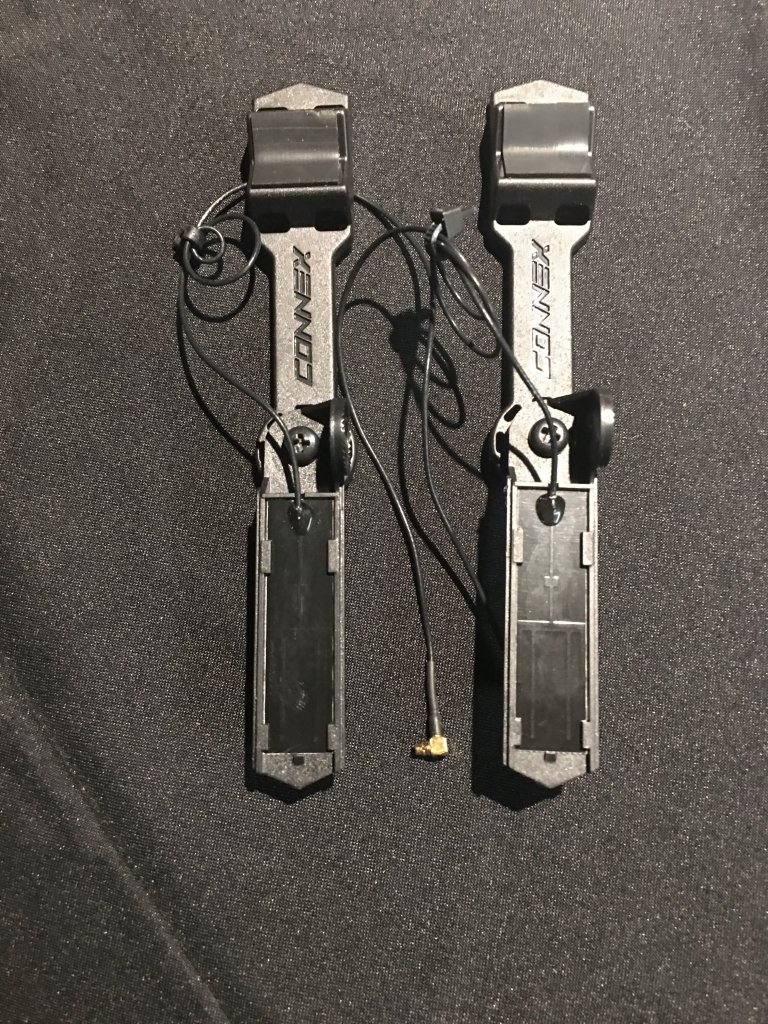

    Cables and mounting hardware are included. The air unit is designed to power from the flight battery, while the ground unit includes an AC adapter. The ground unit can also power from a separately available 7 to 19 VDC source for added flexibility in the field.

    Plug & Fly
    CONNEX is designed to setup and get you working out of the box - no complicated binding procedures here

    Full HD Resolution
    Unlike analog systems, which limit you to SD resolution, the digital CONNEXT system provides support for up to 1080p60

    Virtually no Latency
    Featuring less than 1 ms of latency, the CONNEX does not buffer or hold your video, so that you can see and control what's happening live. Use CONNEX video to help you fly, aim the camera, or operate the gimbal

    5.8G ISM Band Operation
    CONNEX uses the 5.1 to 5.8 GHz frequency range to avoid interfering with aircraft control systems, which are usually 2.4 GHz. Automatic Frequency Selection (AFS) will choose the best available channel to be used, and will move seamlessly to an alternative channel on-the-fly if needed

    Gimbal Control
    CONNEX is able to relay the control signal for an S.BUS-based gimbal mounted on the UAV. Using Futaba S.BUS from the remote control, you can use CONNEX to simultaneously get video from the drone and control the gimbal on it

    OSD (On-Screen Display) Overlay
    CONNEX On-Screen-Display (OSD) is a great way to see your flight status. The OSD shows both information about your wireless link status, and MAVLINK-based telemetry from your UAV flight controller

    Note: MAVLINK telemetry system required to supply OSD data (available separately)

    Encrypted Transmission
    CONNEX employs AES128 for the video encryption and RSA1024 for key exchange to help ensure no one unauthorized is able to intercept your video feed
