RTF: Cinestar HL8 + Freefly 3x Gimbal + WKM - Heavy Lifter

Vojec

Member
FOR SALE:
RTF Multicopter Cinestar HL8 for Professional recording is grounded for about 4 months. Owner and director of the leading stock video has decided to sell (we used two other multicopters).

In these 2 years, we have a great flights without hard landing or crashes. We also had a difficult flight as: fly-off propeller (controled and safe landing), heavy snow, ice on props, strong gusts of wind.

We have done about 225 flights (30hour flight). Freefly gimbal is adapted for heavy cameras. We flew with Sony EX1, weight 2.5kg. The total weight of the Cine8 was about 12.5kg. We fly with 2x parallel GensAce 5S 10.000mAh, 10min in the air.

At the beginning we flew with MK electronics then Kopterworx upgraded to DJI WKM. The best feature of cinestar is: With the rapid acceleration Cine8 did not lose height (we fly up to 500m long with 2m above the water surface with average speed of 14 m/s or 50km/h, without drop attitude). It is a flat setup with 8 high speed KW8 engines. To stabilize gimbals uses the Picloc v2.

All settings on the WKM helicopter and Picloc-u are saved. Below is a list of components:

cinestar frame HL8 - Boom 45cm long - link
KW8 kopterworx motor - link
KW60E esc - link
DJI wkm - link
DJI iosd - link
3 axis cinestar freefly gimbal - see attached img
Picloc v2 - link
2x600 immersion TX - link
1x mini HDMI to analog converter
mini fpv cam from securecam2000
8x XOAR 14x6 props - link
prop covers
Power board - link
5.8 antenna - link
travel case

I this is whole setup, just attach RX and you are ready to FLY.

Here is some video that we made with Cinestar:

Cinestar HL8 iStock video clips: http://www.istockphoto.com/search/lightbox/13877842#98b5d3d

We ask € 5000,00. We are located in Slovenia, EU and can ship worlwide. Feel free to ask and we do best to answer.

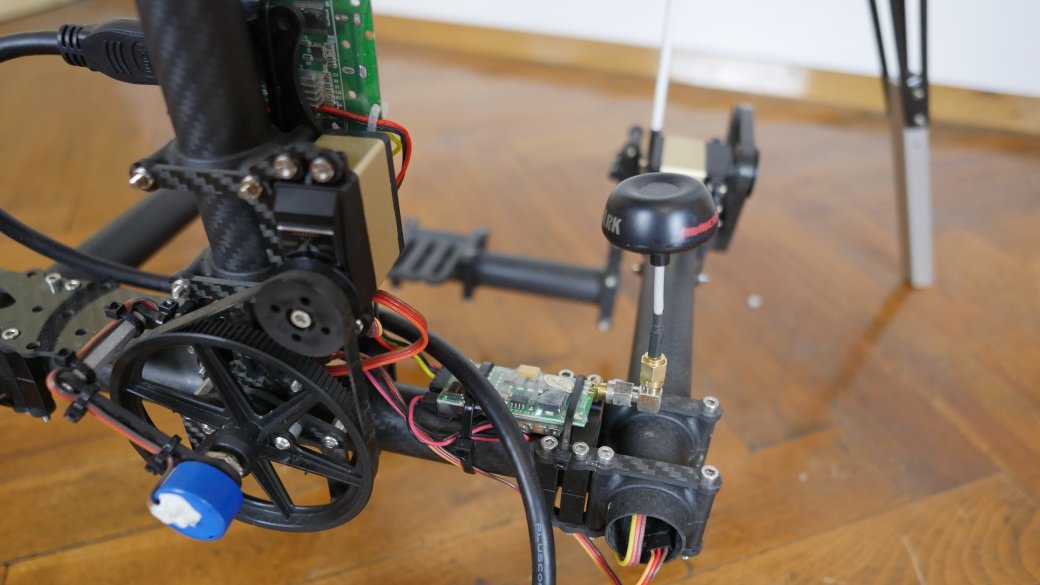

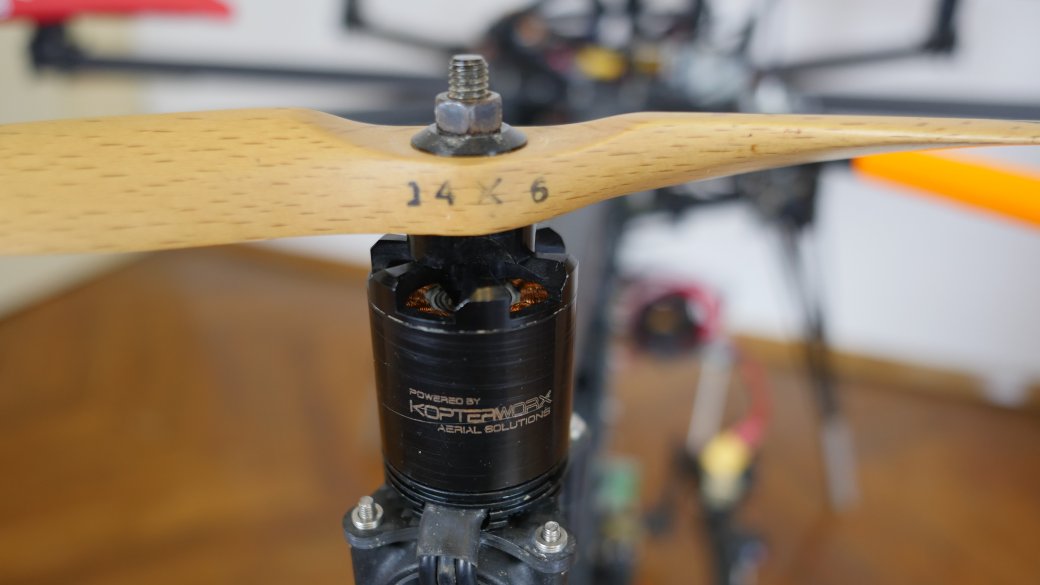

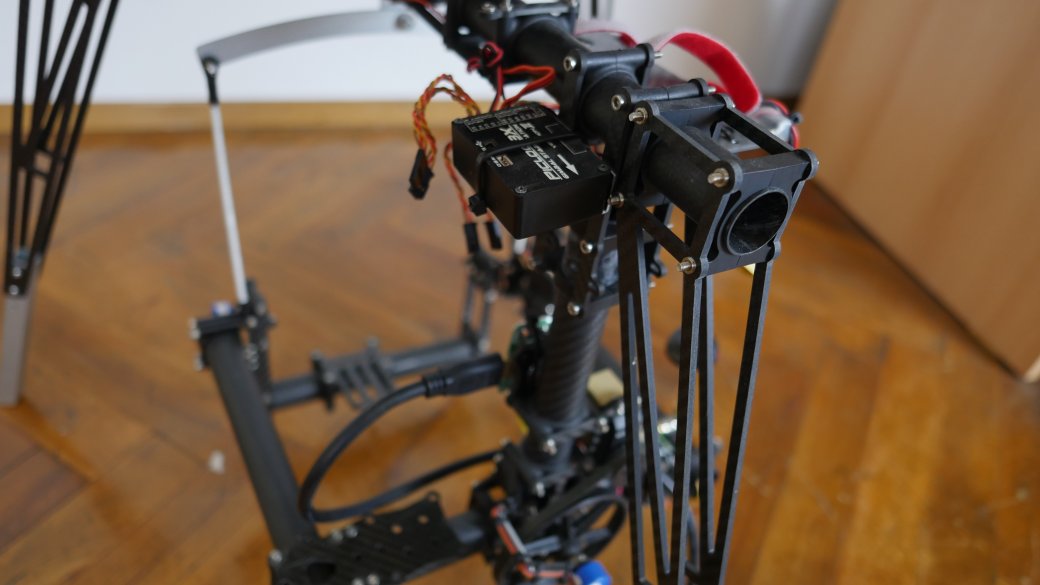

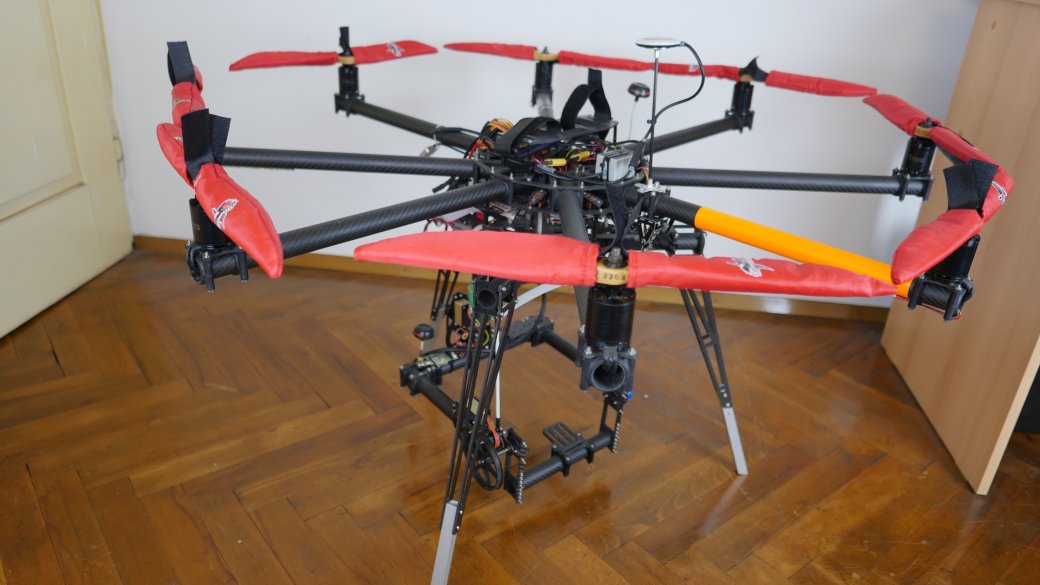

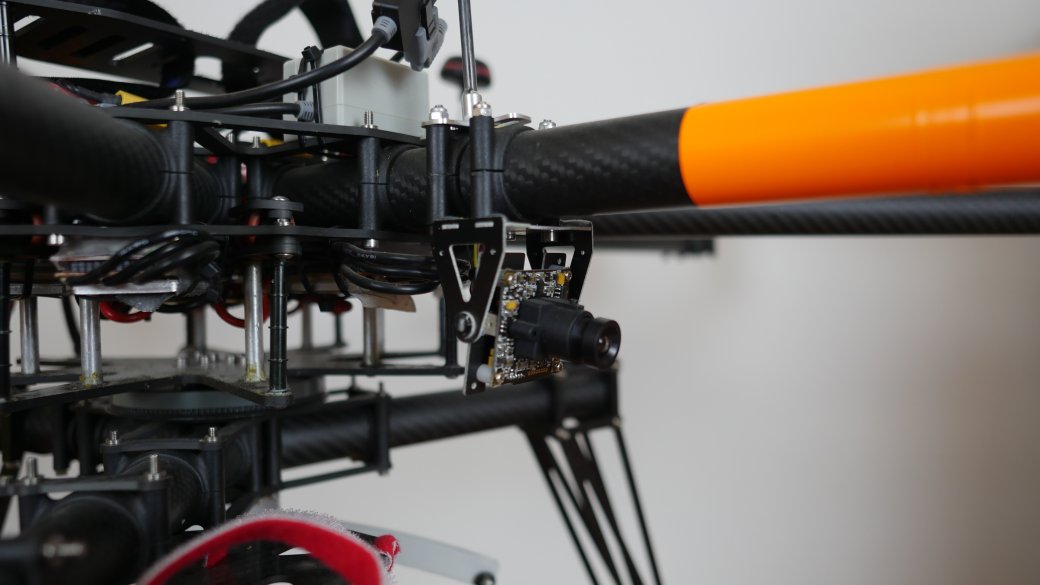

cinestar images:


Attachments

  • P1110255.JPG
    87 KB · Views: 267
  • P1110256.JPG
    79.5 KB · Views: 265
  • P1110257.JPG
    70 KB · Views: 283
  • P1110258.JPG
    69.9 KB · Views: 273
  • P1110259.JPG
    82.4 KB · Views: 396
  • P1110260.JPG
    69.1 KB · Views: 323
  • P1110262.JPG
    45.9 KB · Views: 363
  • P1110263.JPG
    93.9 KB · Views: 456

Vojec

Member
Forgot to upload image of transport case, made for cinestar HL8.


Attachments

  • cid__external_images_media_10725$IMAG0223.jpg
    68.3 KB · Views: 339
  • P1110261.JPG
    57.4 KB · Views: 373

Giovanni59

Member
Would you be interested in selling items separately? I am interested in the Freefly Gimbal. Which model is it? Thanks John








Vojec

Member
Our boss told as to be noted: From now on, we will split RTF setup and sell it by parts. Will update if some parts sold...
Fell free to ask...
