These are production prototypes, using stock OEM equipment. The design is intended for commercial / industrial use. Supports RED EPIC, LiDAR, FLIR, Full size DSLR and so on.
The Angel PRO has a maximum 1550mm (H-Type diagonal center to center of motor) The bare frame weighs just slightly more than 1Kg, with landing gear and motor mounts, it is just under 2Kg.
The ANGEL PRO is equipped with the new KDE 7215's and matching 75A HV ESC. 12s capable.
It will be flown using 8s, on 26x8 prop, with an optional 30x6 CF prop for 6s. Max prop size 36"
The frame can accommodate 4x 22000mAh 6s 25c batteries. (two above, two suspended)

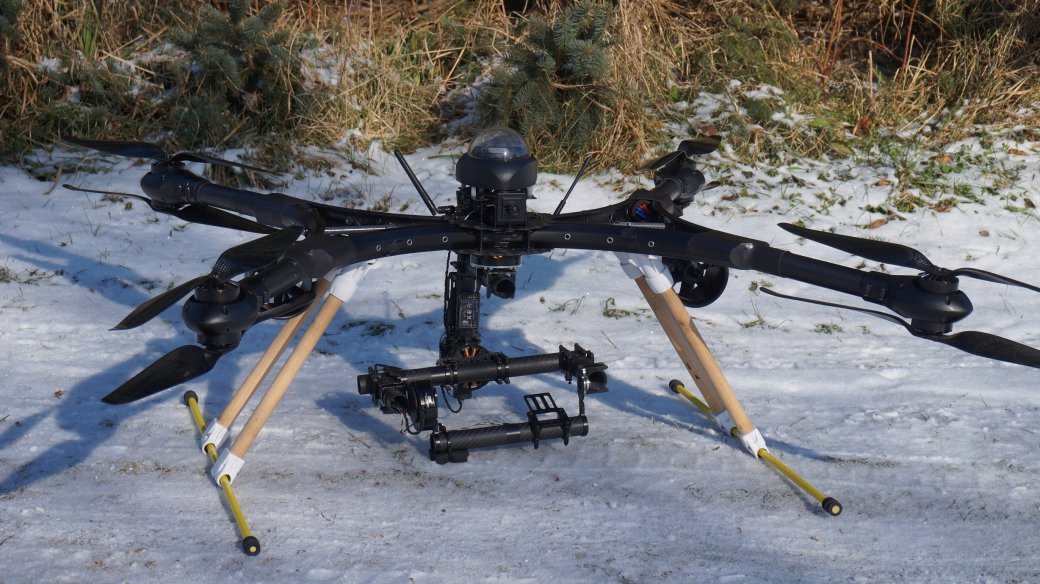

Shown below, the ANGEL HD, with wood dowel landing gear... as I am awaiting the correct dia. CF tube some point very soon.
The ANGEL HD is intended for AP use, although it is compatible with the ANGEL PRO larger tubeset.
In the configuration pictured below, I am using "hobby grade" mounts, from the rctimer people, as well as consumer grade LD-Power 4012-340Kv. The landing gear is to be replaced with 500mm CF tubes.
The production HD will use the KDE 5215-330Kv motor, with 55A ESC.
A 32-bit ALEXMOS BL 3-Axis gimbal is also pictured, with 5208-200Kv. Optional 8108-130Kv motors are also available.
These systems industrial quality, intended for commercial use. certified production will begin in the new year, produced by EU ISO recognized fabrication house.

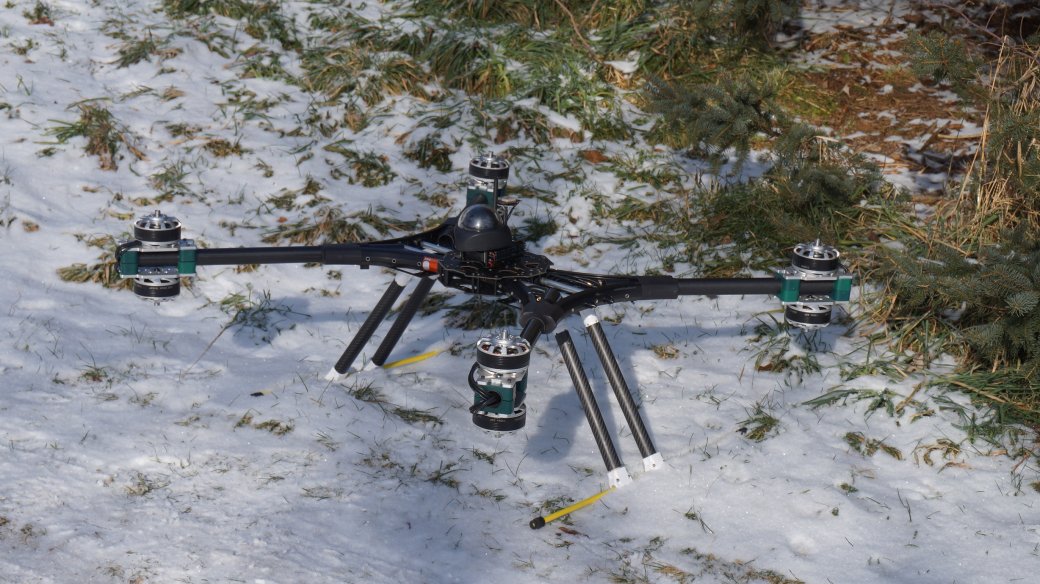

The ANGEL PRO pictured below has been developed specifically for LiDAR USA, as a Snoopy Camera capable AP solution.
Pictured below are the prototypes, awaiting final assembly for flight testing... While the custom parts are being designed, and put into testing.
rimcopters.com is being adapted daily, as we prepare for a limited pre production run for beta testing and demonstration.
beta units are available for immediate delivery, pre orders will be taken beginning Dec 1.View attachment 21823
Thanks for looking!
