Phobotic Gimbal - Similar to Movi M10/M15

fpmurphy

Member
I originally built this over a year ago before the M15 was available. I needed something that would give me room to attach a Red Epic with batteries.

I'd say 99% of my work is with a GH4 now, and I've purchased an M5 to get the Freefly follow focus.

Included are three 8018 Gimbal motors, Catalyst Machineworks gimbal cages (v1 which use imperial threaded screws), a Phobotic Centerpiece HV, a tarot 25mm battery sled (not pictured), and a Catalyst IMU mount for the second IMU. The Freefly toad in the hole is not included.

Here's a link to demo footage. There's one top down shot on a golf cart which is from an old GoPro video. The rest is shot on a gh4 and Rokinon 16mm.

https://fpatmurphy.wistia.com/medias/szd3pztzru

Here's a link to a recent flight of the gimbal with a 50mm lens on a GH4 and speedbooster (71mm full frame equivalent).
https://www.instagram.com/p/BCoTlS9urnd


I'd like to get $1300 (shipped and paypal), but I'm open to offers.

front.jpg gh4.jpg motor.jpg motor2.jpg panaxis.jpg red balanced.jpg Side.jpg


Attachments

  • front.jpg
    416.5 KB · Views: 941

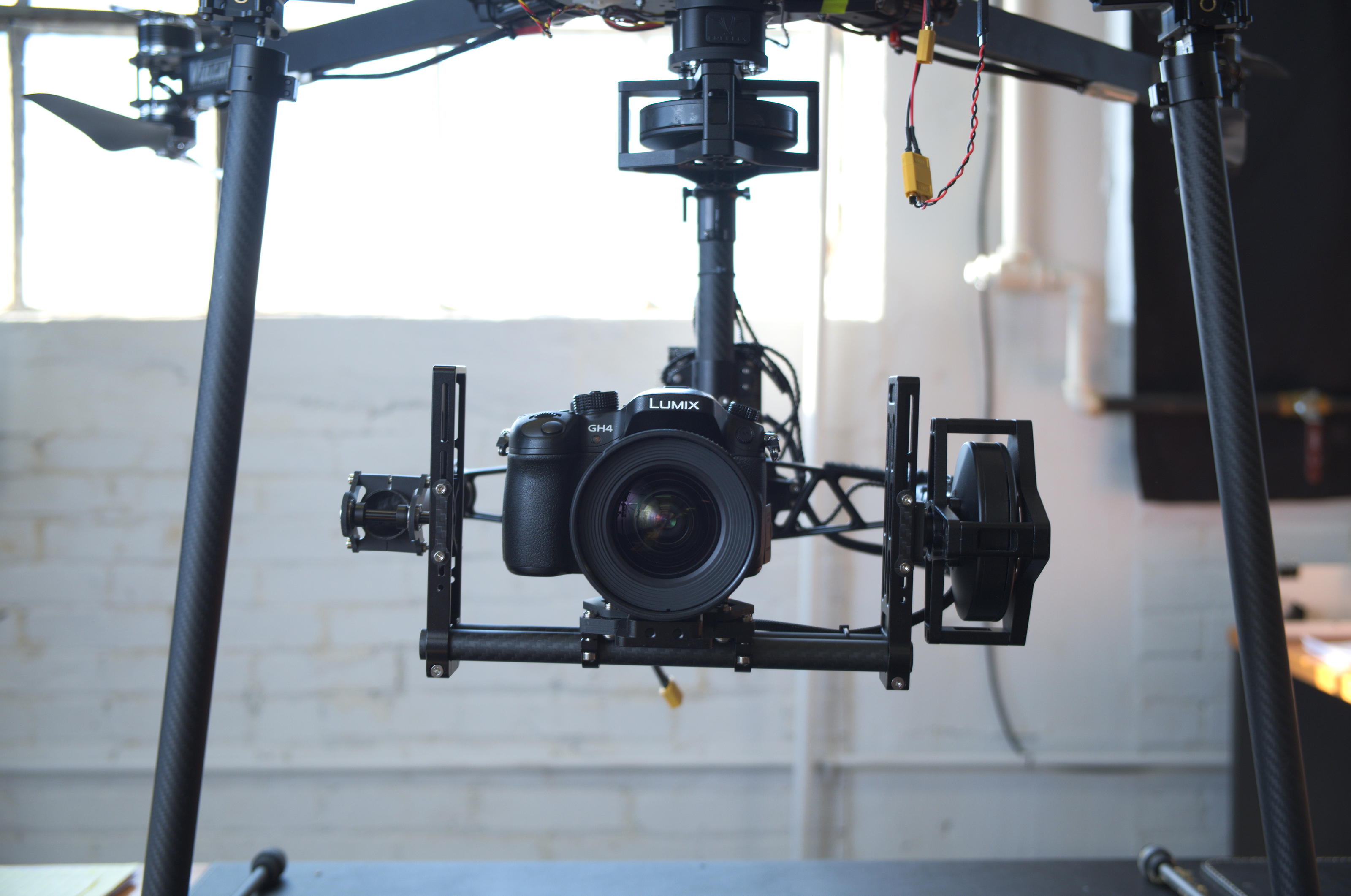

  • gh4.jpg
    337.4 KB · Views: 653
  • motor.jpg
    269.7 KB · Views: 749
  • motor2.jpg
    327.7 KB · Views: 775

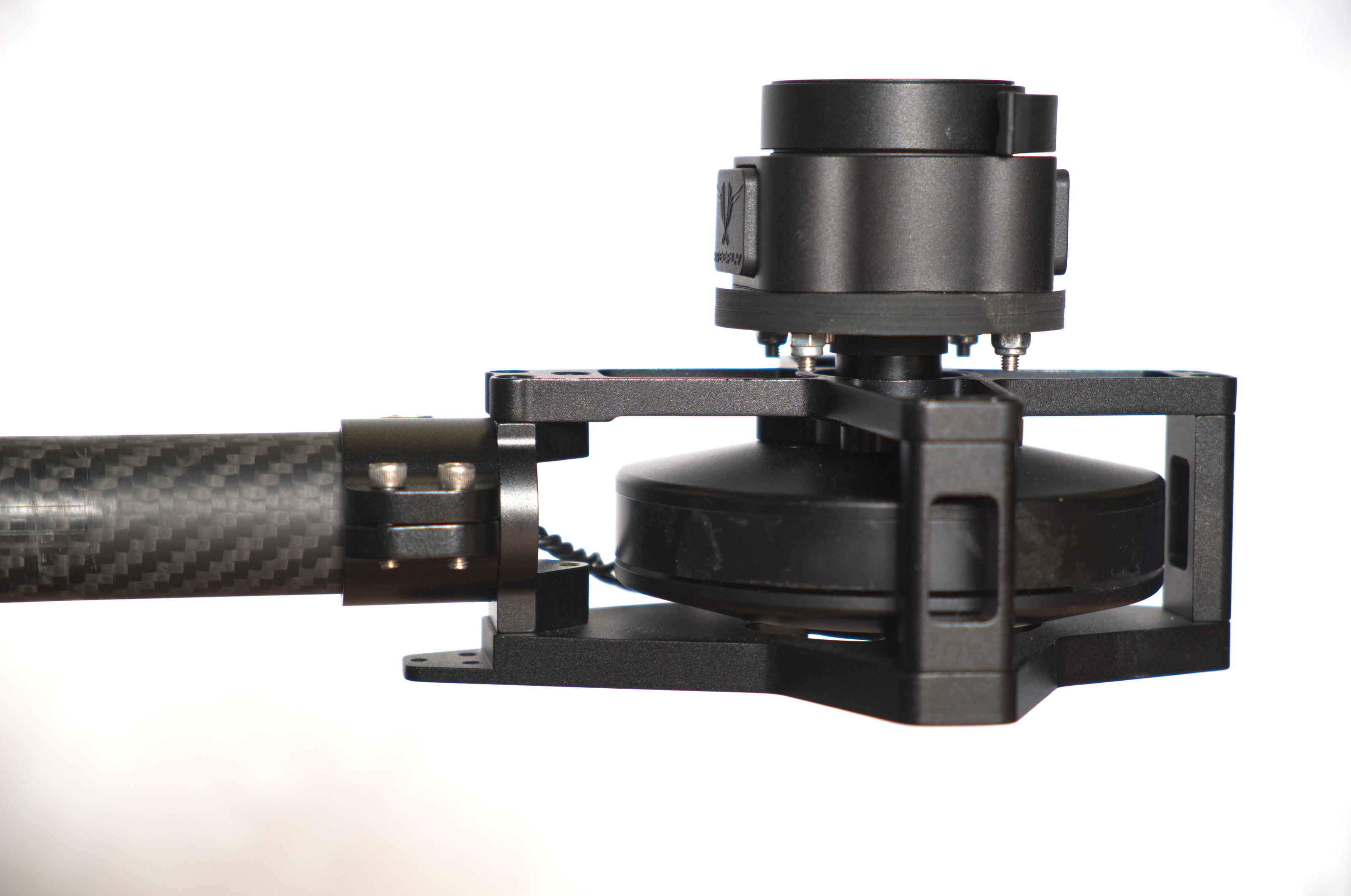

  • panaxis.jpg
    307.6 KB · Views: 750

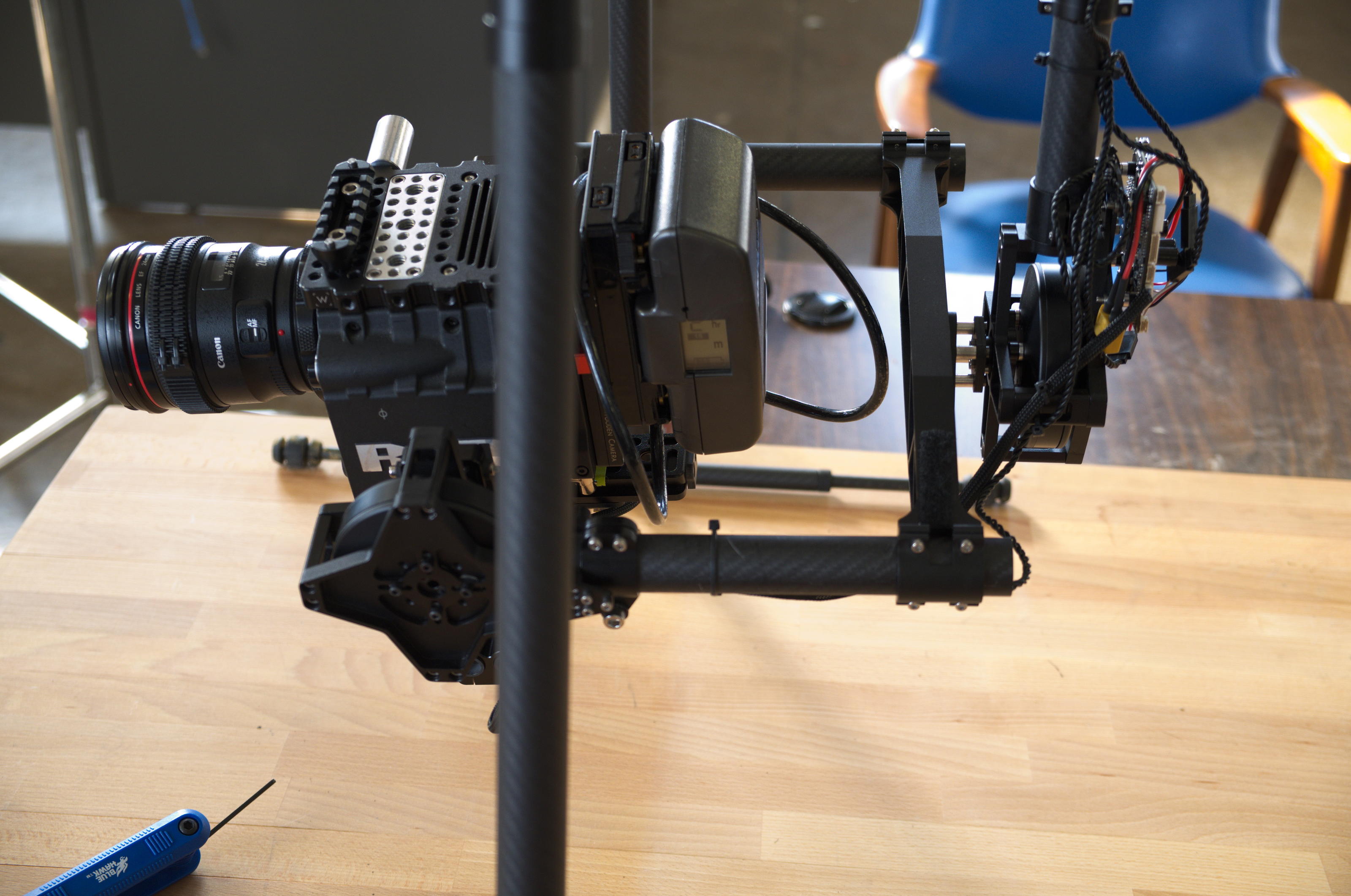

  • red balanced.jpg
    red balanced.jpg
    474.1 KB · Views: 722

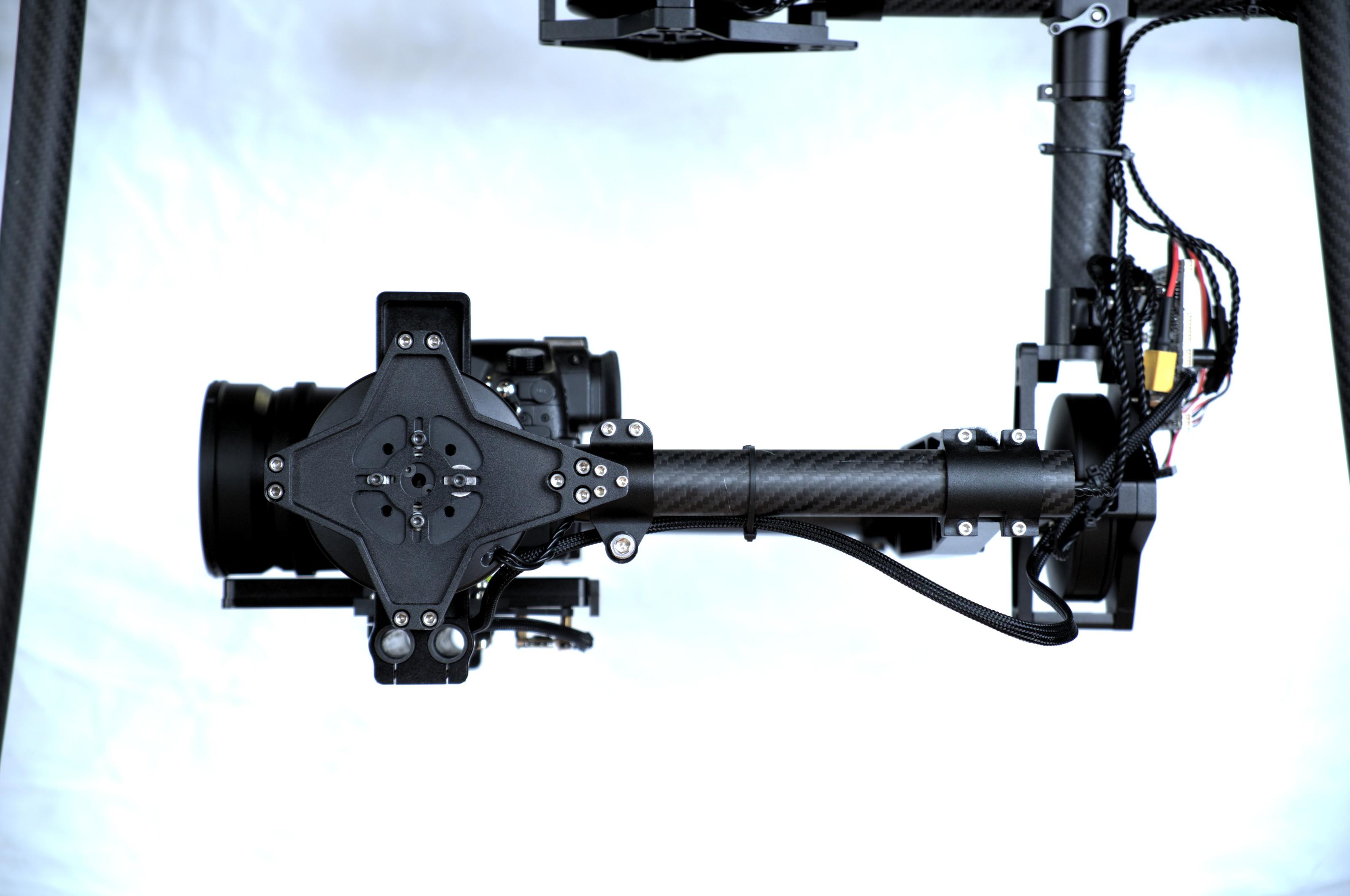

  • Side.jpg
