Jeti Model Duplex MikroKopter 2 Receiver Module - $39

Description:
Bought and unboxed, but never used. The item comes as new in its original box. USD $39.00

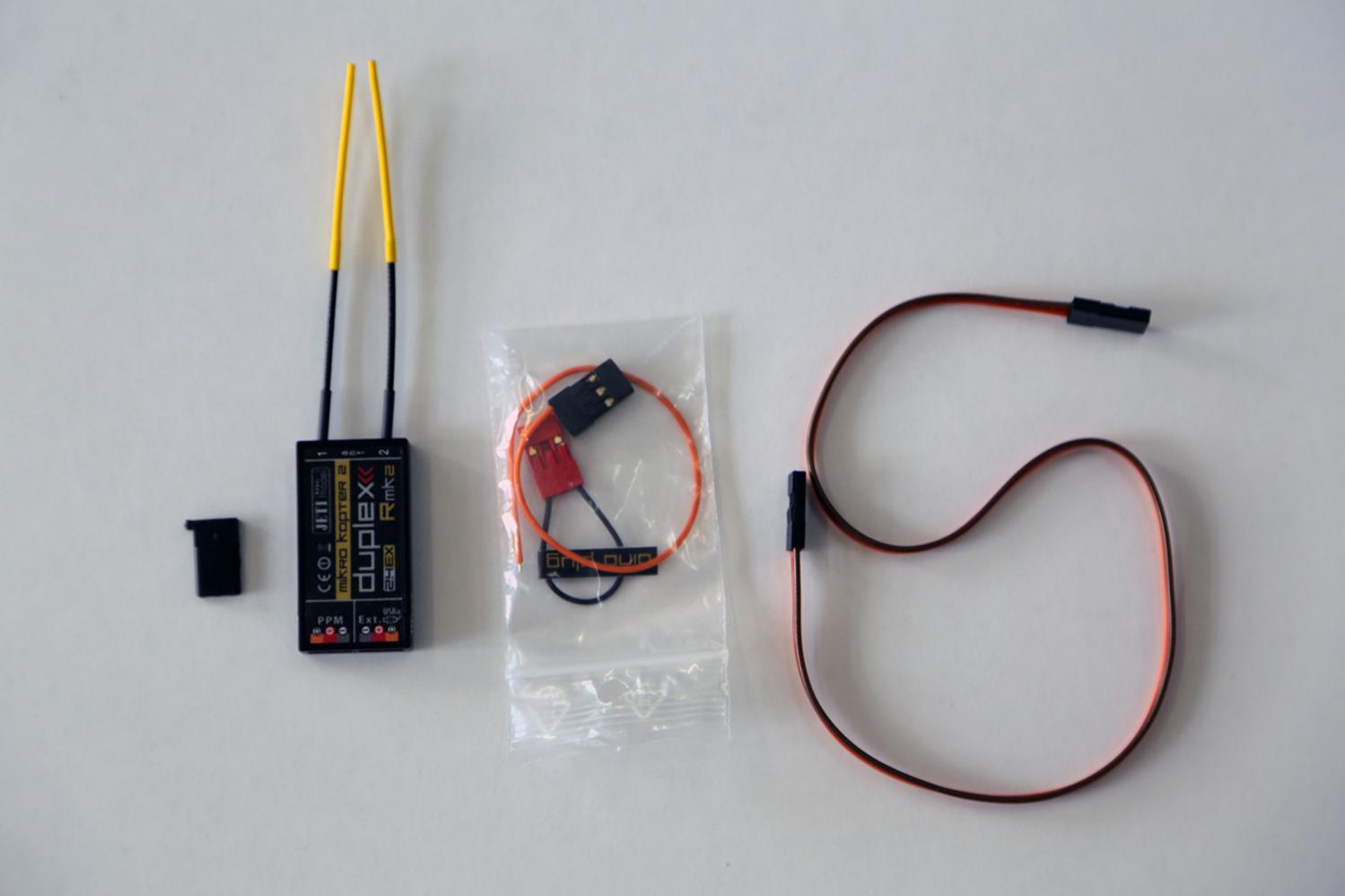

Scope of delivery:
• 1 Receiver
• 1 Binding Clip

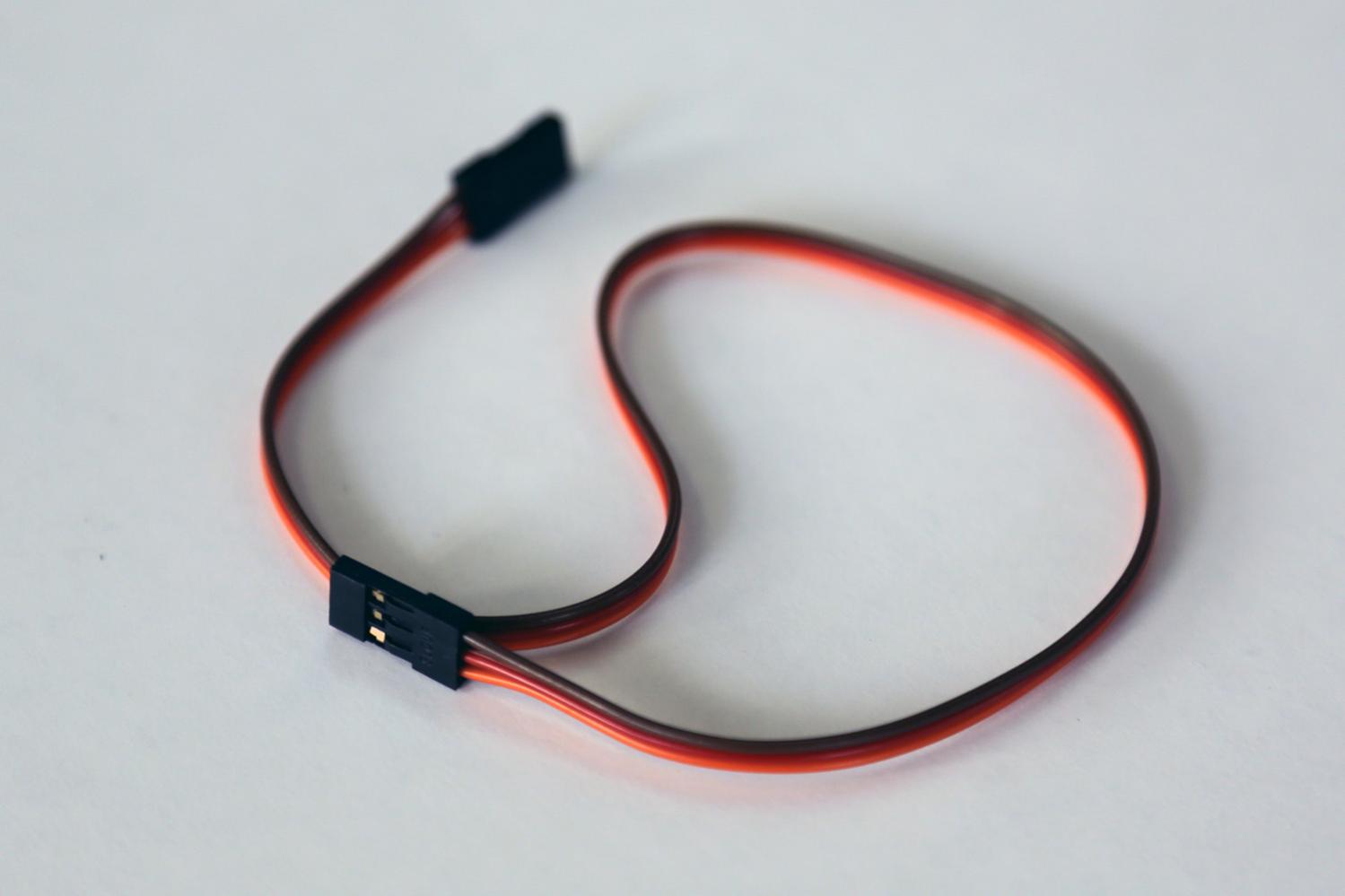

• 1 Adapter cable

Manufacturer's Descritption:

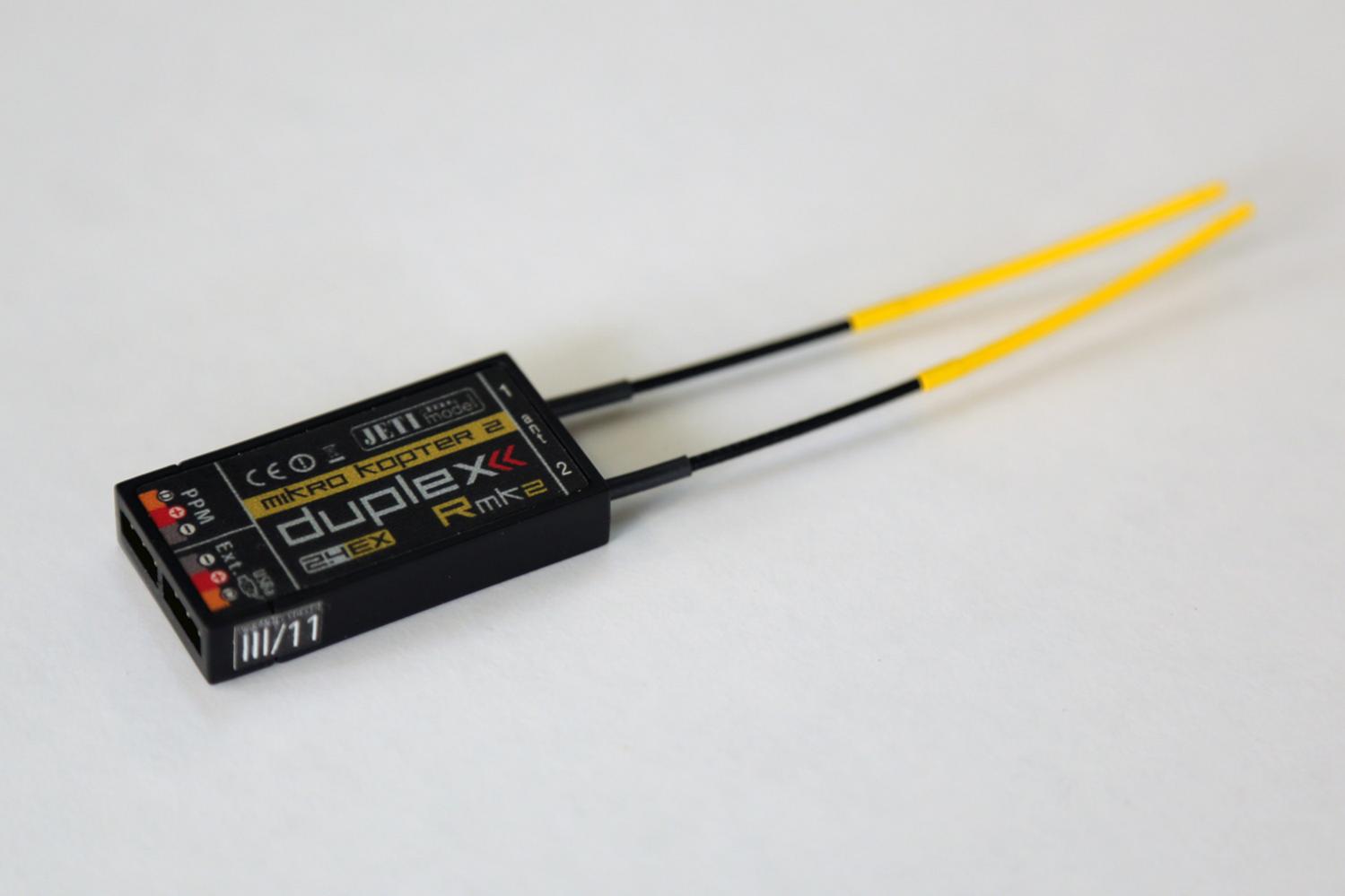

This receiver is a full duplex 2.4GHz Jeti System receiver with higher range for bidirectional communication (e.g. for Jetibox). The output delivers a PPM-sum signal for direct connection to the FlightCtrl.

Specifications (according to the manufacturer):
• Temperature range: -10 to 85 degrees C
• Current: 35mA (average)
• Supply: 3.2 - 8.4 V
• Parameterization via JETIBOX
• Weight: 10g
• Output Power: 20dBm
• Sensitivity: -106dBm
• Dimensions: 35x23x6mm

Notes:
• The receiver is programmed for use in the MikroKopter, so that a reception failure is correctly detected by the Mikrokopter.

Shipping:
Item is in Hong Kong.
Will ship internationally to anywhere it's possible to ship to.
Buyer pays shipping costs.
