I am planning cable layout, and I am not sure how to best connect camera and Video TX to the iOSD.
I am using a Boscam TS832 video TX, and a Sony nex5n camera.
I understand that the video out port supplies the same voltage as the power in. My iOSD will be powered from the main 6 cell batteries, but my Video TX are rated for max 16V.

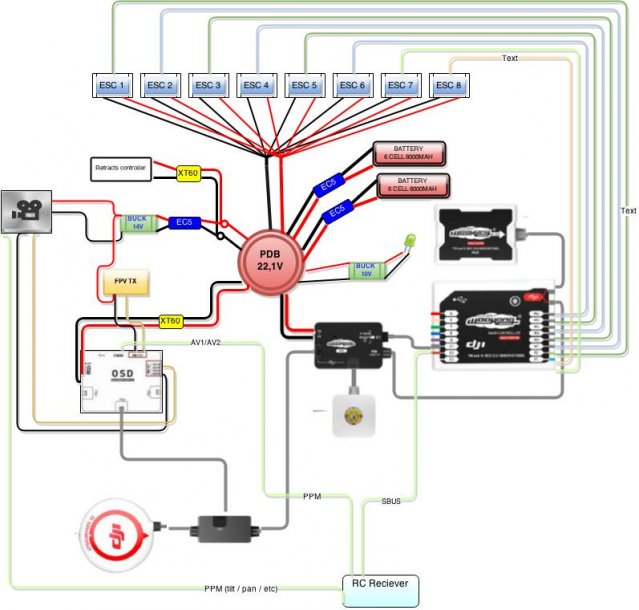

If you see on my wire-scheme, I have connected video tx with video (yellow) and ground (black) from the iOSD, and then 14V positive from a buck converter? Is this the right way to do it?
Also i use a nex5n camera, so i dont use posivtive current in to the camera itself, only the gimbal.
Can anyone help me and take a look at my wire-scheme to see that its correct? Specially the wires around the iOSD and video TX.
View attachment 22743
I am using a Boscam TS832 video TX, and a Sony nex5n camera.
I understand that the video out port supplies the same voltage as the power in. My iOSD will be powered from the main 6 cell batteries, but my Video TX are rated for max 16V.
If you see on my wire-scheme, I have connected video tx with video (yellow) and ground (black) from the iOSD, and then 14V positive from a buck converter? Is this the right way to do it?
Also i use a nex5n camera, so i dont use posivtive current in to the camera itself, only the gimbal.
Can anyone help me and take a look at my wire-scheme to see that its correct? Specially the wires around the iOSD and video TX.
View attachment 22743
