I am always confused on CoG settings. Could you guys check if I have my measurements correct. Frame is 500mm. The IMU is placed perfectly at the center intersection line of motors. I have picked it up from diagonal motors with fingers and its perfectly balanced.

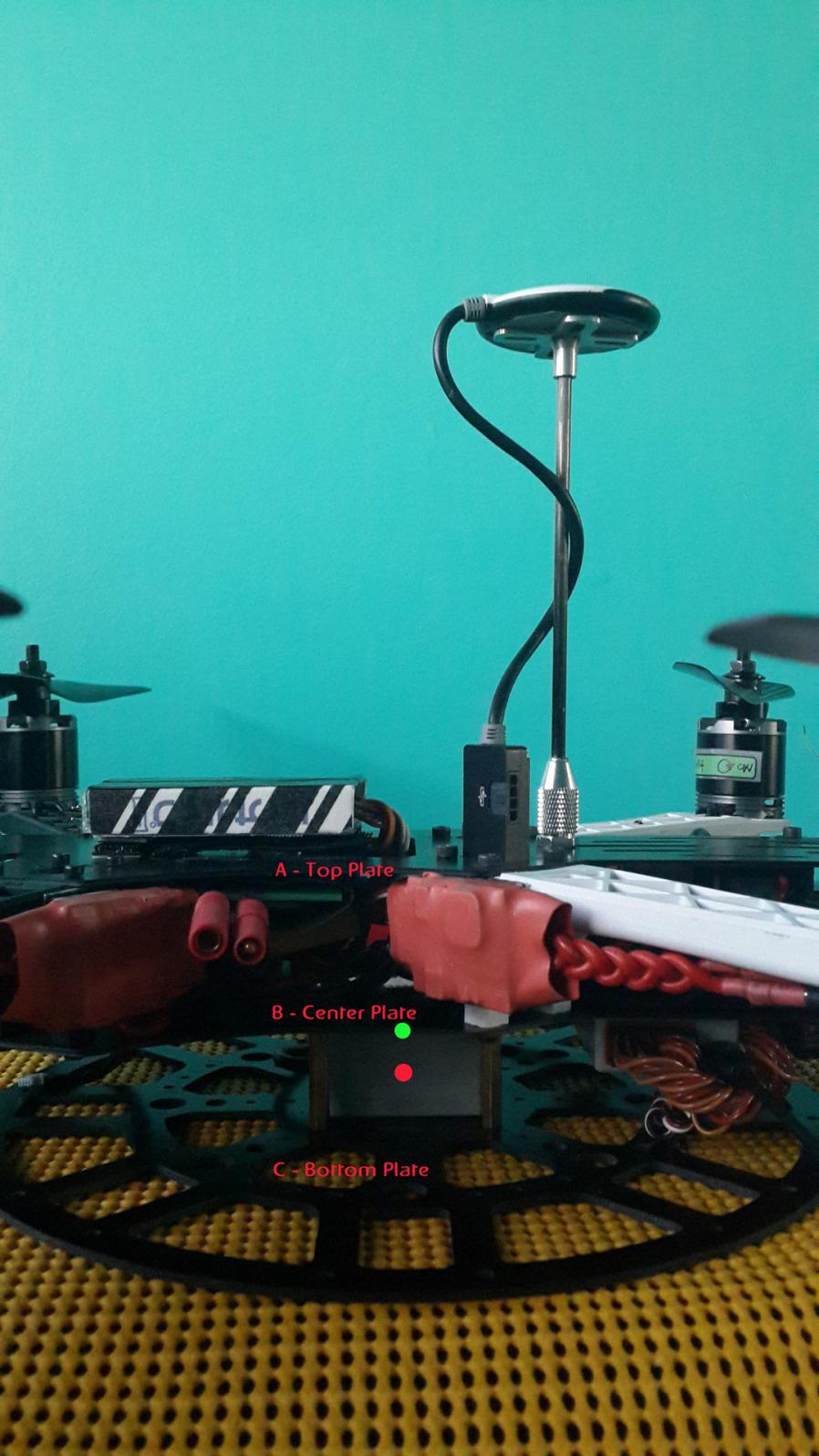

1 - I am assuming CoG off of B - Center Plate (Green Dot) Is that correct?
2 - Measuring to center of IMU not to the bottom of IMU (Red Dot)


View attachment 17108View attachment 17109View attachment 17110


Attachments

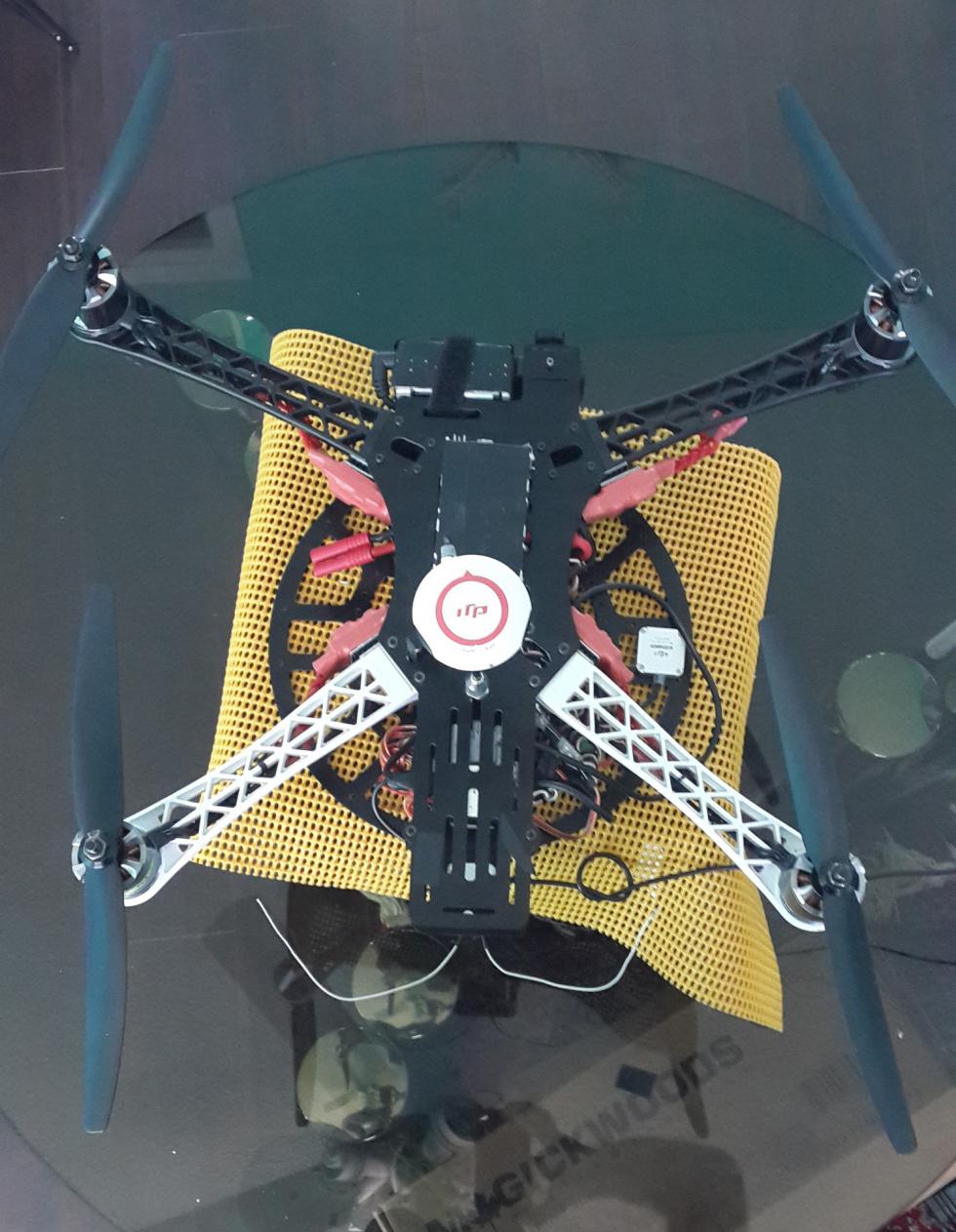

  • 20140331_091514.jpg
    139.2 KB · Views: 317
  • 20140331_070737.jpg
    143.6 KB · Views: 281

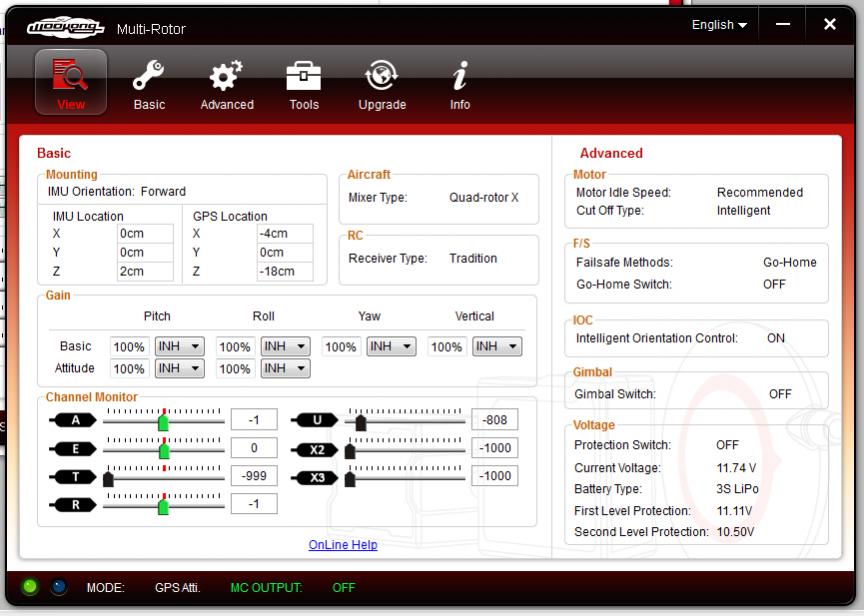

  • Untitled-1.jpg
    84.8 KB · Views: 233
Last edited by a moderator:

SYNDK8

SYNDK8

Skyvokker
CG Solved

So I hung it with my middle finger from the center of all those plates and the A - Top plate had the perfect balance without flipping over. :tennis:

Last edited by a moderator:
