Huge Size OctoCopter 8-axis Full 3K Carbon Fiber 3.5Kg Payload with Wookong WK-M GPS

[Soodohobby]

Huge Size OctoCopter 8-axis Full 3K Carbon Fiber 3.5Kg Payload with Wookong WK-M GPS Multi-Rotor Stabilization Autopilot System


Freeshipping from http://www.soodohobby.com

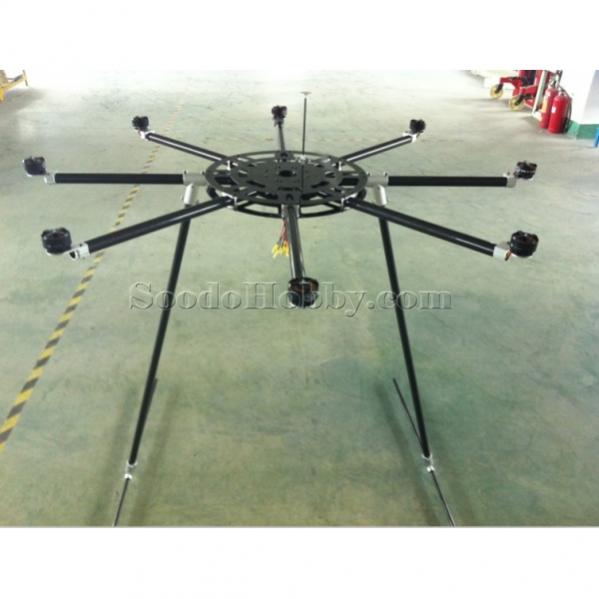

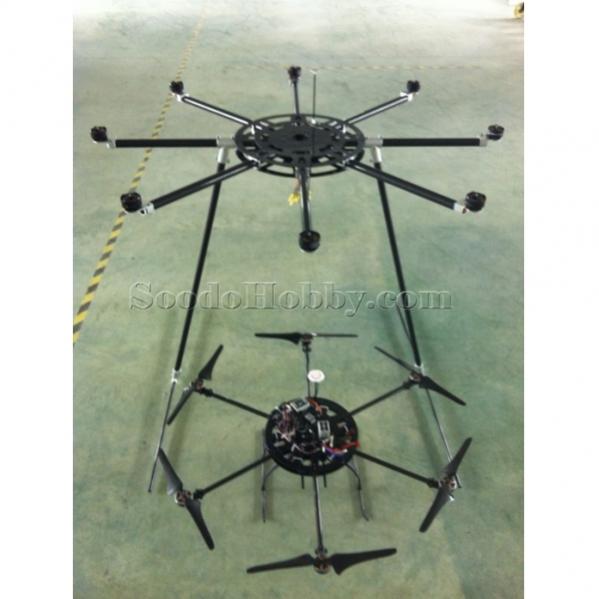

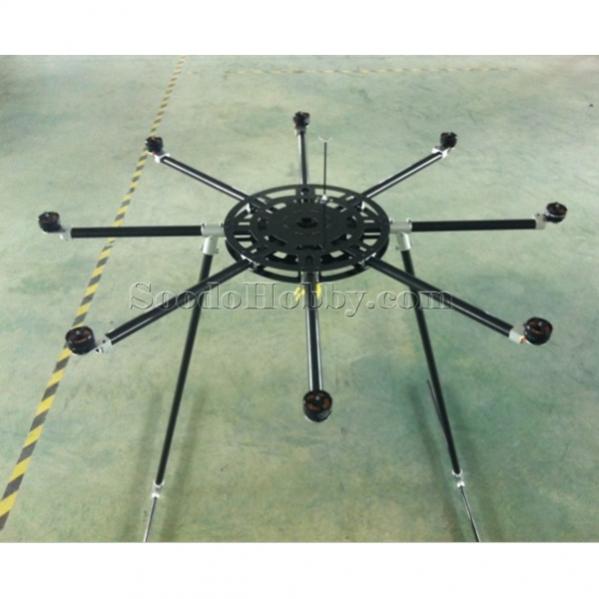

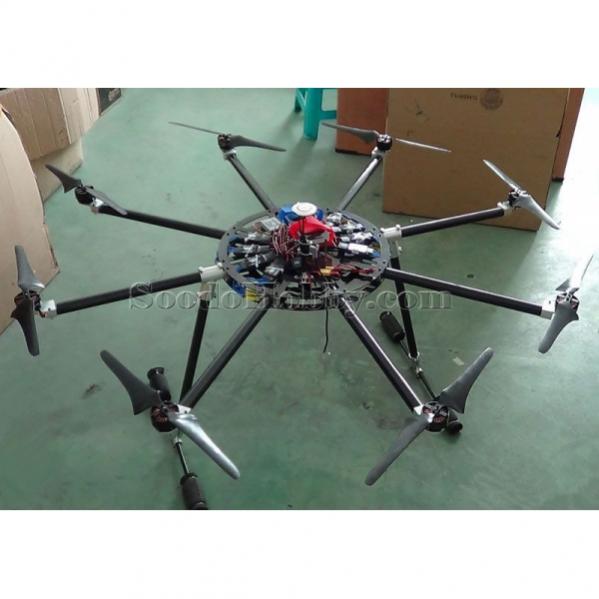

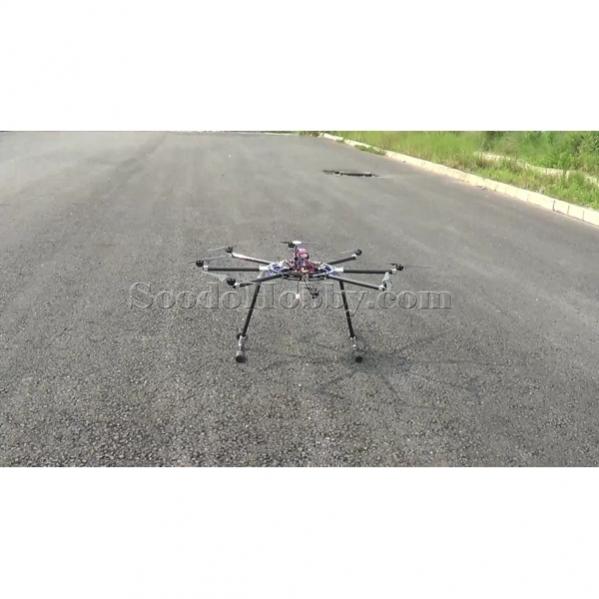

View attachment 5616View attachment 5621View attachment 5622View attachment 5623View attachment 5617View attachment 5618View attachment 5619

www.soodohobby.com

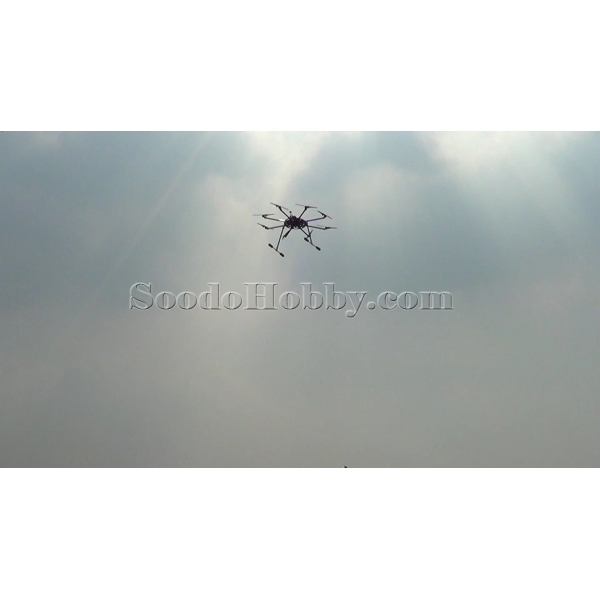

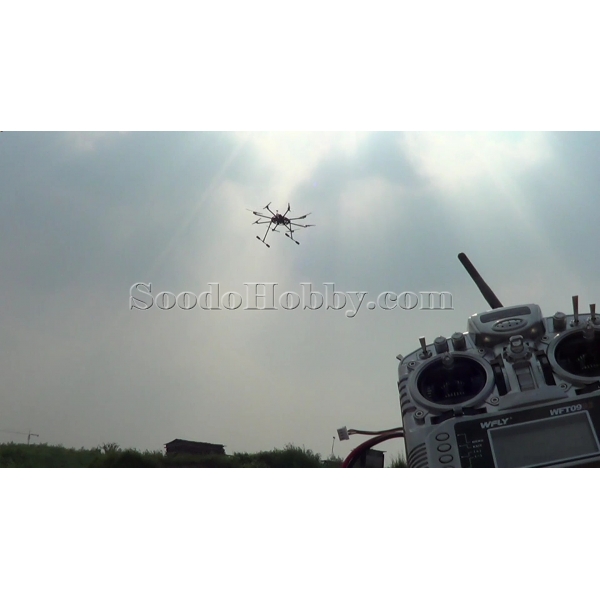

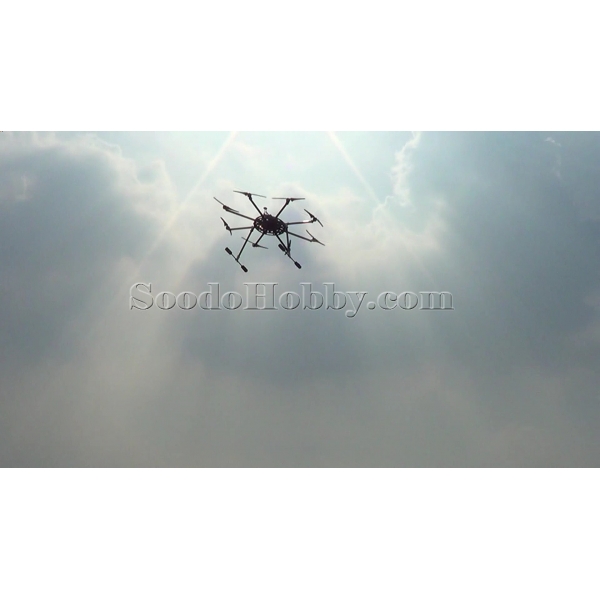

Flying Performance, pls follow us on the youtube: http://www.youtube.com/watch?v=dVzJKWKvg...e=youtu.be



Configuration:

Full 3K 100% Carbon Fiber Materials for frame, tube, high landing gear, propellers

Metal CNC connectors parts

16'' size 3K carbon Fiber propellers (8pcs)

5038 420KV Disc Brushless Motor (8pcs)

60A Hobbywing ESC(8pcs)

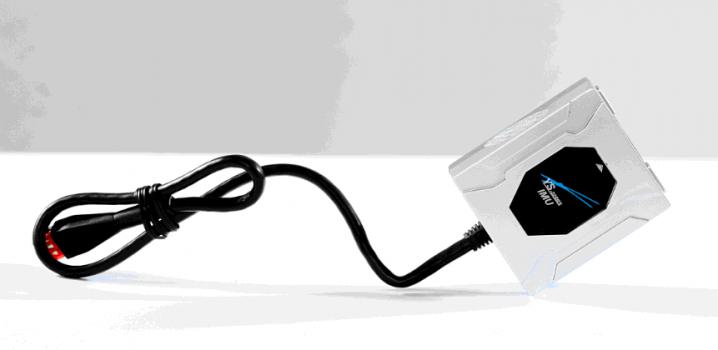

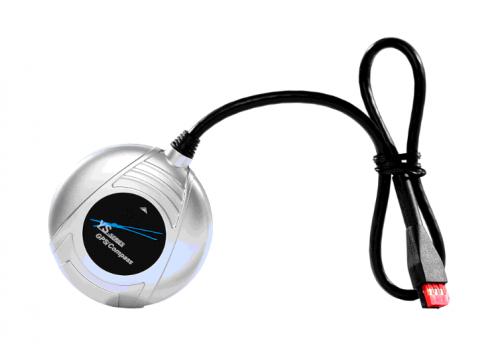

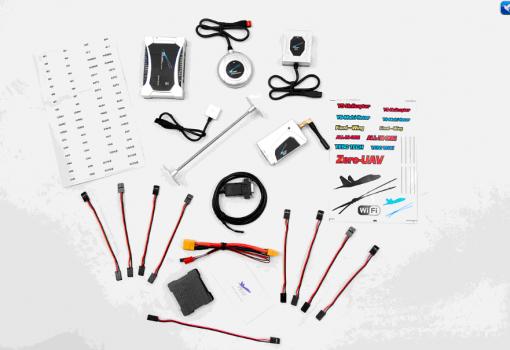

Flight Controller: DJI WooKong-M GPS Complete Flight Control system for Multi-rotor stabiliation autopilot system



Specification:

Axis: 8

Motor shaft distance: 120cm

Payload: 3.5kg

Flying time: According to the battery

Package Included:

Frame,8pcs Disc brushless motor, 8pcs hobbywing 60A ESC, 8pcs 16''Carbon Fiber, DJI WooKong-M GPS Complete Flight Control system for Multi-rotor stabiliation autopilot system



Suggested:

6S 8000mah-12000mah Lipo battery

WFT09SII 9ch WFLY Radio Set

5.8G 400mw FPV wireless transmission



We accept the custom made according to different requirements. More technical information, you can send us the mail: sales@soodohobby.com







Very good for the aerial photography for the high paylaod.
<!-- start: postbit_attachments -->



[koolkiwikat]

You dreaming at that price, to expensive compared to established brands and websites



[rsun]

Remove the WKM and tell me where to get a carbon octo at $2200 with that big engine, carbon props and 60 amp ESC ....



[koolkiwikat]

Easy, a number of the guys on Rcgroups have done it

Check Jab, he was one of the 1st, Ive followed and so have others
http://www.rcgroups.com/forums/showthread.php?t=1669877&page=5

His Maiden, using 300w motors as below, same props below, carbon frame below
http://www.youtube.com/watch?v=hKMvQokZp54&feature=player_embedded

Get yourself an octo frame either GF or Carbon

GF $250
http://www.goodluckbuy.com/professi...copter-frame-set-kit-700-950mm-wheelbase.html

Carbon $500
http://www.goodluckbuy.com/professi...copter-frame-set-kit-700-950mm-wheelbase.html

Carbon $460
http://www.omgfly.com/index.php?main_page=product_info&cPath=1_41&products_id=652

8 Large disc motors

300W $39 each (I personally use these on my own Rusty frame octo Im currently building)
http://www.himodel.com/electric/HL_...otor_for_Quadcopter_Multi-rotor_Aircraft.html

650W $66 each
http://www.himodel.com/electric/HL_...6-8_rotors_5-10kg_flight_weight_Aircraft.html

8 ESC's

I use these $16 each 3s-6s
http://www.hobbyking.com/hobbyking/...RUST_45A_SBEC_Brushless_Speed_Controller.html

I also have these but there only 4s
SimonK Firmware pre flashed, 30a

http://www.rctimer.com/index.php?gOo=goods_details.dwt&goodsid=779&productname=

15x5.5 props, 2 sets, these can bolt directly onto the HL line of disc motors

http://www.rctimer.com/index.php?gOo=goods_details.dwt&goodsid=747&productname=

Use a car audio power distribution block for your wiring and your all done!

Total build cost between $800 to $1000 using the 300w motors which is more then enough to haul a large DSLR setup, Im building mine around Rustys UAP1 $750 total, dont need carbon bling to fly



[rsun]

Thanks mate.
