how to connect graupner gr-24 to naza M. V.2

Discussion in 'Beginners Drone Forum' started by Handsup, May 20, 2014.

  1. Handsup

    Handsup Member

    26
    0
    0
    Apr 19, 2014
    Posted by Handsup, May 20, 2014 #1
    Good night everyone,

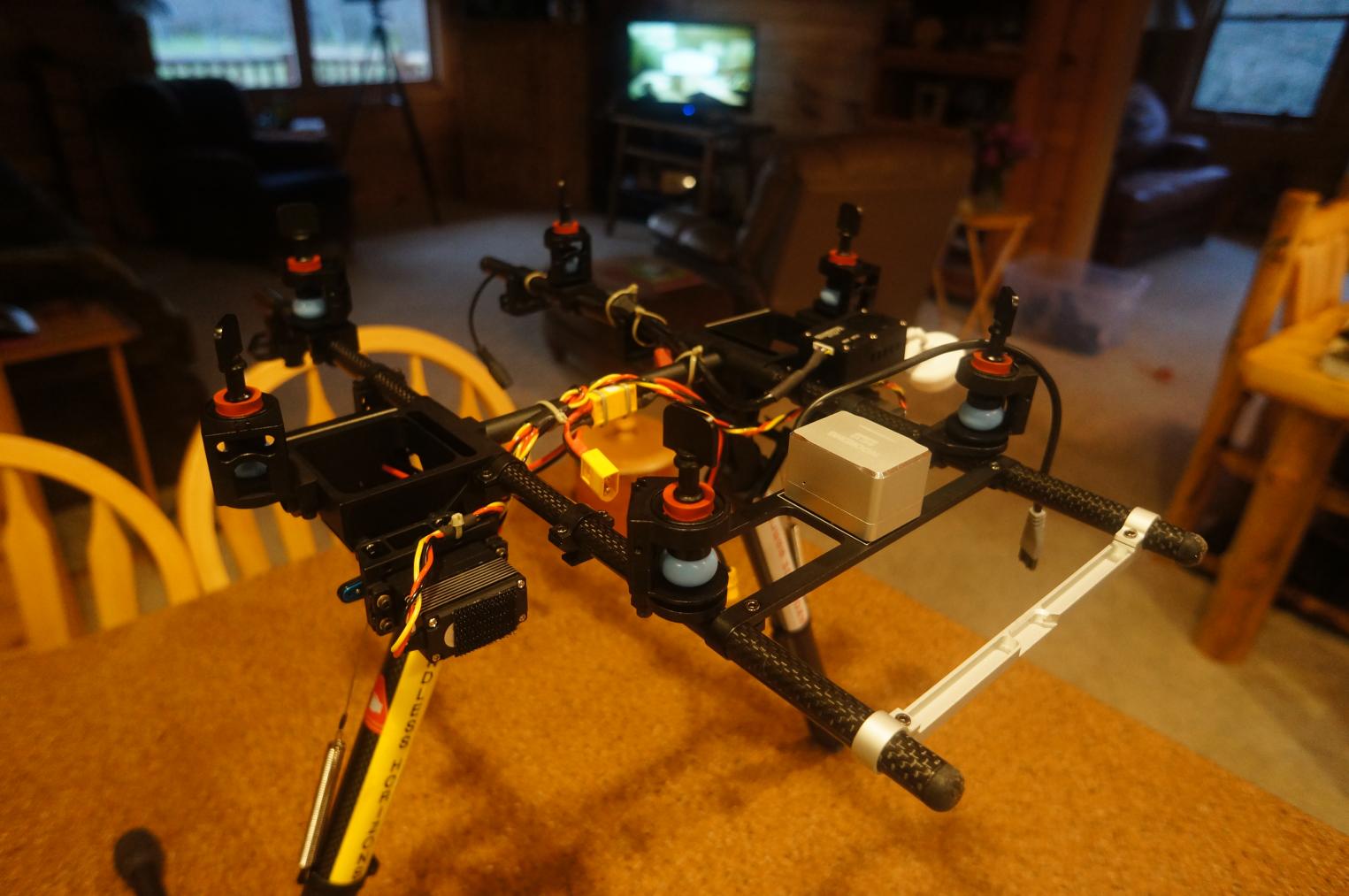

    I'm mounting a tarot 690s and I'm really new at this.

    I wanto to connect a naza M V.2 to graupner GR-24.
    I'm using a graupner MZ-18 transmitter and i already bind it to the receiver.

    How do i connect the cables to the naza??

    The receiver has just one slot on one side and several sltos on the other.

    I dont have any ideia on the web!!!

    Thank you very much.

    Tags:
  2. Handsup

    Handsup Member

    26
    0
    0
    Apr 19, 2014
    Posted by Handsup, May 21, 2014 #2
    Please guys give me a help!!!!

    I already turn on the naza with the esc and the motors but my transmitter didn't start the motors!!!

    I think i need to connect other cables to the receiver.


    this is what i did.


    Connect the "11 + B -" slave from the receiver to the "x2" slave from Naza M. v.2.


    Is this correct ????

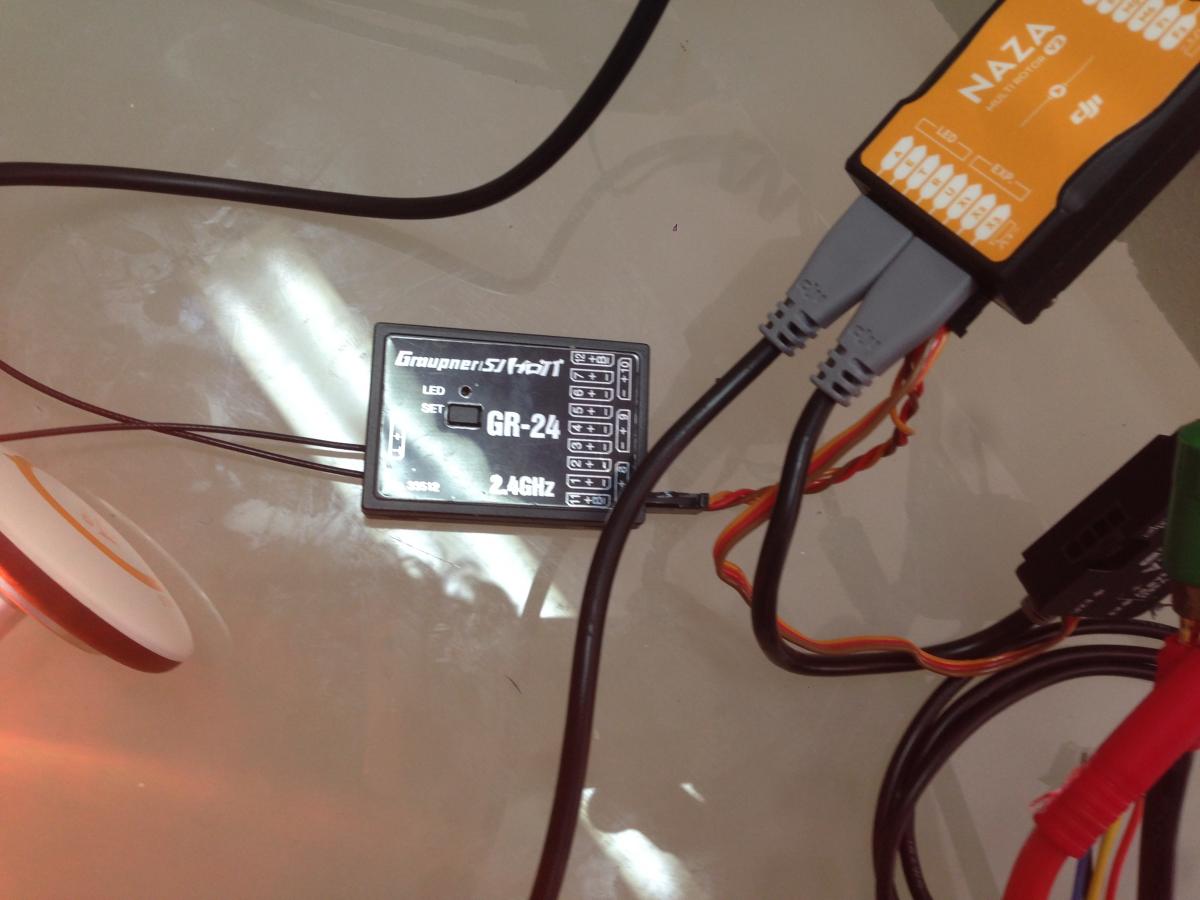

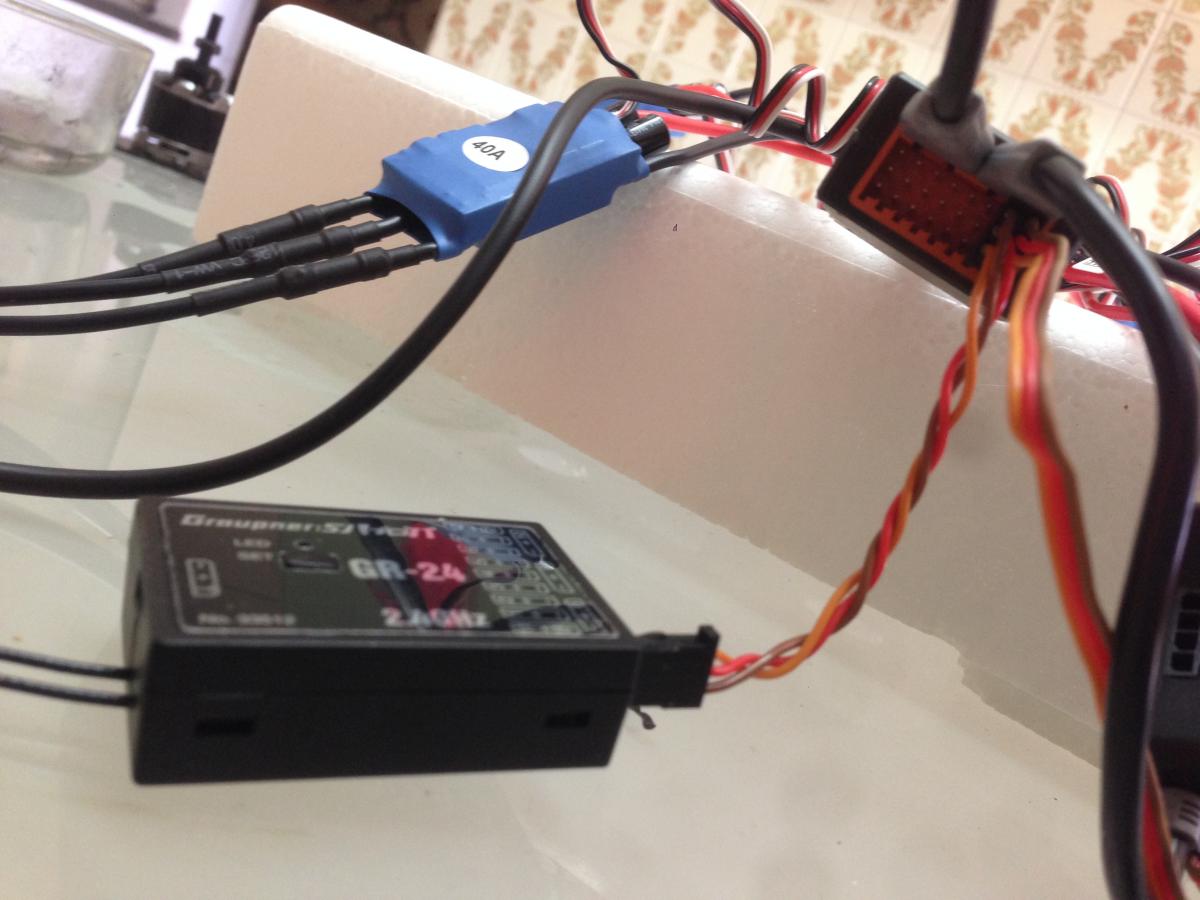

    View attachment 18292

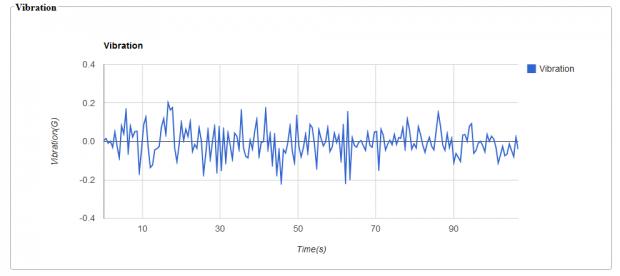

    View attachment 18293


    Thank you


    Attached Files:

  3. PeteDee

    PeteDee Mr take no prisoners!

    1,369
    14
    21
    Mar 13, 2013
    Dot
    Posted by PeteDee, May 22, 2014 #3
    Does the GR 24 do S-Bus or PPM, if not then you have to connect it like a Spektrum Rx as shown in the manual.

    Pete

  4. Shelipso

    Shelipso Member

    40
    20
    0
    Aug 26, 2014
    Posted by Shelipso, Aug 27, 2014 #4
    Hi did you manage to get the arrangement working? I am building a quad with the same receiver and naza v2 and have some trouble with the failsafe.
