High amp power distribution board

W

wm1

Member
I found a high amp Power Distribution Board on the Internet recently but have since lost the website. It consisted of two boards (one negative and one positive) one above the other separated by stand-offs. The leads from the esc's plugged into the board with 4mm banana plugs not soldered and I think it was rated for 200amps and could cater for 8 motors.

Anyone seen anything that fits this spec?


R

rsun

Member
It must be the power hungry board you have seen.

I love it and makes a clean installation.

Kopterworx have them.





Breezemont

Breezemont

Member
"Our owner said he flew a Sky Jib rig with 30 lbs total weight for 7min with no heat build up on the board, if that helps."

Well, one certainly can't argue with science!

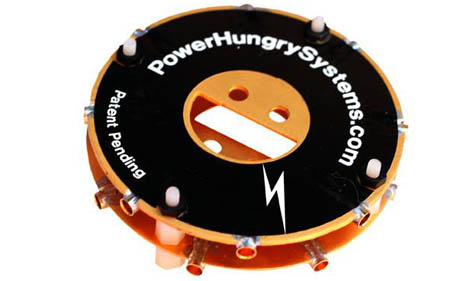

View attachment 8747

$380 for that?

I'm in the wrong business.
I thought I had seen some massive ripoffs in this multicopter game, but this might take the cake.<script type="text/javascript"> /******************************************************** This Script will be included in all web pages to show an Icon on Mouse over, Clicking the Icon will show a Zoominto Viewer (a Flash made viewer) to Zoom the Image Content ********************************************************/ var tmppluginServername = "http://www.zoominto.com/zoomapi/"; //tmppluginServername= "http://localhost:9999/zoomapi/" var versionswf="1100"; versionswf=""; var tmppluginSwfname="" tmppluginSwfname=tmppluginServername + "zoomplugin" + versionswf + ".swf"; var tmppluginimageURL=tmppluginServername + "displayimage.php?image="; var protocol = "http://"; var isInternetExplorer = navigator.appName.indexOf("Microsoft") != -1; plugin_run(); function BrowserZoomPlugin() { var ua, s, i; this.isIE = false; this.isNS = false; this.version = null; ua = navigator.userAgent; s = "MSIE"; if ((i = ua.indexOf(s)) >= 0) { this.isIE = true; this.version = parseFloat(ua.substr(i + s.length)); return; } s = "Netscape6/"; if ((i = ua.indexOf(s)) >= 0) { this.isNS = true; this.version = parseFloat(ua.substr(i + s.length)); return; } s = "Gecko"; if ((i = ua.indexOf(s)) >= 0) { this.isNS = true; this.version = 6.1; return; } } var browser = new BrowserZoomPlugin; var dragObj = new Object; dragObj.zIndex = 0; function zoominto_dragStart(event, id) { var el; var x, y; if (id) { dragObj.elNode = document.getElementById(id); } else { if (browser.isIE) { dragObj.elNode = window.event.srcElement; } if (browser.isNS) { dragObj.elNode = event.target; } if (dragObj.elNode.nodeType == 3) { dragObj.elNode = dragObj.elNode.parentNode; } } if (browser.isIE) { x = window.event.clientX + document.documentElement.scrollLeft + document.body.scrollLeft; y = window.event.clientY + document.documentElement.scrollTop + document.body.scrollTop; } if (browser.isNS) { x = event.clientX + window.scrollX; y = event.clientY + window.scrollY; } dragObj.cursorStartX = x; dragObj.cursorStartY = y; dragObj.elStartLeft = parseInt(dragObj.elNode.style.left, 10); dragObj.elStartTop = parseInt(dragObj.elNode.style.top, 10); if (isNaN(dragObj.elStartLeft)) { dragObj.elStartLeft = 0; } if (isNaN(dragObj.elStartTop)) { dragObj.elStartTop = 0; } dragObj.elNode.style.zIndex = ++dragObj.zIndex; if (browser.isIE) { document.attachEvent("onmousemove", zoominto_dragGo); document.attachEvent("onmouseup", zoominto_dragStop); window.event.cancelBubble = true; window.event.returnValue = false; } if (browser.isNS) { document.addEventListener("mousemove", zoominto_dragGo, true); document.addEventListener("mouseup", zoominto_dragStop, true); event.preventDefault(); } } function zoominto_dragGo(event) { var x, y; if (browser.isIE) { x = window.event.clientX + document.documentElement.scrollLeft + document.body.scrollLeft; y = window.event.clientY + document.documentElement.scrollTop + document.body.scrollTop; } if (browser.isNS) { x = event.clientX + window.scrollX; y = event.clientY + window.scrollY; } dragObj.elNode.style.left = dragObj.elStartLeft + x - dragObj.cursorStartX + "px"; dragObj.elNode.style.top = dragObj.elStartTop + y - dragObj.cursorStartY + "px"; if (browser.isIE) { window.event.cancelBubble = true; window.event.returnValue = false; } if (browser.isNS) { event.preventDefault(); } } function zoominto_dragStop(event) { if (browser.isIE) { document.detachEvent("onmousemove", zoominto_dragGo); document.detachEvent("onmouseup", zoominto_dragStop); } if (browser.isNS) { document.removeEventListener("mousemove", zoominto_dragGo, true); document.removeEventListener("mouseup", zoominto_dragStop, true); } } function imgplayerprogress_DoFSCommand(command, args) { var imgplayerprogressObj = isInternetExplorer ? document.all.imgplayerprogress : document.imgplayerprogress; } function zoominto_addElement(divIdName, htmlval) { try { var newdiv = document.createElement("div"); newdiv.setAttribute("id", divIdName); newdiv.setAttribute("title", ""); newdiv.style.position = "absolute"; newdiv.style.display = "none"; newdiv.innerHTML = htmlval; document.body.appendChild(newdiv);; } catch (e) { } } function zoominto_addmyelems(divIdName, htmlval) { try { var newdiv = document.createElement("div"); newdiv.setAttribute("id", divIdName); newdiv.innerHTML = htmlval; document.body.appendChild(newdiv);; } catch (e) { //_L(e); } } function zoominto_initializelements() { zoominto_addElement("plugpanel", " "); zoominto_addmyelems("plugincheck_0909", "
"); } function zoominto_GetElementPostion(theElement) { var selectedPosX = 0; var selectedPosY = 0; tmpw = theElement.width; tmph = theElement.height; while (theElement != null) { selectedPosX += theElement.offsetLeft; selectedPosY += theElement.offsetTop; theElement = theElement.offsetParent; } var tempelement = new Array(selectedPosX, selectedPosY, tmpw, tmph); return tempelement; } function plugin_showdeadcenterdiv(Xwidth, Yheight, divid) { var scrolledX, scrolledY; if (self.pageYOffset) { scrolledX = self.pageXOffset; scrolledY = self.pageYOffset; } else if (document.documentElement && document.documentElement.scrollTop) { scrolledX = document.documentElement.scrollLeft; scrolledY = document.documentElement.scrollTop; } else if (document.body) { scrolledX = document.body.scrollLeft; scrolledY = document.body.scrollTop; } var centerX, centerY; if (self.innerHeight) { centerX = self.innerWidth; centerY = self.innerHeight; } else if (document.documentElement && document.documentElement.clientHeight) { centerX = document.documentElement.clientWidth; centerY = document.documentElement.clientHeight; } else if (document.body) { centerX = document.body.clientWidth; centerY = document.body.clientHeight; } var leftOffset = scrolledX + (centerX - Xwidth) / 2; var topOffset = scrolledY + (centerY - Yheight) / 2; var o = document.getElementById(divid); var r = o.style; r.position = "absolute"; r.top = topOffset + "px"; r.left = leftOffset + "px"; r.display = "block"; } function pluginalertShow(layerid) { document.getElementById(layerid).style.visibility = "visible"; document.getElementById(layerid).style.display = "block"; plugin_showdeadcenterdiv(280, 115, layerid); document.getElementById("plugin_btn_activate").focus(); } function pluginalerthide(layerid) { document.getElementById(layerid).style.visibility = "hidden"; document.getElementById(layerid).style.display = "none"; } function zoom_getValidString(){ return "&isValidviewer=1";// all things are valid } function zoominto_showflash(zoomres) { try{ if(zoomres == undefined) zoomres="600x442"; zoomarr=zoomres.split("x",2) var divimgplayer = document.getElementById("div_plugin_img_player"); divimgplayer.style.display = "block"; divimgplayer.style.visibility = "visible"; //old movie 550 400 // plugin_showdeadcenterdiv(600, 371, "div_plugin_img_player"); plugin_showdeadcenterdiv(parseInt(zoomarr[0]), parseInt(zoomarr[1])+120, "div_plugin_img_player"); // zoominto_setImage(); zoominto_changeobject(document.getElementById("plugpanel").title,zoomres); } catch (e) { } } function zoominto_closeflash() { var divimgplayer = document.getElementById("div_plugin_img_player"); divimgplayer.style.display = "none"; divimgplayer.style.visibility = "hidden"; } function hidezoomicon(){ document.getElementById("plugpanel").style.visibility = "hidden"; } function getMouseX( e ) { return e.pageX || ( e.clientX + ( document.documentElement.scrollLeft || document.body.scrollLeft ) ); } function getMouseY( e ) { return e.pageY || ( e.clientY + ( document.documentElement.scrollTop || document.body.scrollTop ) ); } function dhtmlLoadScript(url) { var e = document.createElement("script"); e.src = url; e.type="text/javascript"; // document.getElementByTagName("head")[0].appendChild(e); document.getElementById("addiv").appendChild(e); } function getactualimgdimensions(imgsrc){ zoomintoheavyImage = new Image(); zoomintoheavyImage.src = imgsrc var tempelement = new Array(zoomintoheavyImage.width, zoomintoheavyImage.height); return tempelement; } function plugin_run() { var newcss = "#div_plugin_img_player td {padding:0;} \n #div_plugin_img_player th {padding:0;}"; if ('\v'=='v') /* ie only */ { document.createStyleSheet().cssText = newcss; } else { var tag = document.createElement('style'); tag.type = 'text/css'; document.getElementsByTagName('head')[0].appendChild(tag); tag[ (typeof document.body.style.WebkitAppearance=='string') /* webkit only */ ? 'innerText' : 'innerHTML'] = newcss; } var image = document.getElementsByTagName("img"); var totimgLength=image.length; zoominto_initializelements(); for (var i = 0; i < image.length; i++) { if (image.className.match("myplug_img")){ image.onmouseout = function (evt) { document.getElementById("plugpanel").style.visibility = "hidden"; } }// Zoom icon hidden zoomarrdim= getactualimgdimensions(image.src); //arrdim[0] - width arrdim[1] - height if (!image.className.match("myplug_img") && zoomarrdim[0] > 50 && zoomarrdim[1] > 60) { image.onmouseover = function () {imgvals = zoominto_GetElementPostion(this); document.getElementById("plugpanel").style.display = "block";document.getElementById("plugpanel").style.visibility = "visible";document.getElementById("plugpanel").style.left = imgvals[0] + "px";document.getElementById("plugpanel").style.top = imgvals[1] + "px";document.getElementById("plugpanel").title = this.src;}; image.onmouseout = function (evt) { imgvals = zoominto_GetElementPostion(this); strx=imgvals[0]; stry=imgvals[1]; endx=imgvals[0] +imgvals[2] ; endy=imgvals[1] + imgvals[3]; tmpcurx=evt.pageX; tmpcury=evt.pageY; if(tmpcurx > strx && tmpcurx < endx && tmpcury > stry && tmpcury < endy ){ l=1 } else{ document.getElementById("plugpanel").style.visibility = "hidden"; } }; }// End of Condition Image smaller if(zoomarrdim[0] == 1 && zoomarrdim[1] == 1){ // remove Image element image.style.display="none"; image.style.visibility="hidden"; } } } function zoominto_URLEncode(clearString) { var output = ""; var x = 0; clearString = clearString.toString(); var regex = /(^[a-zA-Z0-9_.]*)/; while (x < clearString.length) { var match = regex.exec(clearString.substr(x)); if (match != null && match.length > 1 && match[1] != "") { output += match[1]; x += match[1].length; } else { if (clearString[x] == " ") { output += "+"; } else { var charCode = clearString.charCodeAt(x); var hexVal = charCode.toString(16); output += "%" + (hexVal.length < 2 ? "0" : "") + hexVal.toUpperCase(); } x++; } } return output; } function Closeiepluginpanel() { closeflash(); } function logme(txtstr) { // try { //alert(txtstr); return ""; } function zoominto_changeobject(url,zoomres) { //Method to Display the Viewer for Image imgName_bfr=(tmppluginimageURL +url + zoom_getValidString()) escimgName_bfr=escape(imgName_bfr); trkval = "?chkme=" + imgName_bfr + "&rootstr=" + tmppluginServername; pagetitle = ""; urlstr = zoominto_URLEncode(document.location); zoomarr=zoomres.split("x",2) playerwidth=parseInt(zoomarr[0]);// 800 tablewidth=playerwidth ;//-2 ;//798 playerheight=parseInt(zoomarr[1]);//600; adwidth=468;//playerwidth -10 ;//768; adheight=60; document.getElementById("div_plugin_img_player").innerHTML = " <MAP NAME='zoomintomap187'> <area shape='rect' coords='0,0,108,24' href='http://www.zoominto.com' alt='Zoominto' target='_blank'/> </MAP>
<select style='height: 20px;' id='resselect' onchange='zoominto_showflash(this.value)'><option value='600x442'>Default</option><option value='690x509'>115%</option><option value='750x553'>125%</option></select>

<tbody>
</tbody>

<tbody>
</tbody>

<tbody>
</tbody>
<!--comment-->
<object classid=\"clsid:d27cdb6e-ae6d-11cf-96b8-444553540000\" codebase=\"http://download.macromedia.com/pub/shockwave/cabs/flash/swflash.cab#version=9,0,0,0\" width=\""+playerwidth+"\" height='"+playerheight+"' id=\"editor\" align=\"middle\">






<embed src=\"" + tmppluginSwfname + trkval+"\" quality=\"high\" bgcolor=\"#ffffff\" width=\""+playerwidth+"\" height='"+playerheight+"' name=\"editor\" align=\"middle\" allowScriptAccess=\"sameDomain\" allowFullScreen=\"false\" type=\"application/x-shockwave-flash\" pluginspage=\"http://www.adobe.com/go/getflashplayer\" /> </object>
<iframe width=\""+adwidth+ "\" height=\""+adheight+ "\" frameborder=\"0\" scrolling=\"no\" vspace=\"0\" src='" + tmppluginServername + "ads/remoteads.php5?extension=firefox&hostarea=zoominto&contenturl="+ document.location +"&width="+adwidth+"&height="+adheight+"' name=\"google_ads_frame\" marginwidth=\"0\" marginheight=\"0\" id=\"google_ads_frame1\" hspace=\"0\" allowtransparency=\"true\"></iframe>​

<tbody>
</tbody>

<tbody>
</tbody>

\n"; document.getElementById('resselect').value=zoomres; } </script>


Attachments

  • 1041392_large.jpg
    46.3 KB · Views: 248

H

helloman1976

Ziptie Relocation Expert
wm1 said:
I found a high amp Power Distribution Board on the Internet recently but have since lost the website. It consisted of two boards (one negative and one positive) one above the other separated by stand-offs. The leads from the esc's plugged into the board with 4mm banana plugs not soldered and I think it was rated for 200amps and could cater for 8 motors.

Anyone seen anything that fits this spec?
Click to expand...


Yes, a piece of copper with holes drilled in it and wires soldered onto it not to mention it would handle 500A+++@14.8V depending on the thickness and be less then a few dollars if you found scrap, aluminum would be lighter and almost as good. A piece of silver would be even better but all are overkill. Who's pulls 200 or 400 amps and on what? What do you need a $275 power board for? :D


W

wm1

Member
I liked the design but hadn't looked at the price.........Forget it! You are right, the multi rotor buyer is being ripped off in lots of areas. I shall make my own! Brass should be ok don't you think?


B

bebellm

Member
Did you find a a good power board with a high amps "certification" like the 300$ one ... and the droidworx for the price of the multiwii ? I also would like something higher than 200 amps. My motor are 32 amps each ... and I have 6 of them, and want something safe... actually I have a hobbyking it's rated for 60 amps, it's working but one day it will cause trouble...

Thanks.



H

helloman1976

Ziptie Relocation Expert
bebellm said:
Did you find a a good power board with a high amps "certification" like the 300$ one ... and the droidworx for the price of the multiwii ? I also would like something higher than 200 amps. My motor are 32 amps each ... and I have 6 of them, and want something safe... actually I have a hobbyking it's rated for 60 amps, it's working but one day it will cause trouble...

Thanks.
Click to expand...

Build your own, at that point you can just build your own for a couple dollars if not free. Grab a piece of scrap aluminum and drill some holes in it, make connections to that for positive and make another separate aluminum board one for negative connections. Separate them so they cannot touch ever. A piece of 1/4" thick aluminum will flow 1000A+++ so don't go buy some hyped up piece of aluminum or copper they drilled holes in for you for $200+++ dollars.



ChrisViperM

ChrisViperM

Active Member
helloman1976 said:
Build your own, at that point you can just build your own for a couple dollars if not free. Grab a piece of scrap aluminum and drill some holes in it, make connections to that for positive and make another separate aluminum board one for negative connections. Separate them so they cannot touch ever. A piece of 1/4" thick aluminum will flow 1000A+++ so don't go buy some hyped up piece of aluminum or copper they drilled holes in for you for $200+++ dollars.
Click to expand...


Did you ever try to solder anything onto aluminium.......????

If DIY, then only copper....


Chris


H

helloman1976

Ziptie Relocation Expert
The point being the same exact thing but do what works for you. Use a hunk of gold if you want, probably cheaper then the "certified" board you're looking at lol...



H

helloman1976

Ziptie Relocation Expert
bebellm said:
Actually not, if you have some links / tutos for doing the best I can with my requierments, it would be great.

Thanks
Click to expand...

Check out YouTube. The basic concept is that you have a piece of conductive metal, you put holes in it and attach your wiring to the plate. You use a separate plate for positive and negative and never let them touch. A piece of scrap metal will flow all kinds of power :)





ChrisViperM

ChrisViperM

Active Member
wm1 said:
You don't need to solder to it! Brass is the next best thing and you can solder if required.
Click to expand...

The highest electrical conductivity is Silver: σ in S/m 61,39 · 10[SUP]6[/SUP]
next highest is Copper: σ in S/m 58,0 · 10[SUP]6[/SUP]
pretty low is Brass: σ in S/m 15,5 · 10[SUP]6[/SUP]


....the difference in price between Copper and Brass is next to nothing concerning the weight needed.


Chris
