Drone camera wiring (Unknown Camera )

Discussion in 'Drone Electronics' started by jpmurf, Feb 22, 2019.

  1. jpmurf

    jpmurf New Member

    3
    0
    1
    Feb 7, 2019
    Fox Lake, IL
    Posted by jpmurf, Feb 22, 2019 #1

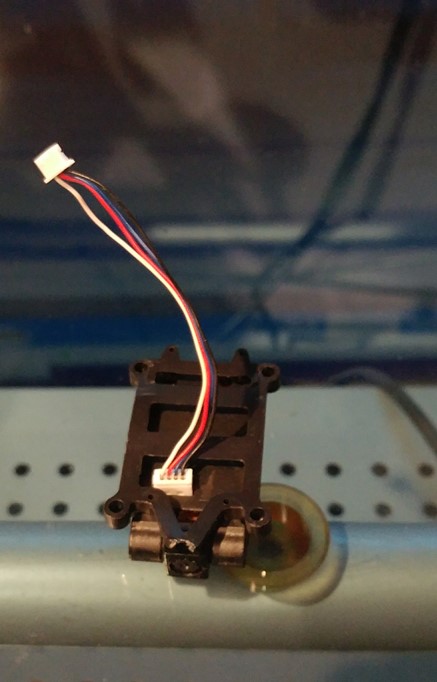

    I found this camera in a box of old parts. But I don't know how to wire this into a drone. I haven't seen a camera with 4 wires, let alone, no yellow wire. Please help.


    Attached Files:

    Last edited: Feb 22, 2019
    Tags:
  2. RENOV8R

    RENOV8R Member

    Posted by RENOV8R, Feb 25, 2019 #2
    My guess is that this is an old AIO from a toy grade quad. Black and red for power, white for video and blue for some type of camera control. But that's just a guess

  3. jpmurf

    jpmurf New Member

    3
    0
    1
    Feb 7, 2019
    Fox Lake, IL
    Posted by jpmurf, Feb 25, 2019 #3
    Thanks, I think I will just power it up and experiment with the other 2 wires.
