DROIDWORX AD-6 HL - WKM BUILD and SETUP as promised

jetforce

jetforce

FLY HIGH AND STAY HIGH

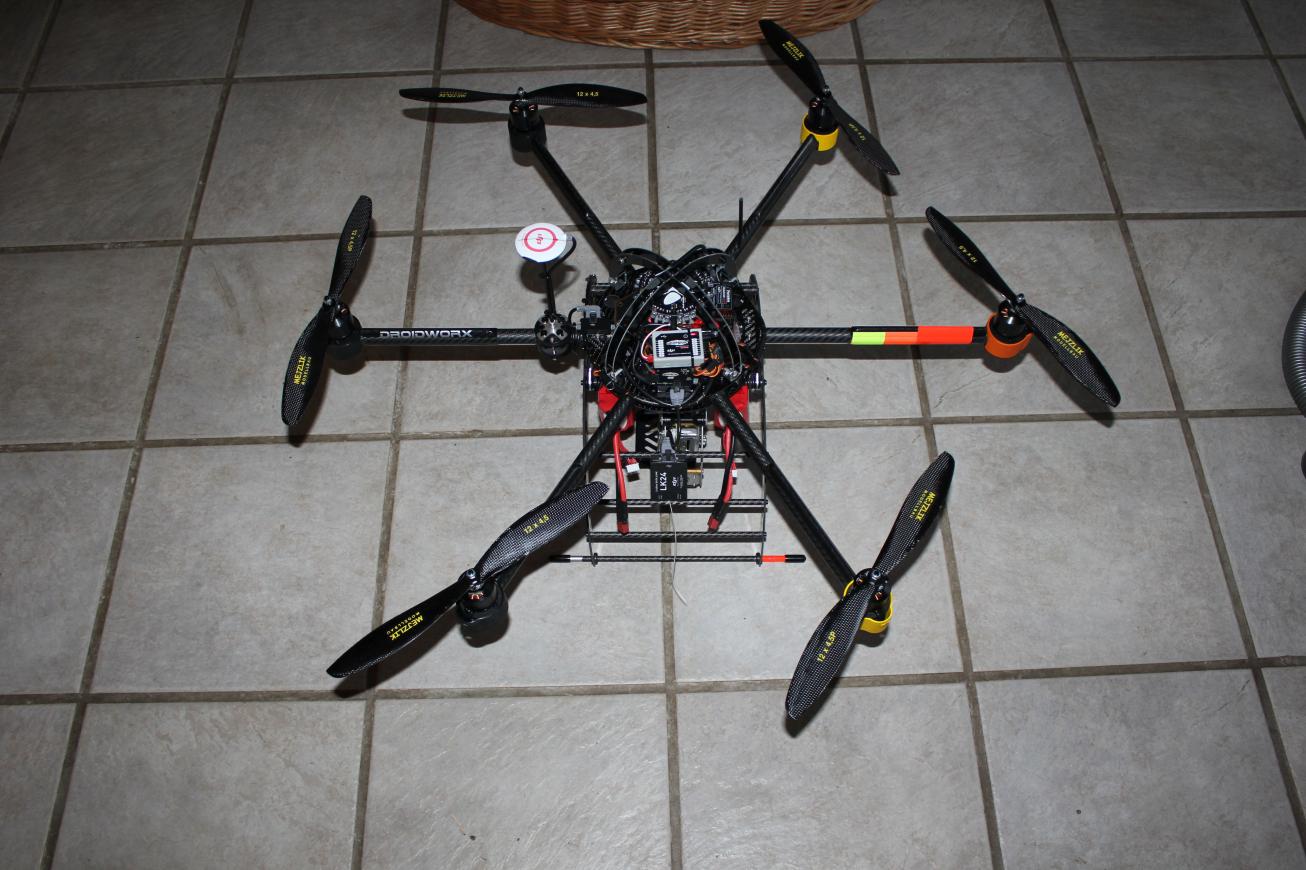

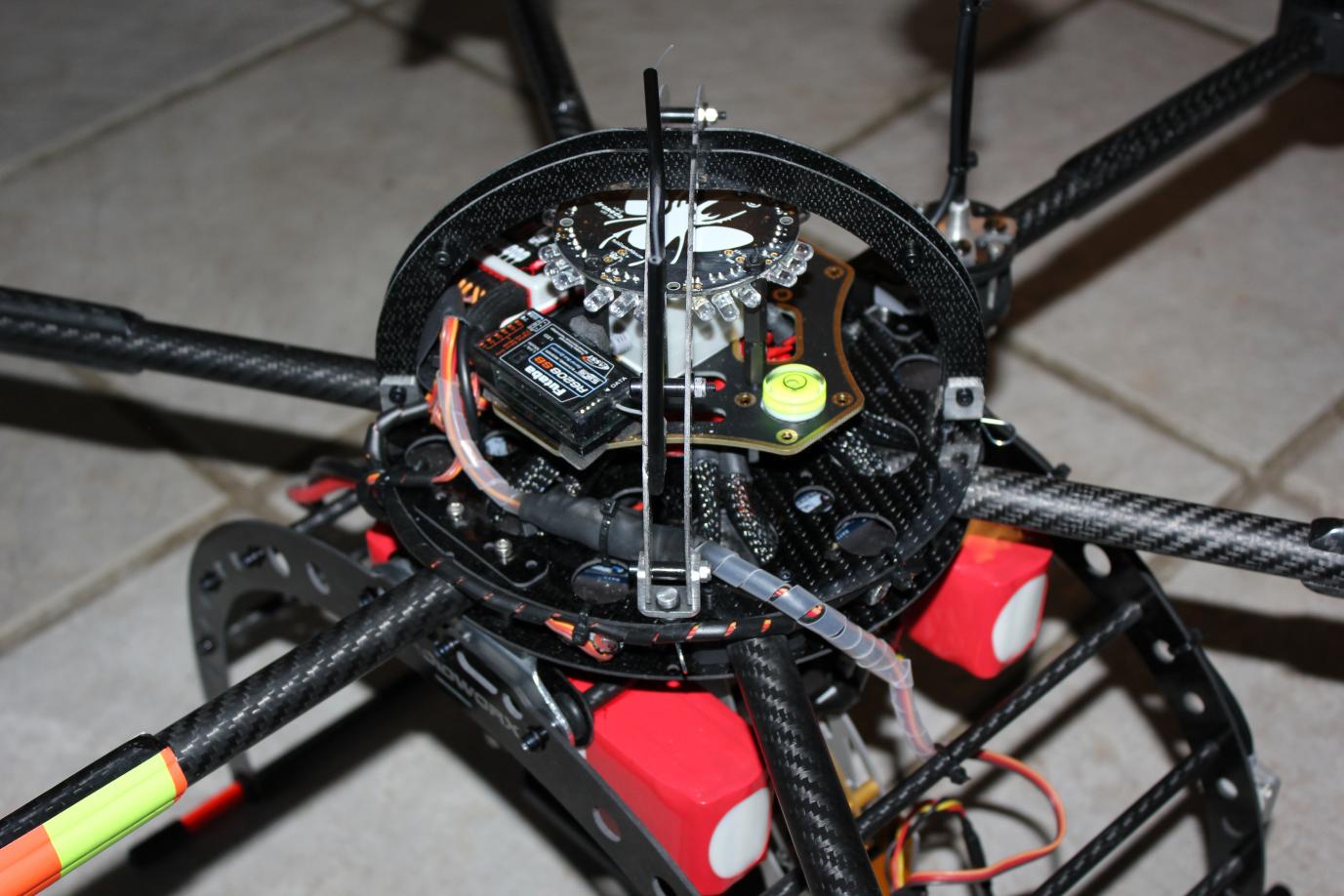

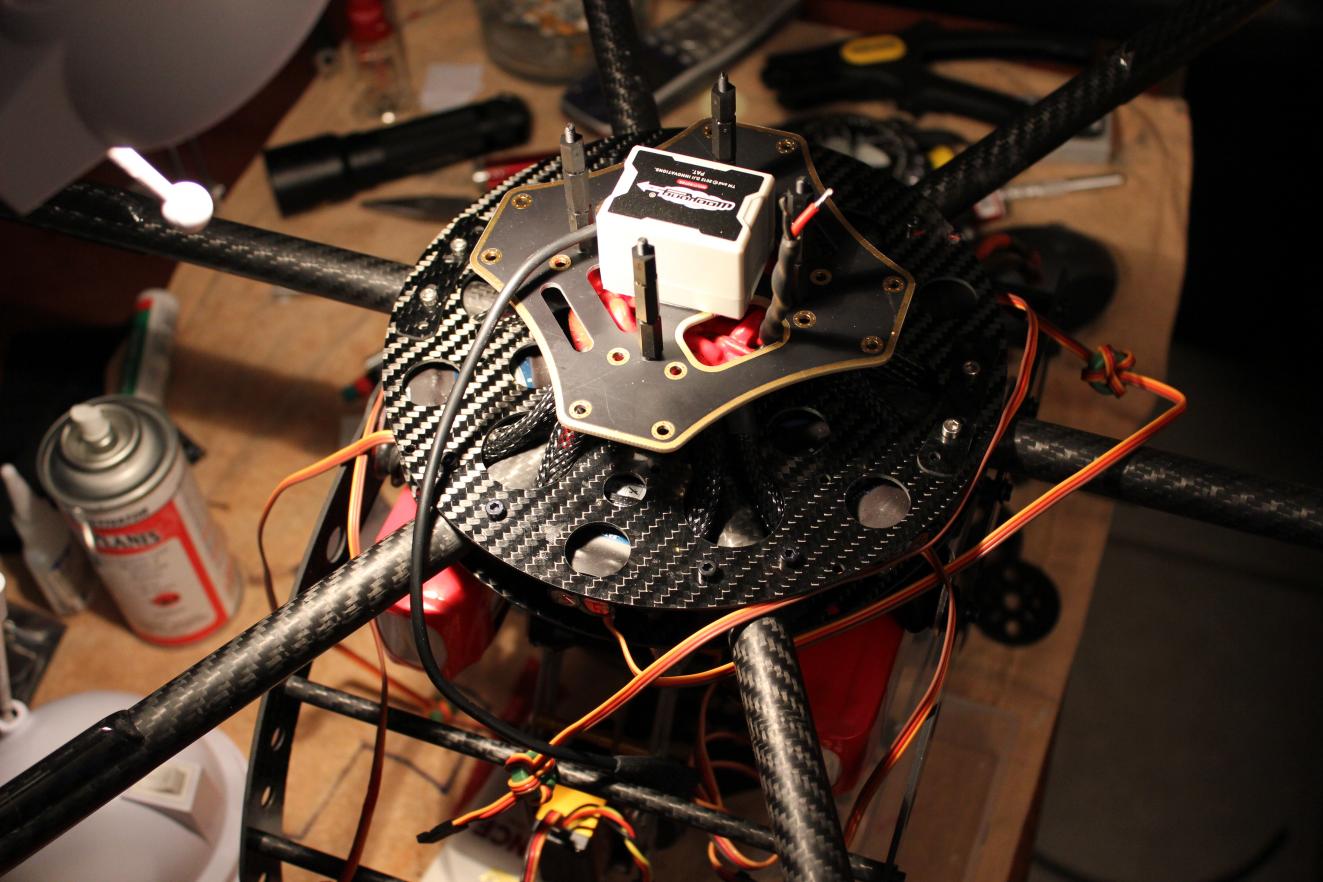

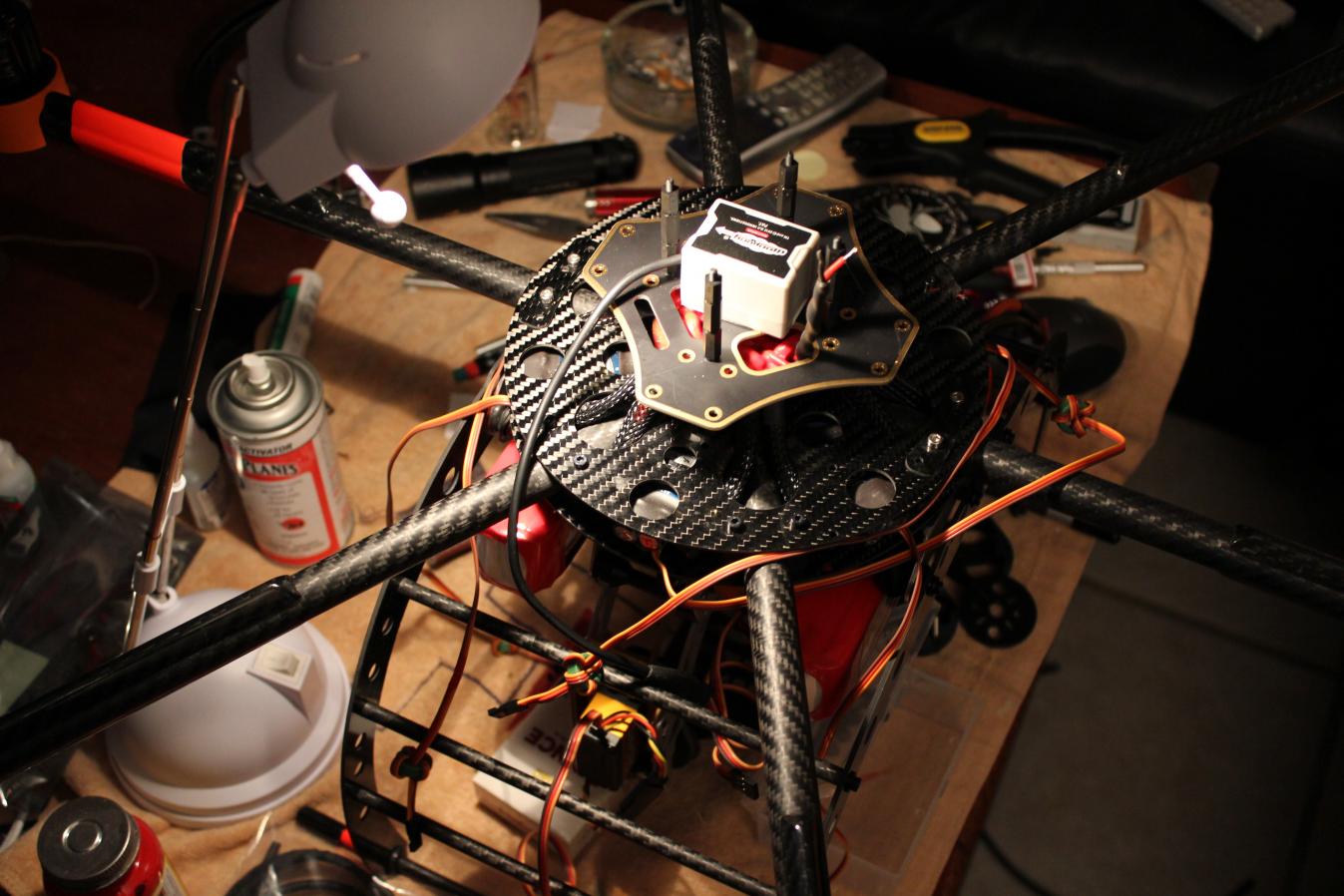

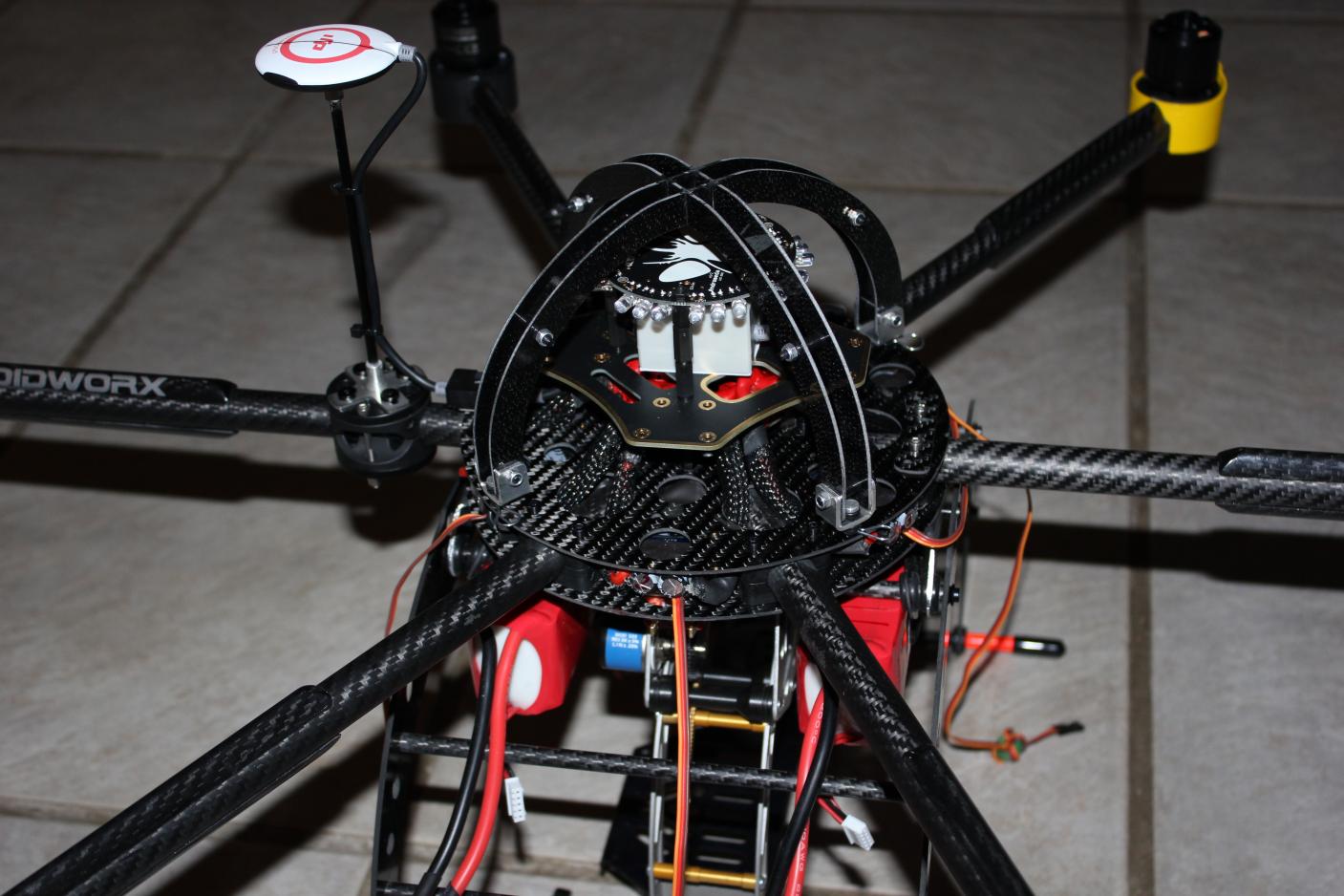

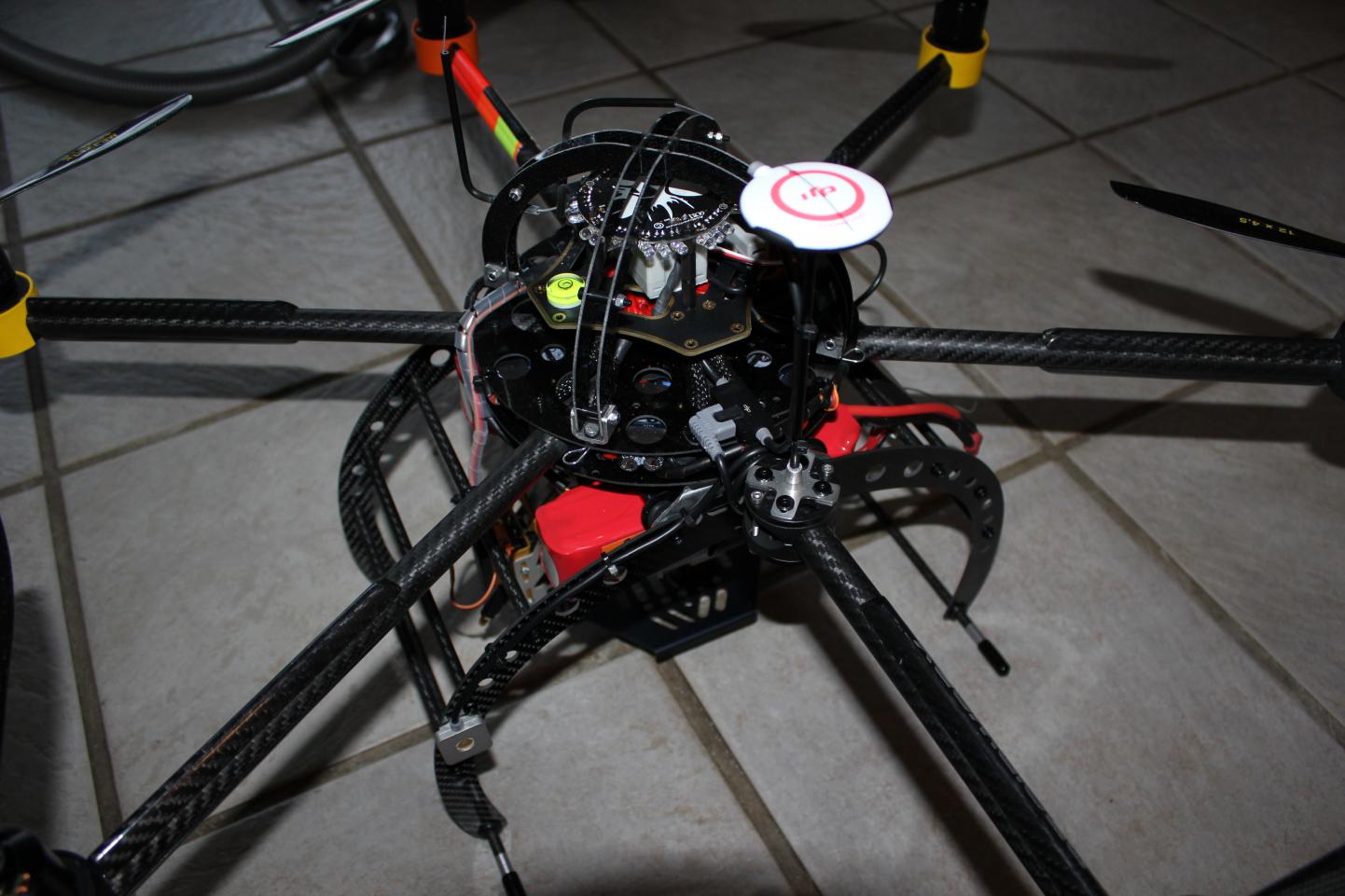

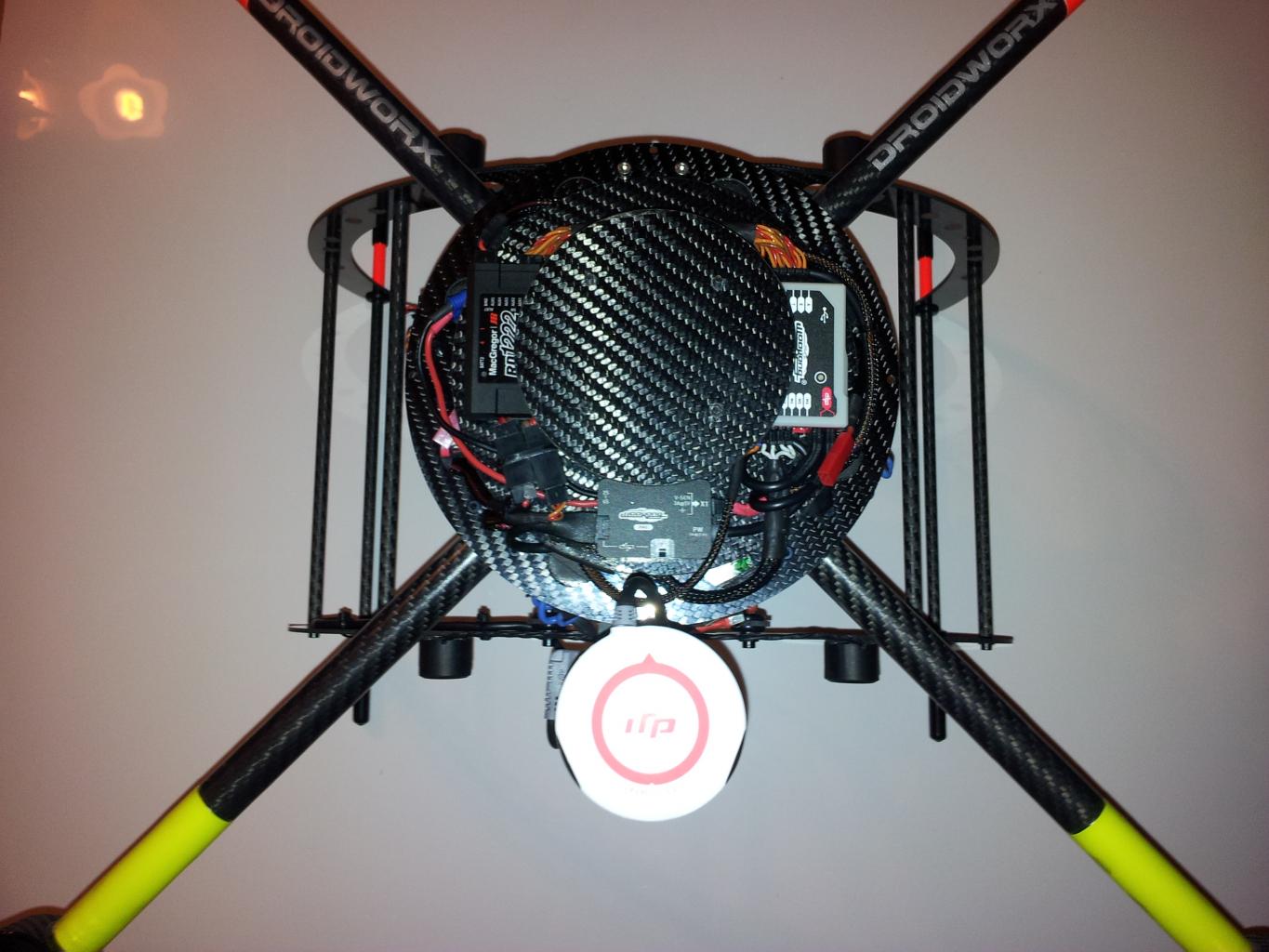

Hi, here some pics from build:

View attachment 2621View attachment 2622View attachment 2623View attachment 2624View attachment 2625View attachment 2626View attachment 2632View attachment 2629View attachment 2630View attachment 2627View attachment 2628View attachment 2631

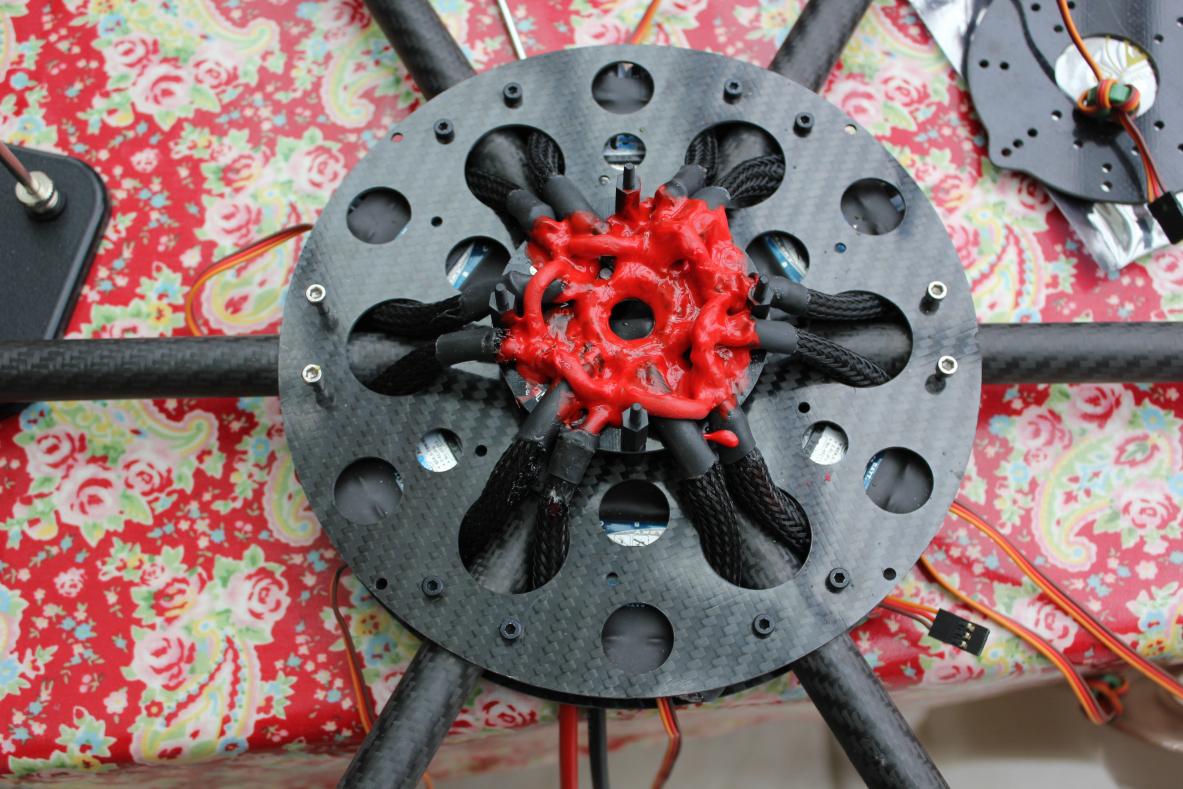

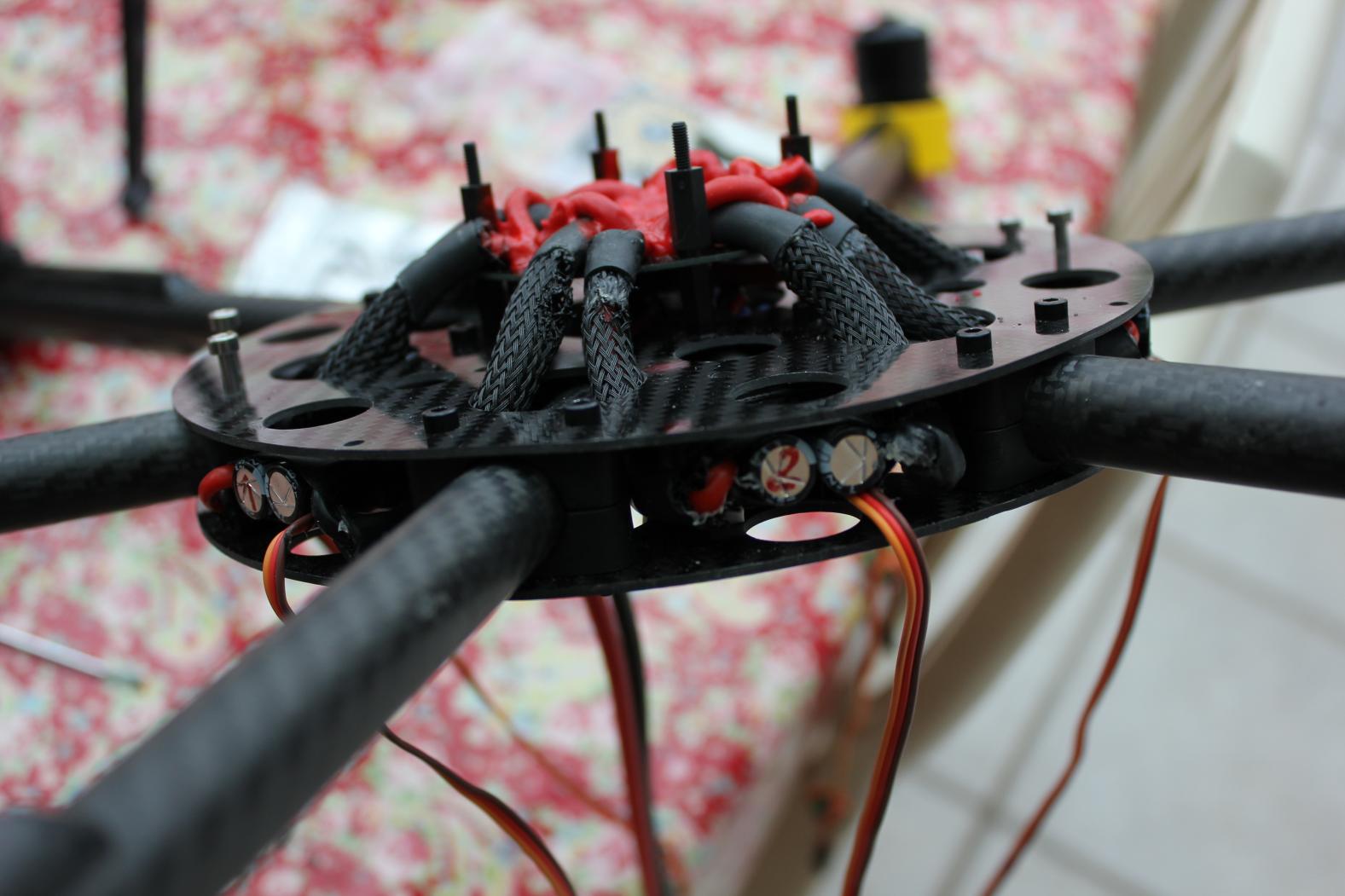

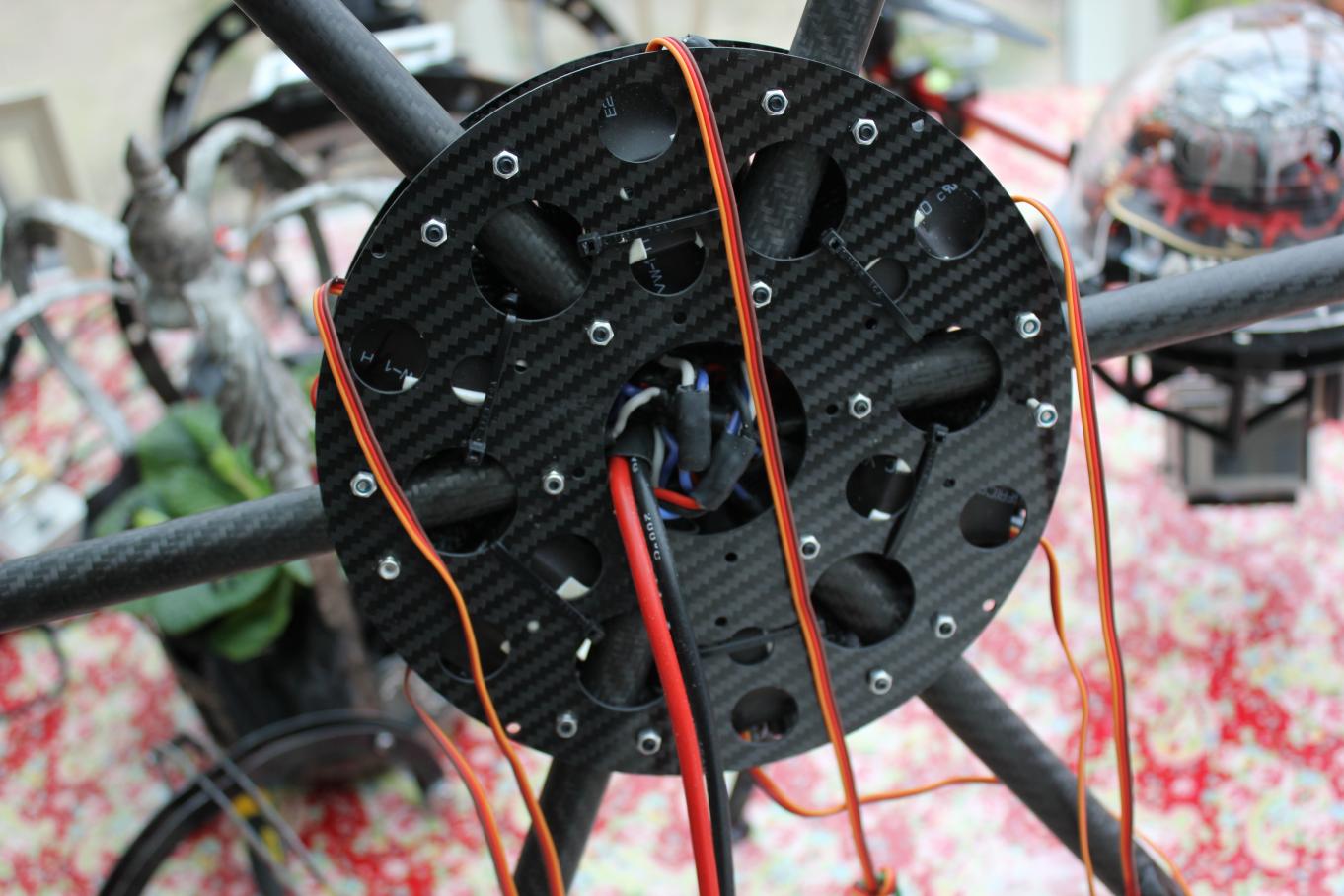

I Didn`t trust the Afropower-board, so i made some cable crossover to make sure it wouldn`t end up as a big fuse:tennis:

SETUP:

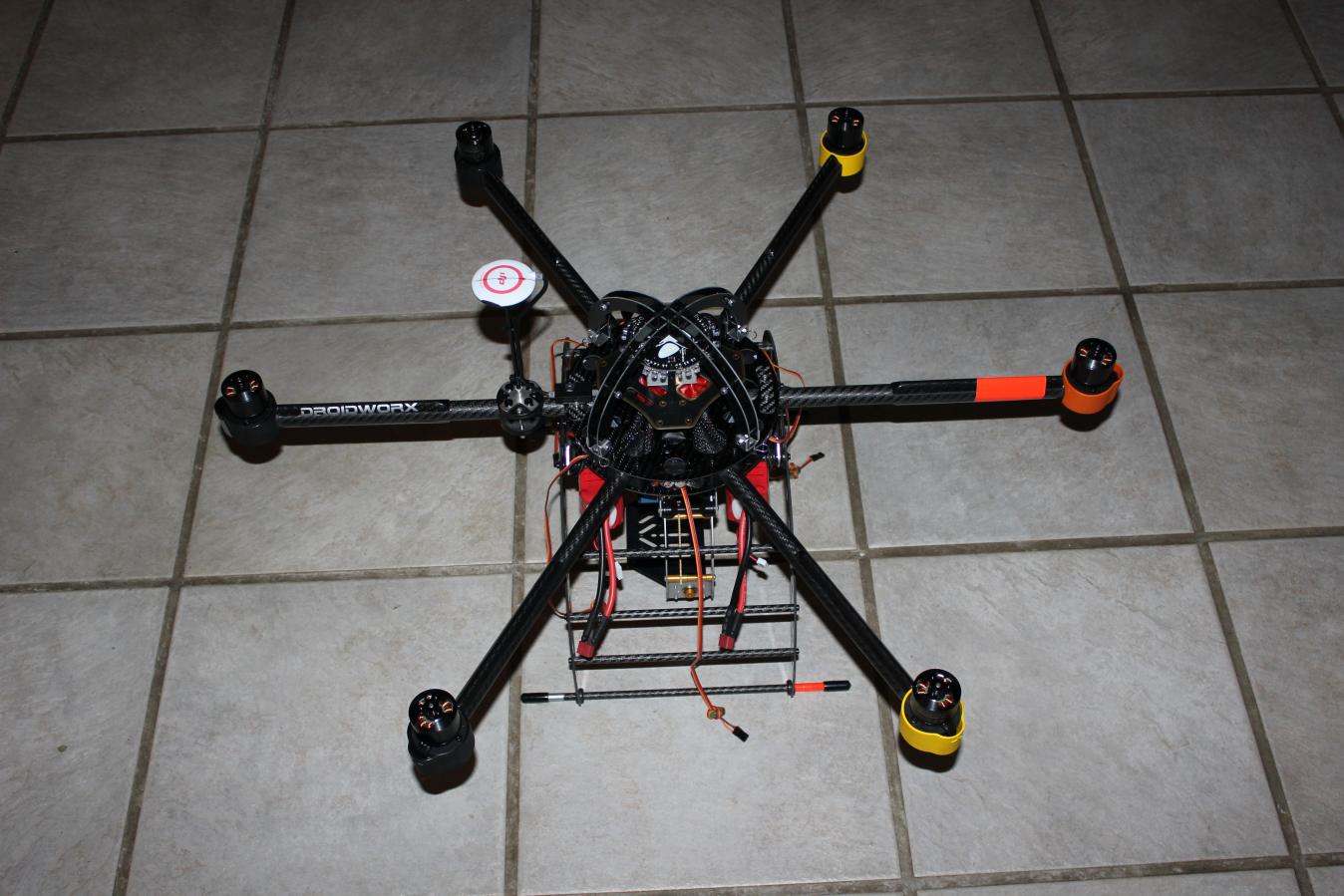

Droidworx AD-6 HL
Extra Enginemount for GPS mount on boom.

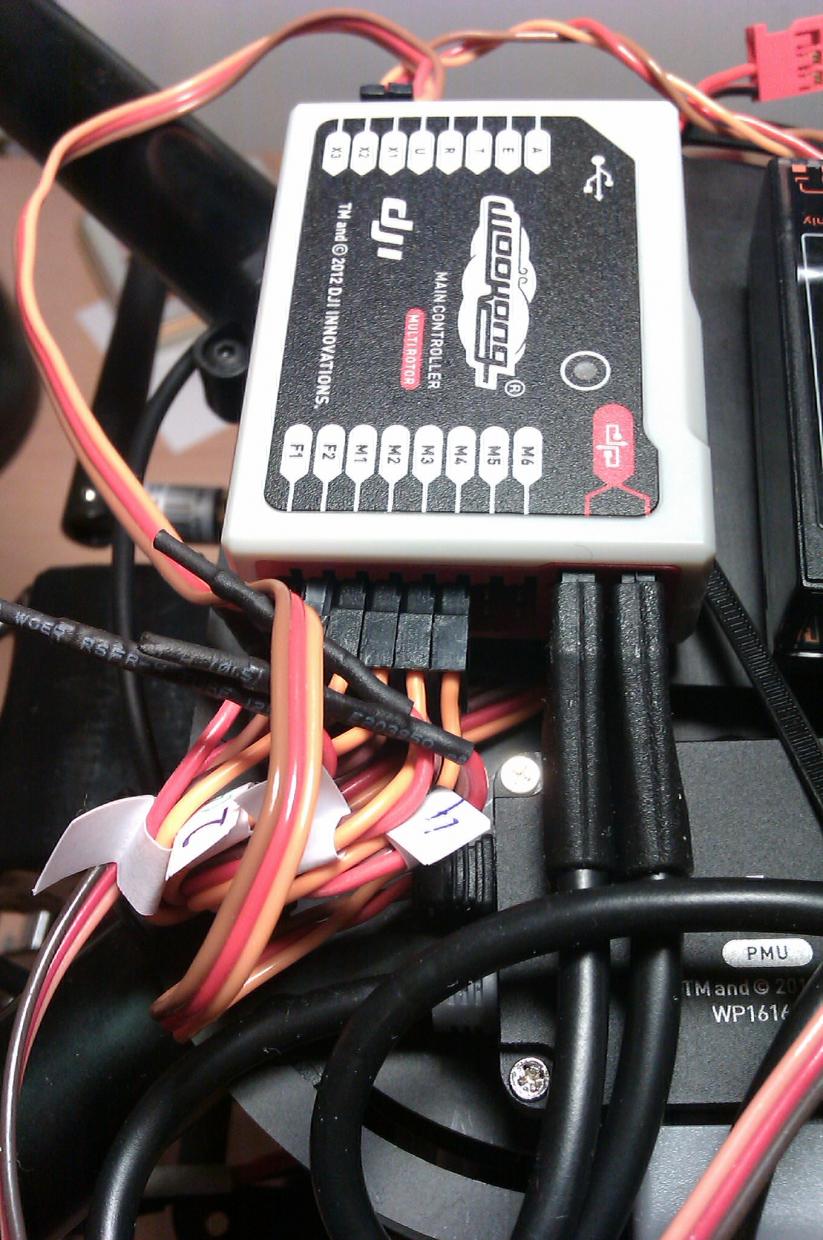

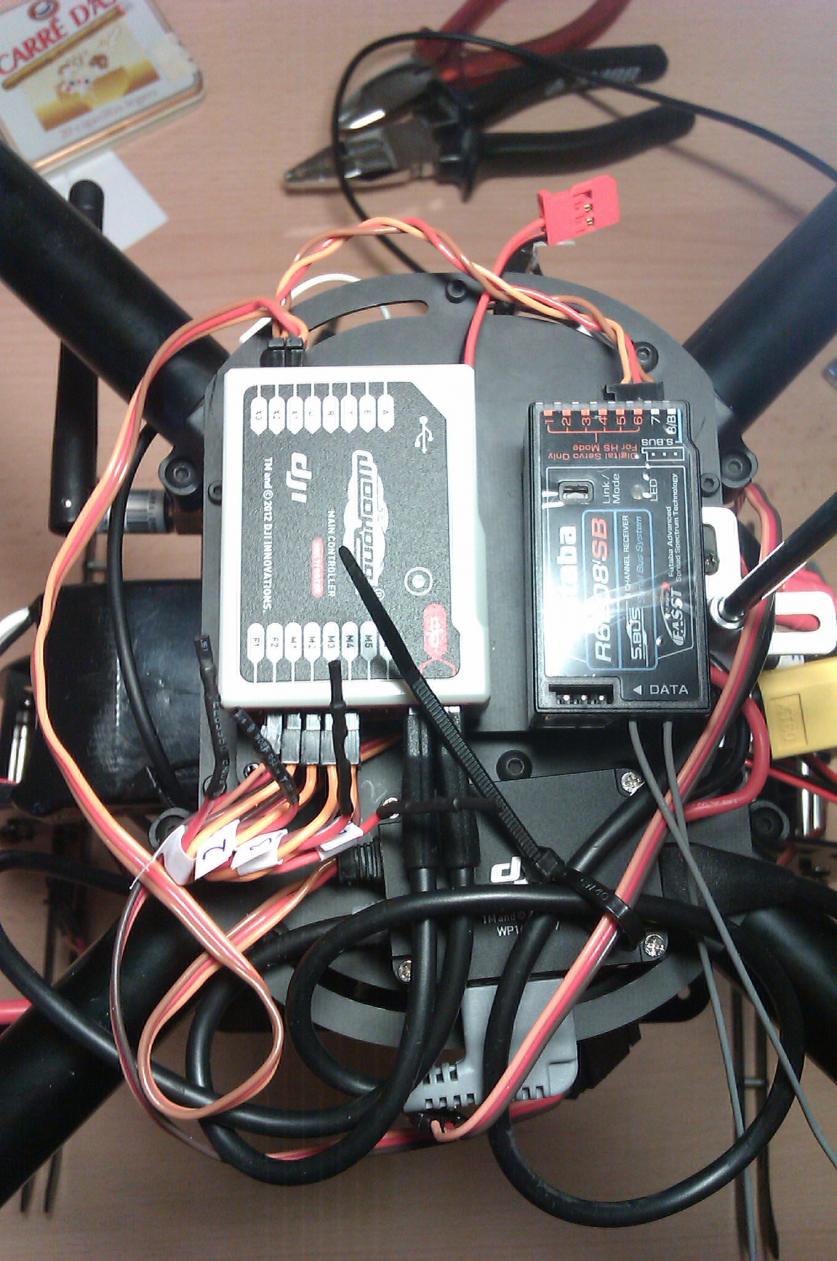

1x DJI Wookong-M, Data Link 2.4Ghz, M-View (Multi Waypoint in order)
6x MK3638 Motor 350W from MicroKopter
6x 40 amp esc Dualsky V2 (High modulation rate PWM (10 KHz))

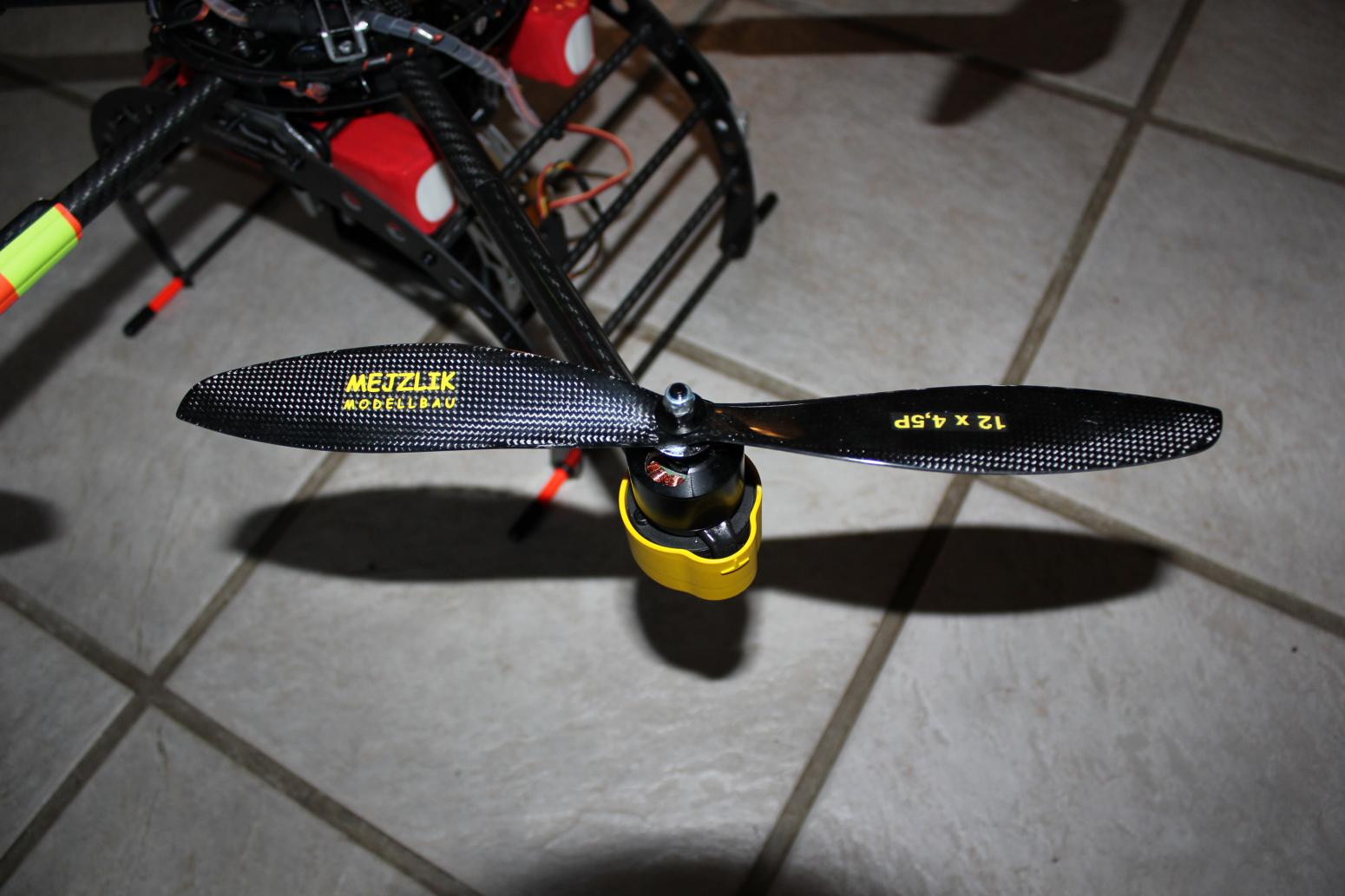

6x 12x4.5 props Carbon from Mejzlik ( 13gram )
6x Extra Props for testing XOAR 13x6.5 wood

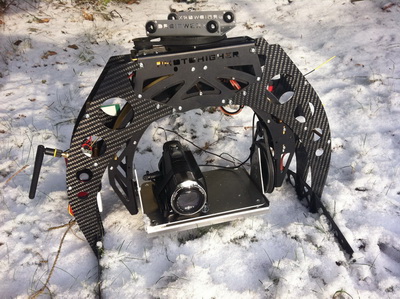

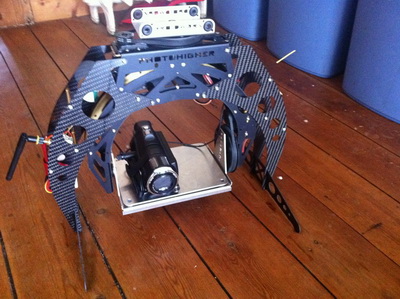

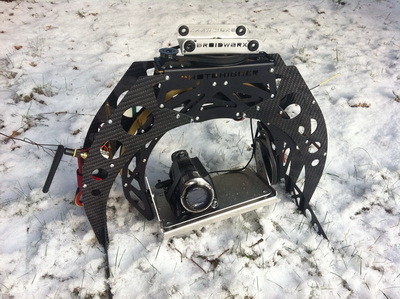

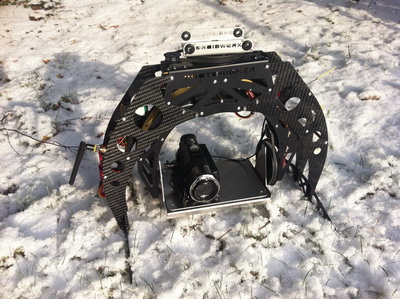

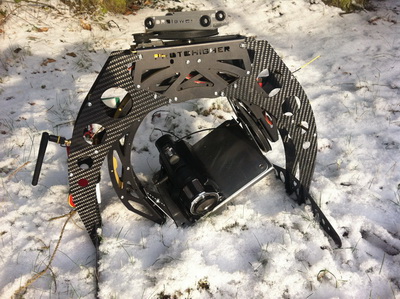

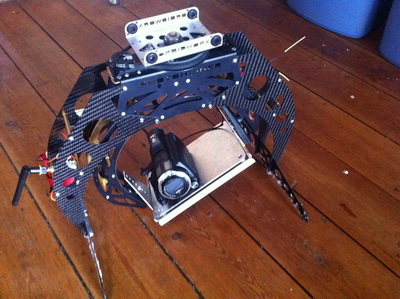

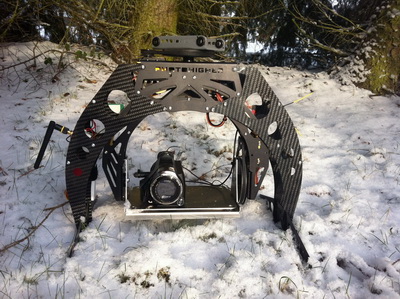

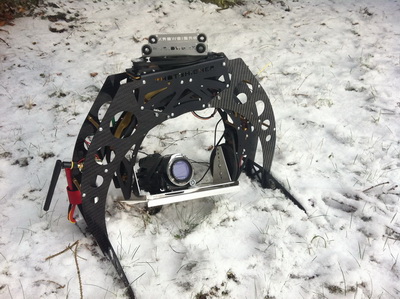

AV130 camera gimbal
Andromeda LED Pilot orientation board for Multicopters 72mm
2x 4s 5200mAh 35/70c Horeson lipos
5.8Ghz 500mw video transmitter with 3s 850mAh lipo
Canon 550D and Gopro Hero 2
Futaba T8FG Super / Rx R6208SB

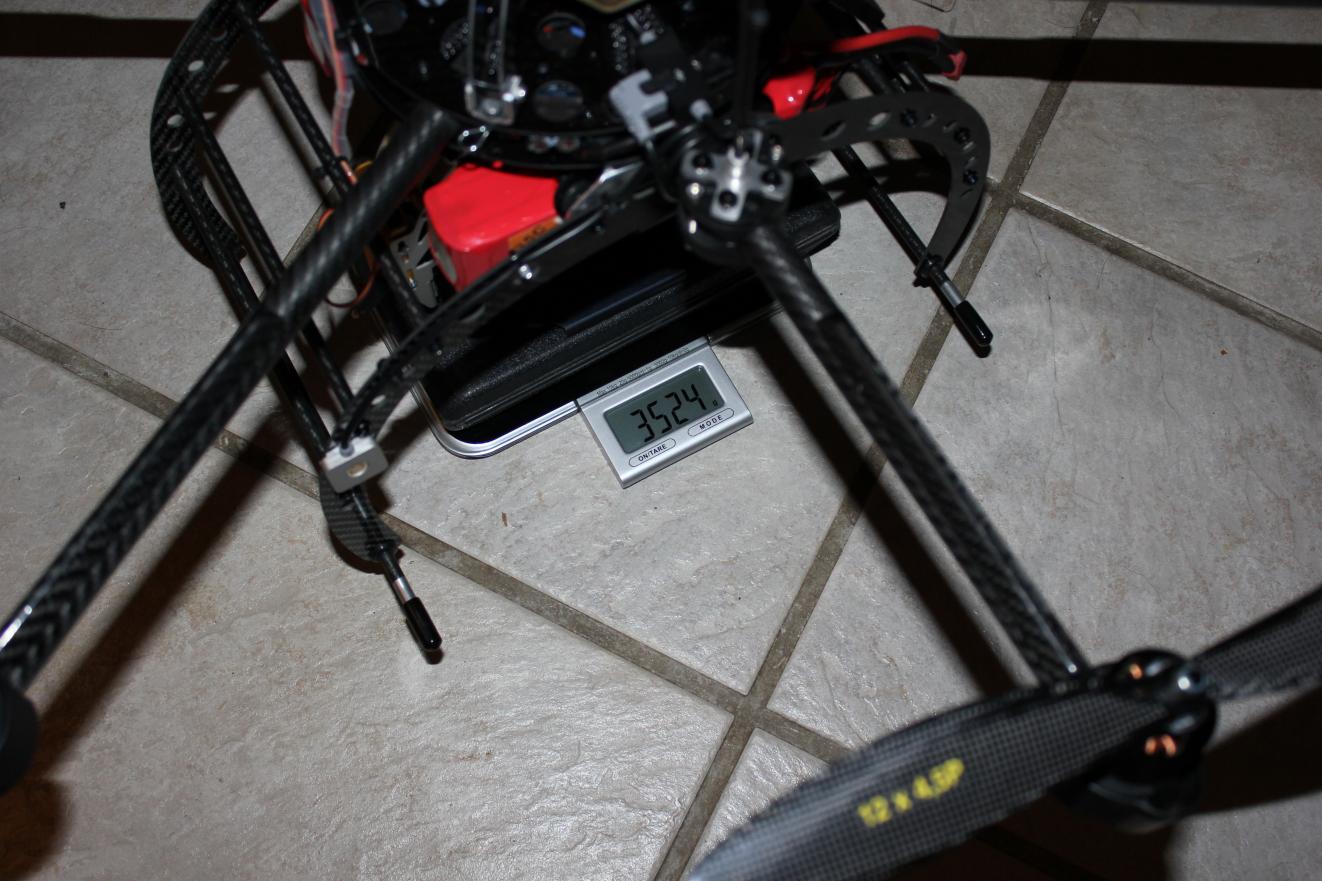

Takeoff Weight: with GoPro 3520 gram.

Flight time: First test 12min used 5290mAh of the 10400mAh

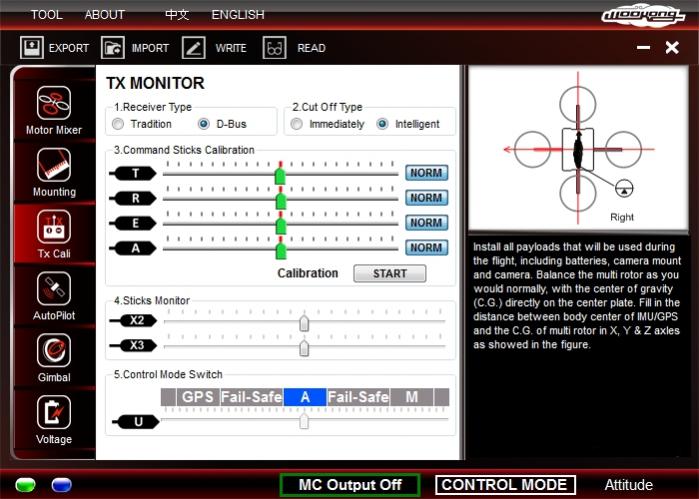

Gains:

Pitch and Roll: 130% all other 100%

And here Maiden flight Video after Rendering:

AV-130 Gimbel is not activ, due to X3 is in use for Atti trimm.



Attachments

  • build (1).jpg
    build (1).jpg
    127.7 KB · Views: 315
  • build (2).jpg
    build (2).jpg
    138.3 KB · Views: 347
  • build (3).jpg
    build (3).jpg
    150.3 KB · Views: 324
  • build (4).jpg
    build (4).jpg
    142.3 KB · Views: 303
  • build (5).jpg
    build (5).jpg
    140.6 KB · Views: 302
  • build (6).jpg
    build (6).jpg
    143.8 KB · Views: 304
  • build (7).jpg
    build (7).jpg
    136.9 KB · Views: 228
  • build (8).jpg
    build (8).jpg
    143.8 KB · Views: 220
  • build (9).jpg
    build (9).jpg
    144.9 KB · Views: 214
  • build (10).jpg
    build (10).jpg
    138.7 KB · Views: 240
  • build (11).jpg
    build (11).jpg
    131.2 KB · Views: 351
  • build (12).jpg
    build (12).jpg
    135.6 KB · Views: 291
Last edited by a moderator:

Tomstoy2

Tomstoy2

Member
Lars, I love that bird. Really like that led board, too! How cool is that thing! Got to give you the willies throwing that kind of money up in the air, I bet? I know it would me.

I find it a lot easier trusting it now with a WKM on board.

That damn fy91q I had before was scary. One day it would work beautiful, the next it was a crash waiting to happen.

Good luck with her!


jetforce

jetforce

FLY HIGH AND STAY HIGH
Thanks Tomstoy,

yes the WKM is geting better and better, I have a SkyJib 8 with extended booms (540mm each) in build,
so DJI better keep the good work up.
:frog:


R

robvree

Member

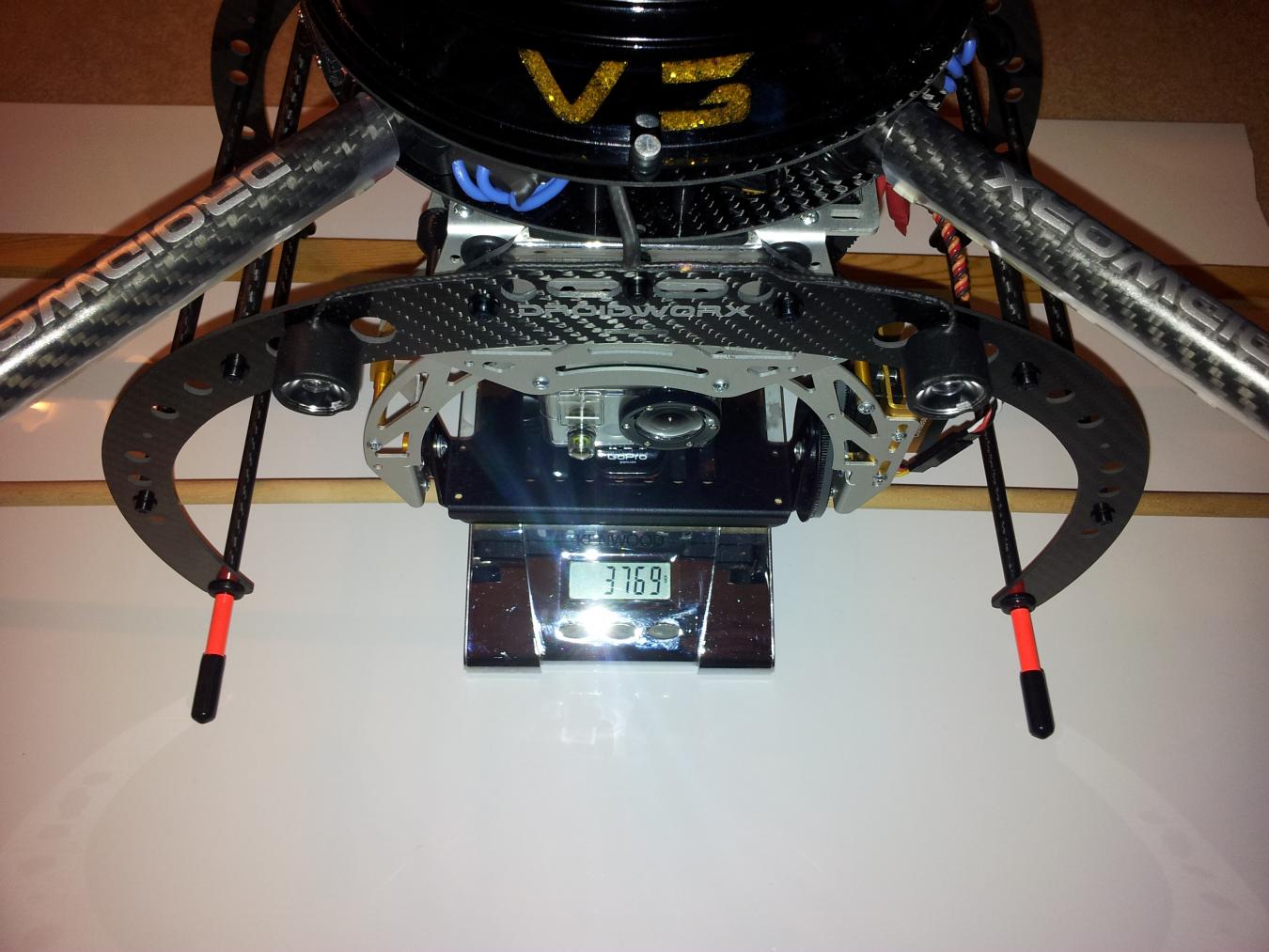

Is your take off weight of 3520grams with 2 batteries? If it is, for the life of me I have no idea how your multi is only 5 grams heavier than my AD-4 HL. My take off weight with GoPro and 2 batteries is 3515. You have 2 more booms, motors, speed controllers, etc.



BorisS

BorisS

Drone Enthusiast
Hi Lars,

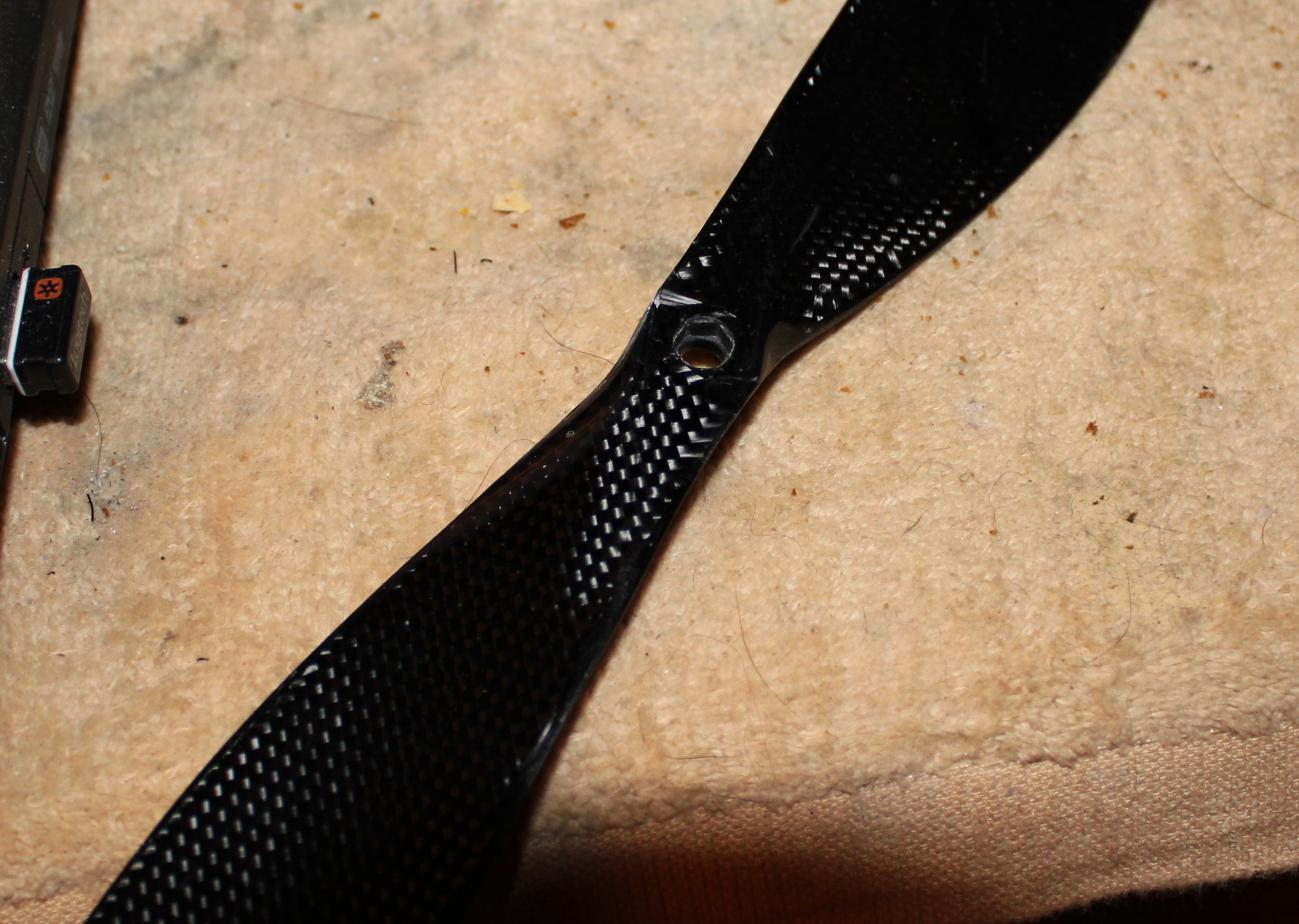

I am very interesting in the 6x 12x4.5 props Carbon from Mejzlik ( 13gram ). Would you consider them to have enough meat to drill them to 6mm ?

Thanks

Boris





jetforce

jetforce

FLY HIGH AND STAY HIGH
@ AIRCONROB,

perhaps different weight of lipos, props, engines, short cabels and so on,

can only tell what the weight tells me :black_eyed:


BorisS

BorisS

Drone Enthusiast
thanks Lars,

going to give them a try. Its to bad that there aren't any light 13 props. Both the Mejzlik and the 11 gram CF of the MK shop dont come in 13 version. All the other 13 CF are again very heavy, making me wonder what the point of carbon is !

Boris


jetforce

jetforce

FLY HIGH AND STAY HIGH
@ Boris,

ich werde mal Tomas von Mejzlik mal fragen, mal sehen de sind eigentlich sehr fortschritts gerichtet.

Ich wuerde dann auch welche abnehmen, welche steigung waehre fuer dich interesant ? Carbon hat ja ein stabilere wert und hoehere lift beim belastung als APC, Graupner, EEP und Co.

Last edited by a moderator:

BorisS

BorisS

Drone Enthusiast
Hi Lars,

super das wäre das. Ich denke mal hinsichtlich Steigung würde ich das den Tomas überlassen. Was für uns wichtig ist ein höherer RPM der props, das macht den WKM um einiges Stabiler !
Die meisten die es am Markt gibt kommen mit einer 6.5 Steigung ich denke es man sollte mal bei 5 oder sogar drunter ansetzen !

Ein bisschen research:

http://www.goodluckbuy.com/1365-13x...eller-prop-cw-ccw-for-quadcoptor-2-pairs.html

27 gram viel zu schwer !

http://mikrokopter.altigator.com/xo...5-p-268.html?zenid=qa9diol50324dq47dehpt71tn4

26 gram ist mir auch zu schwer !

Unter propeller haben die einen 13 6.5 den sie mit 16 g angeben. http://www.lcc-shop.de/index.htm
Bin aber von der Qualität der props vom lcc nicht so überzeugt !

http://aerobot.com.au/shop/all-products/51-aerobot-13x65-carbon-fiber-propeller-set.html

auch zu schwer ! Die aerobot finde ich auch qualitative eher schleissig ausgeführt !

Danke !

Boris

Last edited by a moderator:

jetforce

jetforce

FLY HIGH AND STAY HIGH
Hi Boris,

denke auch das 4 bis 5 waere perfekt, unsere motoren schafft viel besser ein last wechel beim hoehern drehzahl, und ein nidrigere anstellvinkel bringt auch bessere stabilitet.

Ich habe Tomas ein mail geschrieben, da ich gerne mehr uber max lift und trust wissen moechte. Habe dabei unsere anliegen vorgelegt, mal sehen was er sagt.

PS. schoen mal wieder Deutsch zu schreiben, habe dort 20 Jahre gelebt :tennis:


BorisS

BorisS

Drone Enthusiast
I will switch back to english so the other can also profit from the propeller talk :)

This are also interesting for their size and weight ! http://flyduino.net/15-Handmade-Full-Carbon-Propeller-Set-2-CW-2-CCW

Either i am blind but i cant find the Steigung !

Also something new !

http://www.falconhobby.com/Propeller/Electric carbon paddle/33.html

But dont even want to ask for the price they are beauties !

Boris

Ps. were exactly did you life. Although i am austrian i also spent 15 years of my life in Frankfurt am Main Hessen


.





BorisS

BorisS

Drone Enthusiast
Cool its worth a lot to have a connection like tomas at Mejzlik, manufacture that can be talked to and considers !

Boris
