Brushless Gimbal for NEX 5 or GF2 and GoPro

M

Musky

Member
Brushless Gimbal for NEX 5 or GF2.
Carbon or G10. This Gimbal is version 2.
The motor and controler is not included.



22mm boom.
In this moment I have made 4 Pcs from CF and 2 from G10 and another 3 almost ready to shipp.

Price for Gimbal CF 174 $ is not including shipping or PP fee.

Price for Gimbal G10 plates and carbon fiber booms is 130 $( fist version was 127$ but v2 have some imp ) is not including sipping or PP fee.

After i sell the 4 CF gimbals and 2 G10 ( this i can shipp second day ) the shipping will be done in maximum 1 week after you make the payment( i need time to make them because a lot a people want to buy them.

You must tell me what kind of frame you have to make the plate betwen frame and gimbal.


Attachments

  • P1040982.jpg
    141.8 KB · Views: 356
  • P1040983.jpg
    133.5 KB · Views: 286
  • P1040984.jpg
    131.5 KB · Views: 335

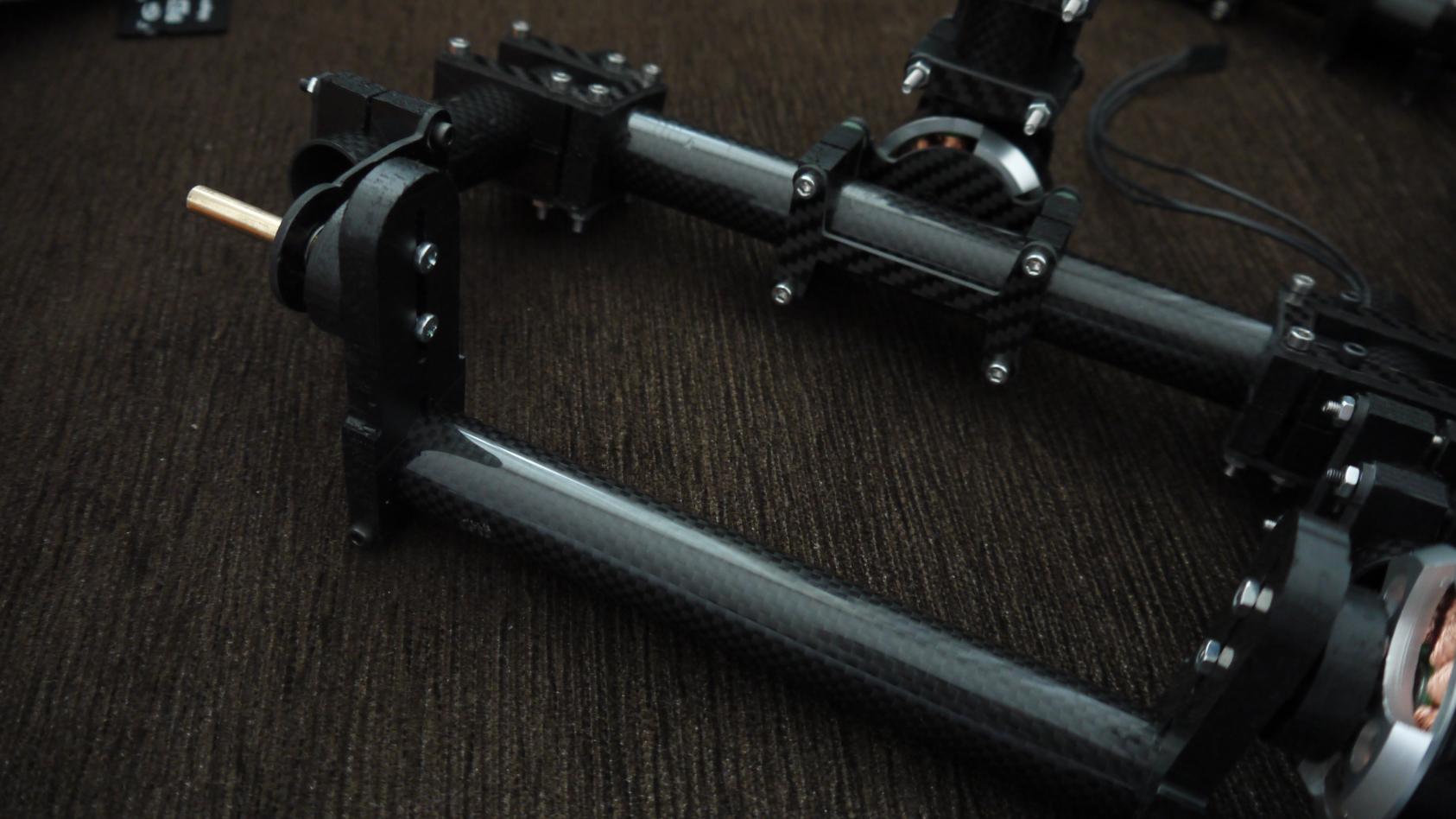

  • P1040985.jpg
    138.4 KB · Views: 315
  • P1040986.jpg
    125.2 KB · Views: 258

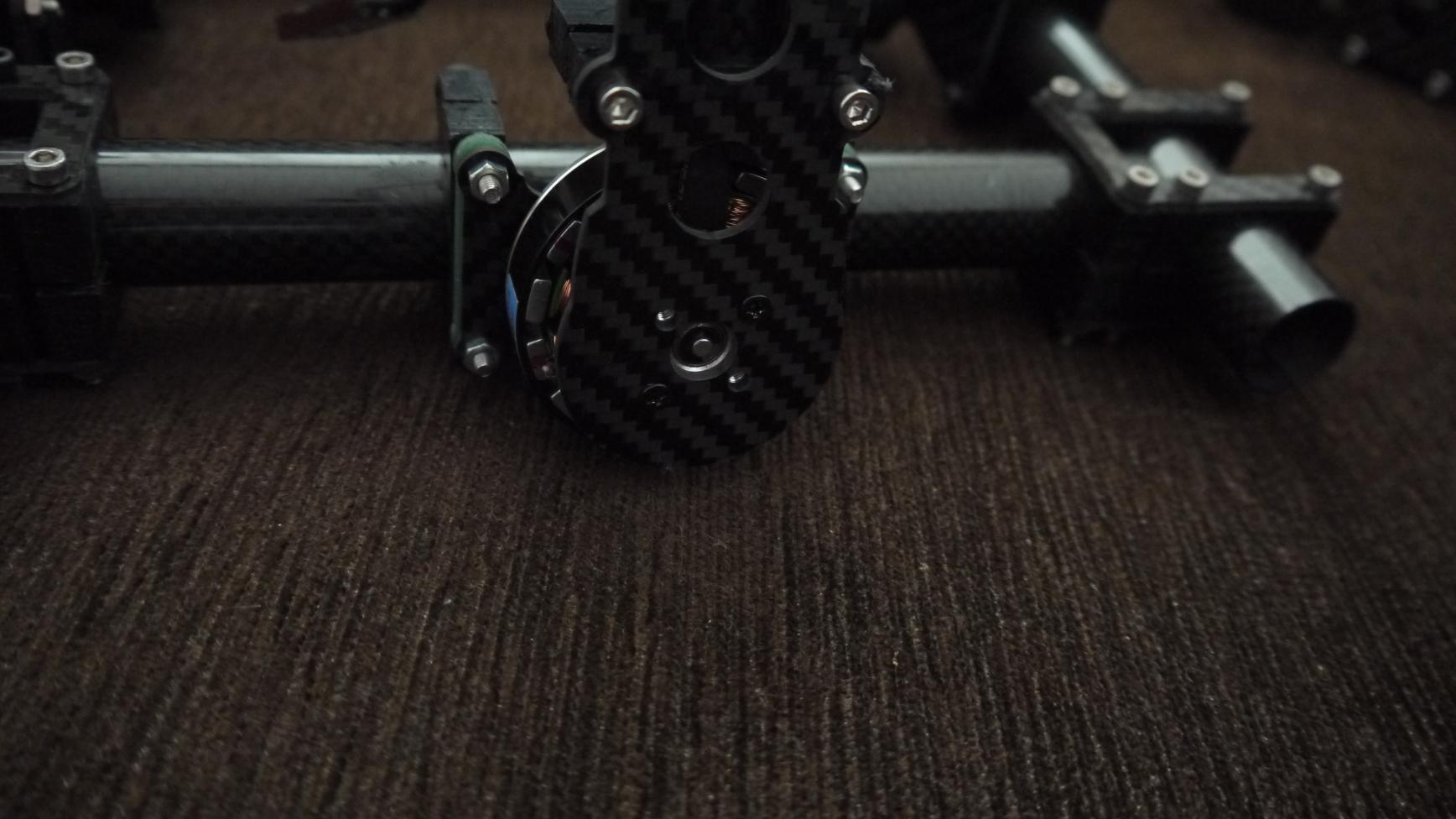

  • P1040989.jpg
    136.8 KB · Views: 324

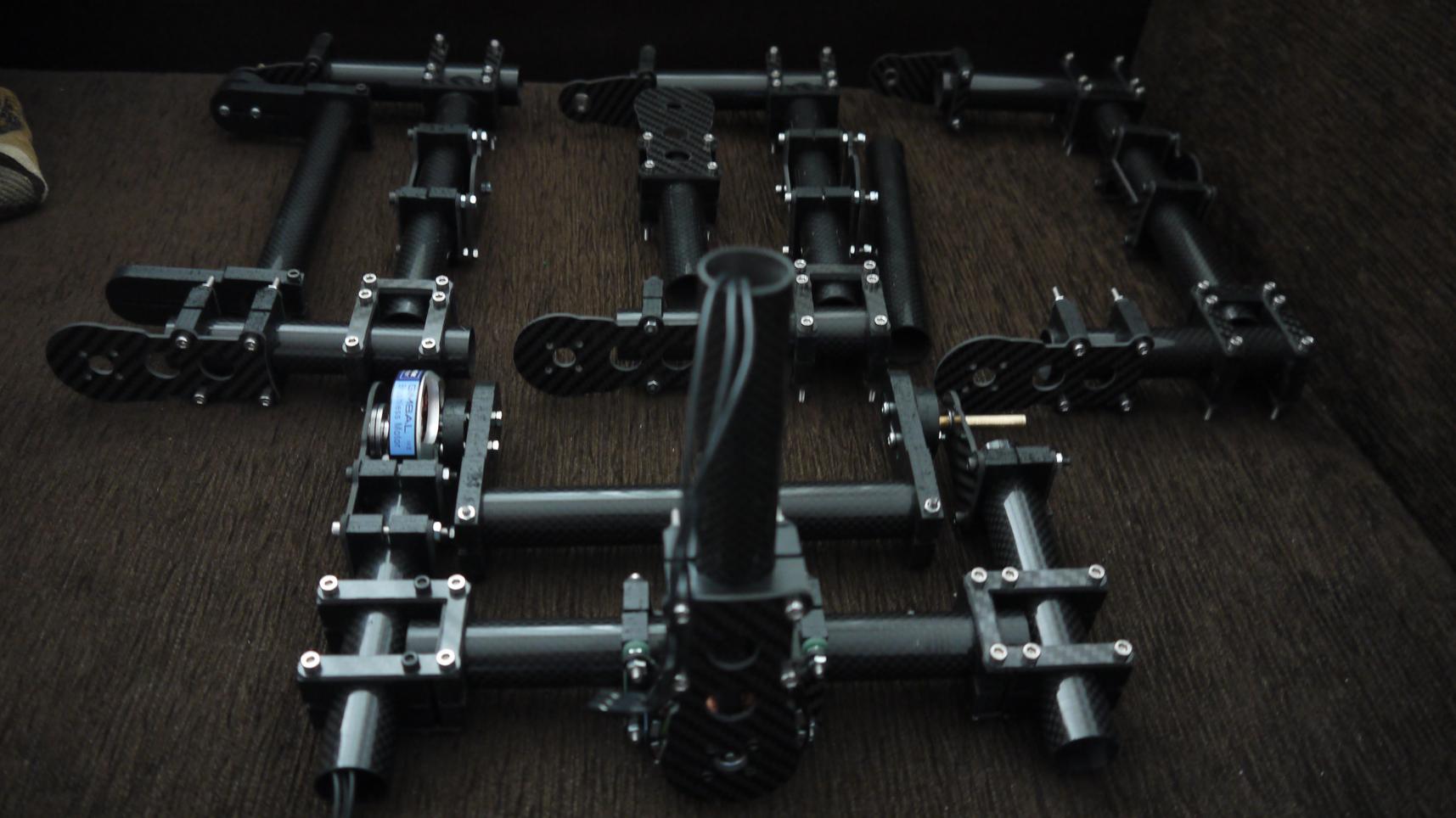

  • P1040990.jpg
    136.3 KB · Views: 333

jfro

jfro

Aerial Fun
What is the size of the horizontal cf tubes?
Is there any reason they couldn't be widened by 25mm -45mm?


SMP

SMP

Member
Can you share some details on the motor mount spacing and do you plan to add any top mount brackets (ie bracket to attach to actual heli) and camera trays?


M

Musky

Member
1.jfro I can make for 24 mm tube or 25 . ex cinestar booms. The horizontal tube is 22mm now

2. SMP Motor mount is standard 16 x19 exemple 4008/4006/5010/3536...... but i can make custom.


Gimbals from G10 are sold. I will make more but will be shipped next friday.

Last edited by a moderator:

jfro

jfro

Aerial Fun
Musky.... what about making you mount wider to fit a gh2/ gh3 or even a Canon 5d and some of the lesser EOS's? Seems just a little wider than nx5, would work. Looks like your design would allow that without a lot of work, just longer 22mm tubes. Not sure on the rest, but thought I'd ask.


M

Musky

Member
The brushless solution is not powerfull to work on big camera like 5d . until now is ok only with nex 5 and GF2. 170 mm is the mount


jfro

jfro

Aerial Fun
Base to Base, the gh2 is under 125mm. Height is about 93mm. With the strap holder it's around 135mm. So I'm assuming it would fit if you plate is 170mm. Yes?
Base to base, the gh3 is about 131mm and another 10mm total for the strap mounts. This may fit but might be too heavy for motors at 860g.

Gh2 with small lens is about is about 680g and the gh3 is about 860g. From what I understand, current motors can handle up to 800g so I'm assuming gh2 is within specs if it would fit your gimble. What do you think?


M

Musky

Member
The gimbal can take a GH2 but i dont know how good will work. I cant make a test because i dont have a GH2 and i dont want to speak stupid things :).



A

alexoki

Member
Anyone received a reply from the seller to any questions yet? Also anyone ordered and received a gimbal yet? Been trying to contact him but no replis.
