4 channel multi-chemistry charger

greg77

New Member
HOBBYMATE QUAD charger comes with built-in 110-240v AC power supply. The charger can be also powered from your car battery (DC 11.0V-18.0V input).

It can charge 4 batteries in the same time (up to 120W/channel). Can be charged different type of batteries in the same time.
No USB data link, so you can't monitor the charging process via your PC.

Manufacturer's specs:
  • AC Input voltage AC 100V-120V OR 220V-240V
  • DC Input voltage DC 11.0V-18.0V
  • Charge Current: 0.1A-12.0A each port
  • Discharge current: 0.1A-6.0A each port
  • Charge power max. 480W, 120W each port
  • Discharge power max.40W, 10W each port
  • Balance current max. 300mA/cell
  • Lithium battery cell count 1-6 (S)eries
  • NiCd/NiMH battery cell count 1-15 Cells
  • Lithium battery types Li-Po, Li-Hv, Li-ion, Li-Fe
  • Pb battery voltage 2V-20V (1-10 cells)
  • mAh Capacity: 100mAh ¨C 50,000mAh (Can charge batteries w/ higher capacity, but restarting the charge process will be required once maximum is reached)
  • Weight 1600g
  • Dimensions 205 x 180 x 70mm
Product images:
HobbyMate_HB120QUAD_4_channel_charger.jpg HB120QUAD_channel_1_&_3.jpg HB120QUAD_box_inside.jpg


Attachments

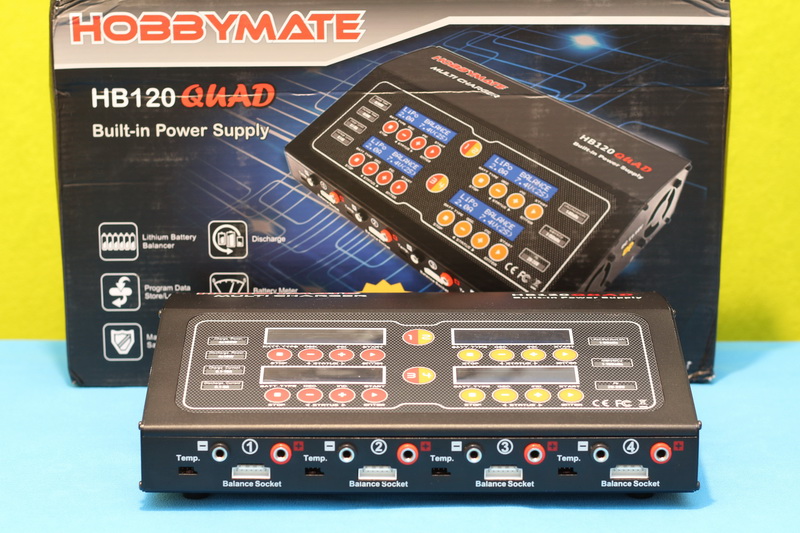

  • HobbyMate_HB120QUAD_4_channel_charger.jpg
    196.3 KB · Views: 318

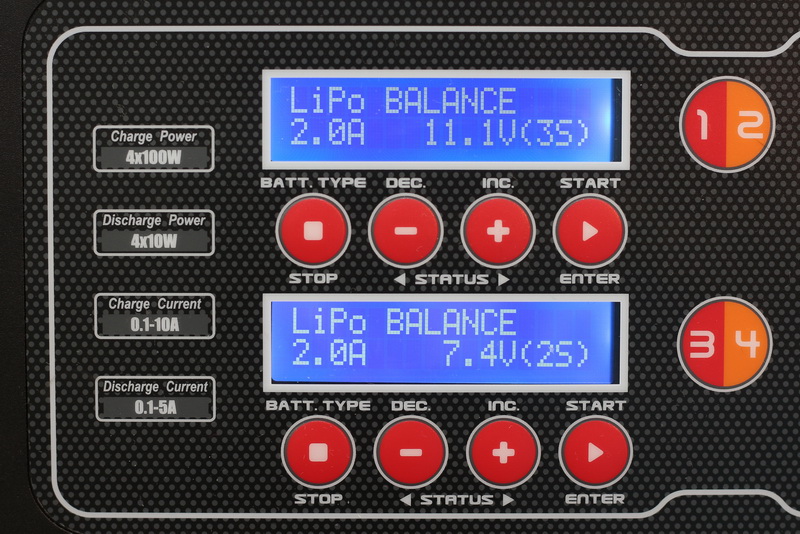

  • HB120QUAD_channel_1_&_3.jpg
    215.6 KB · Views: 308

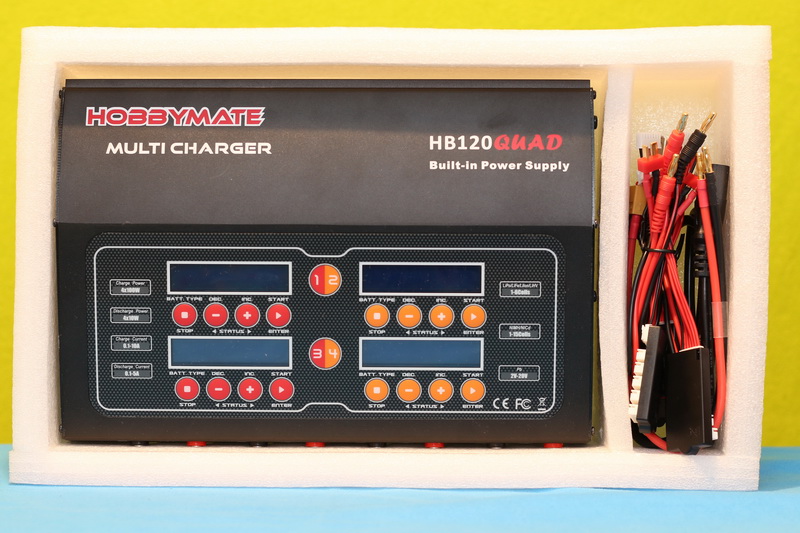

  • HB120QUAD_box_inside.jpg
    171.9 KB · Views: 275

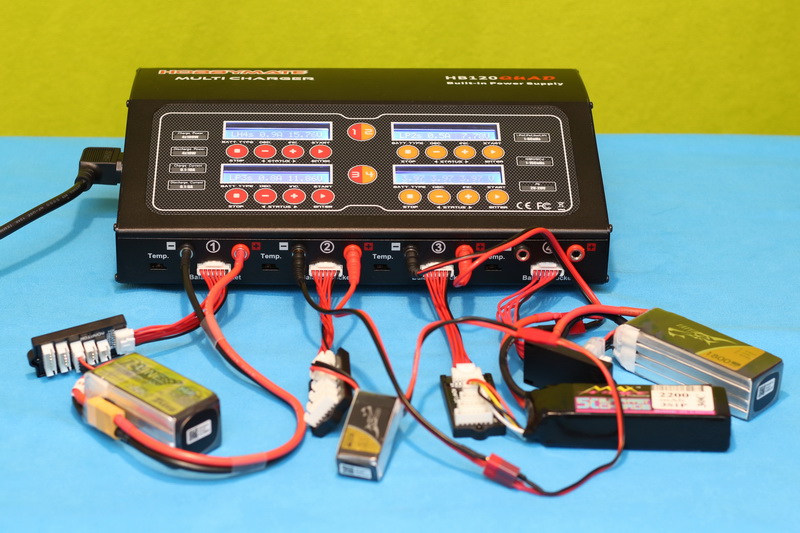

  • HB120QUAD_all_batteries_connected.jpg
    176.4 KB · Views: 283
