video Ground Station

kloner

Aerial DP
kloners Ground Station

I must change this thing more often than my socks, but have finally found what was looking for. Wish i'd have started here, but then i wouldn't have such a nice rx. This thing is the bomb, penetrates anything and has an unbelievably clear picture. the sound is super clean too. Through walls, down in valleys, it shows it all. When discovery gets here, i'll swap over the quad too

i.php


i.php


i.php


i.php


i.php


i.php


Your looking at a 1258Mhz crosshair RHCP receiver. 8.5db gain going into the new Digital RMRC vRx out of that into the Eagle Eyes then out of that into a 5.8 vTx and out to the DVR, 32mb, 30fs, 640x480. From there the back of my 22" monitor has a uno 5.8 vRx, cloverleaf and the Goggles also pick that feed up, SPW on that. Been ponderin leaving my quad 5.8 so then can use a straight monitor or goggles, but i really like the quality of the picture enough to warrant blowing out that idea. Tried it last trip out without the dvr and it worked killer. Can put it up on the roof or up on a hill for the best of situations

Wound up hardwiring the video out and the power in to clean up the install. bnc to rca wasn't my style. All the antennas shown are homemade

Last edited by a moderator:






vislaw

Member
When I get time I want to study this more closely. Many thanks for giving us the great pics of your rig and the info.


kloner

Aerial DP
cool, no problem. if you get confused, hit me up

this looks like a party waitin to happen. 4th of july is gonna be an airfest

i.php


i.php


i.php


i.php


i.php


kloner

Aerial DP
just tried building a 5.8 crosshair, want to try it on the goggles and see how it works. there kinda addictive once the formulas make since and you get the tricks figured out. has the same footprint as the cannon but no 12" thing sticking out. it should be something like 10db gain, 30-40 degree beam. should liven up straignt goggle transmission

i.php


i.php


i.php


i.php


i.php


loaded the back fitting with hotglue so can hang it off the sma. the reflector is 13mmx13mm to make the 10db gain, can trim it down to 8mmx8mm and only loose 2-3db gain and the beam opens up wider. these are a relatively simple receiver patch for RHCP to match with your cloverleafs, SPW or fan vTx antennas

Last edited by a moderator:

kloner

Aerial DP
got my guards on the crosshairs

i.php


i.php


i.php


i.php


then built one of these earplug jello free 1080p whatcha ma thingy. Wanted to see if it's worth looking into more. Works killer on the zII

i.php

got the polarized filter on

i.php

got a 2&3 year old, what can i say

i.php


i.php


leave on tuesday for the week, can't wait



BorisS

Drone Enthusiast

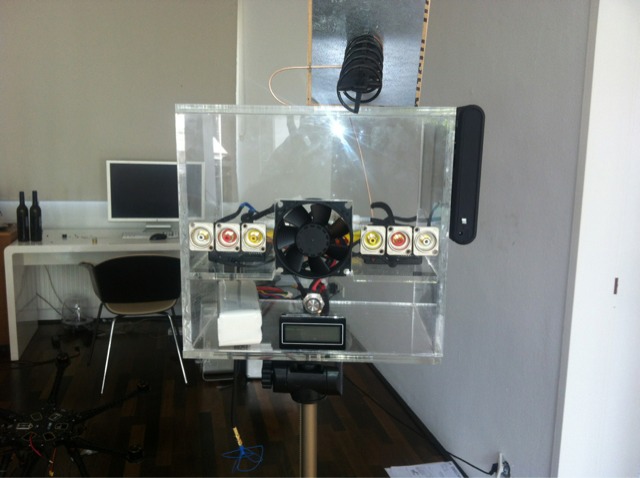

Finishing my GS up. It horrible once your on the way of getting things finished you notice were it could have been a lot better etc.


Boris

Last edited by a moderator:


BorisS

Drone Enthusiast

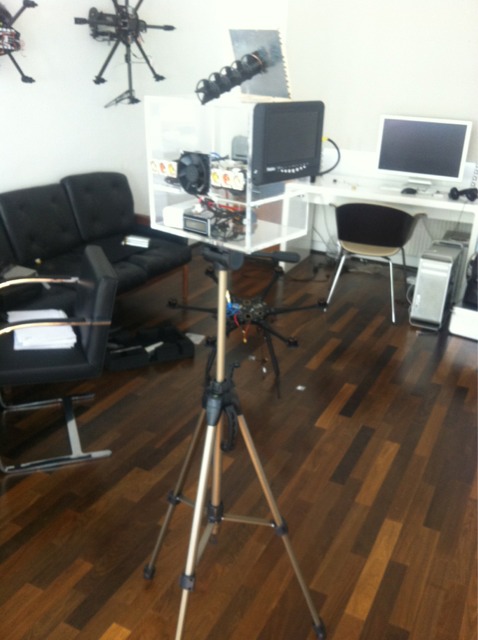

Gonna use the the canon and the crosshair for 2.4ghz and for 5.8ghz a heliaxial and a normal blue beam.

The cube is not that big so I will be hot swapping the antennas for what ever i fly. 5.8ghz will get tracking.

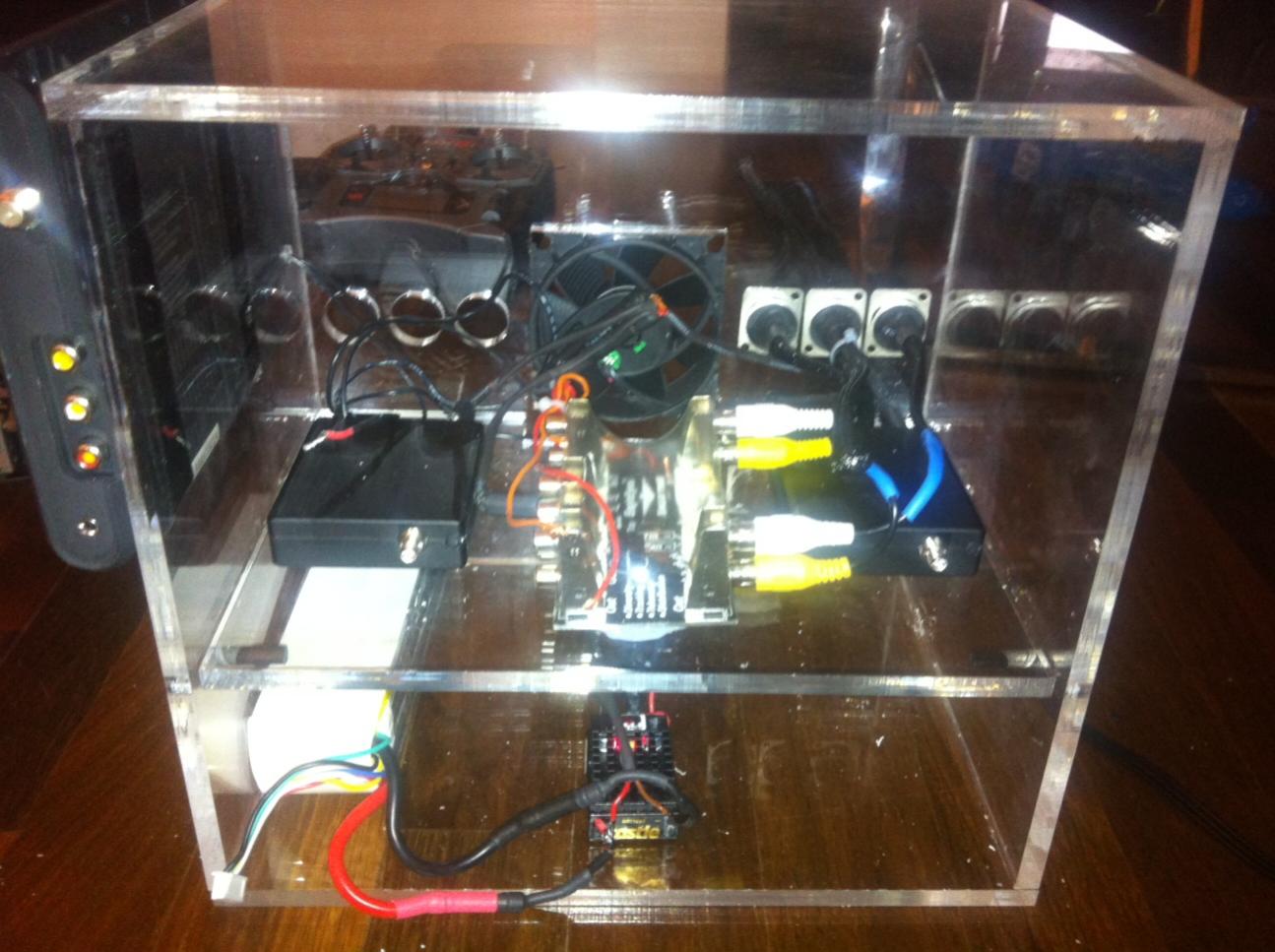

At the moment there are two law mate 2.4 tuned TBS installed with a Eagle tree diversity. For 5.8 Ghz i will stay with the standard Duo 5800

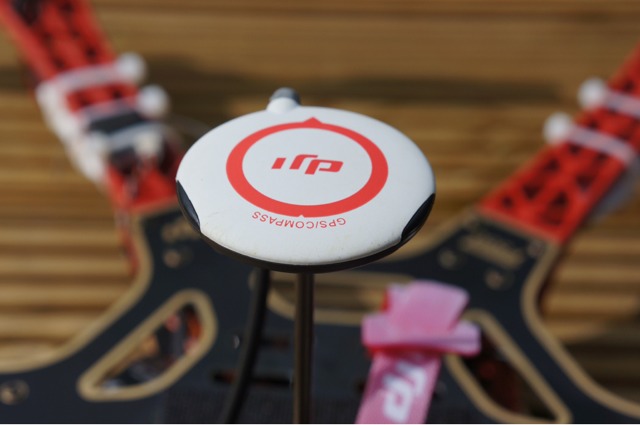

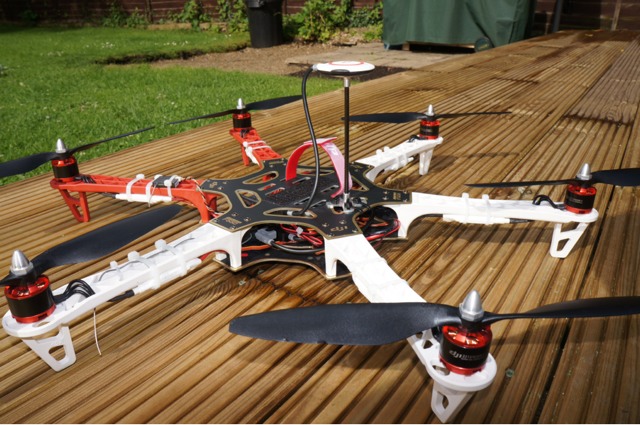

View attachment 5113View attachment 5114


Attachments

  • photo 1.jpg
    photo 1.jpg
    131.3 KB · Views: 333
  • photo 2.jpg

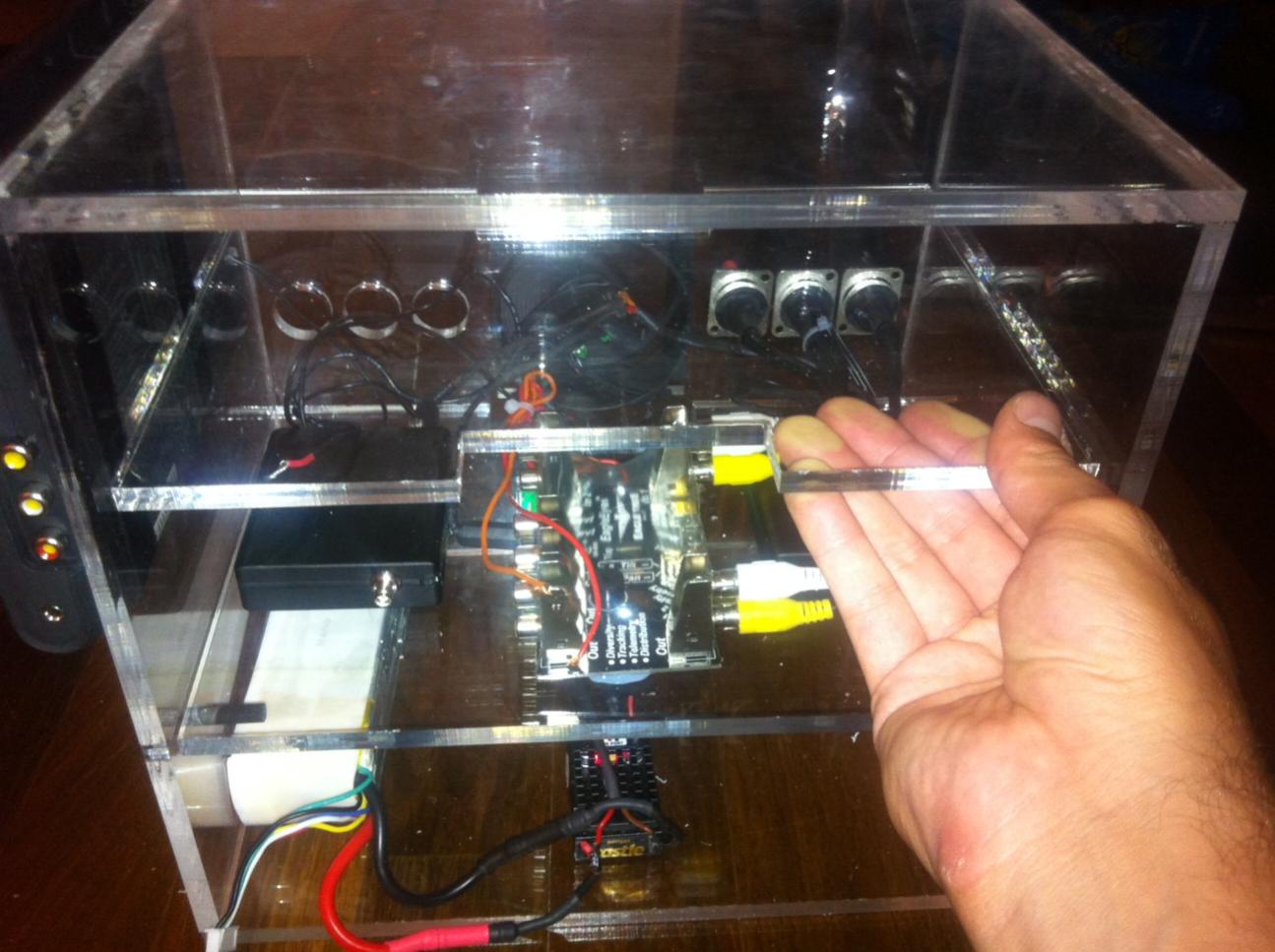

    photo 2.jpg
    126.9 KB · Views: 330
Last edited by a moderator:



BorisS

Drone Enthusiast
jape still have to mount it in a way that it stay movable for a second person.

and than redo the whole thing again since i won't combine 2.4ghz and 5.8ghz in one cube but make two different one.


Jessestr

Member
Found these on internet as inspiration source for my own ground station. Just want to share them :)


Attachments

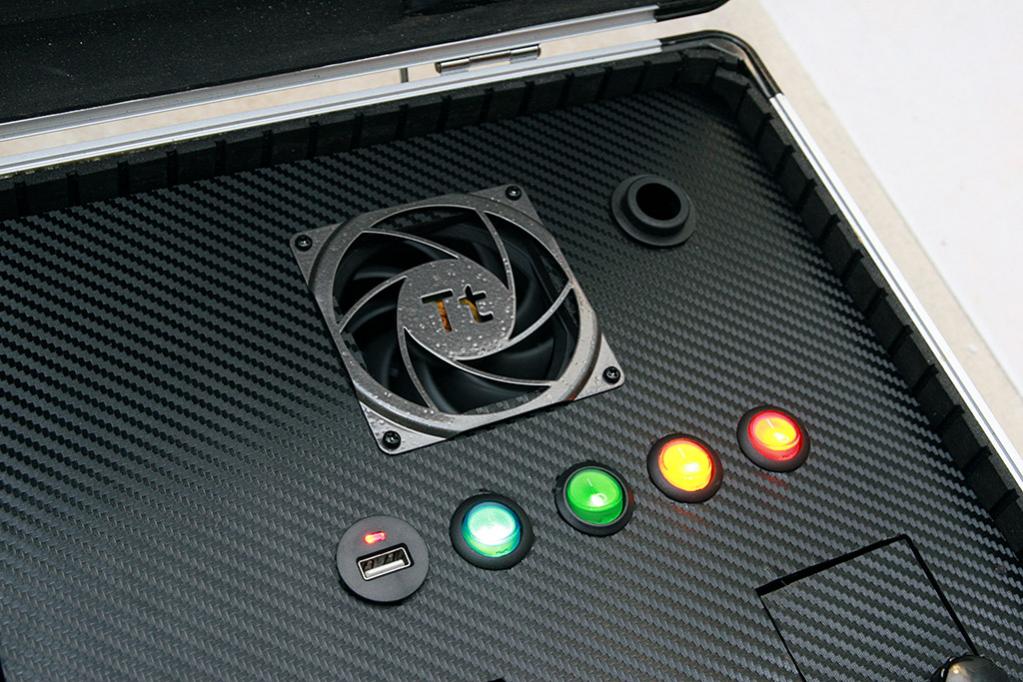

  • 80mm-casefan-closeup.jpg
    124 KB · Views: 350

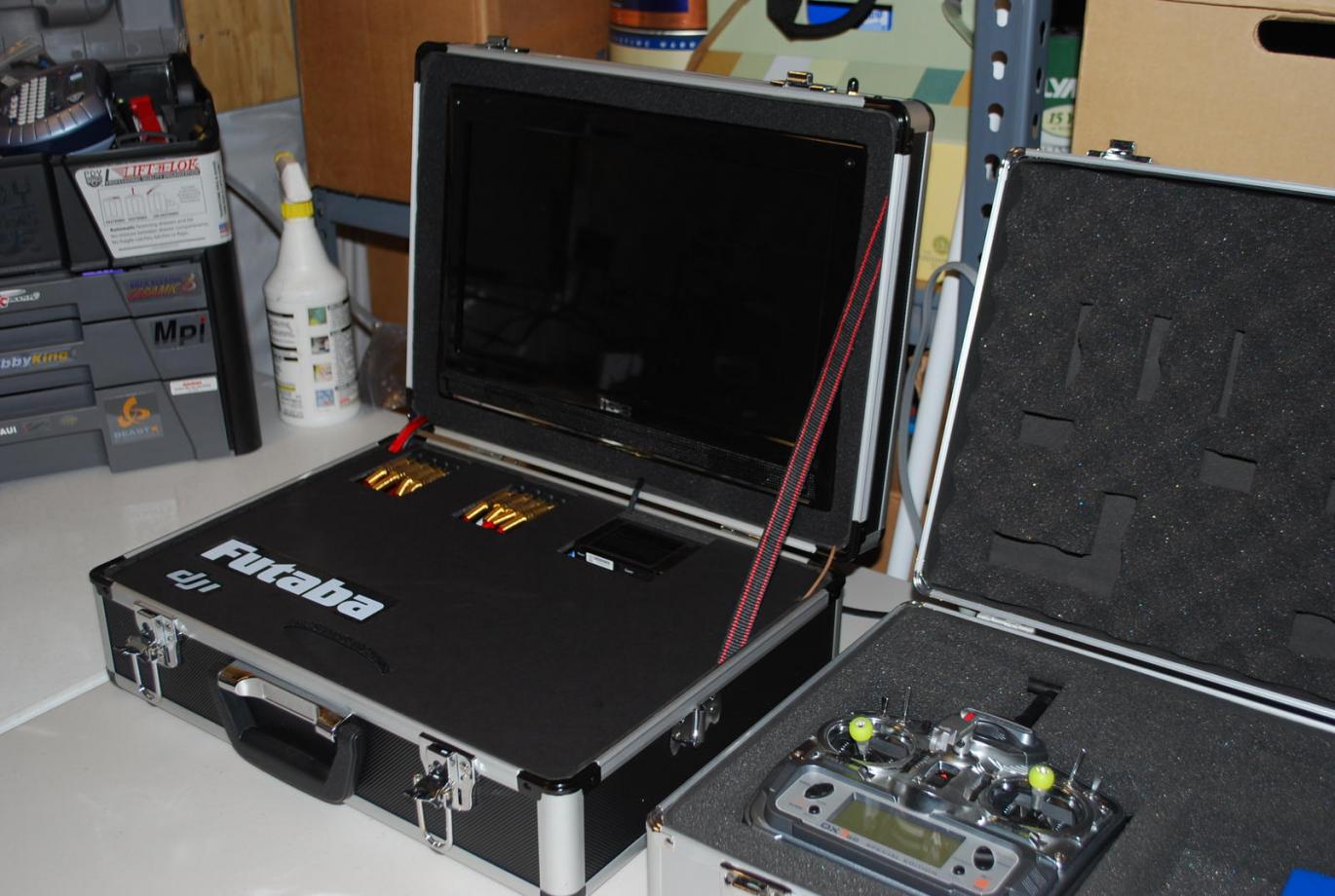

  • DSC_0070.jpg
    140.2 KB · Views: 336

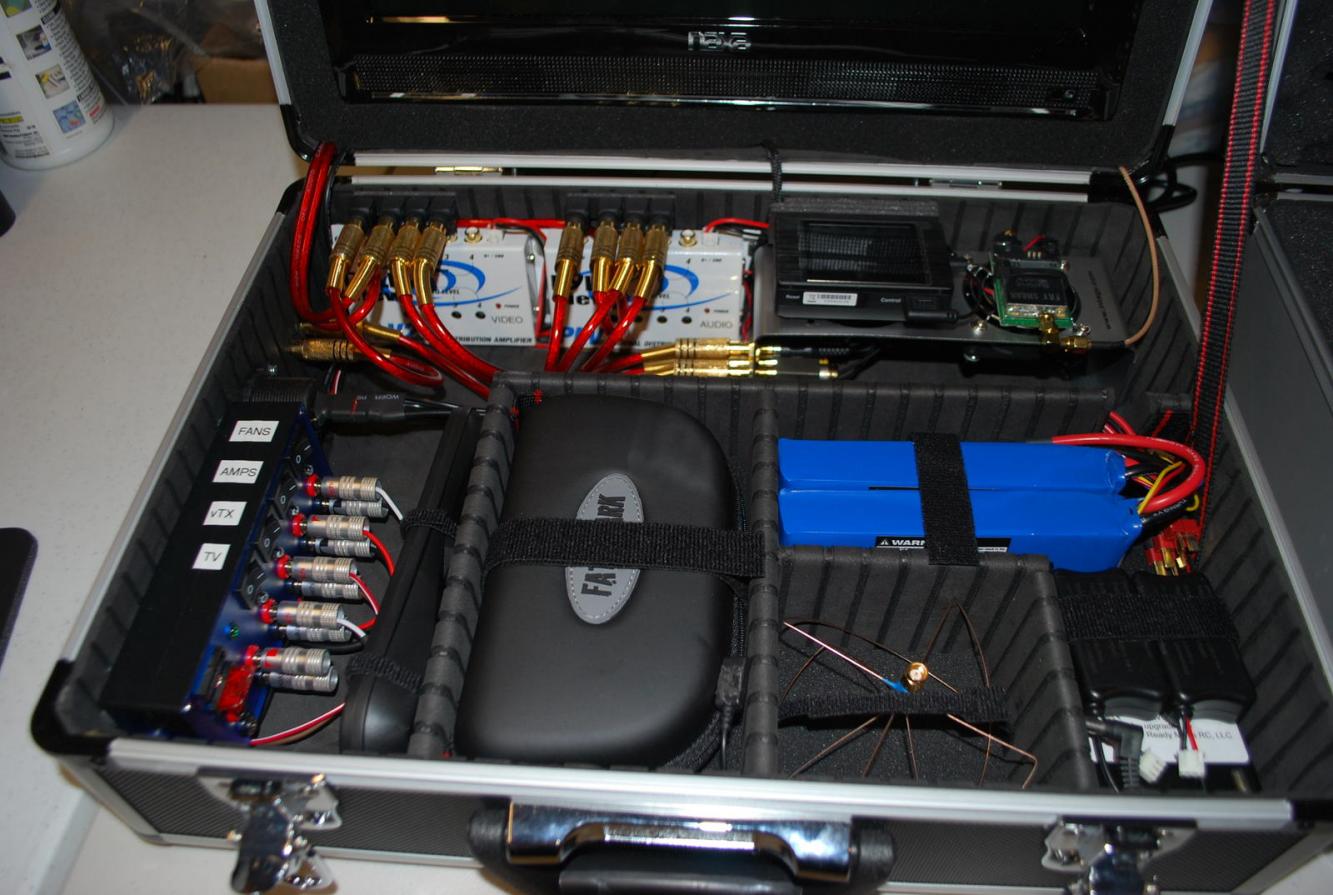

  • DSC_0076.jpg
    141.9 KB · Views: 351

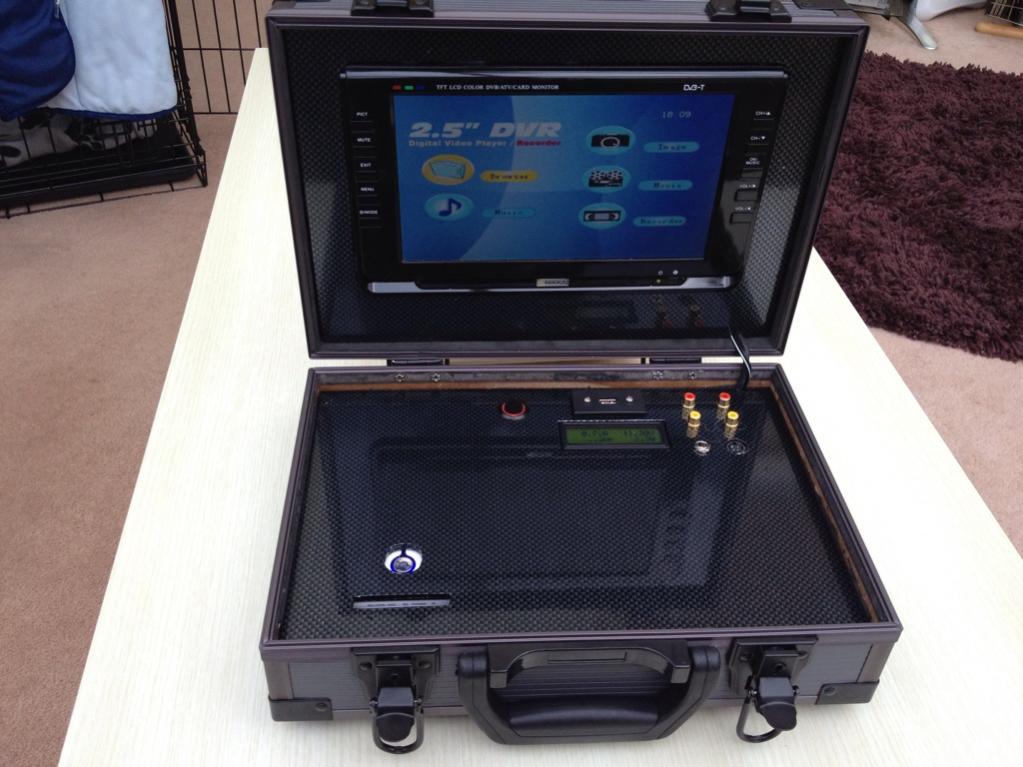

  • f144139e.jpg
    95.3 KB · Views: 279
  • fpv gcs.jpg

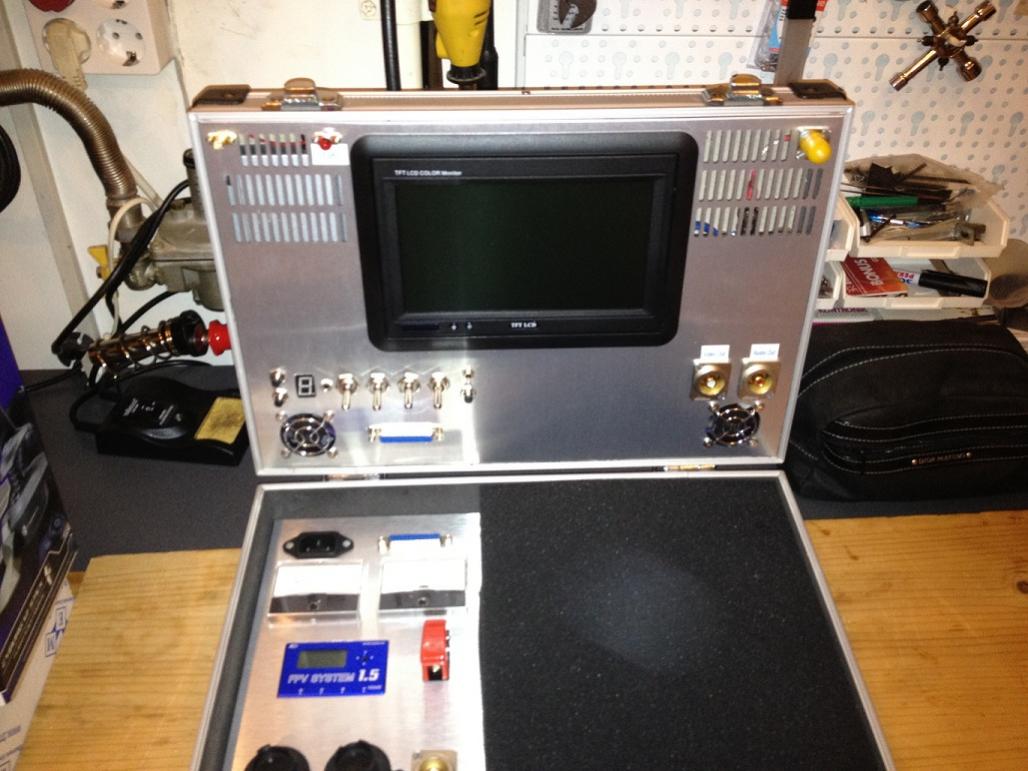

    fpv gcs.jpg
    100.9 KB · Views: 293

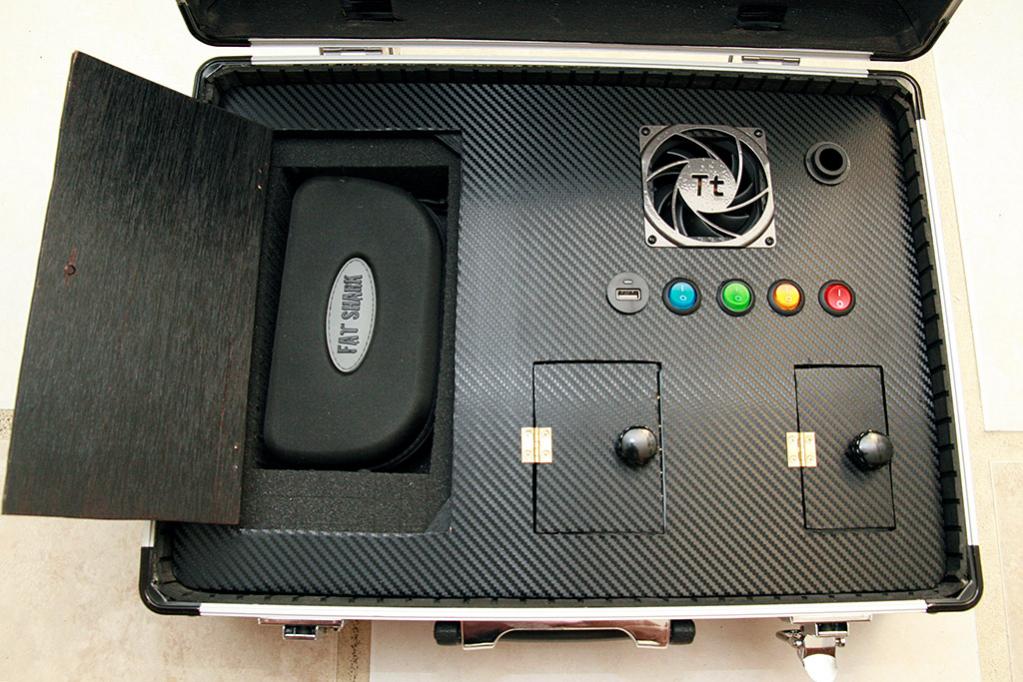

  • groundstation-top-coverplate-in-case-fatshark-goggles.jpg
    119.3 KB · Views: 307

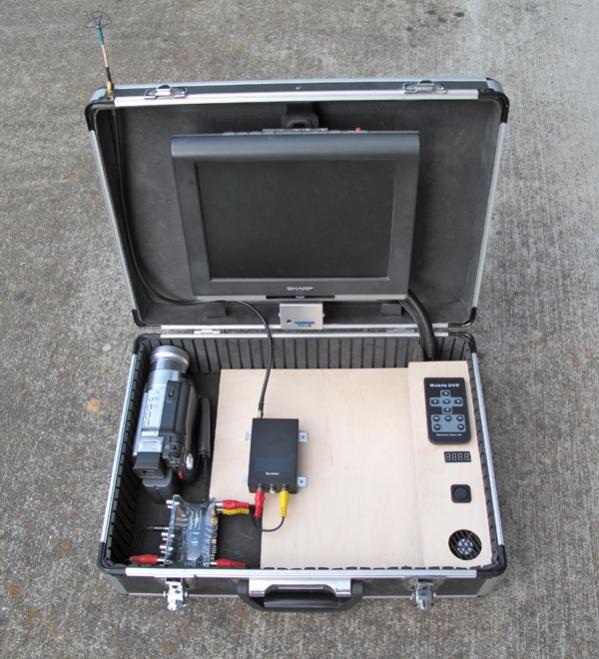

  • gsphase11.jpg
    65.5 KB · Views: 260

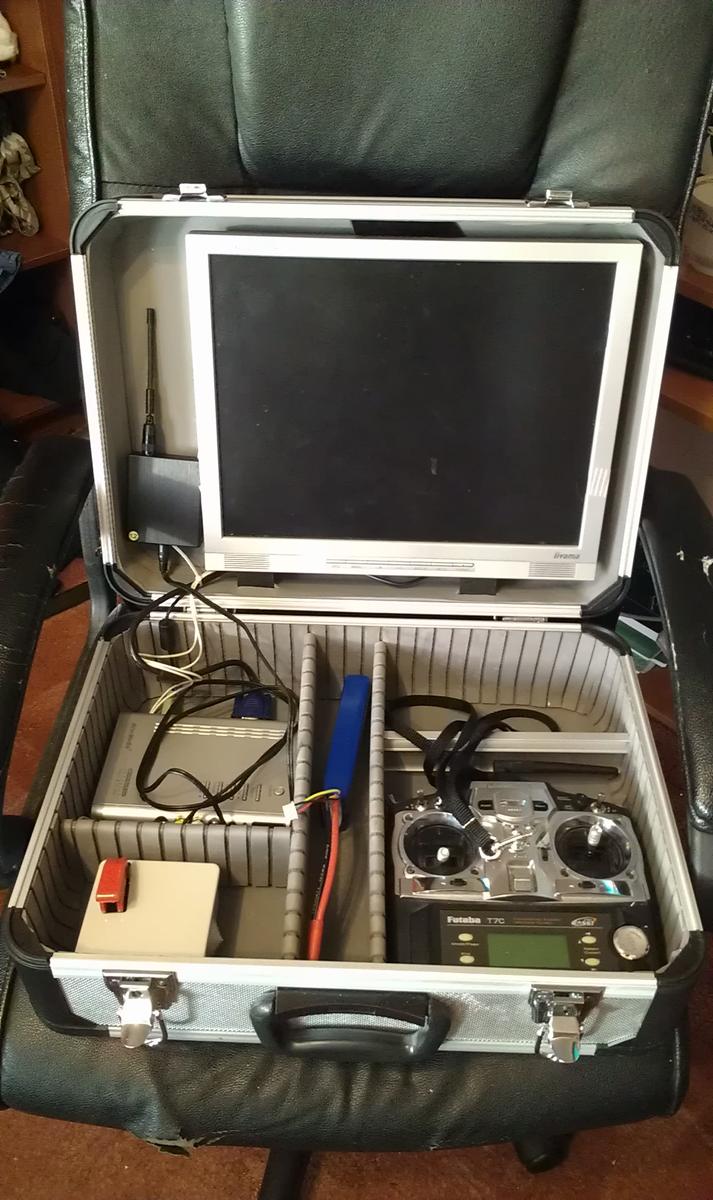

  • IMAG0311.jpg
    120.3 KB · Views: 302

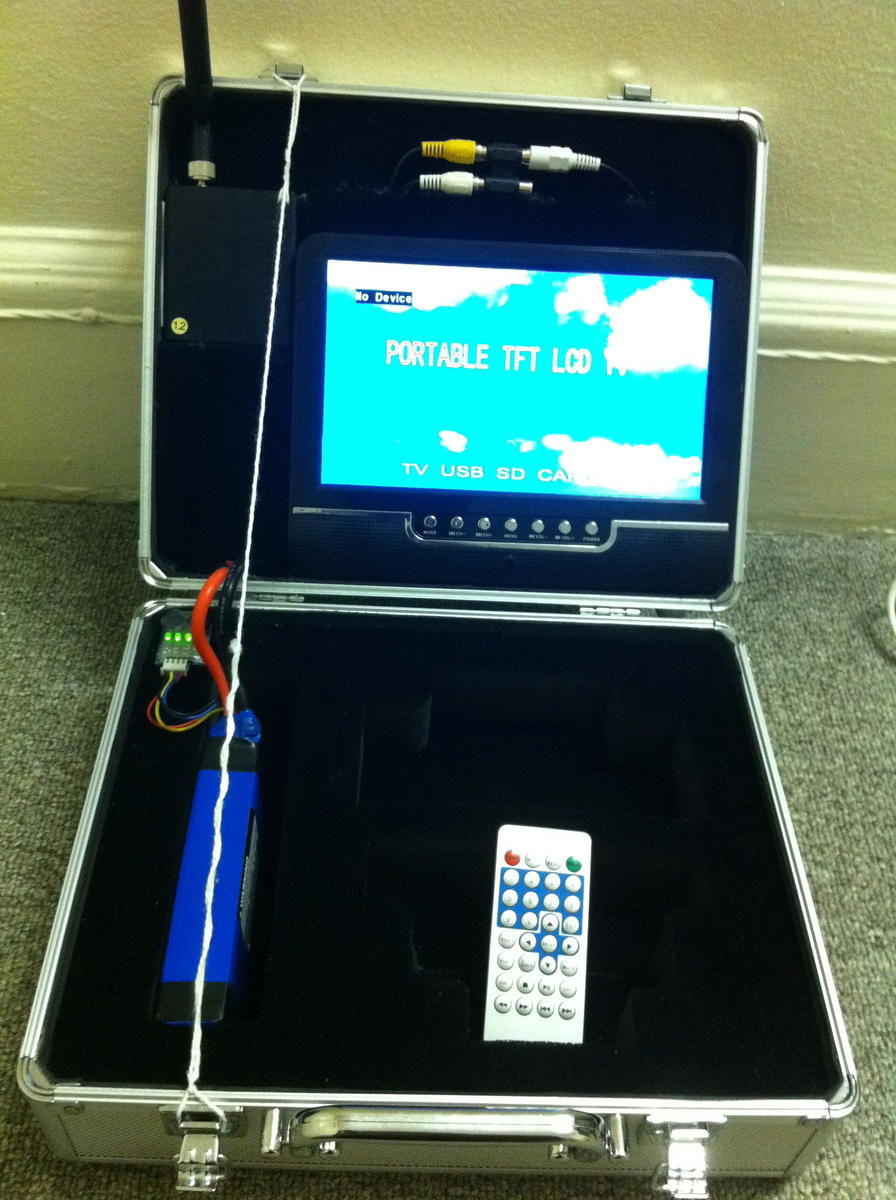

  • IMG_0827.jpg
    140.1 KB · Views: 297

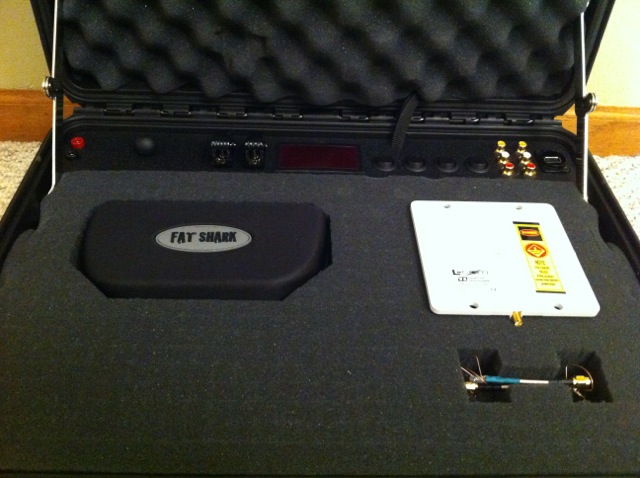

  • IMG_2535.jpg
    88.7 KB · Views: 230
  • IMG_2536.jpg
    95.3 KB · Views: 249

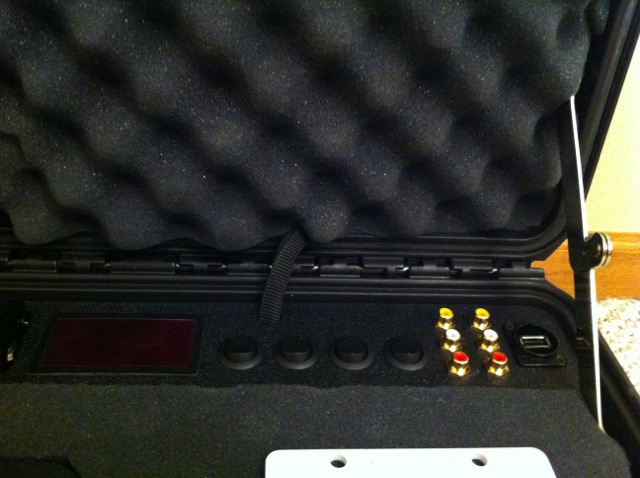

  • IMG_2537.jpg
    88.1 KB · Views: 257

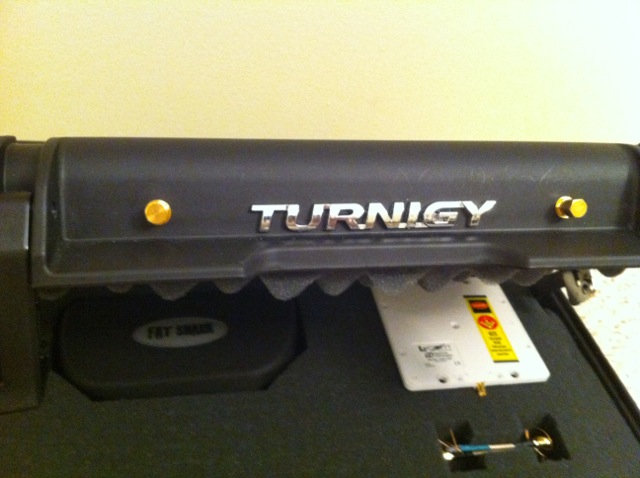

  • IMG_2539.jpg
    73.4 KB · Views: 371

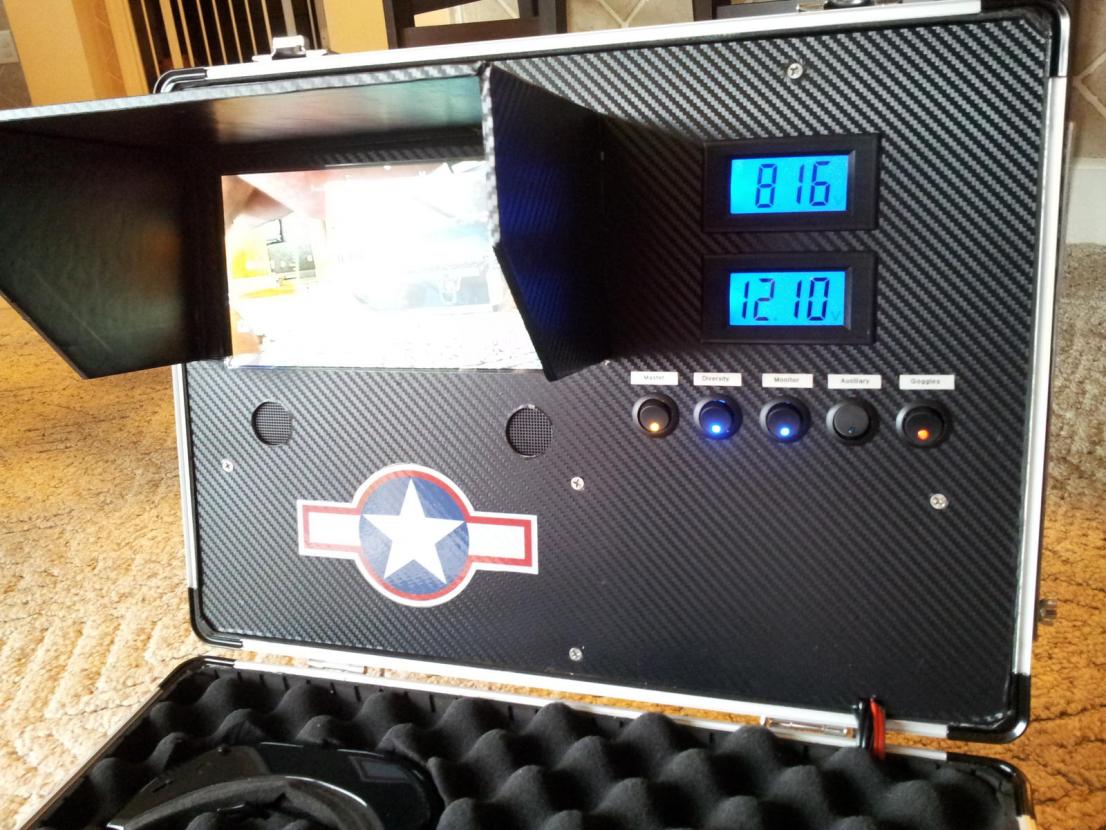

  • IMG_20120609_154607.jpg
    146.3 KB · Views: 286

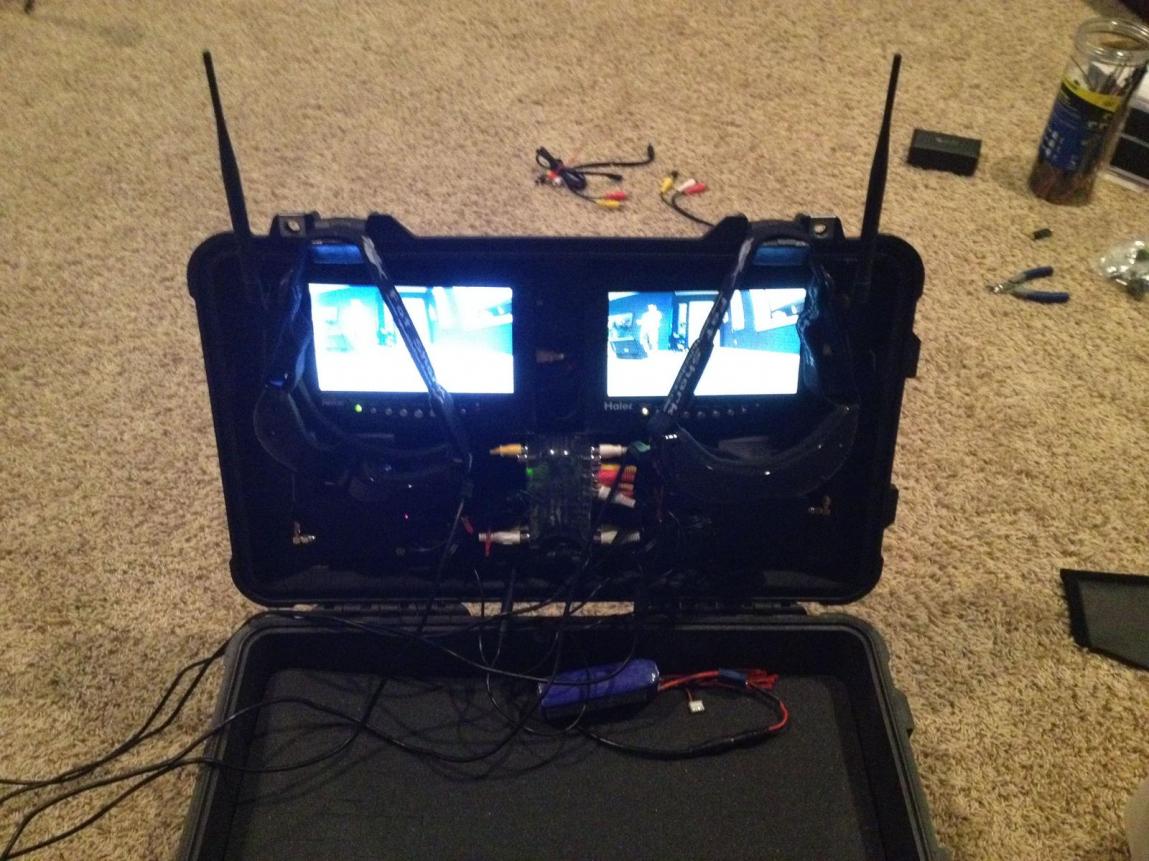

  • Photo May 10, 8 08 20 PM.jpg
    Photo May 10, 8 08 20 PM.jpg
    144.6 KB · Views: 313
