The professional and cheapest DJI Wookong WK-M GPS Multi-Rotor Autopilot System FPV

[Soodohobby]

Freeshipping from http://www.soodohobby.com

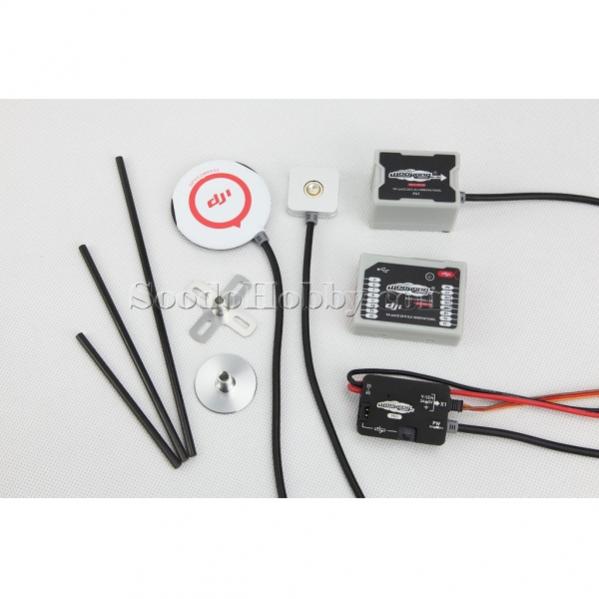

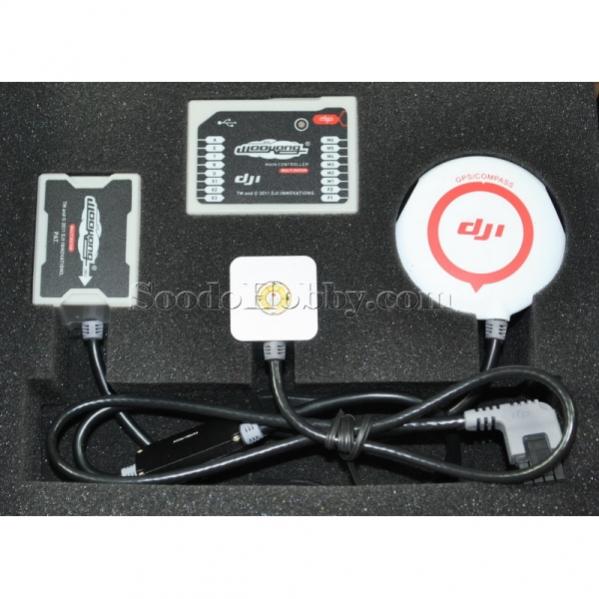

Soodohobby(http://www.soodohobby.com) FPV DJI WooKong-M complete flight control system DJI Wookong WK-M GPS Multi-Rotor Stabilization Autopilot System for multi-rotor platforms

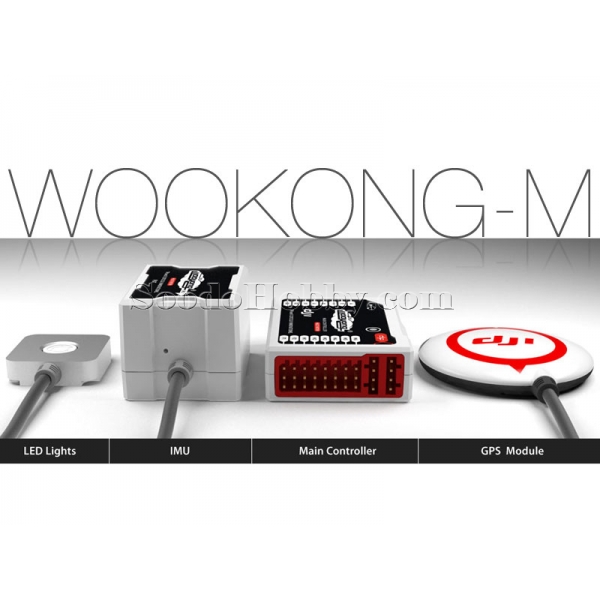

WooKong-M is a complete flight control system for all commercial, industrial and professional multi-rotor platforms. WooKong-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithms, and an IMU damping system rated for gas engines. WooKong-M makes flying a multi-rotor aircraft easier than ever; for the first time, inexperienced R/C pilots can learn to fly a multi-rotor in a matter of hours! From the incredibly predictive flight characteristics to the uncanny stability in windy conditions, there are many reasons that WooKong-M is the most popular multi-rotor flight controller in the industry!

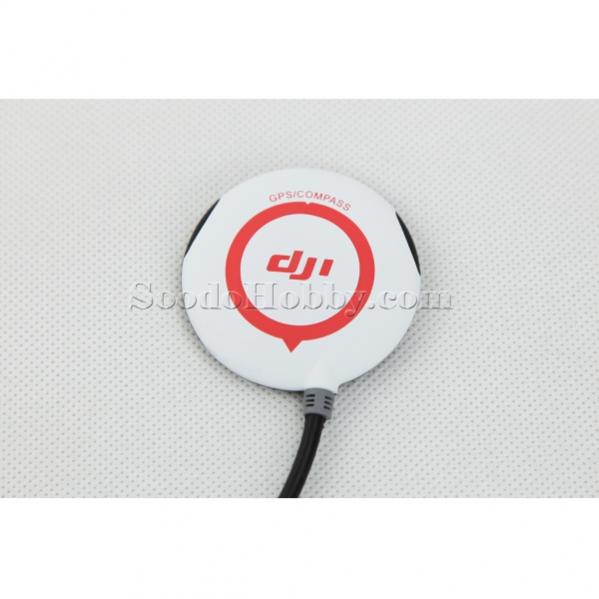

Attitude mode maintains precise altitude hold for indoor flight while GPS mode provides superb position hold outdoor. External LED flight mode indicator light can easily be observed by pilots under any condition.

WK-M can be flown in one single full auto (GPS-Atti) mode from take-off to landing; or in Atti mode while manual mode has stabilization activated. The system is easy to install with user friendly software allowing on-line firmware and software upgrade.

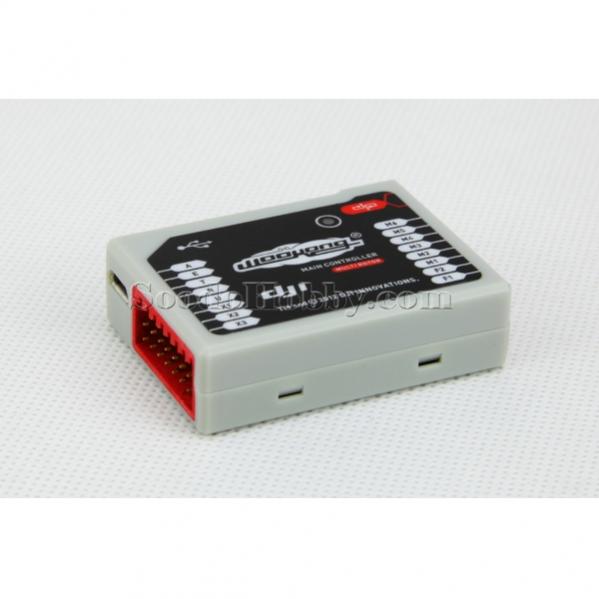

DJI Wookong Multi-Rotor stabilization controller is a complete flight system for all multi-rotor platforms for commercial and industrial AP applications.

Unlike others, WooKong allows the use of regular ESC commonly used in RC helicopter without any wiring modification; Heli mode setup providing a seamless transition for current Ace One AP professionals. WK-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renounce flight algorithm in autopilot and UAV. IMU damping system is rated for gas engine best in the class.

Attitude mode maintains precise altitude hold for indoor flight while GPS mode provides superb position

Features:
- Fail-Safe Fail-Safe
- Fail Safe Hover
- Return to Home & Auto Landing
- Low voltage protection Low voltage protection
- Two-level low voltage protection

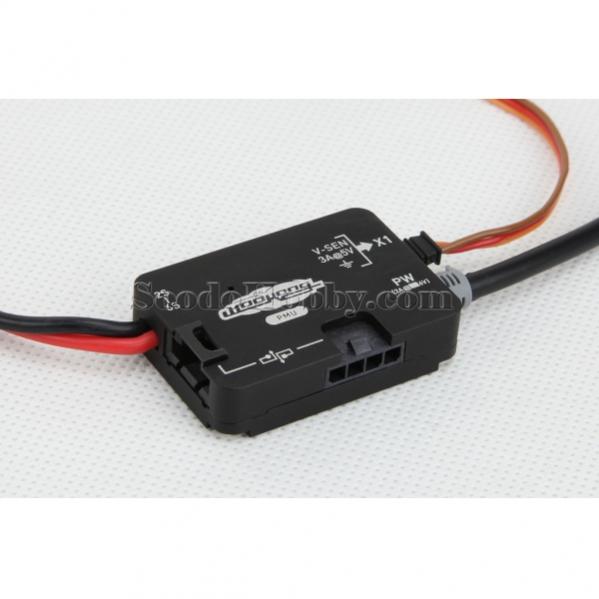

- Power Module Power Module
- Versatile power module for MC power supply
- voltage monitoring and CAN bus connections
- D-Bus supports S-BUS receiver system




General specifications
Built-In Functions: Autopilot
Auto Hover Fail Safe
Multi Rotor Types: Quad-Rotor
Hex-Rotor
Octo-Rotor
Supported ESC output: 400Hz refresh frequencys
Recommended Transmitter: PCM or 2.4GHz with minimum 5 channels and Failsafe function available on all channels
Recommended Power Supply: DC 4.8 ~ 12V
Power Consumption: MAX 5W
(0.9A@5V, 0.7A@5.8V,0.5A@7.4V,0.4A@8V)
Operating Temperature: -5°C to +60°C
(You have to keep the IMU warm if you want to use it under low temperature, could be -5°Cor lower.)
Flight Performance (can be effect by mechanical performance)
Hovering Accuracy: Vertical: ± 0.5m
Horizontal: ± 2m

Suitable Wind Condition: < 8m/s (17.7mph)
Max Rotate Angle: 30°
Vertical Speed: 3m/s
