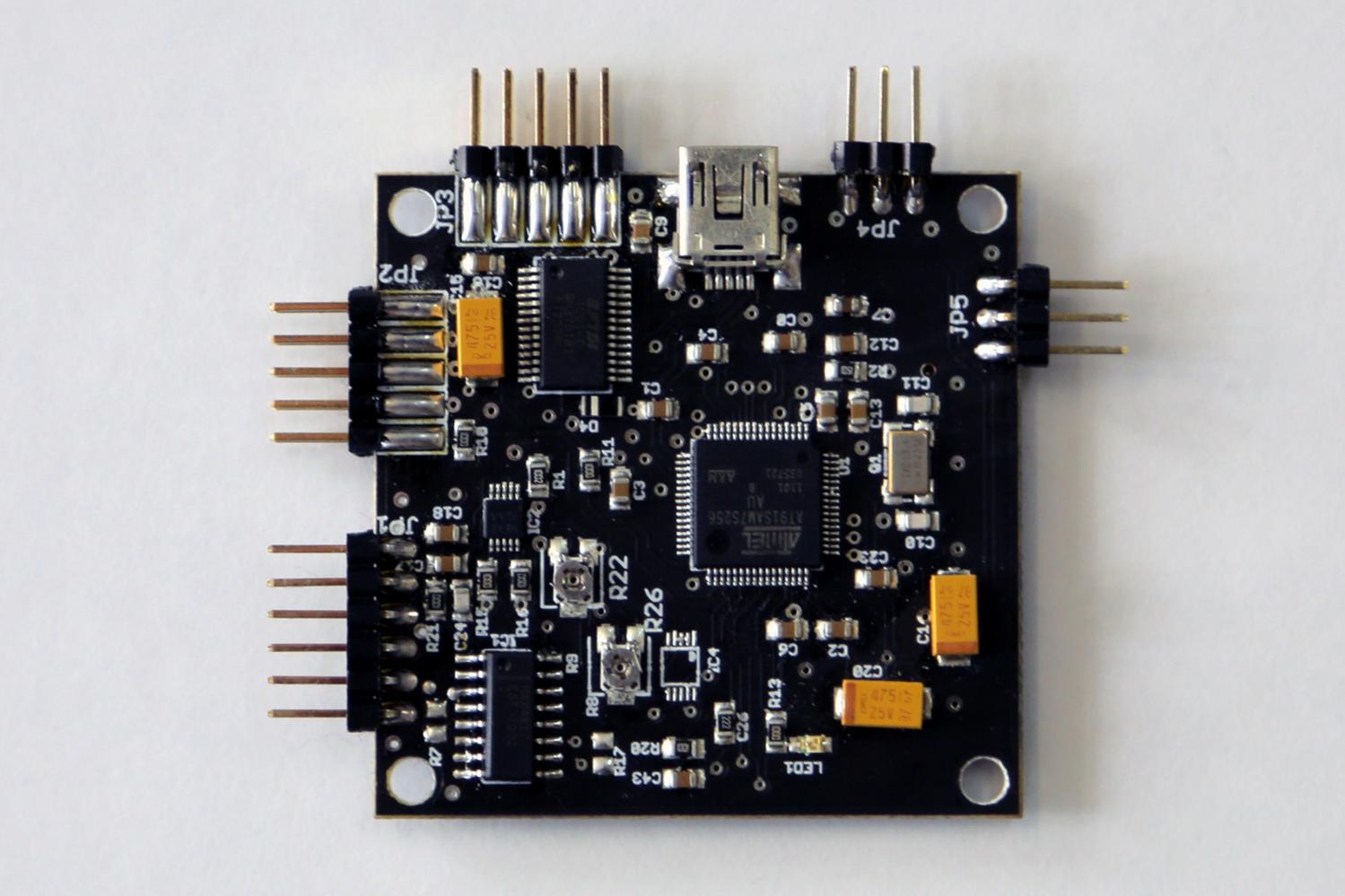

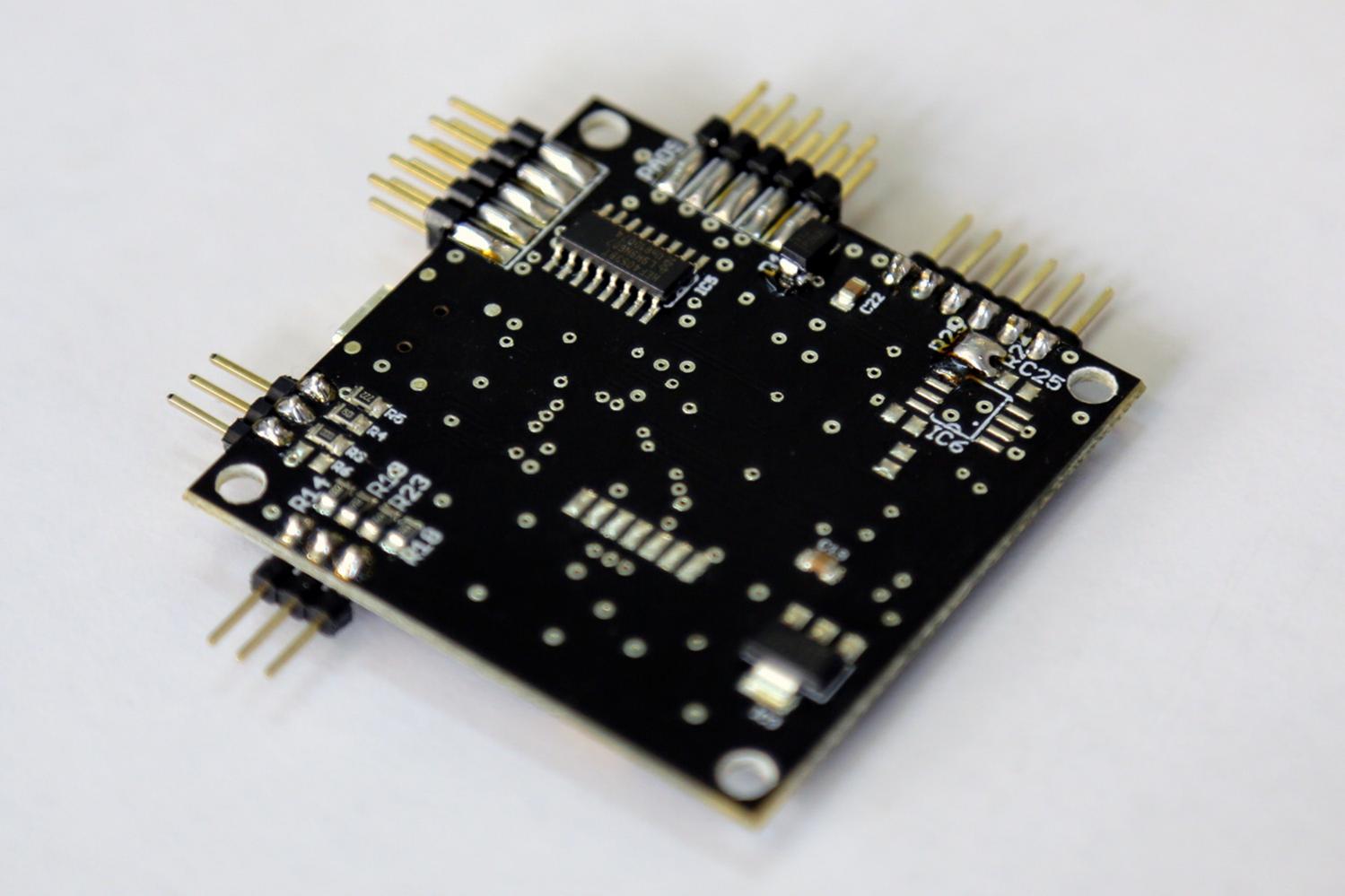

A new and unused Smart OSD board for integrating OSD information with a MikroKopter controller. Bought, but never installed or used. USD $89.00
Manufacturer’s description:
Graphical OSD in this version is intended for Mikrokopter control electronics. Graphics drawn dynamically by the ARM processor fallows for smooth animation on the background of the video signal feed.
Very comfortable and easy to use PC software for configuring the OSD and upgrading the system software via USB. Communication with Mikrokopter port on Navi Control or Flight Control (available soon).
Very easy installation - compatible with the size of the plate a standard adopted by MK - communication interface is located at the height of the connector in MK - just connect the cable included in the kit and it’s ready to go. The software allows you to configure up to four screens that can switch digital signal 0 / 1 or PWM. Possibility of connecting up to 4 analog signals, such as battery voltage set of FPV.
Features:
• Artificial horizon to fit the camera FOV
• Speed - digital and graphic, measurement unit selection
• Altitude - digital and graphic measurement unit selection
• Vario - digital and graphic measurement unit selection
• Vario flight mode indicator
• Direction of flight, degrees, the possibility of correction values for other systems
• GPS, the number of satellites
• Main battery indicator with alarm function
• Main battery current
• Main battery voltage
• Main battery usage
• 3 additional input A / D with discharge rates, battery indicator, configurable
• Maps function
• Radar function
• Error flags NaviCtrl
• Message flags NaviCtrl
• RSSI indicator - from MK or external
• Indicator of flight time
• LOS indicator
and more…
Specifications:
• Resolution of 352x288 pixels for PAL, 352x240 or 320x240 for NTSC
• PAL or NTSC video standard
• system generates OSD only with video signal
• The possibility of software or manual correction of the level of white and black for the generated graphics (two versions OSD)
• Four configurable screens
• UART2 for rf module (XBee or other) or MKTools
• Two UART communication ports including one default in the MK protocol
• Possibility to connect the GPS to MK without Navi version control
• 4 inputs adc or 0 / 1 or PWM (alternatively, configurable)
• USB port (USB <> serial) for configuration and software upgrade
• Power 5V/60mA- PC (Windows XP, Vista, 7)
• Dimensions of 50x50mm
• Weight: 13g
• Ability to match the specific requirements of the OSD client (communication protocol, graphics)
Shipping:
Item is in Hong Kong.
Will ship internationally to anywhere it's possible to ship to.
Buyer pays shipping costs.
