Robo-Q 740-820mm heavy lift Quadro/Octo with retracts

[GotHeliRC]

Robo-Q 740-820mm heavy lift Quadro/X8 with retracts

Hey all,

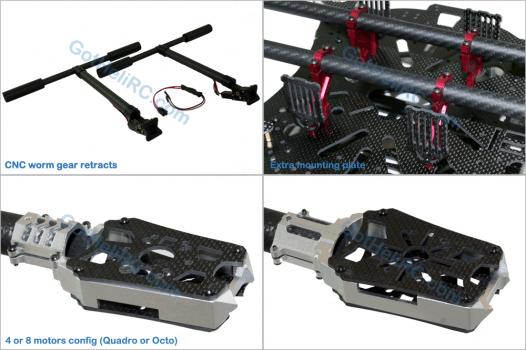

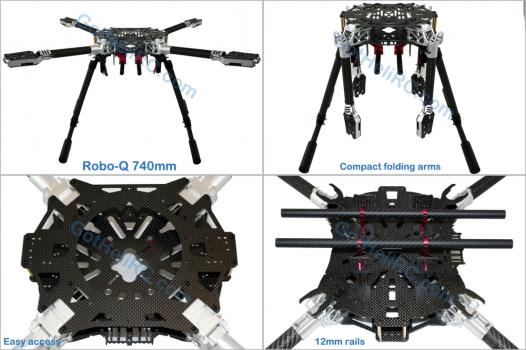

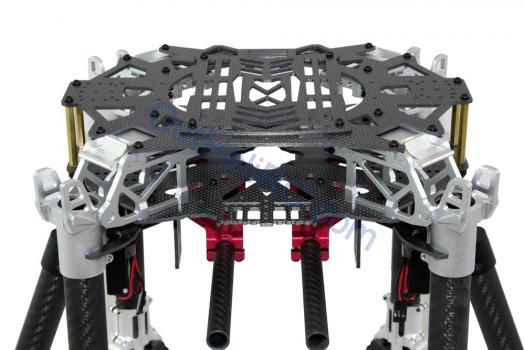

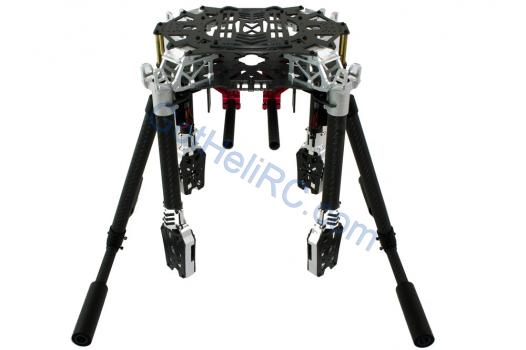

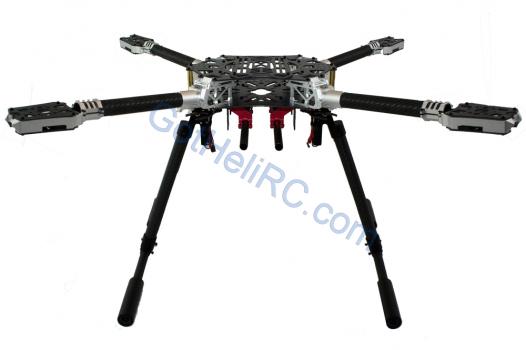

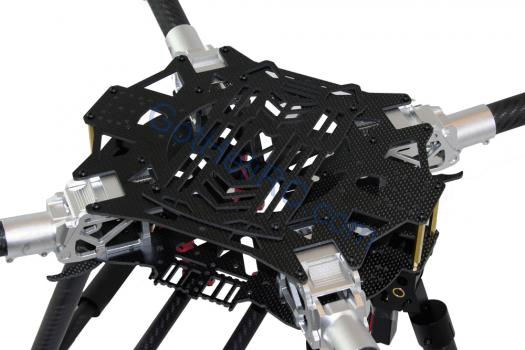

Let see what you guys think of this 740mm folding frame that can be set up as Quadro or X8 with retracts. I have been flying this more than a month and it's smooth and stable. I personally like how easy you can fold the arm and not having to detach the prop or required folding prop. Any one interested or suggestions?

Here's some specs.

* Load 1.2KG
* Dimension: 740mm
* Height: 350mm
* Center plates thickness：2.0mm
* Distance between center plates： 40mm
* Diameter of booms, landing gear：22mm
* Gimbal rail tubes: 12mm
* Distance between gimbal rails (center to center): 112mm
* Frame weight: 1.3KG (with retractable landing gear)
* No-load weight: 3.95kg (contain a 10,000mah 6s battery)



[Cameraj]

I like it, how much? What motor prop esc are you using?



[GotHeliRC]

599.00 with retracts. I have been flying it as a X4 with 4114-320kv, 40amp sk esc on 6s5000 or 10000 with 15x5.5 dragonfly style prop, smooth and stable.



[Cameraj]

What flight controler? What payload do you think it can lift?



[GotHeliRC]

It will depend on the set up, motors, batteries. With my motor set up and 6s10000, came out around 12lbs (if I recall correctly) with camera and gimbal and it fly with good power. The frame is quite sturdy, it should be able to lift a lot more.
