quanton flight control

[lilvinz]

I am proud to have the opportunity to announce hardware availability of a new target for TauLabs.

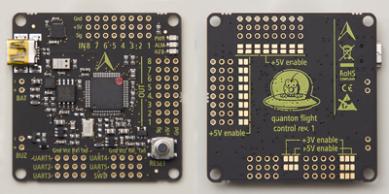

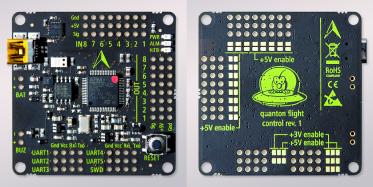

quanton flight control rev. 1 <-- shop site (on stock, worldwide shipping)

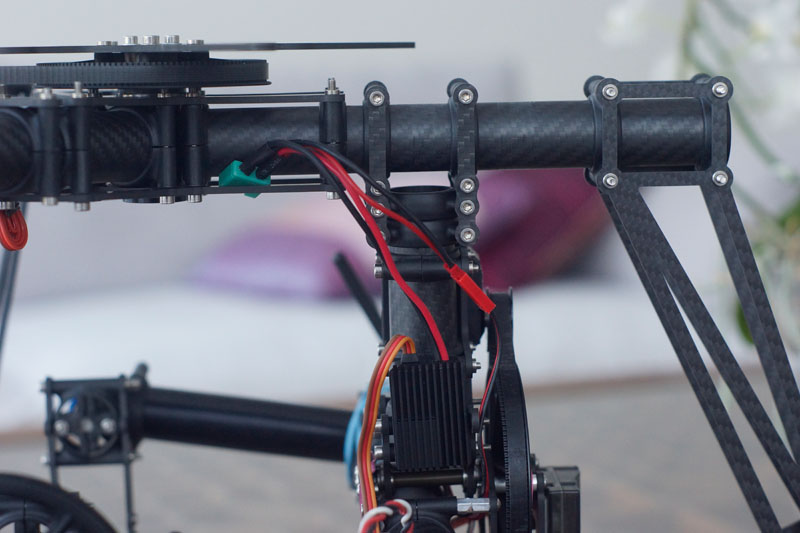

View attachment 9387

System information and components:

• STM32F405 32bit arm cortex-m4 cpu with fpu, 192k ram and 1024k flash
• invensense MPU6000 3-axis accel and 3-axis gyro sensor
• honeywell HMC5883L 3-axis compass
• meas-spec MS5611 high precision barometer
• 32mbit spi flash memory
• up to 8 x pwm input, 1 x ppm input, up to 15 x pwm output
• up to 5 x uart, 2 x i2c, sbus, dsmx, mini usb, swd
• 50x50mm board size, 45x45mm mikrokopter style mounting
• schematics at http://github.com/taulabs
• sourcecode at http://github.com/taulabs
• binaries at http://jenkins.taulabs.org
• answers at http://thespyd.net/questions
• support at https://groups.google.com

For those who don't know about TauLabs, please look here.

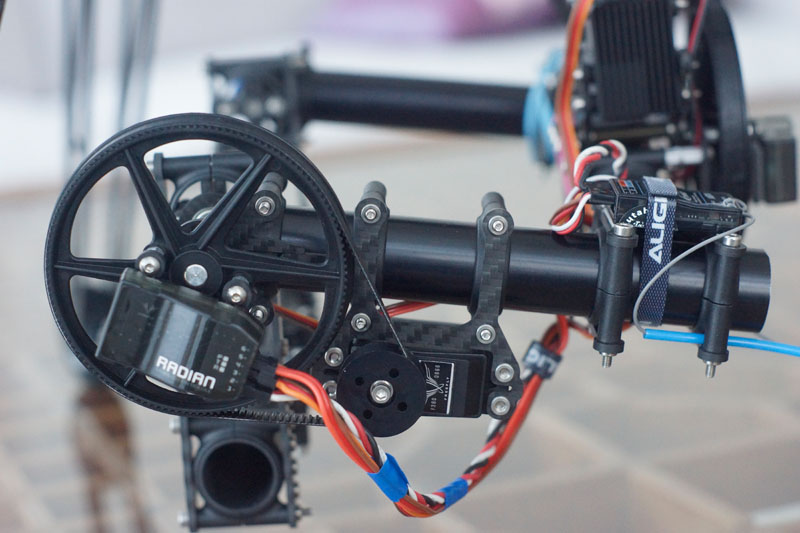

View attachment 9386

OpenPilot firmware on pre release hardware: https://vimeo.com/51772080

TauLabs firmware on final hardware:
