I have my original Okto XL Power Distribution Board from my CS8 that I need to sell. I am asking $475 for the board. Its in great condition, only been flown about 7 times. I moved to the FF motor control set with my WKM and don"t use it now, just cleaning up shop here. Let me know if you have any questions about it.
Description from Quadrocopter: http://www.quadrocopter.com/Okto-XL-Power-Distribution-Board-Pre-soldered_p_500.html

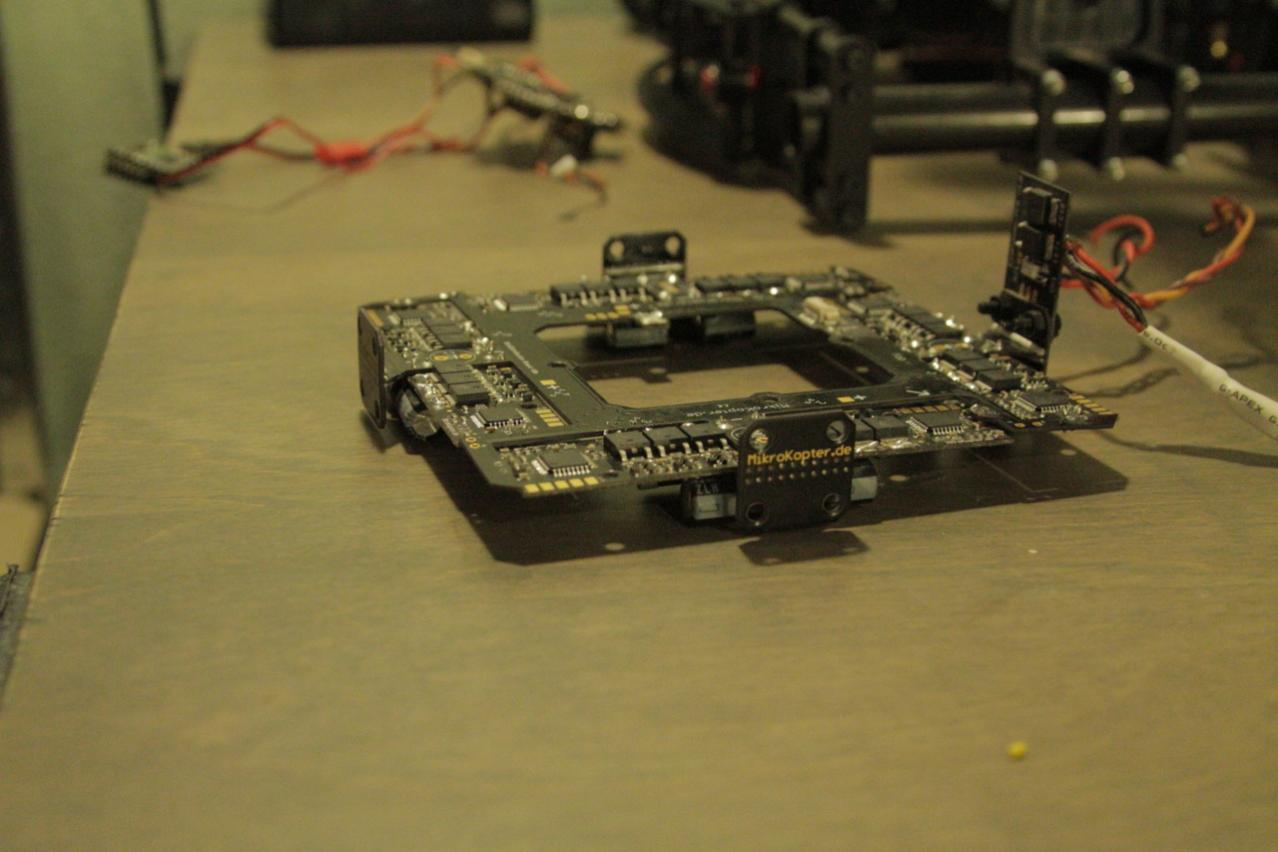

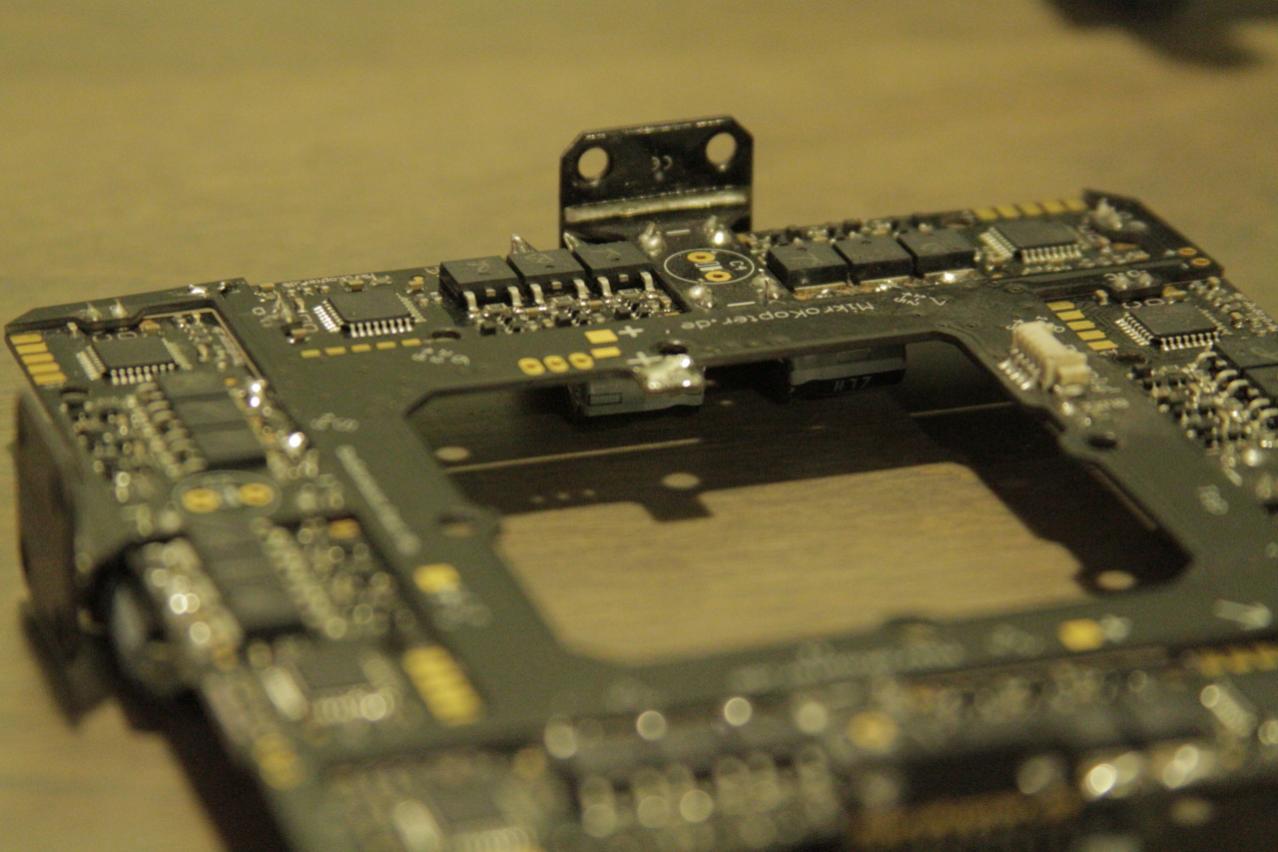

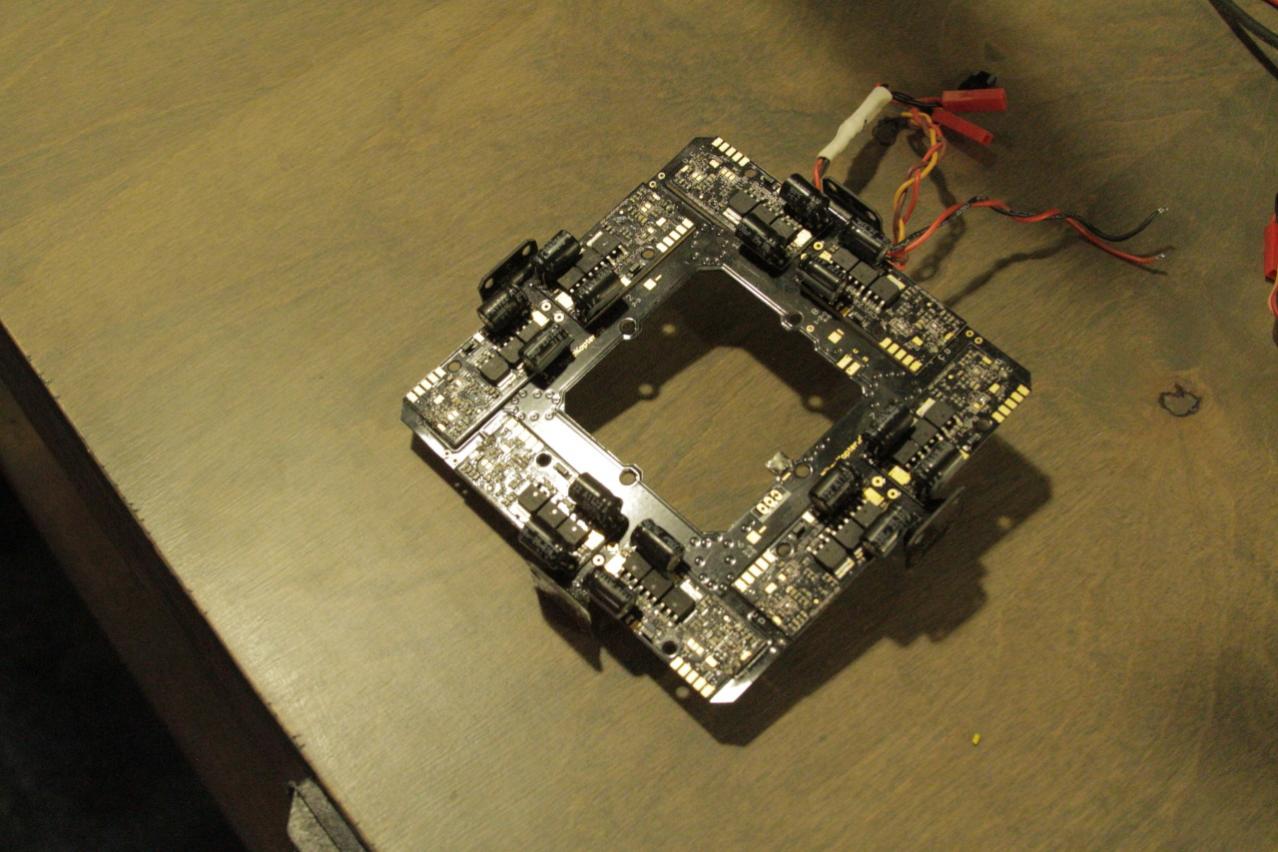

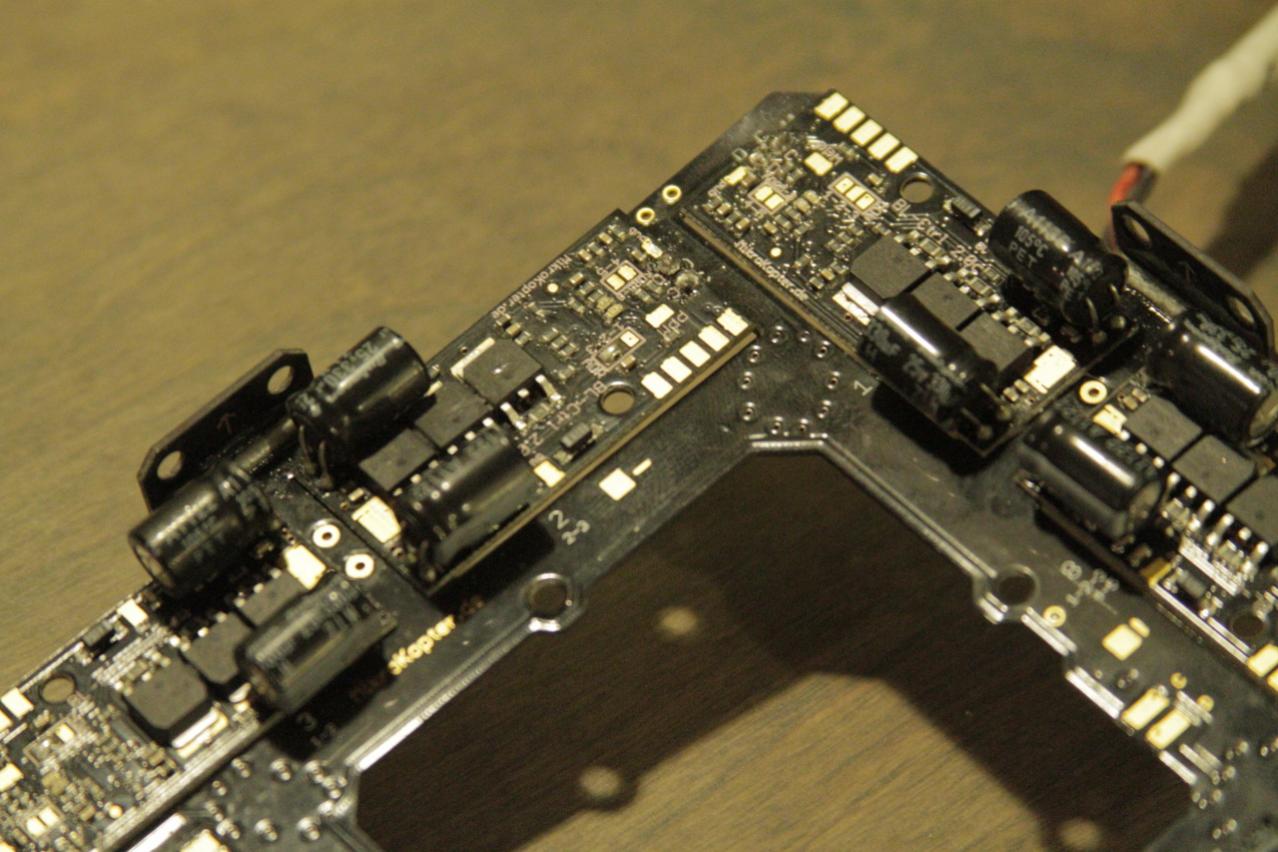

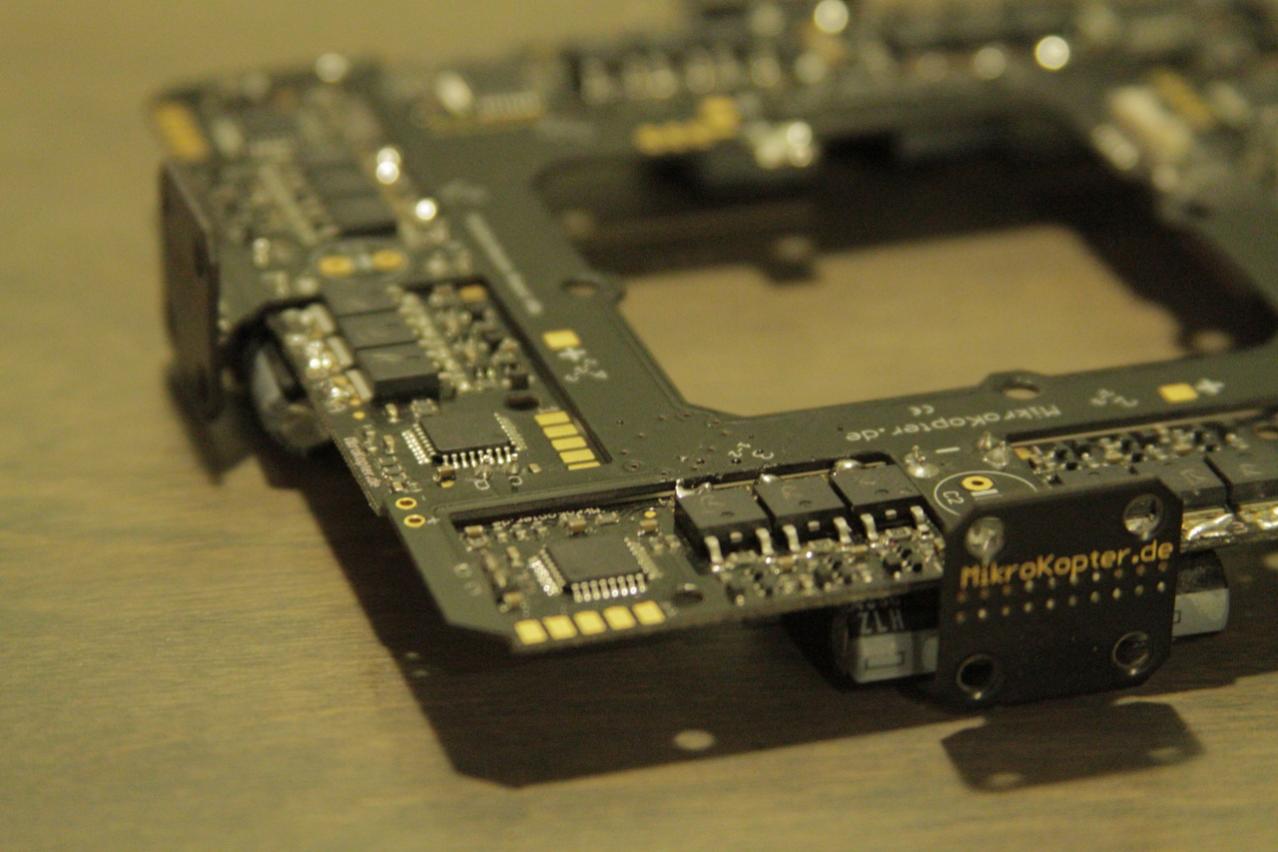

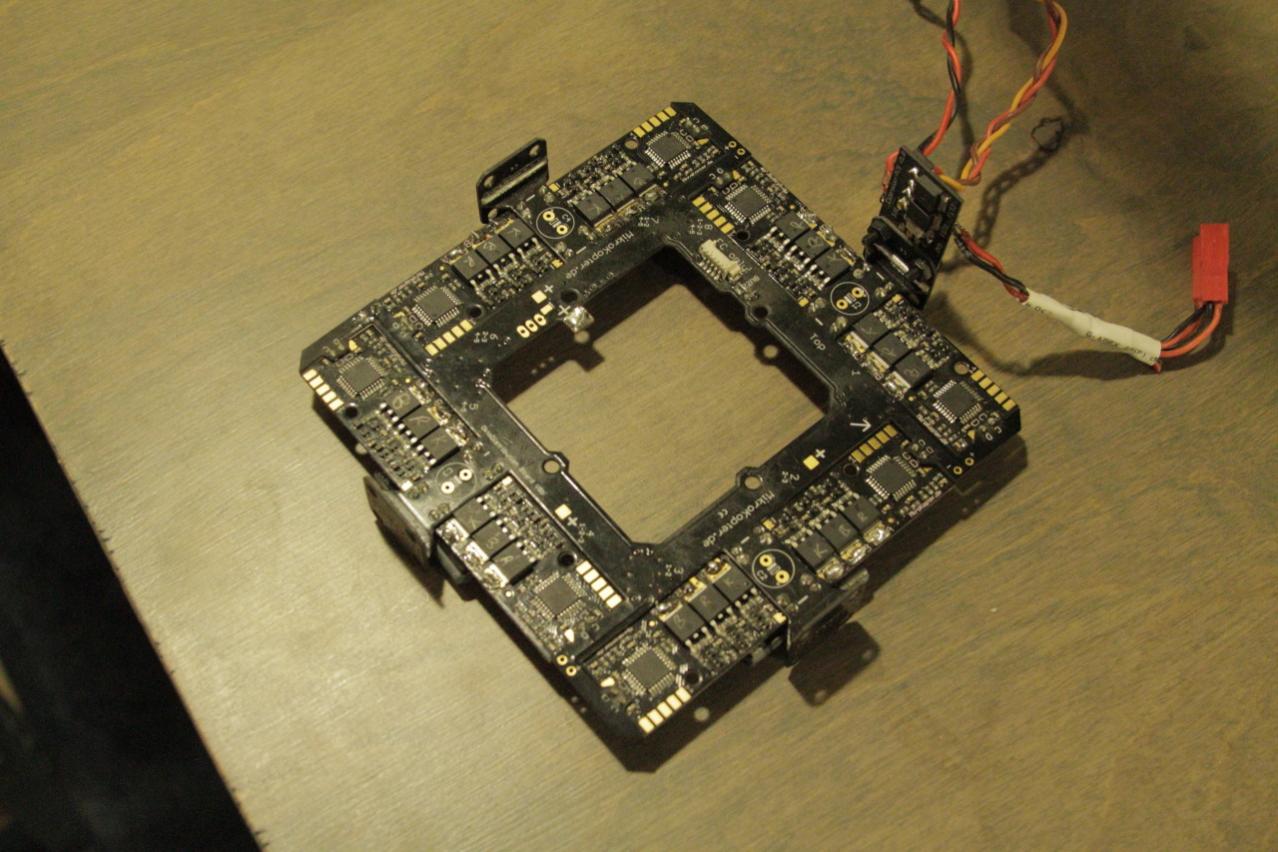

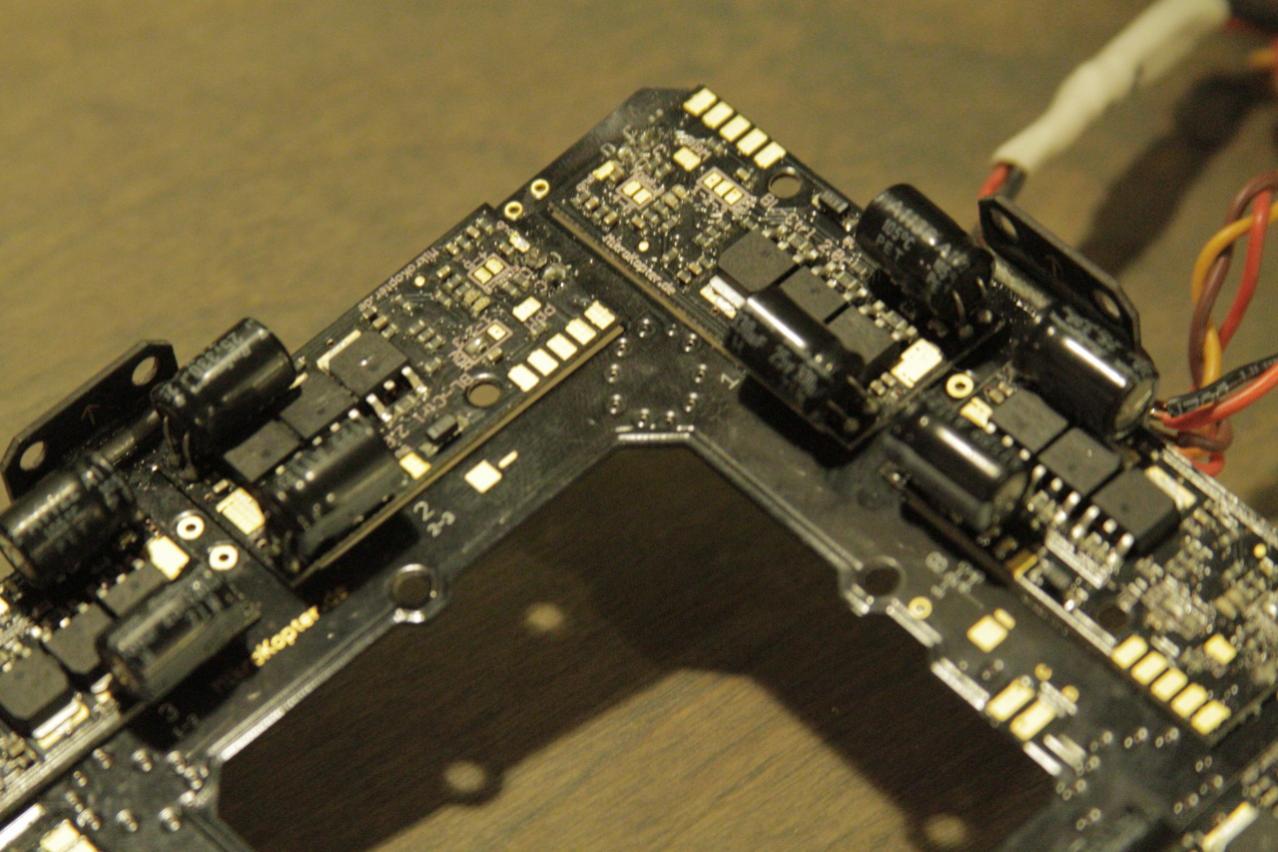

This is a Okto XL Power Distribution printed circuit board for eight Bl-Ctrls. The use reduces the wiring effort in building a OktoKopter significantly.
This is a complete unit including eight Bl-Ctrls and Molex Connector pre-soldered on the Power Distribution Board. Completely soldered ready to ship! Save the trouble, let us do the work for you.
Technical Data:
• 4 sided layout with 140um Copper
• Gold plated with black solder mask
• Dimensions: 120 x 120 x 1 mm
View attachment 15536View attachment 15537View attachment 15538View attachment 15539View attachment 15540View attachment 15541View attachment 15542
Description from Quadrocopter: http://www.quadrocopter.com/Okto-XL-Power-Distribution-Board-Pre-soldered_p_500.html
This is a Okto XL Power Distribution printed circuit board for eight Bl-Ctrls. The use reduces the wiring effort in building a OktoKopter significantly.
This is a complete unit including eight Bl-Ctrls and Molex Connector pre-soldered on the Power Distribution Board. Completely soldered ready to ship! Save the trouble, let us do the work for you.
Technical Data:
• 4 sided layout with 140um Copper
• Gold plated with black solder mask
• Dimensions: 120 x 120 x 1 mm
View attachment 15536View attachment 15537View attachment 15538View attachment 15539View attachment 15540View attachment 15541View attachment 15542
