NEX N.E.O. Quadcopter - OpenPilot REVO - Tarot T2-D Brushless Gimbal - Bind & Fly!

$950 Shipped in USA only, build log is here and this quadcopter includes the following:

NEX N.E.O. QuadCopter Frame Kit (GoPro Version) with leftover parts
4x iPower MultiMate MT2217 880kv Brushless MultiCopter Motors & 1 spare prop adapter threaded shaft.
Tarot T2D Brushless Gimbal
Tarot GOPRO two-axis gimbal gyroscope ZYX22
6x APC 12×4.5 MR Propellors
Gemfan adapter rings for APC MR props (installed)
2x Tarot TL68B22 Dia 10mm FY680 3K Lines Matt Pure Carbon Rod 280mm
4x Tarot M10 metal silicone damping Block group TL68B10
HobbyWing SkyWalker-Quattro-25A 4 in 1 ESC (manual/parts included)
OpenPilot Revo Flight Control Board - V8 GPS Included but not installed (ordered direct from OpenPilot)
Frankenquad OpenPilot CC3D/Revolution Adapter

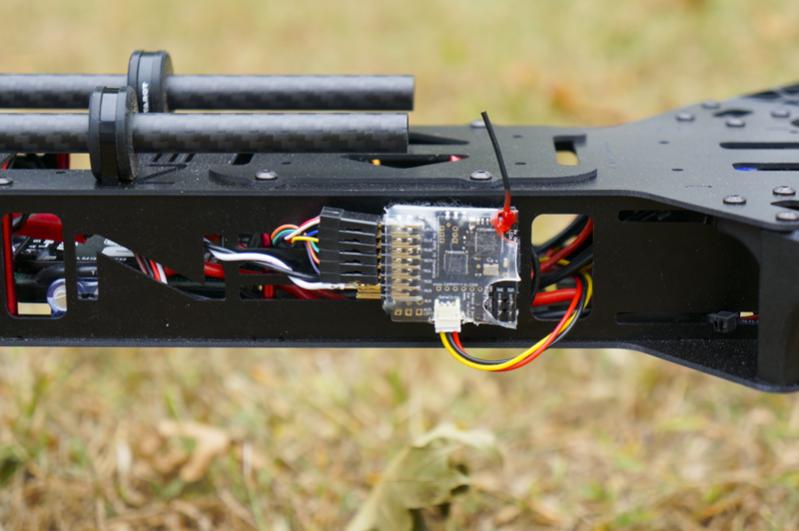

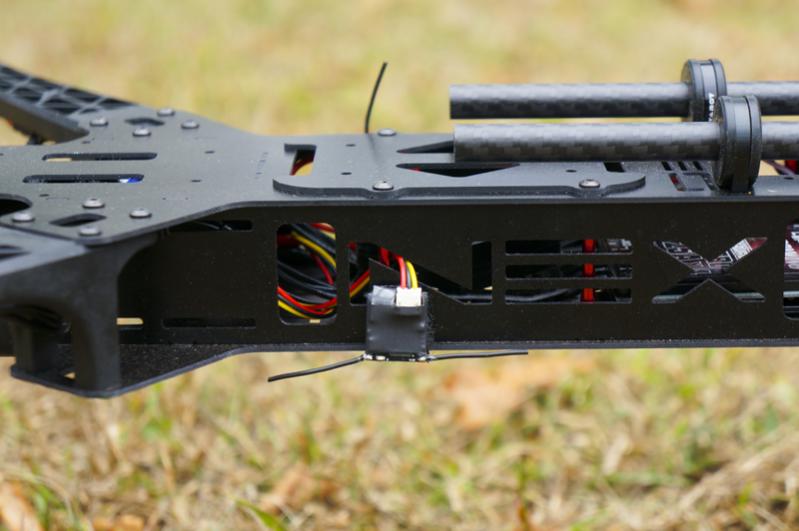

Lemon DSM2 Spketrum Compatible 8-Channel Receiver + Satellite (Failsafe with UART) - failsafe is not set, but it is easy to do.
DJI Fiberglass Landing Gear Extensions from GotHeliRC

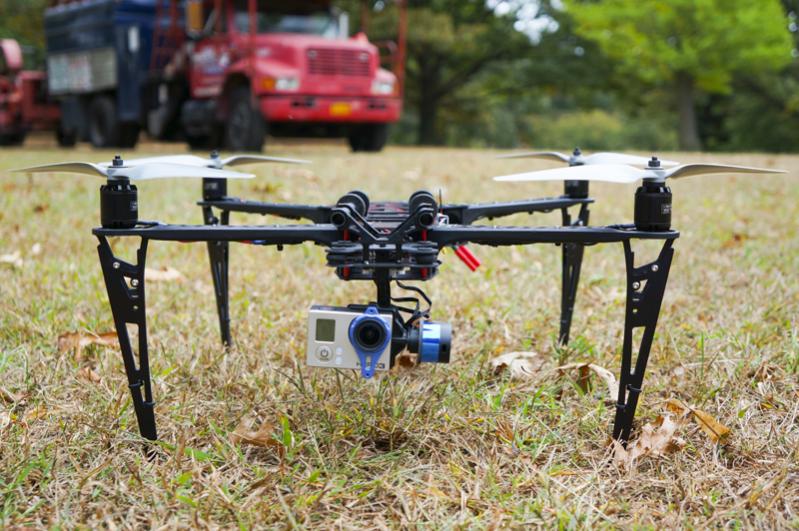

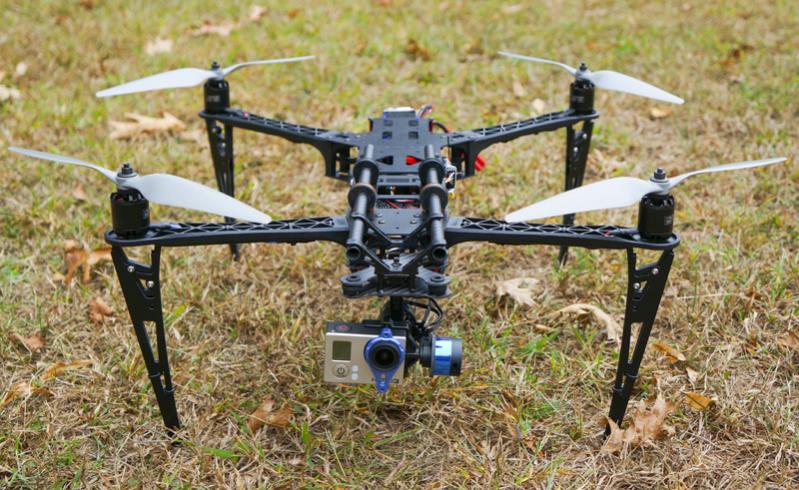

Revo is tuned to fly, but should be tuned to suit your flying style. Props/motors are not balanced and I think this build will also fly well with 11" props. Gimbal works right out of the box and is wired to the RX for tilt. I use a Spektrum DX7S and the little Aux2 dial controls the tilt.

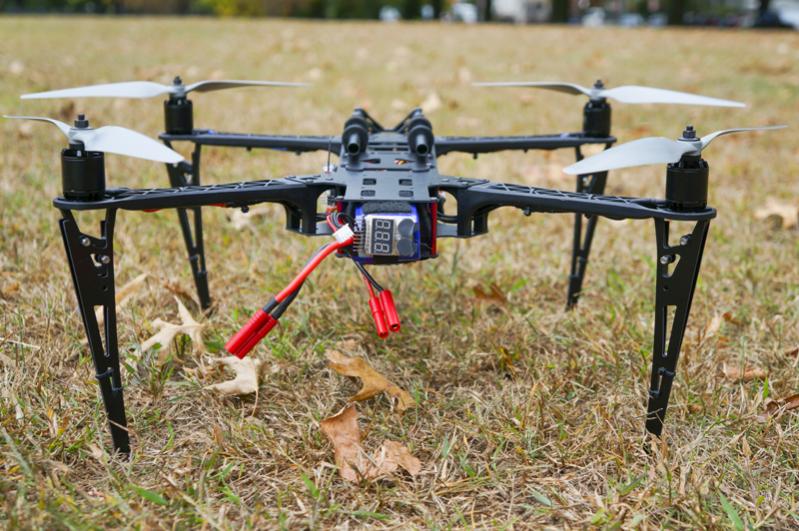

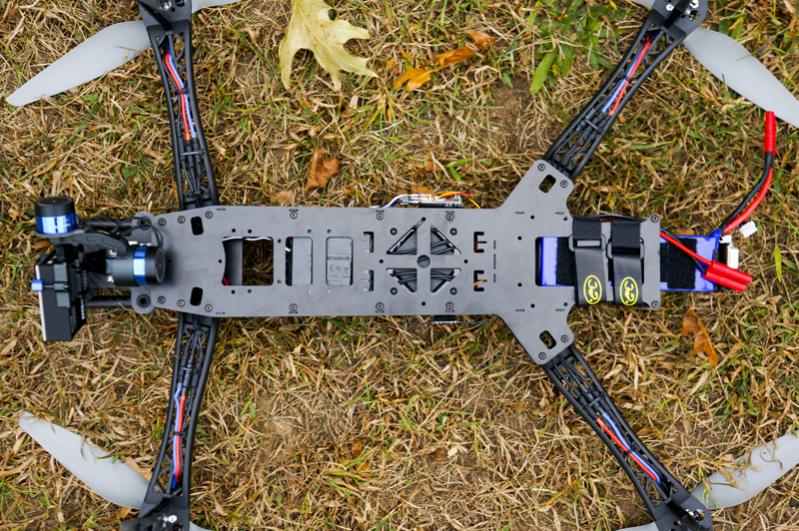

I stuffed a 3S 5000mAh LiPo into the tail (see photos), so there is ample room in there. Flew around 15 mins (easy flying) with that pack. Everything runs off the main battery. There is a JST connector up front to connect the gimbal (currently hooked up), and a JST connector aft of the flight controller ready to connect a VTX to for FPV. You can also run the gimbal/VTX off of separate batteries if you'd like to. My plan was to run the FPV wiring inside the frame, place the VTX above the battery on the top deck, and a small CCD up front. The build is clean without any wires hanging around outside of the frame and I think it looks pretty cool.

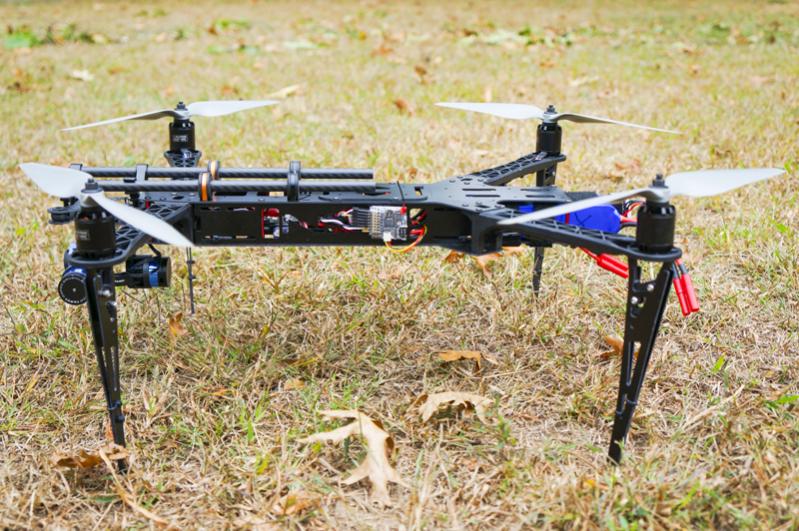

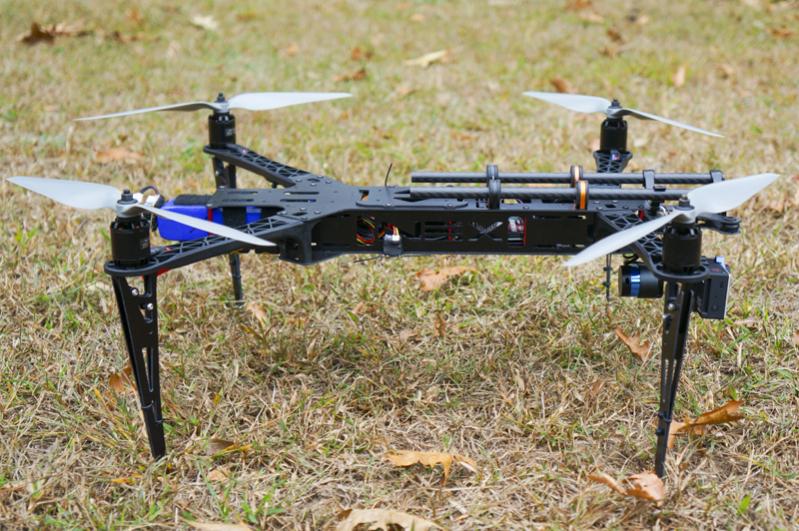

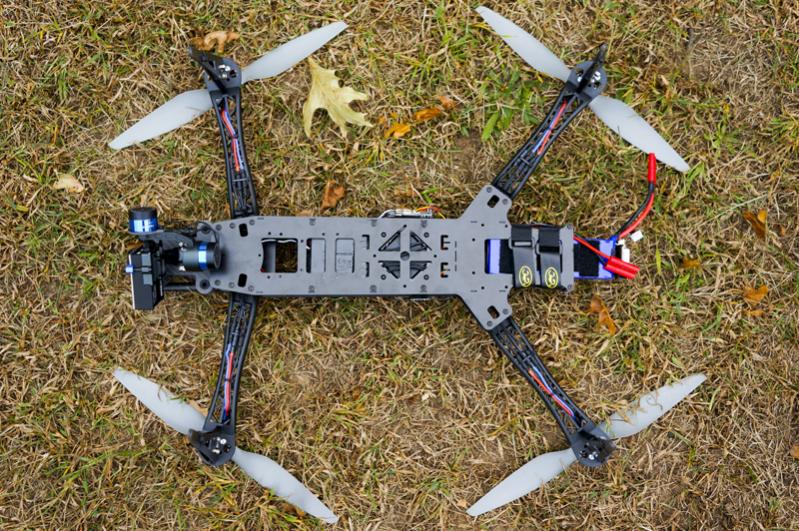

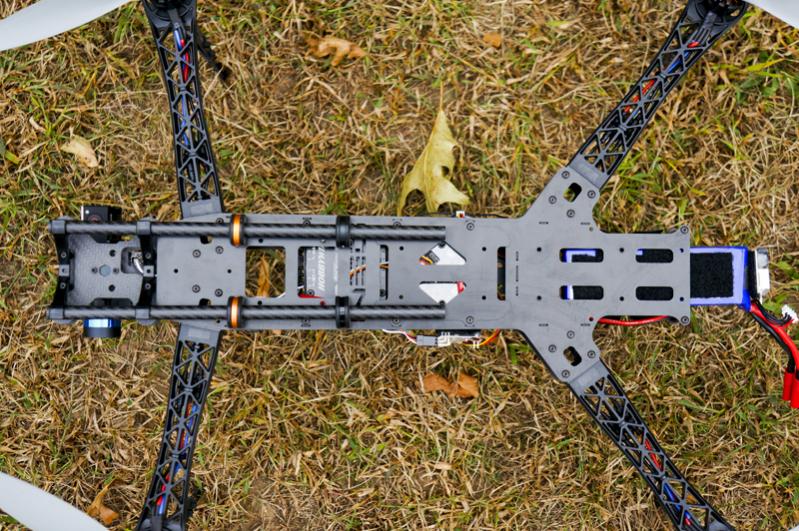

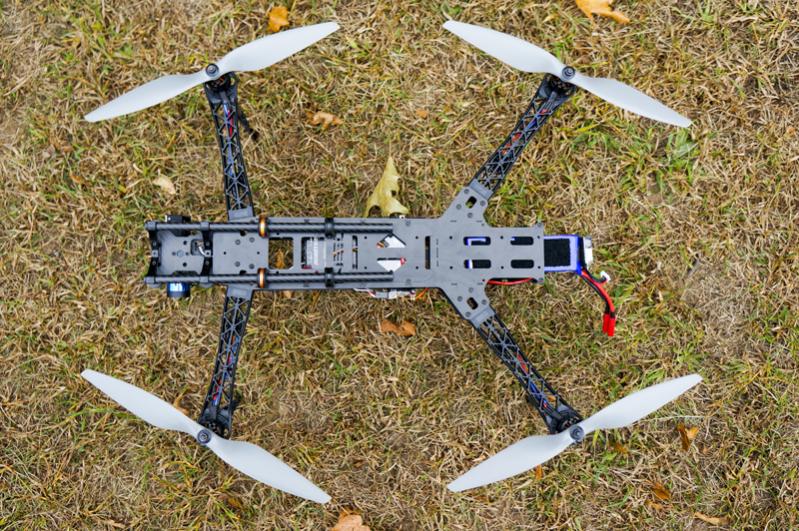

I have about 3 test flights on her now and will post some video when I get some time. Will be shipped with the landing gear removed with a lot of padding. Please feel free to ask any questions. Located in NYC if you are local. Here are some pics:

View attachment 14337View attachment 14338View attachment 14339View attachment 14340View attachment 14341View attachment 14342View attachment 14343View attachment 14344View attachment 14345View attachment 14346View attachment 14347View attachment 14348


Attachments

  • DSC00528.jpg
    94 KB · Views: 345
  • DSC00529.jpg
    88.4 KB · Views: 402
  • DSC00530.jpg
    101.5 KB · Views: 375
  • DSC00531.jpg
    96.7 KB · Views: 236
  • DSC00532.jpg
    89.4 KB · Views: 424
  • DSC00533.jpg
    98.3 KB · Views: 287
  • DSC00534.jpg
    45.7 KB · Views: 217
  • DSC00535.jpg
    47.9 KB · Views: 349
  • DSC00536.jpg
    136.8 KB · Views: 223
  • DSC00537.jpg
    127.3 KB · Views: 367
  • DSC00540.jpg
    137.3 KB · Views: 367
  • DSC00542.jpg
    125.4 KB · Views: 248


ActionDrone

Member
are you the original manufacturer of Nex Neo. I wanted one so bad when they were selling it. Do you know what happened? Awesome aircraft. $875 is a deal this should go fast.


are you the original manufacturer of Nex Neo. I wanted one so bad when they were selling it. Do you know what happened? Awesome aircraft. $875 is a deal this should go fast.

No, a man named Eric is the MFR of this frame. I am just a hobbyist/photographer that built this little monster for fun. Love the design, just selling to gather cash for my heavy lifter! Already own 2 other GoPro machines, so diverting funds toward a larger machine. It's amazing how quickly multirotor frames multiply in my basement...
