NEW Power dist board 8 + Dual Bec on stock

Lanzar

Member

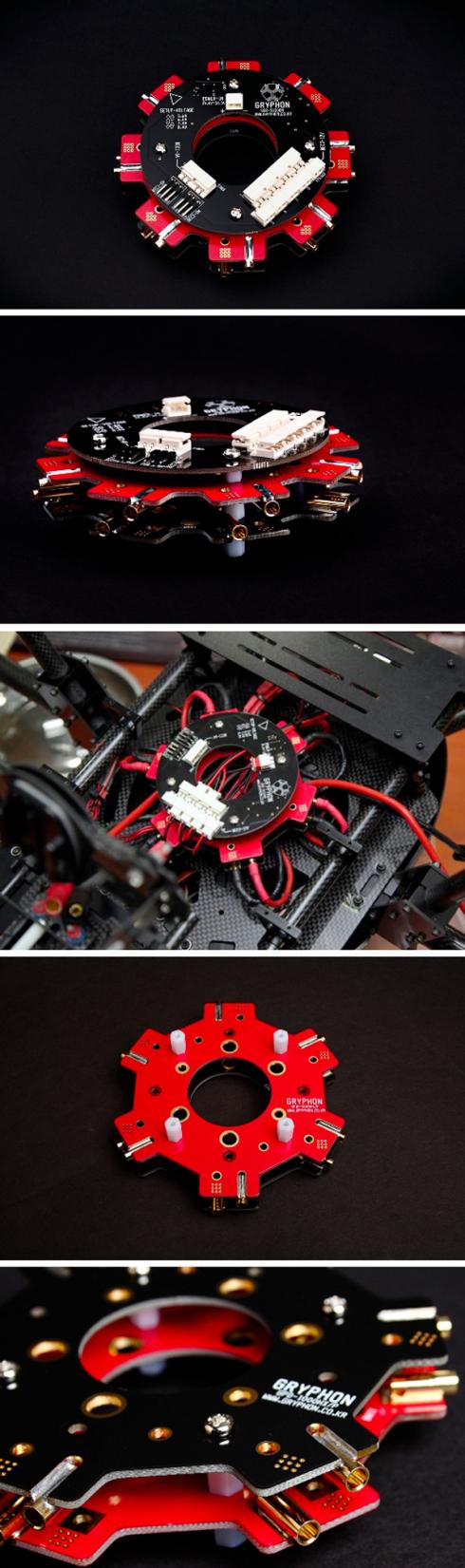

Power Distribution Board for most advanced users.

For OCTO Multicopter (Equipped with 16 pair of 3.5mm plug)

SPECIFICATIONS
- Up to 8 ESC/Motor can be connect to the Board
- 260A (Continuous), 320A (Peak)
- 2 layout with 2oz(70um) Copper Dual PCB.

- Gold plated with black soldermask
- Φ64mm body mounting
- 1 PCB plate for(+), 1 PCB plate for(-)
- Weight : 85g
- Size : 105mm x 105mm

Power Disc BEC (GSR-5030DM)
5V,12V Dual BEC for Multicopter
The Gryphon Power Disc Dual BEC.
Dual voltage BEC regulator designed for Multirotors systems.
It accepts voltages inputs from 14.4V up to 30V(4~7 LiPo Cells), and has 2 independant BEC outputs.
User selectable 5.6~8.4V, 5A on BEC1 output (For Camera, Retractable landing gears, Gimbal servos,flight controllers...)
And 12V, 3.5A on BEC 2 output (Camera, Video Transmitter, LEDs..)

CONTENTS
1. Main PCB : 1 EA
2. Power Output Molex Connector Cable(L=30cm) : 11 EA
3. PCB Post Female-Female 3 x 5mm : 4 EA
4. PCB Post Female-Female 3 x 10mm : 4 EA
5. Socket button head screw M3 x 5mm : 8 EA
6. Socket button head screw M3 x 12mm : 4 EA
7. Power Input Molex Connector Cable Ass’y : 1 EA
SPECIFICATIONS
Input voltage : 14.4V~30V(3~7 LiPo Cells)
Output voltage : BEC1 : 5.6V, 6.0V, 7.4V, 8.4V Selectable
BEC2 : 12.0V
Output current : BEC1 : 5A(Continuous) @ 22.2V
BEC2 : 3.5A(Continuous) @ 22.2V
Size : (Φ)100mm x (H)11mm
Weight : 28g (Exc. Cables)
View attachment 11355


Attachments

  • gryokto1.jpg
    103.7 KB · Views: 219

Lanzar

Member
We have tested this and it is the best one so far. The quality is insane, all small parts are included in set. BEC is running smothe and has filtering. Perfect for those who dont like to do wireing off led and stuff since this makes your life easy.
