Large PDB feedback

JLO

Member
Has any one try this Large PDB any feedback ?
Description:

This is a large PDB for 4-6 arms big drones, internal wiring for 4 to 6 ESC signal, compatible with 6S or 12S LiPo power distribution, with stand upto 480A current.

Default with 6x XT90 connectors for ESC power distribution, 2x XT60 connectors @ 6S LiPo output and 2x XT60 connectors @ 12S output for your different electronics on the drone. However, there is NO 3-6S BEC module onboard, so DO NOT power up your FC directly using these XT60 connectors.


Attachments

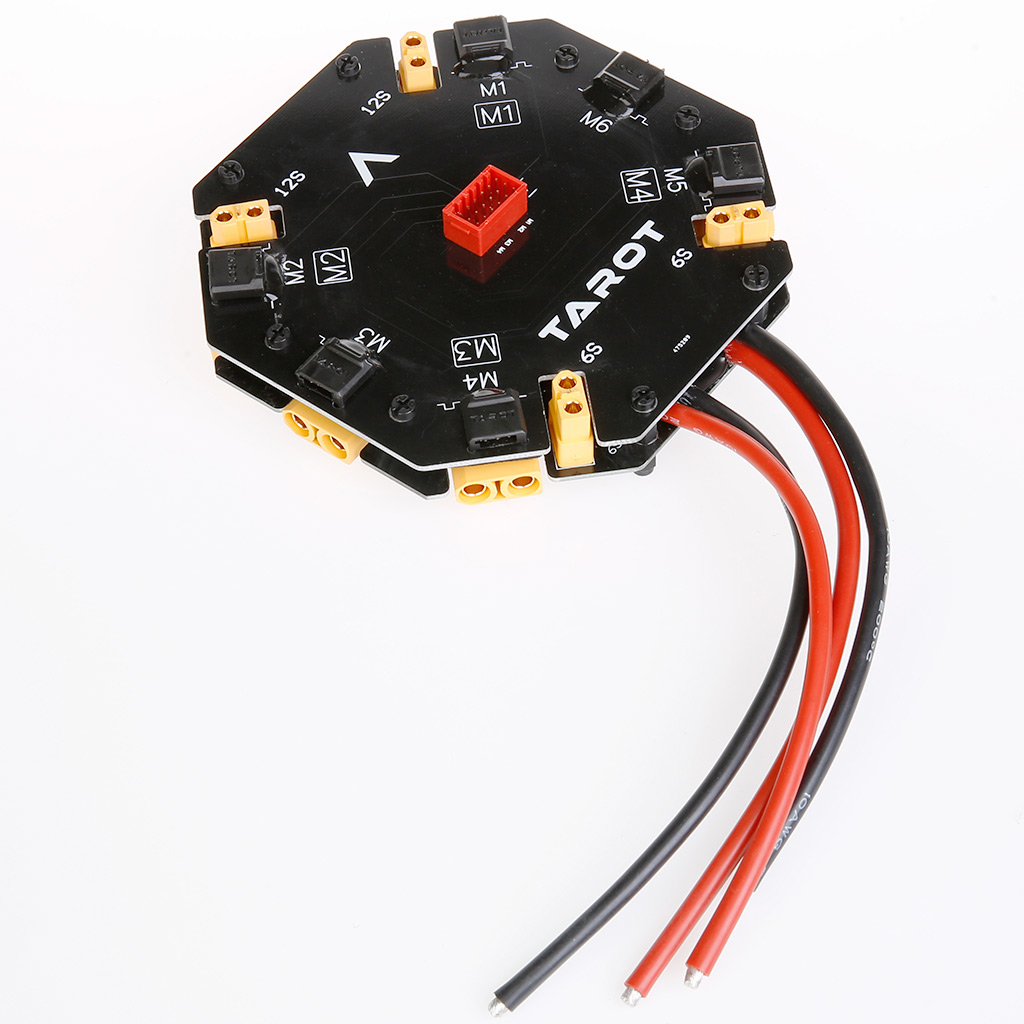

  • PDB1.jpg
    149.3 KB · Views: 344
  • PDB 4.jpg
    PDB 4.jpg
    117.3 KB · Views: 287
  • PDB 2.jpg
    PDB 2.jpg
    154.8 KB · Views: 323

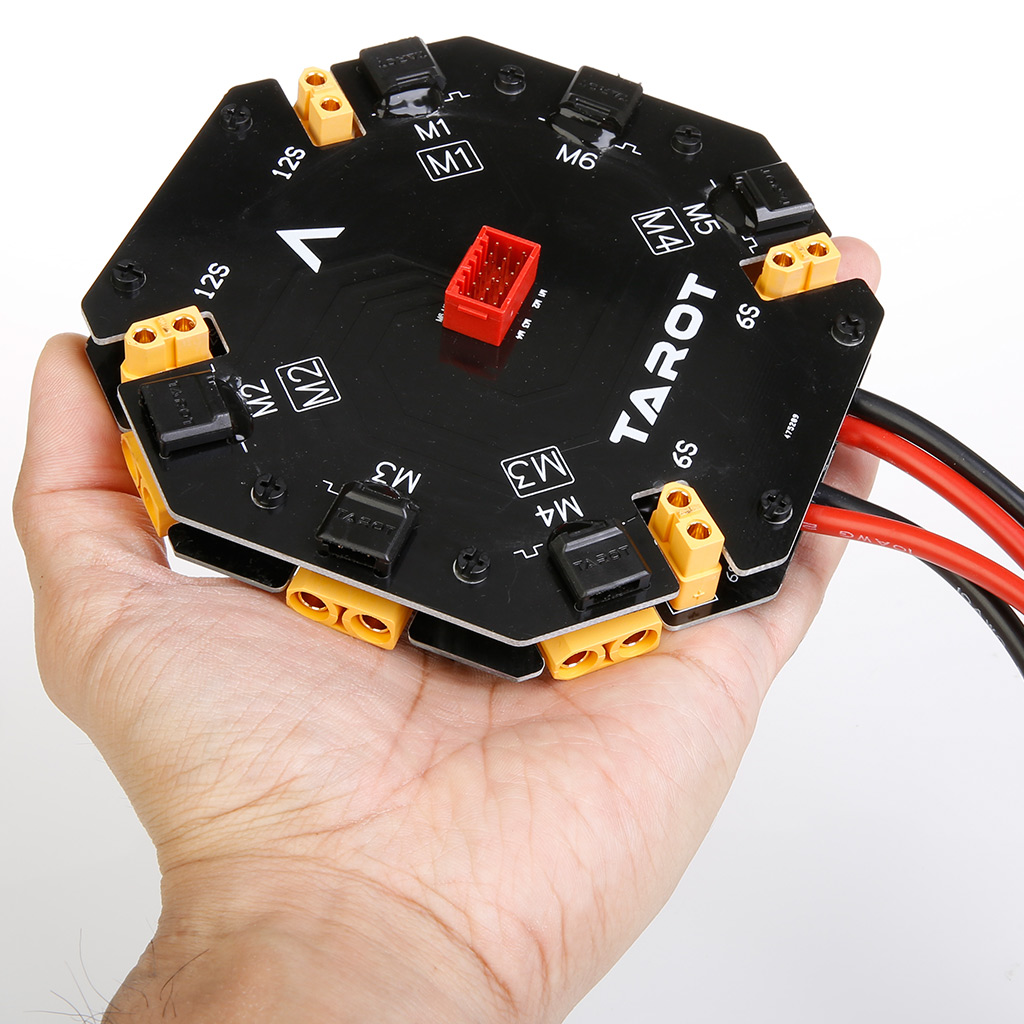

  • PODB 3.jpg
    PODB 3.jpg
    238 KB · Views: 323
