KDE DIRECT XF UAS HVC SERIES
ELECTRONIC SPEED CONTROLLERS (ESCs)

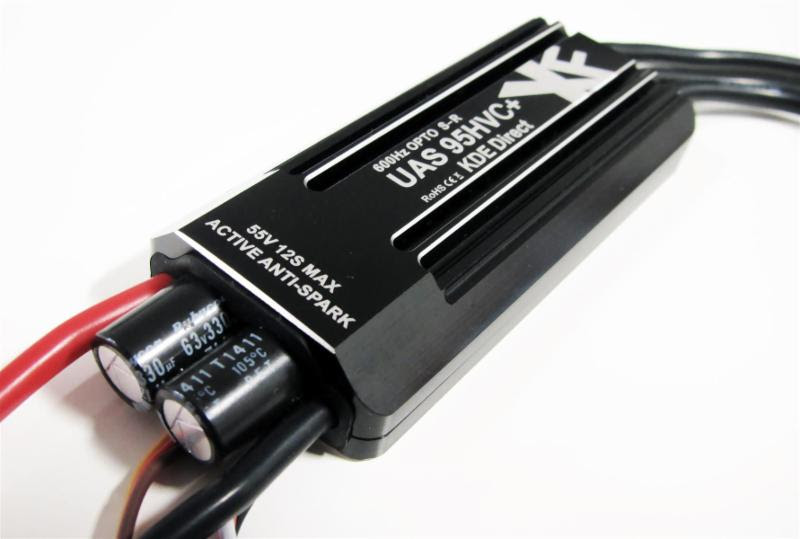

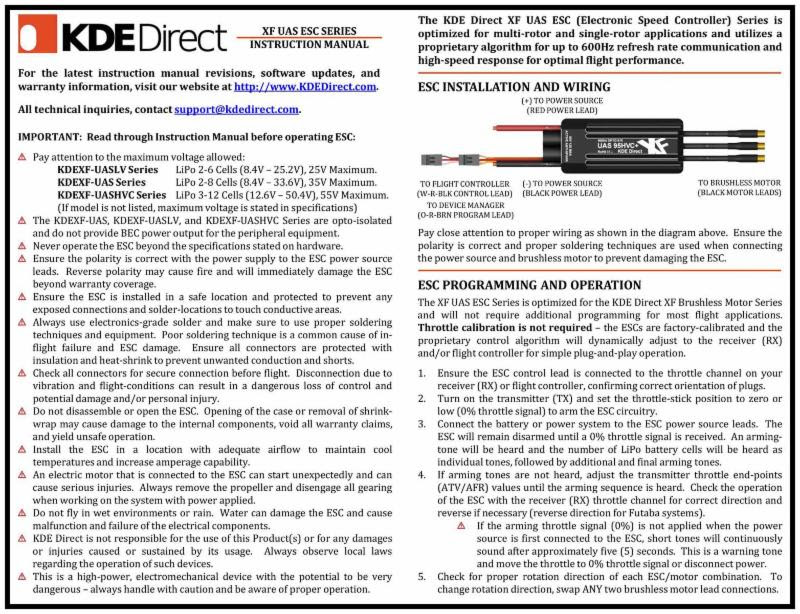

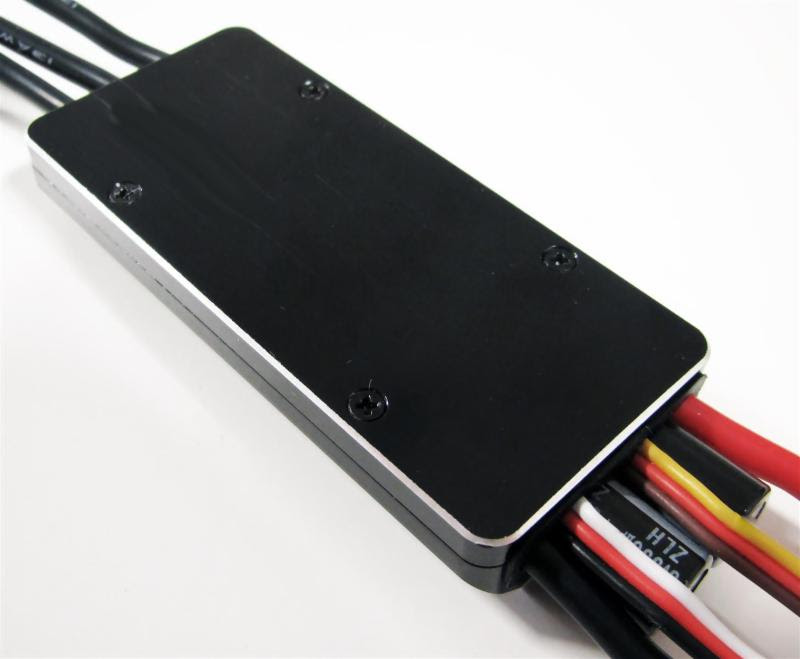

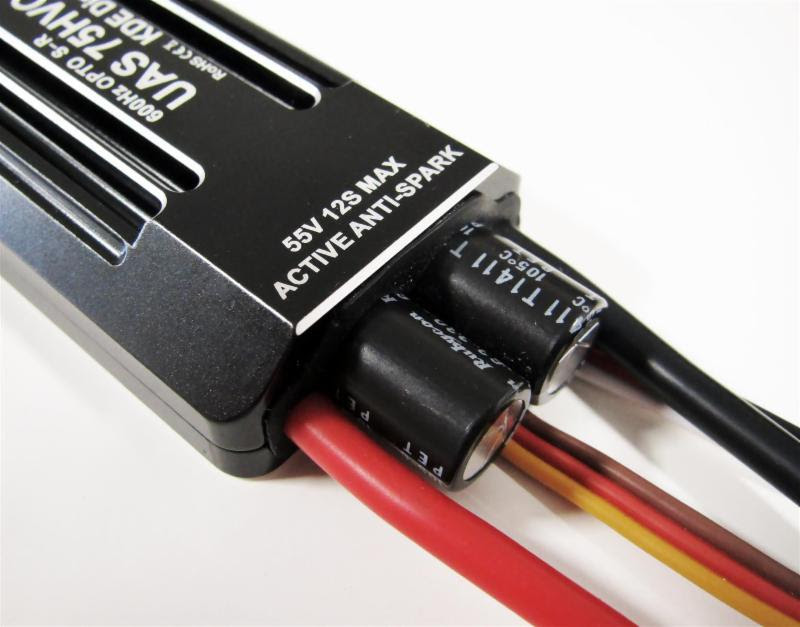

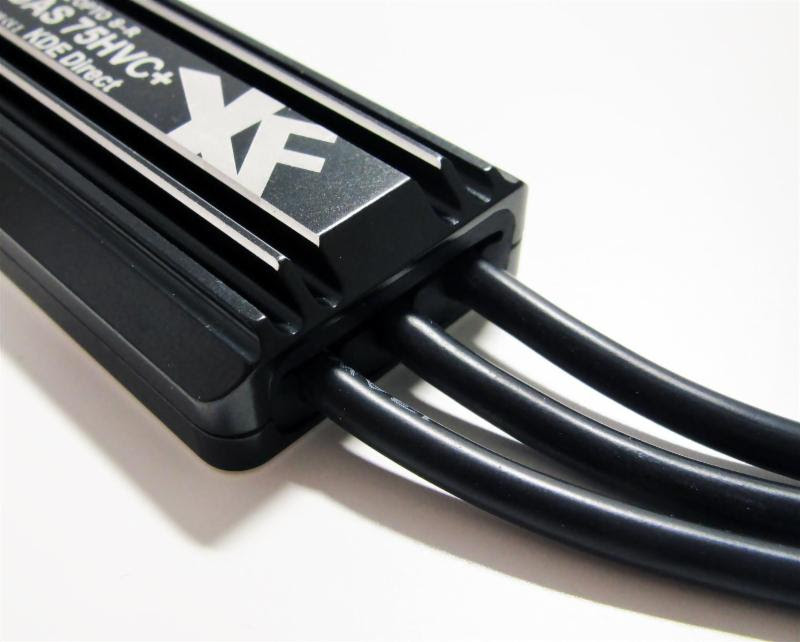

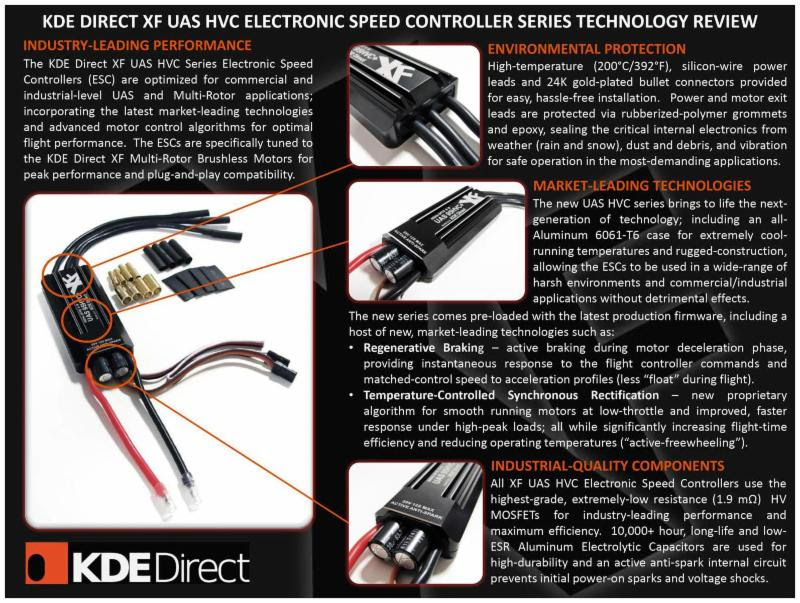

The new KDEXF-UAS95HVC and KDEXF-UAS75HVC Electronic Speed Controllers (ESCs) are now available and shipping worldwide! The new UAS HVC series brings to life the next-generation of technology for UAS and Multi-Rotor operation; including an all-Aluminum 6061-T6 case for cool-running temperatures and rugged-construction, allowing the ESCs to be used in a wide-range of harsh environments and commercial/industrial applications. Check out the Design Presentation (PDF) and Instruction Manual (PDF) below for additional details on the included technology:

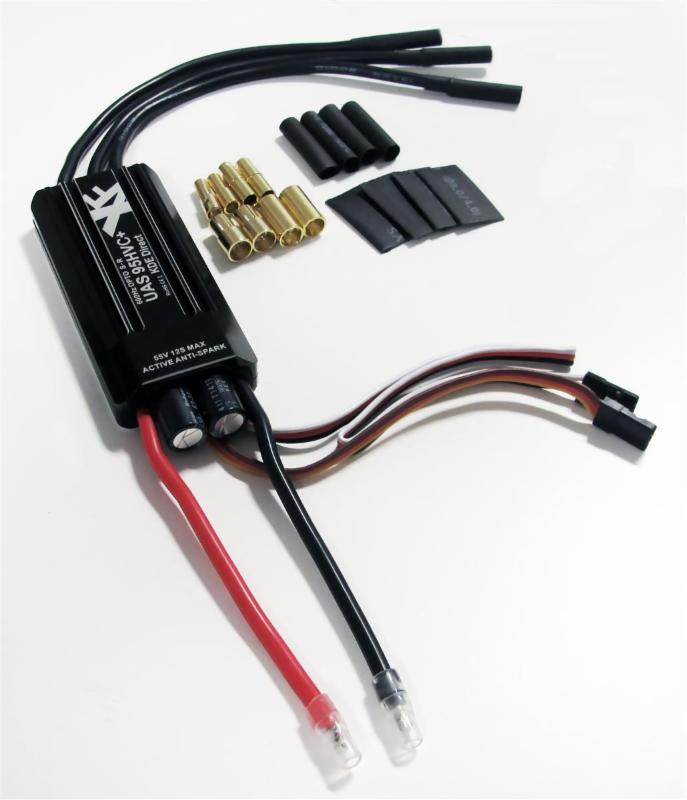

The new HVC series also includes a dedicated-programming cable, for easier programming and connection to the Device Manager Adapter (KDEXF-DMA), without the need to disconnect any cables from the flight-controller or secondary power. The new series also comes pre-loaded with the latest production firmware, including these market-leading technologies:
We strive to provide the best customer service possible for you, so please e-mail us with any questions to sales@kdedirect.com.
Make sure to join us on Facebook, YouTube, and Twitter for the latest news and videos.
ELECTRONIC SPEED CONTROLLERS (ESCs)
The new KDEXF-UAS95HVC and KDEXF-UAS75HVC Electronic Speed Controllers (ESCs) are now available and shipping worldwide! The new UAS HVC series brings to life the next-generation of technology for UAS and Multi-Rotor operation; including an all-Aluminum 6061-T6 case for cool-running temperatures and rugged-construction, allowing the ESCs to be used in a wide-range of harsh environments and commercial/industrial applications. Check out the Design Presentation (PDF) and Instruction Manual (PDF) below for additional details on the included technology:
The new HVC series also includes a dedicated-programming cable, for easier programming and connection to the Device Manager Adapter (KDEXF-DMA), without the need to disconnect any cables from the flight-controller or secondary power. The new series also comes pre-loaded with the latest production firmware, including these market-leading technologies:
- Regenerative Braking - active braking during motor deceleration phase, providing instantaneous response to the flight controller commands and matched-response to acceleration profiles (less "float" during flight).
- Temperature-Controlled Synchronous Rectification - new proprietary algorithm for smooth-running motors at low-throttle and improved, faster response under high-peak loads; all while significantly increasing flight-time efficiency and reducing operating temperatures.
- Dynamic Timing and Startup Power - optimally-tuned for smooth and precision-controlled startup throughout the full-range of XF UAS Brushless Motors (no hesitation, stuttering, or response lag).
- Increased Drive and Throttle Frequency Resolution - high-accuracy, linear throttle response throughout full-range of operation control.
- Motor Synchronization - factory-calibrated ESCs for consistent throttle control and frequency-matched start-up protocols.
