Hello All I need a bit of advise can you help

[Dominic]

Hi all
I am new here and was wondering if anyone could advise on how to make my own power distribution board. I am getting my first AD6 HL, from Geoff at Quadcopters UK tomorrow!!


The setup will be:


AD6-HL Frame Droidworx V3
6 x Torxpower 3536 Pro Motors
6 x Hobbwing 40a Esc
6 x 12x3.8 Props Apc
1 x AV130 Camera Gimble
1 x AV130 360 Pan Kit
1 x DJI Wookong M inc Gps


Geoff told me it would best to make my own distribution board, I am good with a soldering iron but I really need a diagram! Can any of you guys help???


One more bit of info, it will be carrying a 550d DSLR




Cheers Dominic



[quadcopters]

Hi Dom , Gunter as made his own Distribution setup and on a lovely frame all CNC from scratch , Maybe he has some build pics .

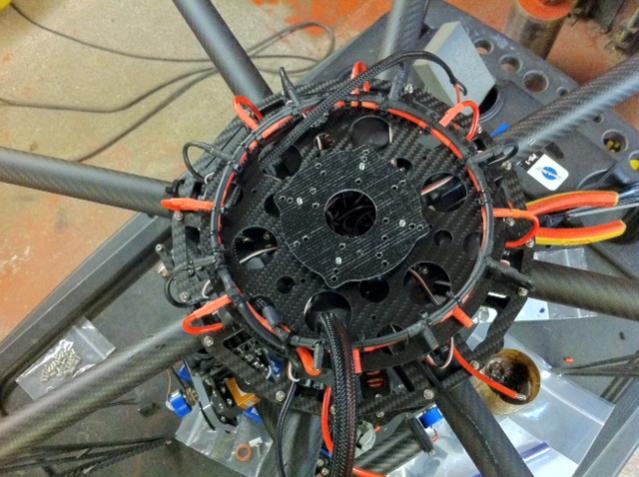

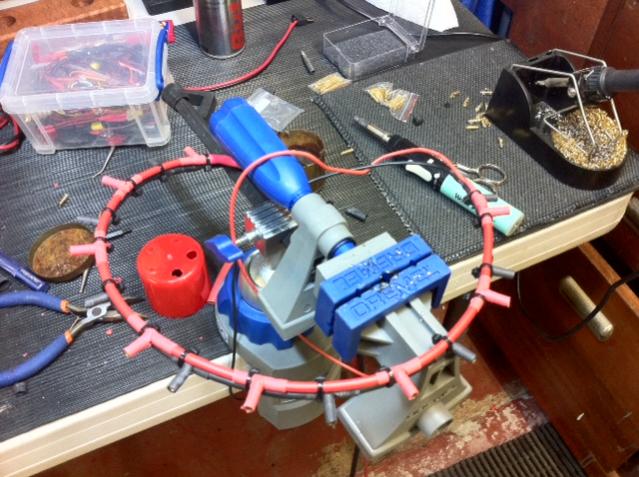

I will add a pic below of the sort of ring you can make up which we used on a Cinestar build.
Hope they help give you some ideas.
Geoff

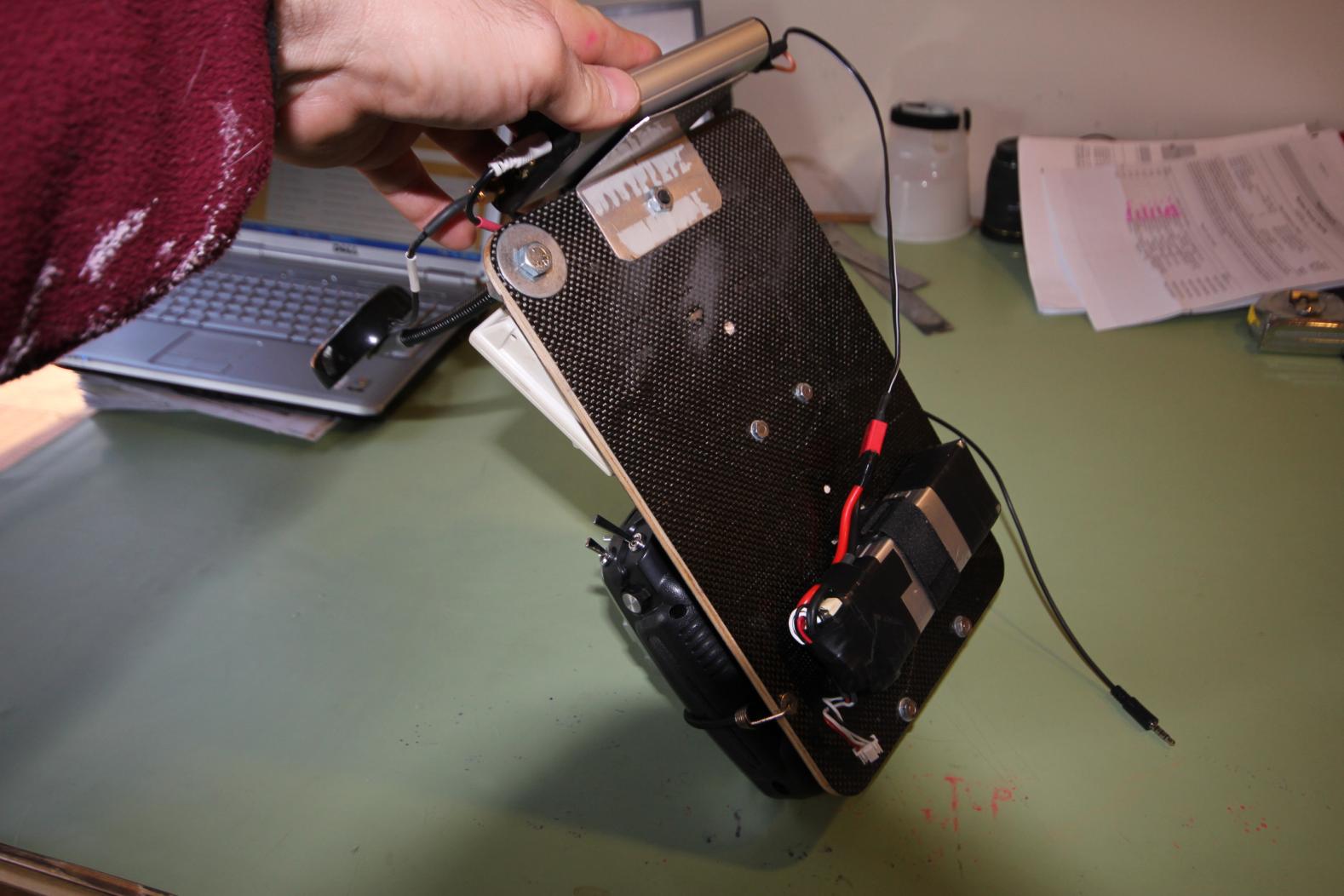

View attachment 1879View attachment 1880



[Macsgrafs]

Hi Dom,

I made mine from blank PCB (bought from Maplins). I then used a compass to mark out 2 circles & chipped away with a scalpel the gap between inner & outer rings.
http://www.multirotorforums.com/album.php?albumid=24&attachmentid=2835


Basically like this:-

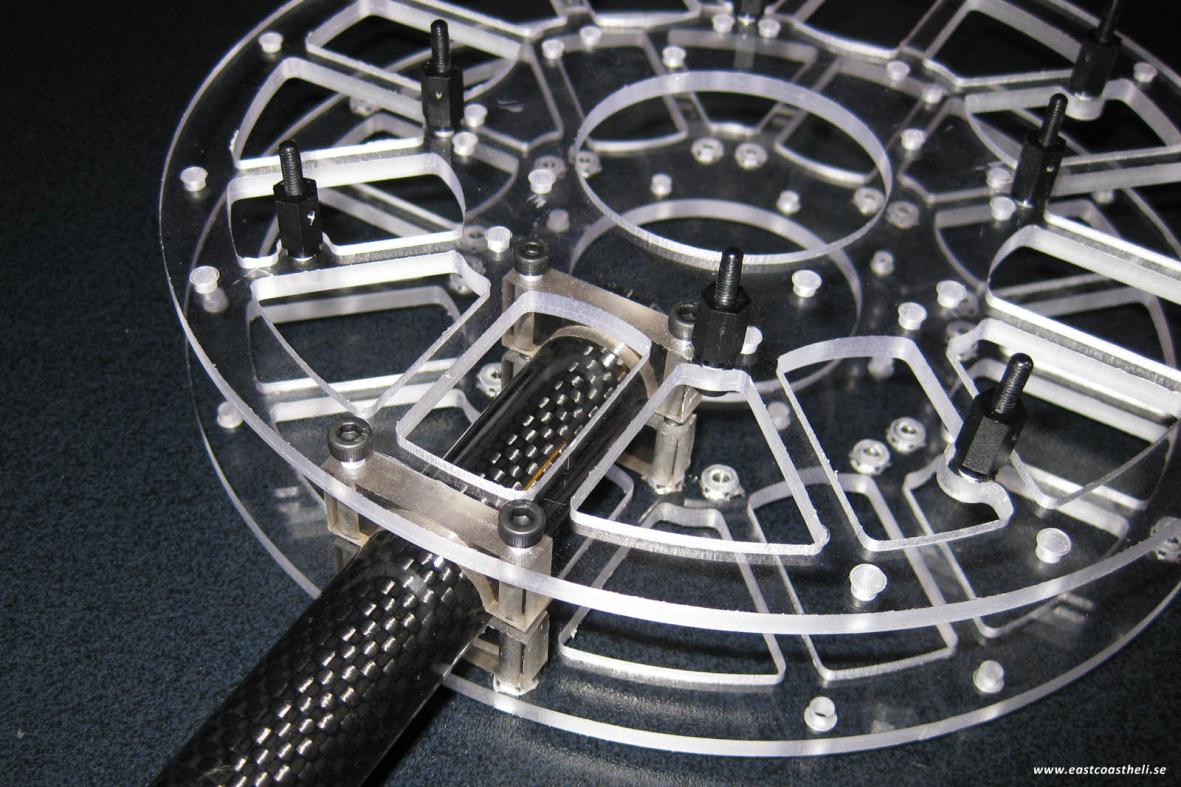

View attachment 1881
Ross



[Dominic]

Geoff it is true what they say on here, you are a demi god!!!!

Cheers Dominic

Also loads of thanks to Macsgrafs!!!!!!!!



[Macsgrafs]

No worries Dom, I went away & quickly sketched it out in photoshop, edited my post & noticed you had replied...so take another look above

Ross



[Dominic]

hi Ross

What amp rating would you give it Ross?



[Macsgrafs]

What amp rating would you give it Ross?

My 8 motors draw 328A when flat out & not had any problems with my blank PCB. The wire from mlipo to power board is 10SWG & from power board to ESC is 12SWG.

Ross



[Dominic]

Sorry Ross
I was sending you a private note!!

Again thanks bloody loads Dominic



[Macsgrafs]

No worries, as I said in the PM..we all start at the begining! Its quite mind numbing to start with & then something clicks....& you wonder what all the hassle was about
Where are you from Dom?

Ross



[Dominic]

Derbyshire near Chesterfield and you??



[Macsgrafs]

Check out under my avatar, somewhere around








<<<< HERE

Ross



[Jake Bullit]

sorry posted wrong link before,you could make your own like this



[Gunter]

Dominic, as Geoff said, I made my own power ring under the frame. While I feel it works very well, I have just started rebuilding it using an Abusemark power board. After seeing Ken using something similar on his big build, it made sense, because of the neatness and also weight saving.

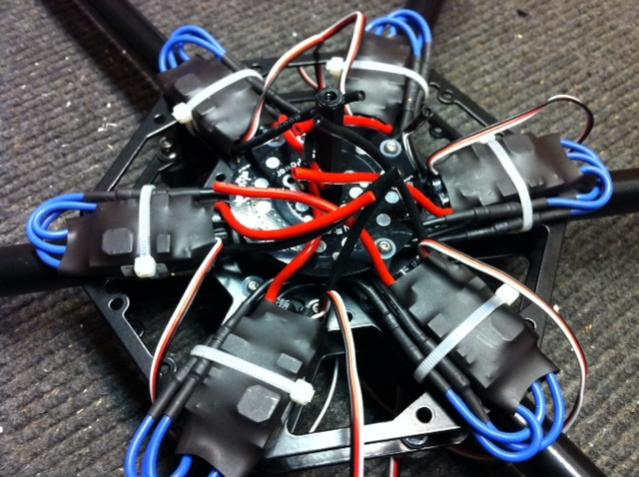

I can't find a picture of my old power distro ring, but here is a shot of what I am working on now, progress up until an hour ago!


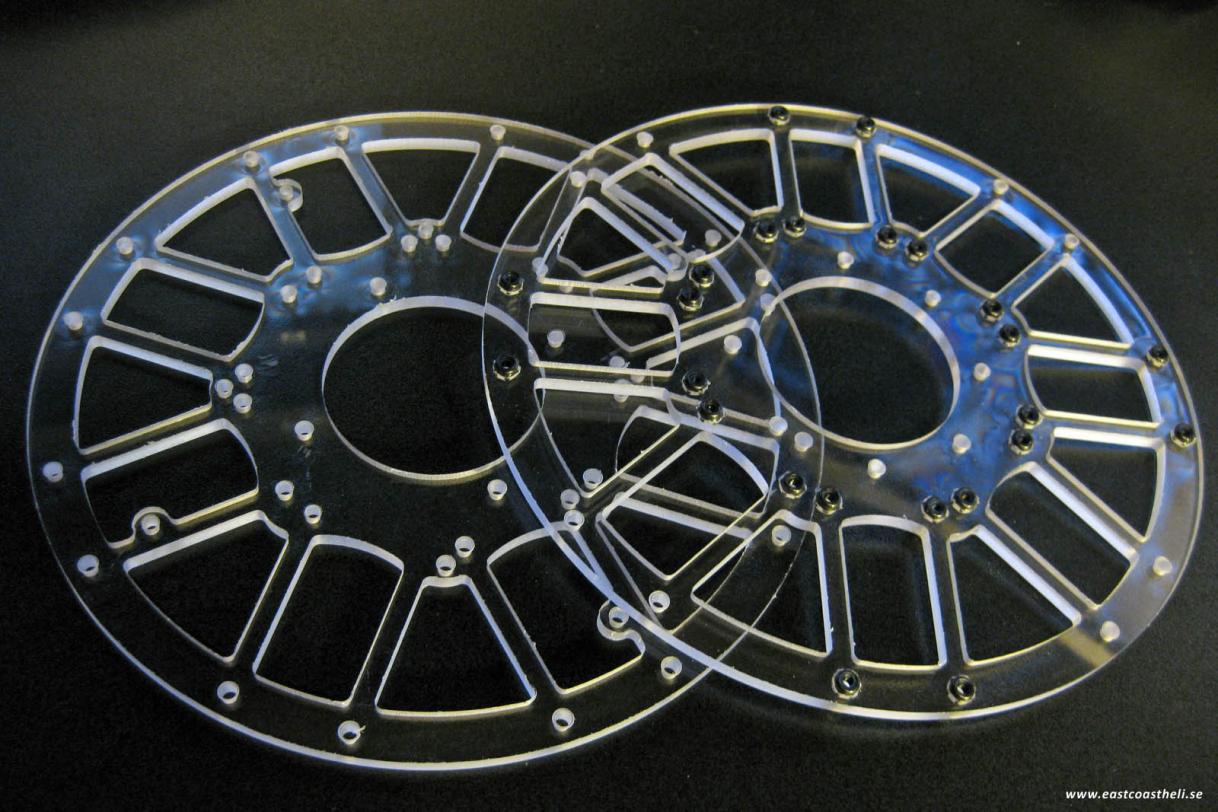

View attachment 1884

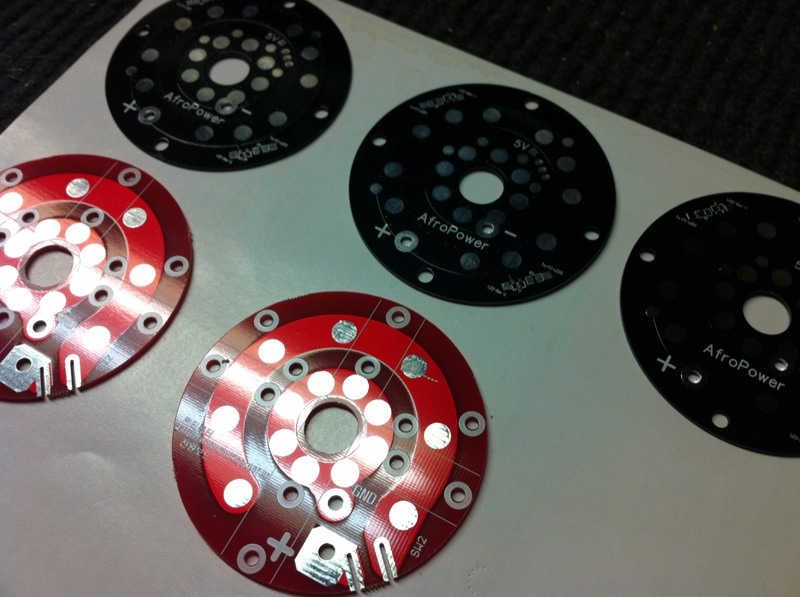

This is the board I used, the black AfroPower>

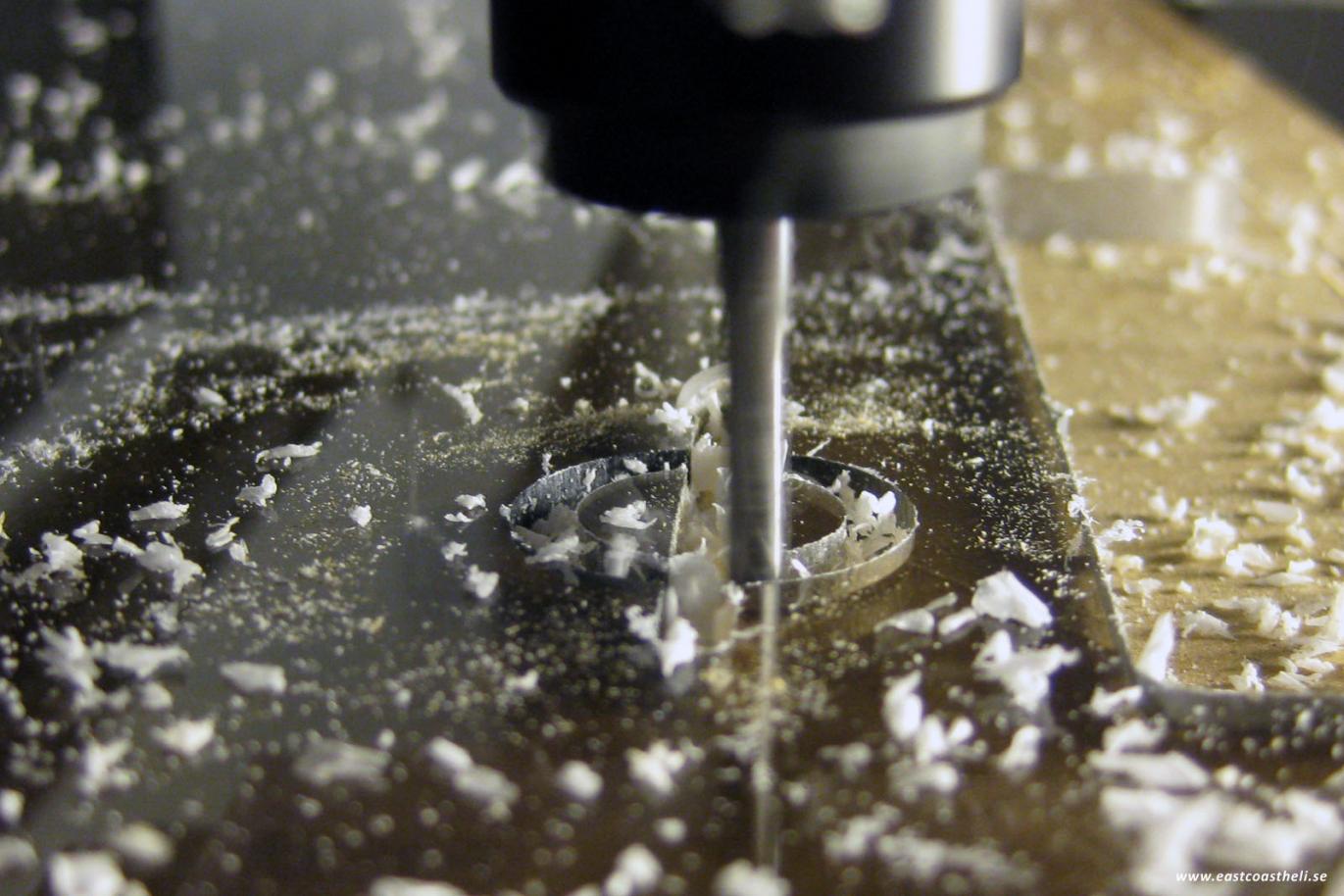

View attachment 1885



Good luck!

Gunter.
