GS-1000 product data :
1. System constitute:
GS-1000 owns complete system configuration. every set owns as below:

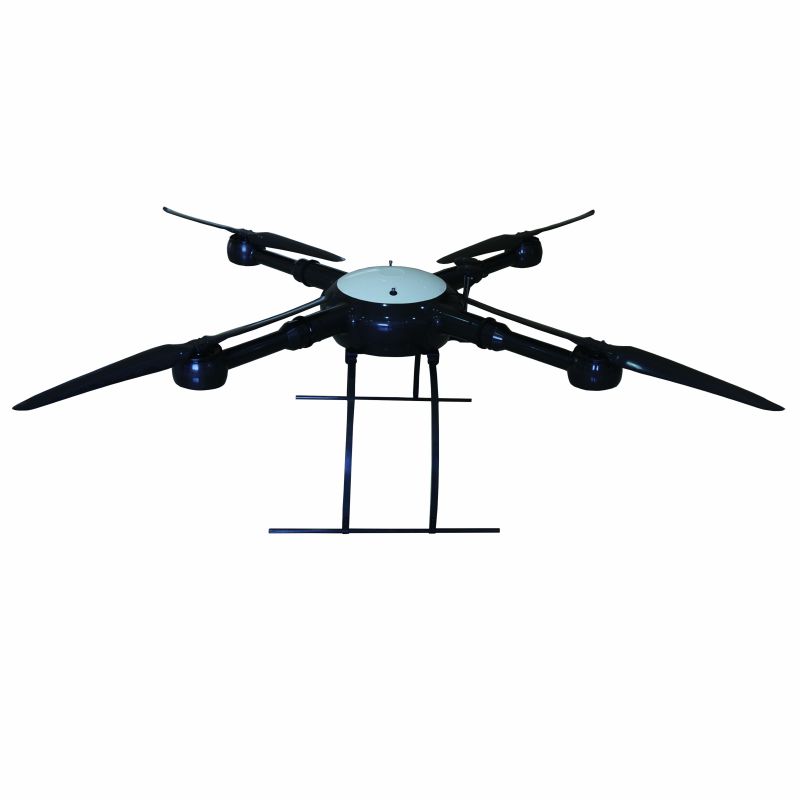

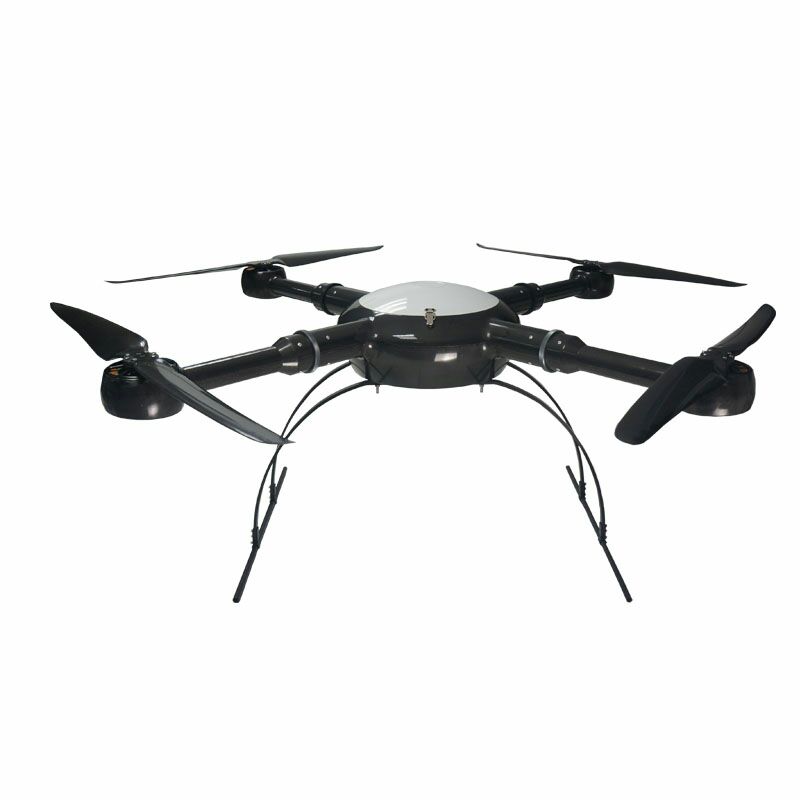

GS-1000 air vehicle
Power system
Automatic pilot
Airborne equipment
TTC channel
Remote control
2.Power system
ESC , motor , propeller , battery ,these four items make up power system .
It includes four piece 29 inch propeller , which made by carbon fiber material .
The manufacturing technique is manual molding technology.
The main feature is light weight and high strength.
GS-1000 had been through a million times tested and optimized, improved.
Aerodynamic force accord with aerodynamic theory .
Coordinate with brushless external rotor low speed high efficiency motors and specially-made 400HZ ESC , which could fly safety at various kinds of complex environment .
Battery pack was made via 6s1p*2 packaging way , which installed high energy polymer battery .
Except offer forceful power to system , at meantime , it also offer power to autopilot , Gyro-stabilized platform , airborne equipment , measurement and control -link devices, transmission equipment , which via DC conversion technology .
Detail data :
Motor quantity four
Full set size 1737mm
Deposit diameter 800mm
Net weight (without battery and airborne equipment : more than 3000g
Airframe material carbon fiber
Hover time 60 minutes ( without load )
Payload 500G ≥45 minutes
Payload 2500g ≥30 minutes
Quite performance ≤75dBA@3m
Rain-proof (24hours rainfall 50-99.9 mm ) , could fly safety
Anti- electromagnetic field ability it apart from 220KV high voltage power line 10 meters , which cause no influence on remote control and communication line .

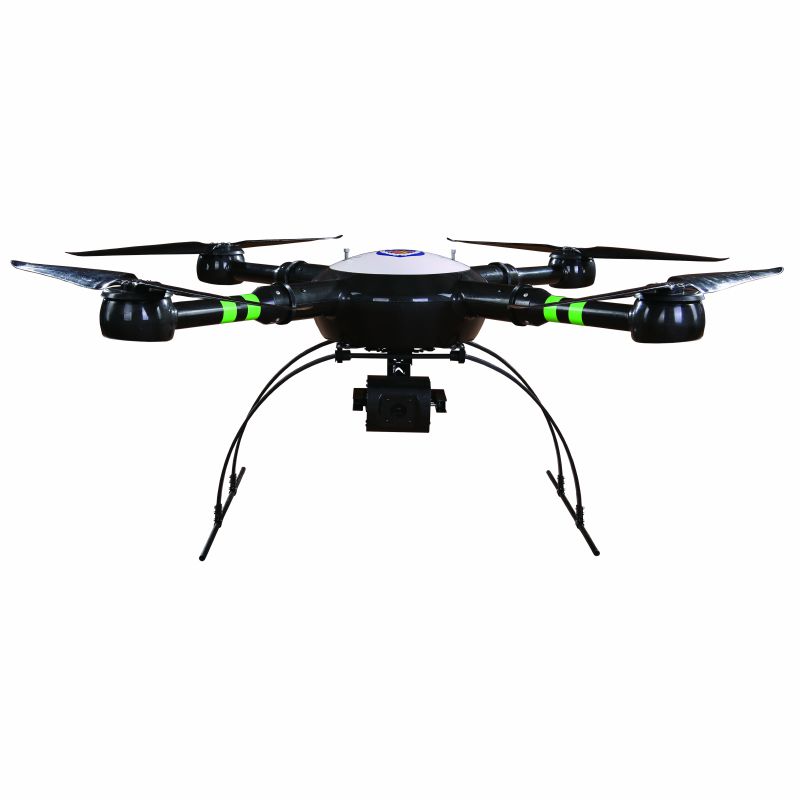

Install external gimbal 0-90 degree can be adjust by remote control
Prepare full set just need 5 minutes
