For sale are polycarbonate domes for DJI F450 & F550 frames, as well as Rusty's UAP1 & UAP2 frames. The cost is $25 plus shipping for a standard hemisphere dome or $29 plus shipping for a hemisphere dome with a removable GPS sensor protection/mounting pocket.
You can order online at www.BadgerFly.com, or PM me if you are interested.

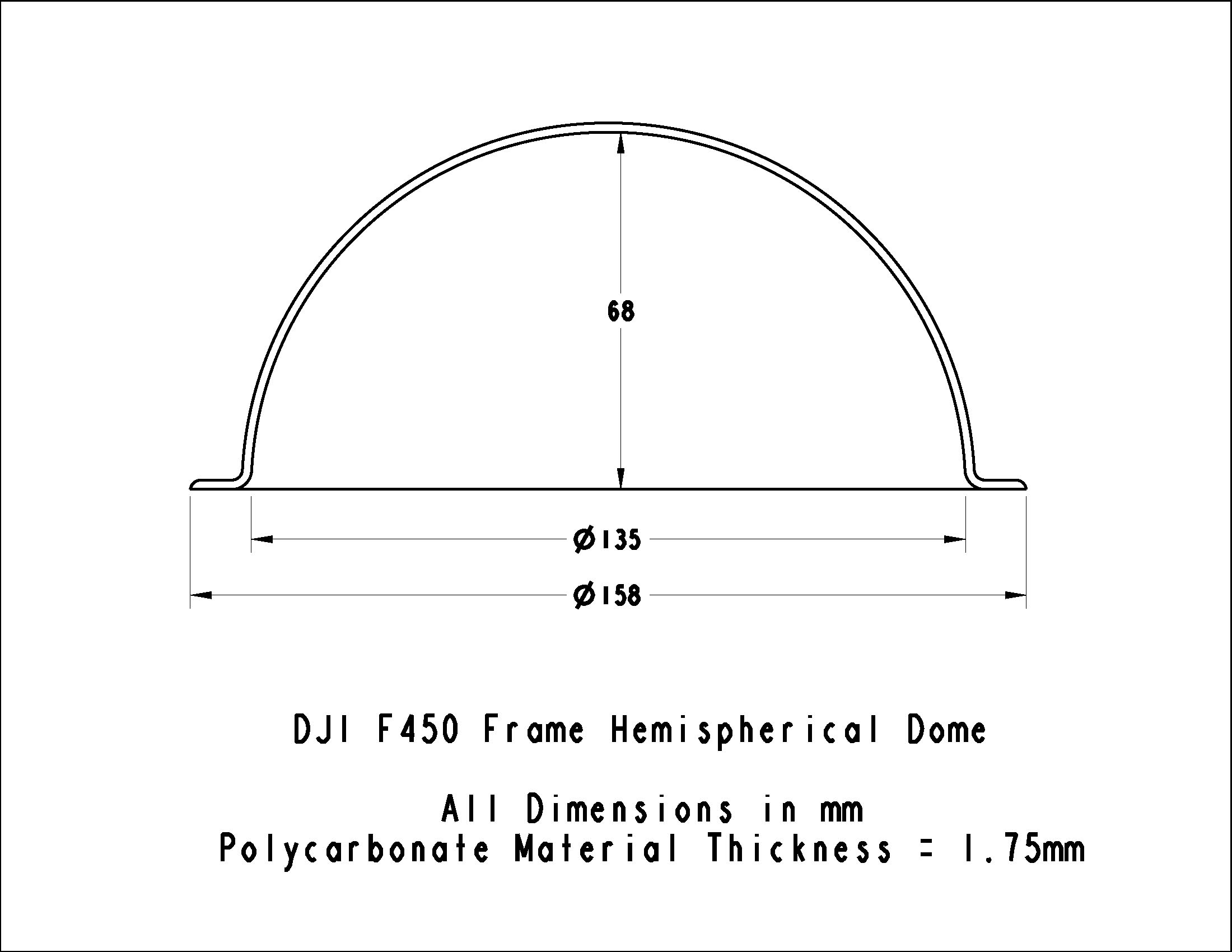

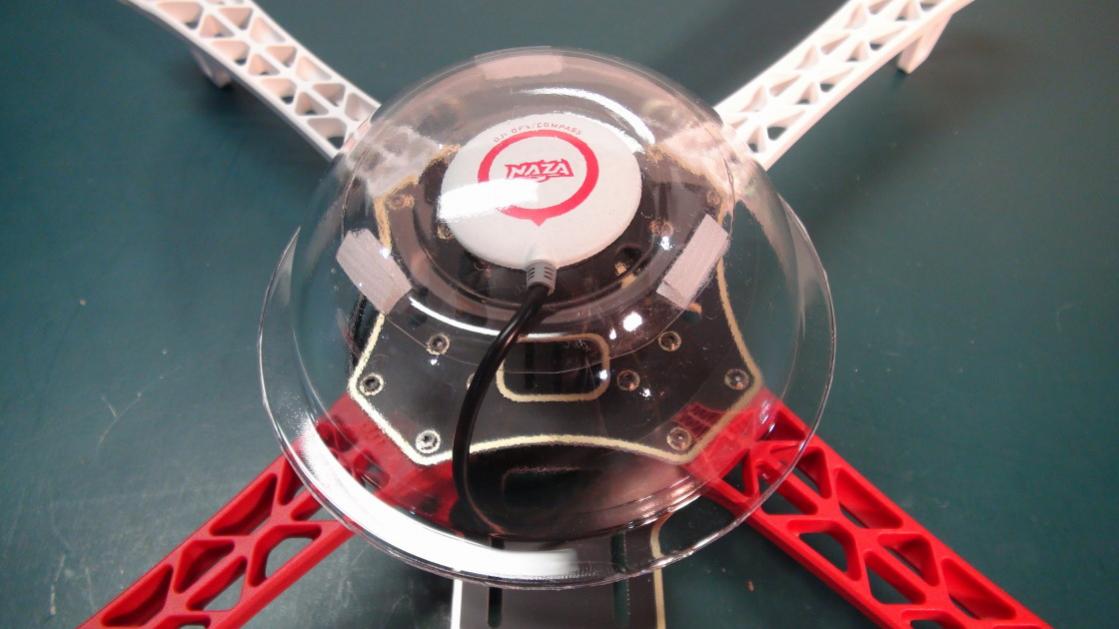

DJI F450 frame hemisphere dome dimensions: 135mm inside diameter, 68mm from flat flange to inside top of dome, 158mm diameter of flat flange.

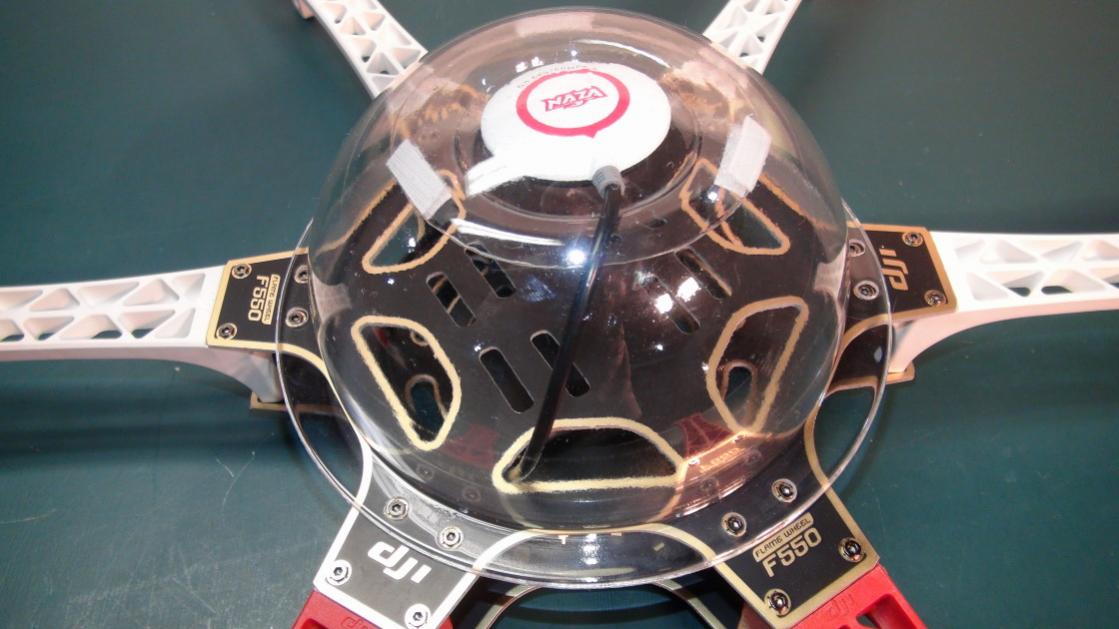

DJI F550 frame hemisphere dome dimensions: 152mm inside diameter, 76mm from flat flange to inside top of dome, 185mm diameter of flat flange.

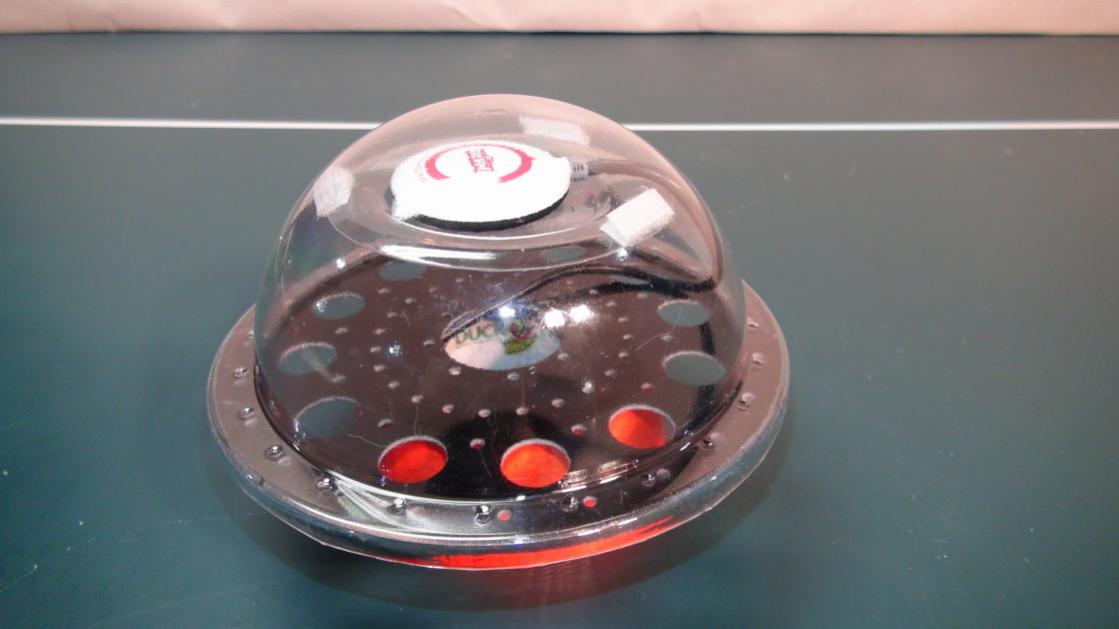

UAP1 frame hemisphere dome dimensions: 134mm inside diameter, 67mm from flat flange to inside top of dome, 161mm diameter of flat flange, 5mm vertical flange lip.

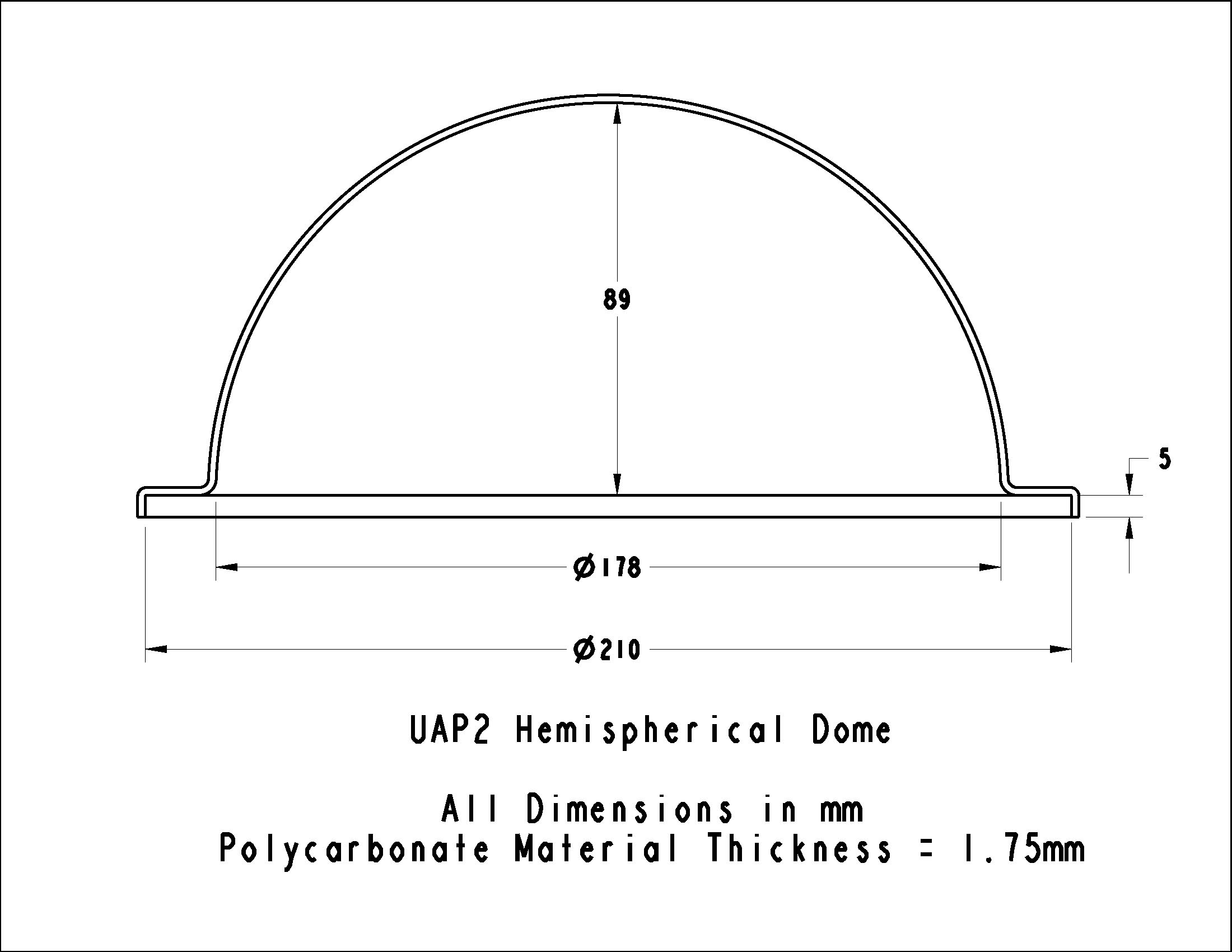

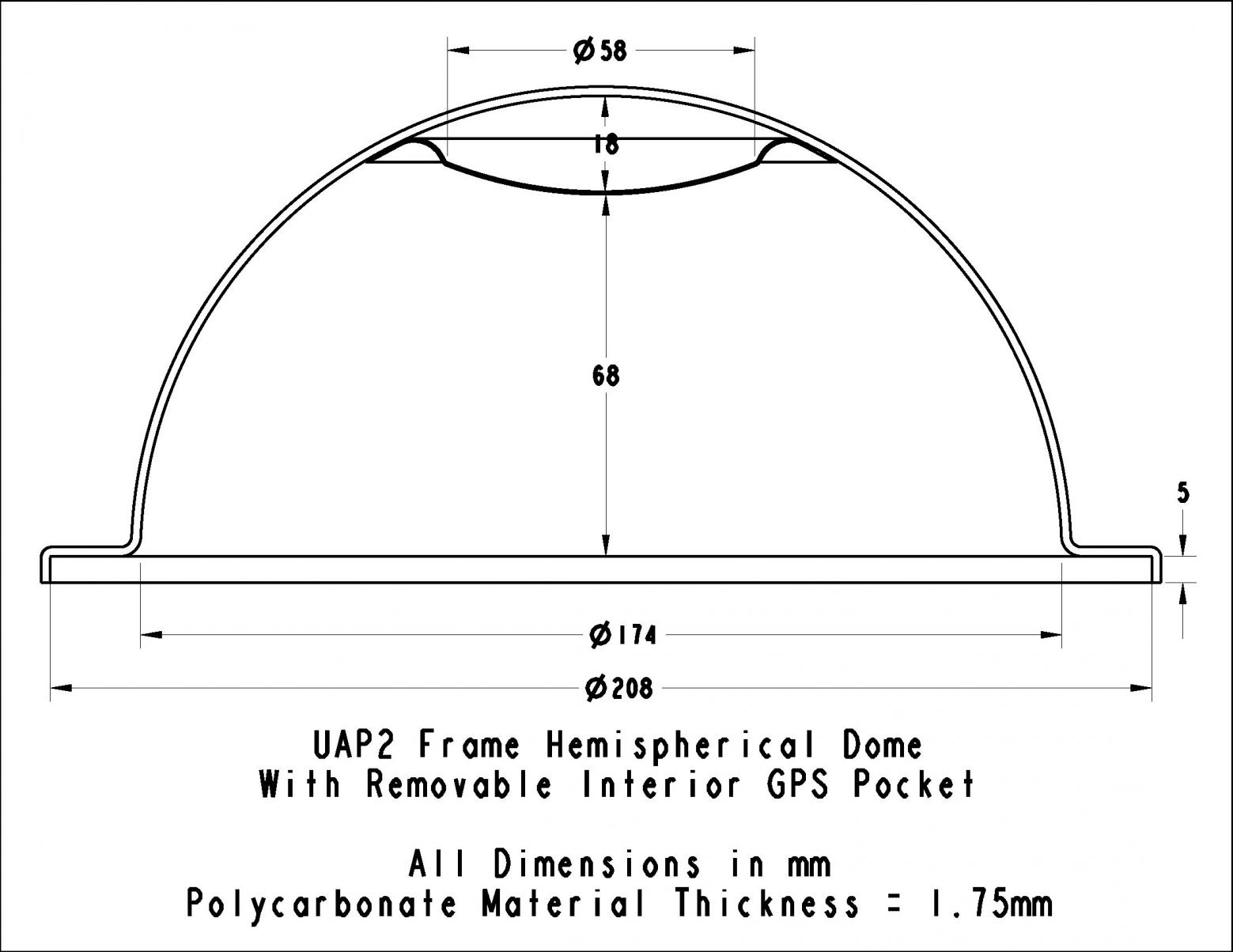

UAP2 frame hemisphere dome dimensions: 174mm inside diameter, 87mm from flat flange to inside top of dome, 208mm diameter of flat flange, 5mm vertical flange lip.
0.080" thick (2mm) clear polycarbonate domes are very strong to protect those expensive electronics. Polycarbonate (Lexan, Makrolon, etc) is the strongest plastic and won't shatter like acrylic, PET-G, and other clear plastics that you can buy at a cheaper price. These are the real deal if you care about your electronics!
The domes can be mounted using velcro, 2-sided tape, screws with standoffs, wireties, etc.

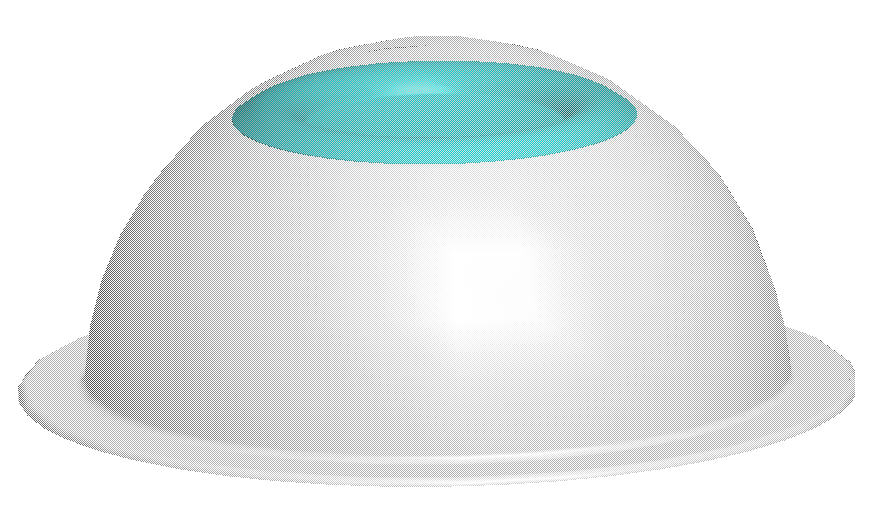

These hemispherical domes can be purchased alone or with an optional GPS sensor unit pocket. The pocket fits perfectly at the top of the underside of the dome to protect the sensitive GPS unit or other electronics that need to be mounted above the flight control board. It can be attached with velcro or with nylon or aluminum screws (steel screws will affect the GPS signal). The mounting hardware is not included. Polycarbonate plastic will not affect the GPS signal.
You can order online at www.BadgerFly.com, or PM me if you are interested.
DJI F450 frame hemisphere dome dimensions: 135mm inside diameter, 68mm from flat flange to inside top of dome, 158mm diameter of flat flange.
DJI F550 frame hemisphere dome dimensions: 152mm inside diameter, 76mm from flat flange to inside top of dome, 185mm diameter of flat flange.
UAP1 frame hemisphere dome dimensions: 134mm inside diameter, 67mm from flat flange to inside top of dome, 161mm diameter of flat flange, 5mm vertical flange lip.
UAP2 frame hemisphere dome dimensions: 174mm inside diameter, 87mm from flat flange to inside top of dome, 208mm diameter of flat flange, 5mm vertical flange lip.
0.080" thick (2mm) clear polycarbonate domes are very strong to protect those expensive electronics. Polycarbonate (Lexan, Makrolon, etc) is the strongest plastic and won't shatter like acrylic, PET-G, and other clear plastics that you can buy at a cheaper price. These are the real deal if you care about your electronics!
The domes can be mounted using velcro, 2-sided tape, screws with standoffs, wireties, etc.
These hemispherical domes can be purchased alone or with an optional GPS sensor unit pocket. The pocket fits perfectly at the top of the underside of the dome to protect the sensitive GPS unit or other electronics that need to be mounted above the flight control board. It can be attached with velcro or with nylon or aluminum screws (steel screws will affect the GPS signal). The mounting hardware is not included. Polycarbonate plastic will not affect the GPS signal.
