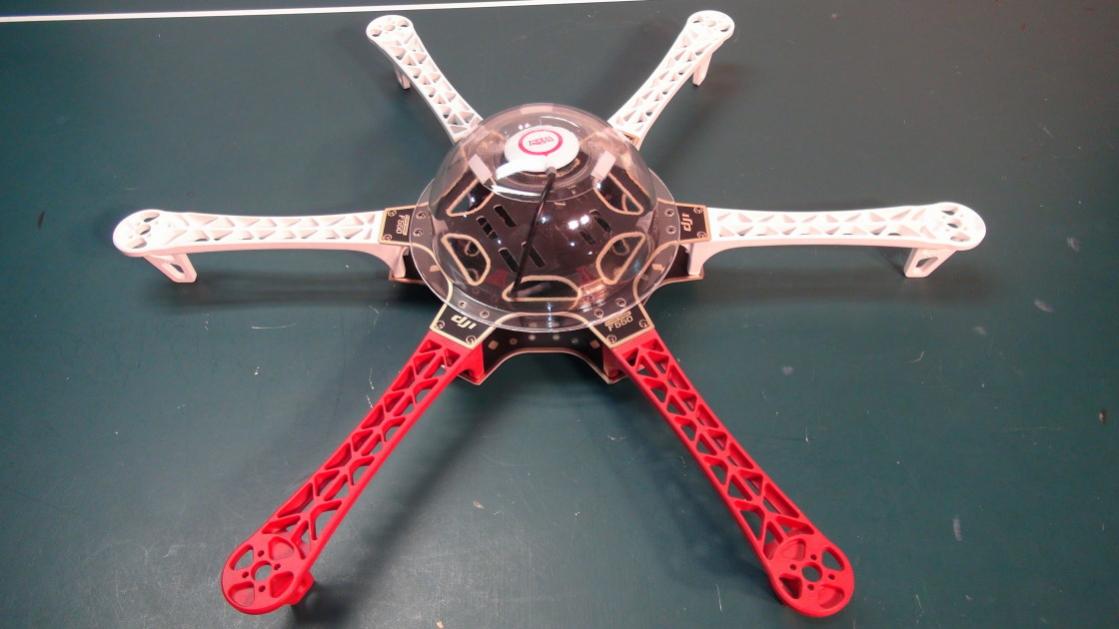

For sale are polycarbonate domes for DJI F550 frames. The cost is $25 plus shipping for a standard hemisphere dome or $29 plus shipping for a hemisphere dome with a removable GPS sensor protection/mounting pocket.
You can order online at www.BadgerFly.com

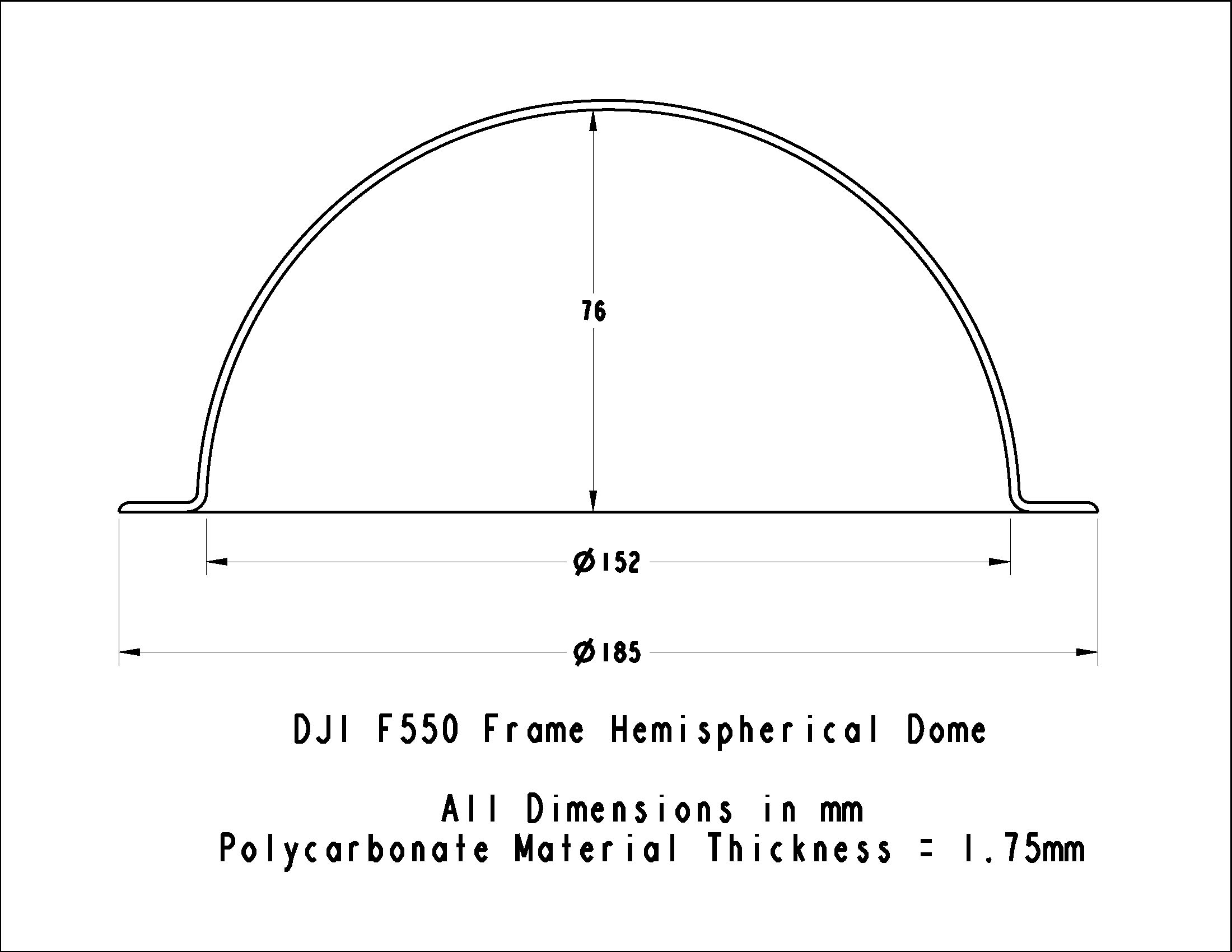

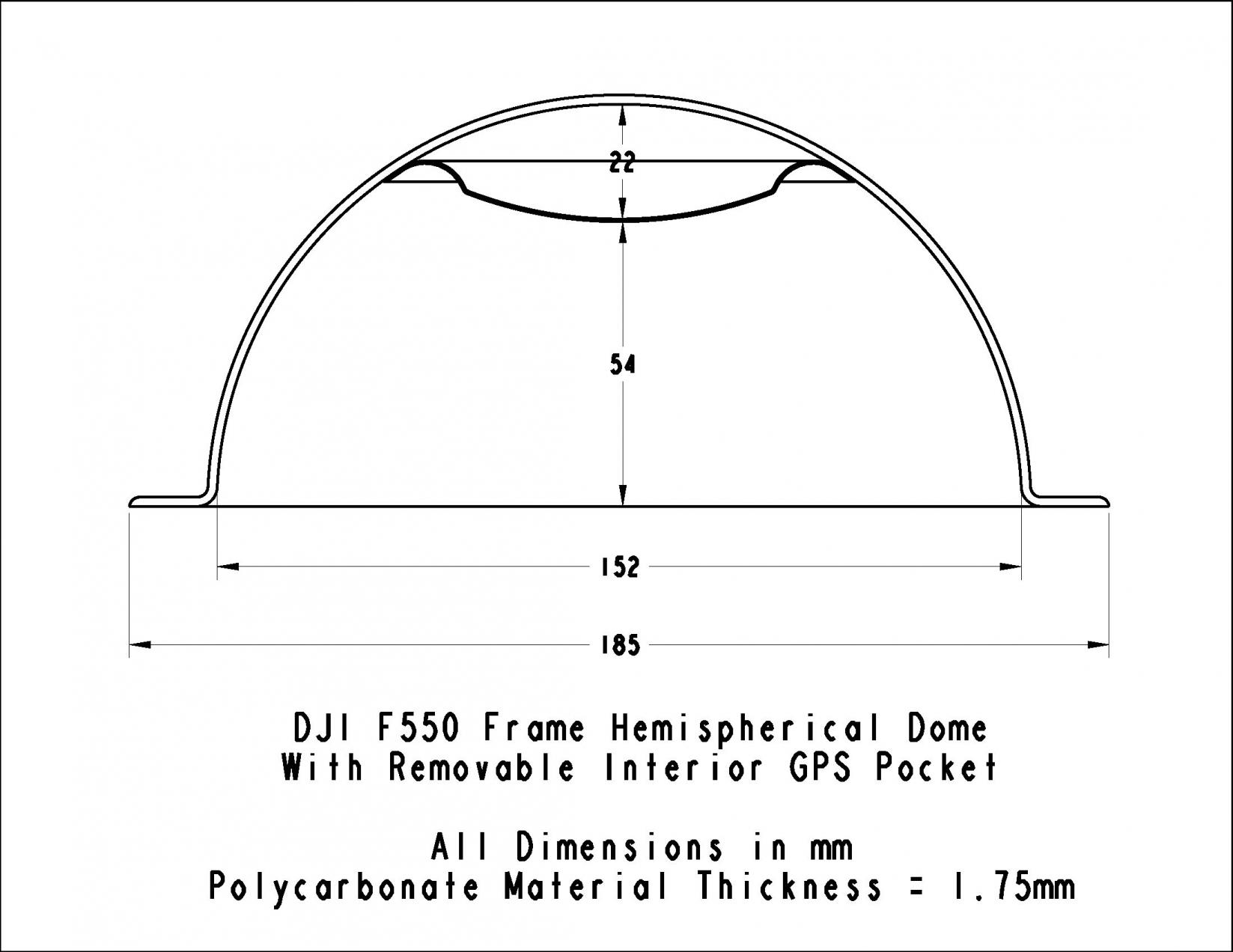

DJI F550 frame hemisphere dome dimensions: 152mm inside diameter, 76mm from flat flange to inside top of dome, 185mm diameter of flat flange.
Clear Polycarbonate Material
0.080" thick (2mm) clear polycarbonate dome weighs about 85 gms and is very strong to protect those expensive electronics. Polycarbonate (Lexan, Makrolon, etc) is the strongest plastic and won't shatter like acrylic, PET-G, and other clear plastics that you can buy at a cheaper price. These are the real deal if you care about your electronics!

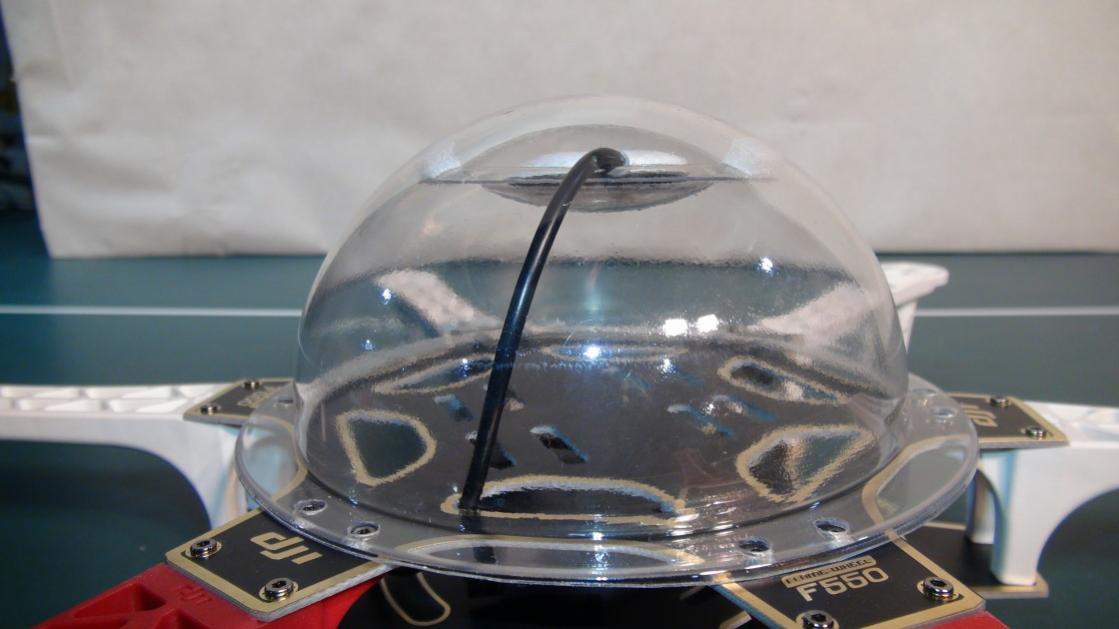

The flange has indentations to line up with the F550 frame inner plate screws. If you would want to use the screws to mount the dome, simply use the indentations to drill appropriate size holes. The dome can be mounted using velcro as well.

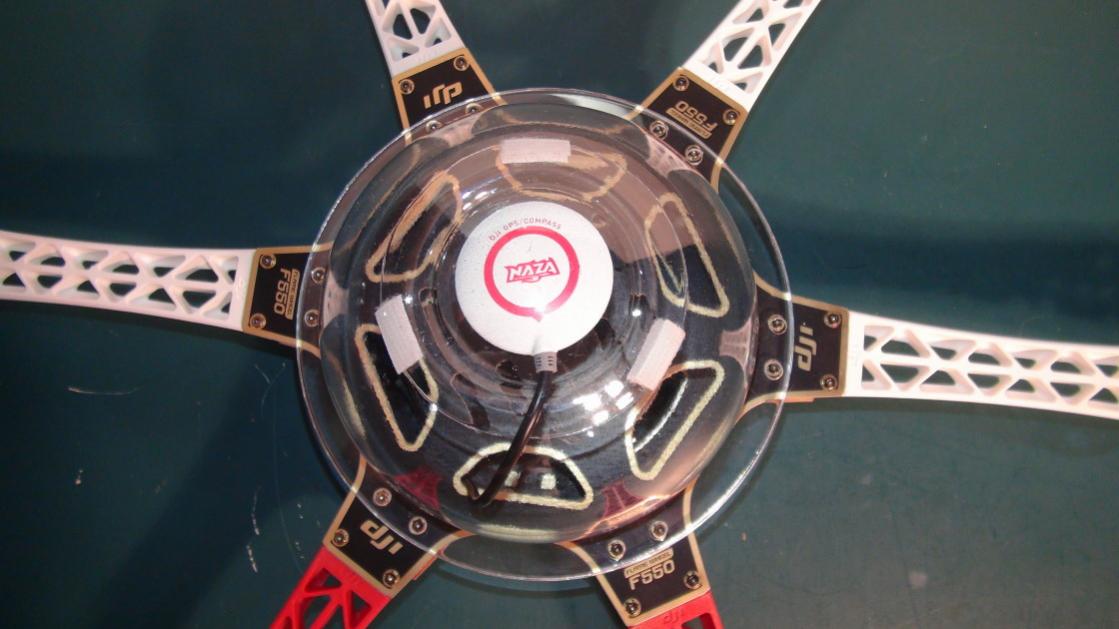

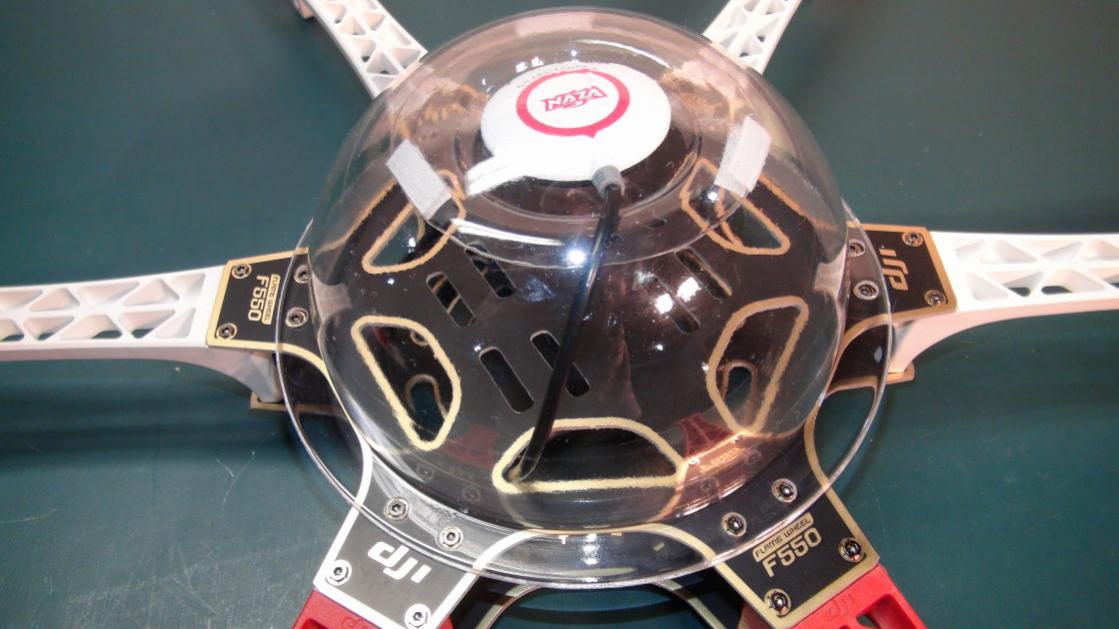

This hemispherical dome can be purchased alone or with an optional GPS sensor unit pocket. The pocket fits perfectly at the top of the underside of the dome to protect the sensitive GPS unit or other electronics that need to be mounted above the flight control board. It can be attached with velcro or with nylon or aluminum screws (steel screws will affect the GPS signal). The mounting hardware is not included. Polycarbonate plastic will not affect the GPS signal.
View attachment 9258View attachment 9259View attachment 9257View attachment 9260View attachment 9261View attachment 9262View attachment 9263View attachment 9264
