Description:

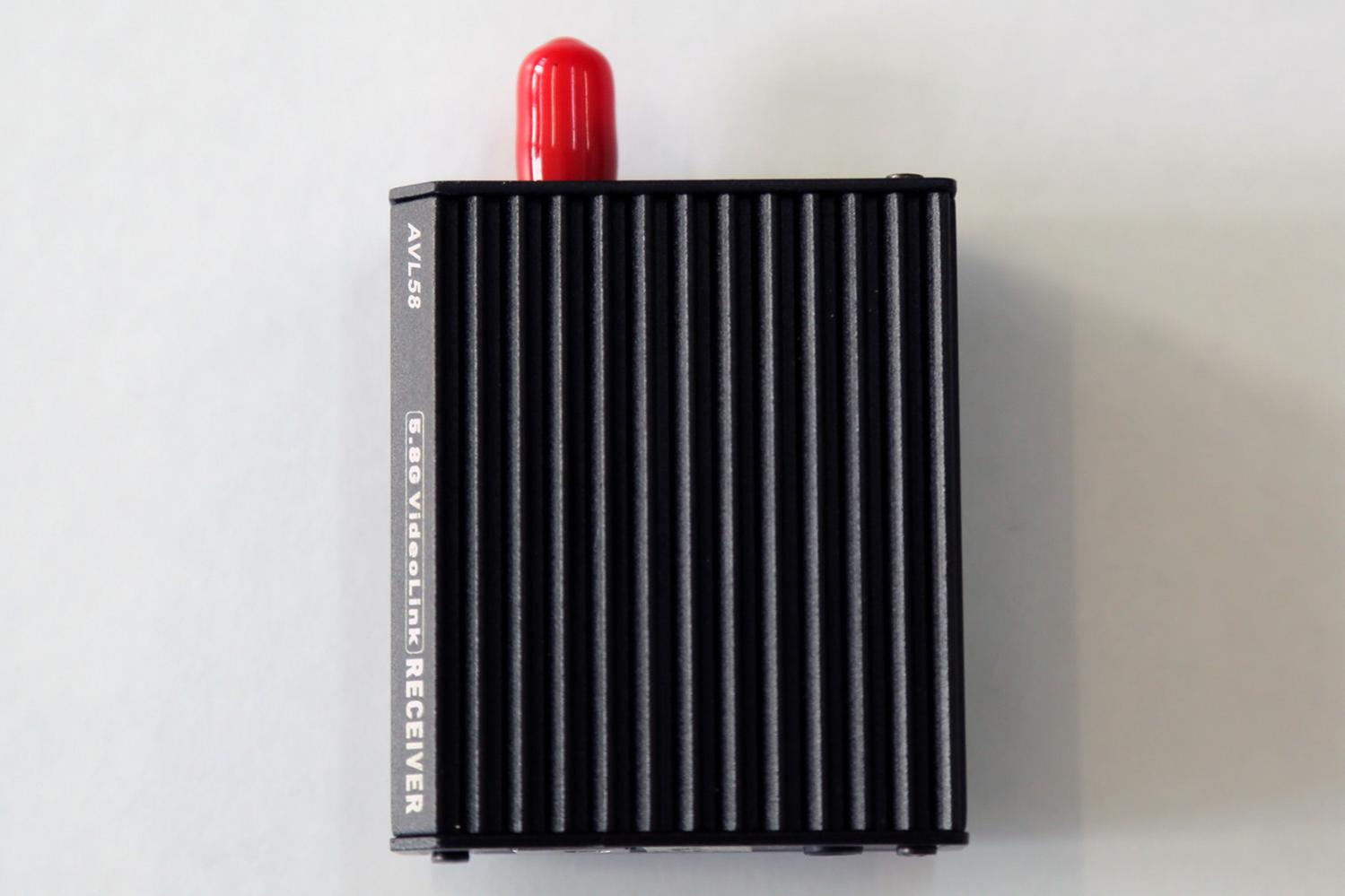

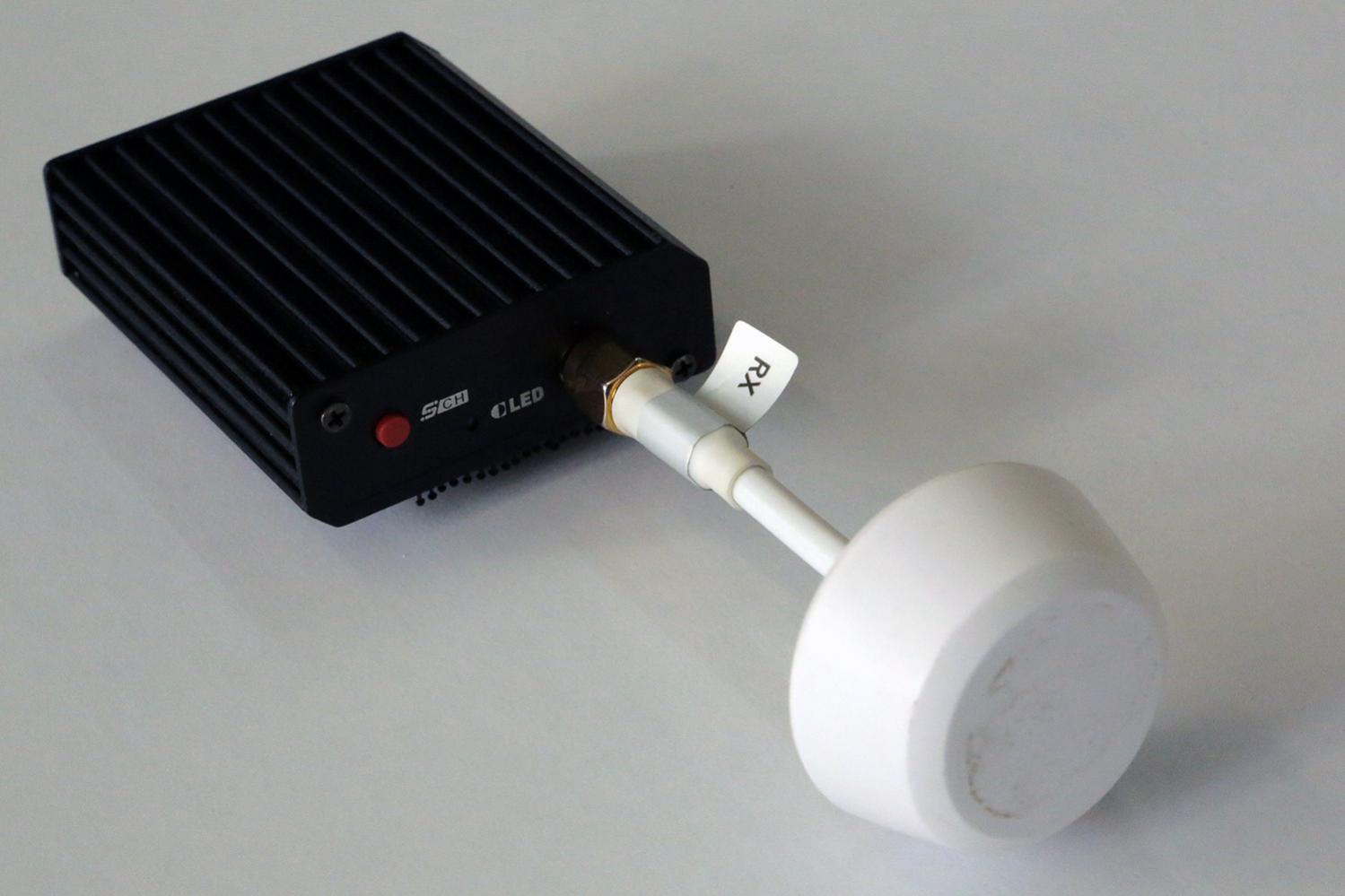

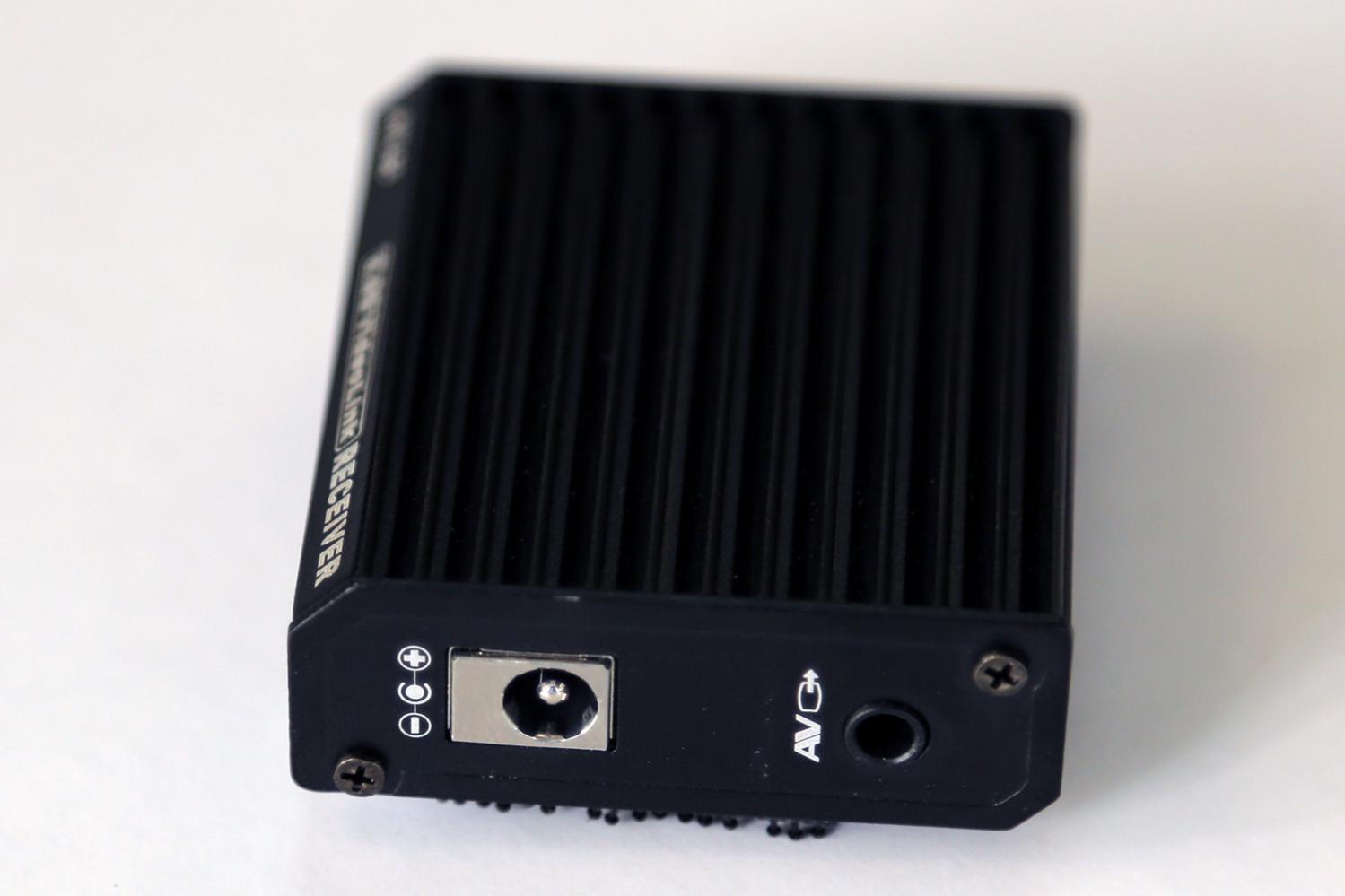

The receiver (ground) end of a DJI AVL58 Video downlink. The unit is used but fully working and in very good condition. It comes with a cloverleaf RX antenna. USD $39.00
Manufacturer’s Description:
The new DJI Downlink is specially designed to work with the new On Screen Display module (iOSD), and Zenmuse gimbal for professional aerial photography and video.
With the iOSD module from DJI, voltage, altitude, distance to home, and other features are displayed on screen. This will work with either a PAL or NTSC video transmitter and overlay all this information onto your fpv goggles or monitor. Two cloverleaf antennas are included with the Transmitter and Receiver.
The Wireless Video Link includes receiver (RX) modules, working in the ISM frequency band of 5.8GHz (5725-5865MHz). Analogue modulated video signals are sent wirelessly by the TX module to the RX module, and then the video signal will be demodulated and sent to a display. There are 8 wireless channels can be selected when you are using this product.These channels are:CH1-5705MHZ, CH2-5685MHZ, CH3-5665MHZ, CH4-5645MHZ, CH5-5885MHZ, CH6-5905MHZ, CH7-5925MHZ, and CH8-5945MHZ.
The characteristics of this product are: small size, low power consumption and high sensitivity. The product can be used in many applications requiring wireless video communication. When it's used in the aero-modeling hobby, the Wireless Video Link TX will be mounted to the aircraftand the Wireless Video Link RX is connected to a display screen, allowing video signal wireless transmission.
Specifications:
• Outdoor/RF Line-of-Sight Range: 1.2Km
• Transmit Power: 28dBm +- 1dBm
• Working Voltage for both TX and RX: 11.1V 3S Lipo Battery
• Frequency Band:
CH1: 5705MHZ, CH2: 5685MHZ, CH3: 5665MHZ, CH4: 5645MHZ
CH5: 5885MHZ, CH6: 5905MHZ, CH7: 5925MHZ, CH8: 5945MHZ
For more details, please refer to original Manual.
• Antenna Options SMA
• Transmitter Supply Voltage 3S~6S LiPo
• Receiver Supply Voltage 3S LiPo
• Transmitter Current 575mA ± 50mA(@12V)
• Receiver Current 90mA ± 10mA(@12V)
Shipping:
Item is in Hong Kong.
Will ship internationally to anywhere it's possible to ship to.
Buyer pays shipping costs.
