Alexmos diagram.. Help!

Discussion in 'Batteries, Chargers and other Related Equipment' started by helifotos, Apr 9, 2014.

  1. helifotos

    helifotos Member

    25
    0
    0
    Jul 6, 2012
    Posted by helifotos, Apr 9, 2014 #1
    Please, could someone help me, so I do not have my stash through thousands of forum pages ...

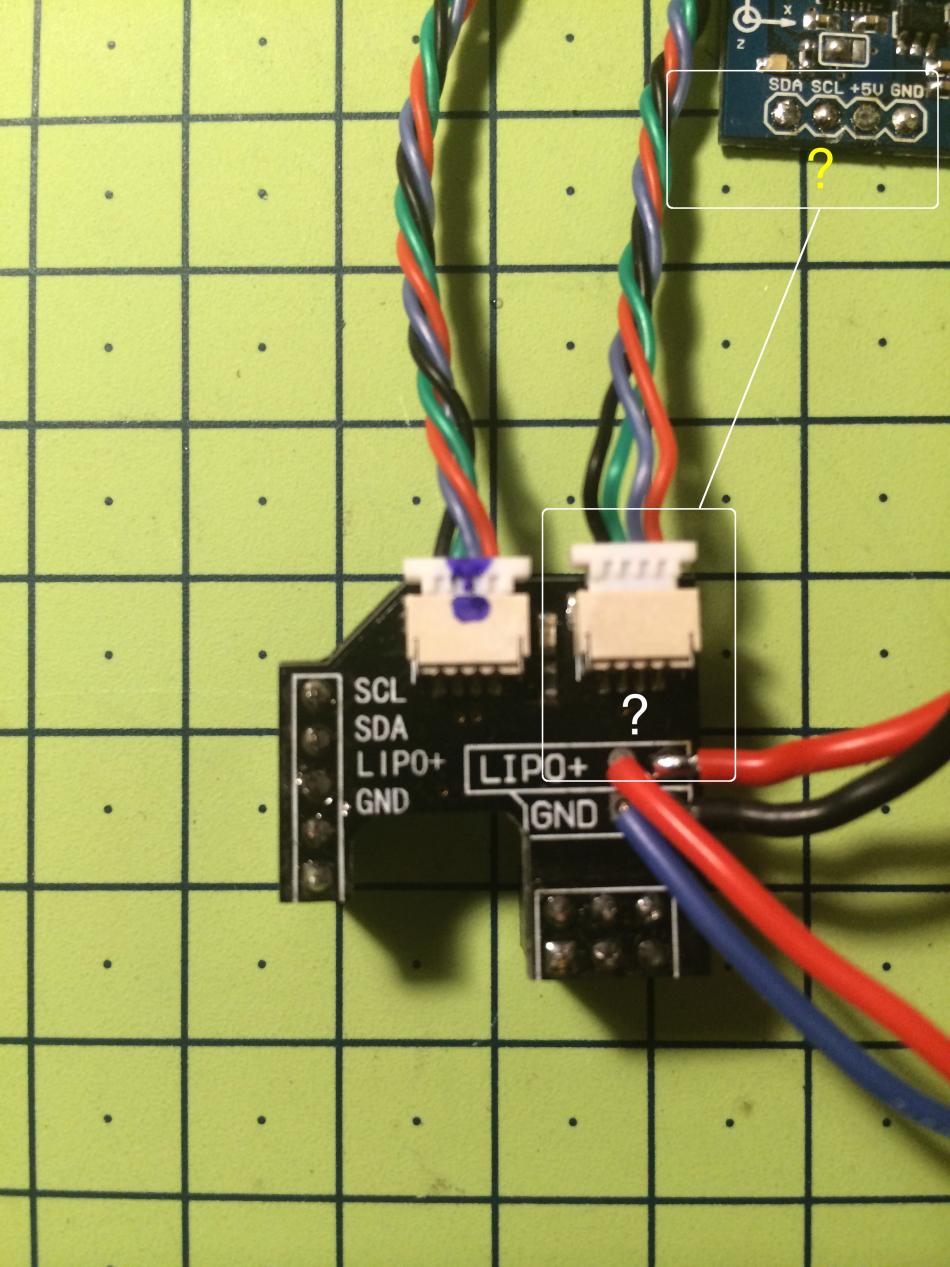

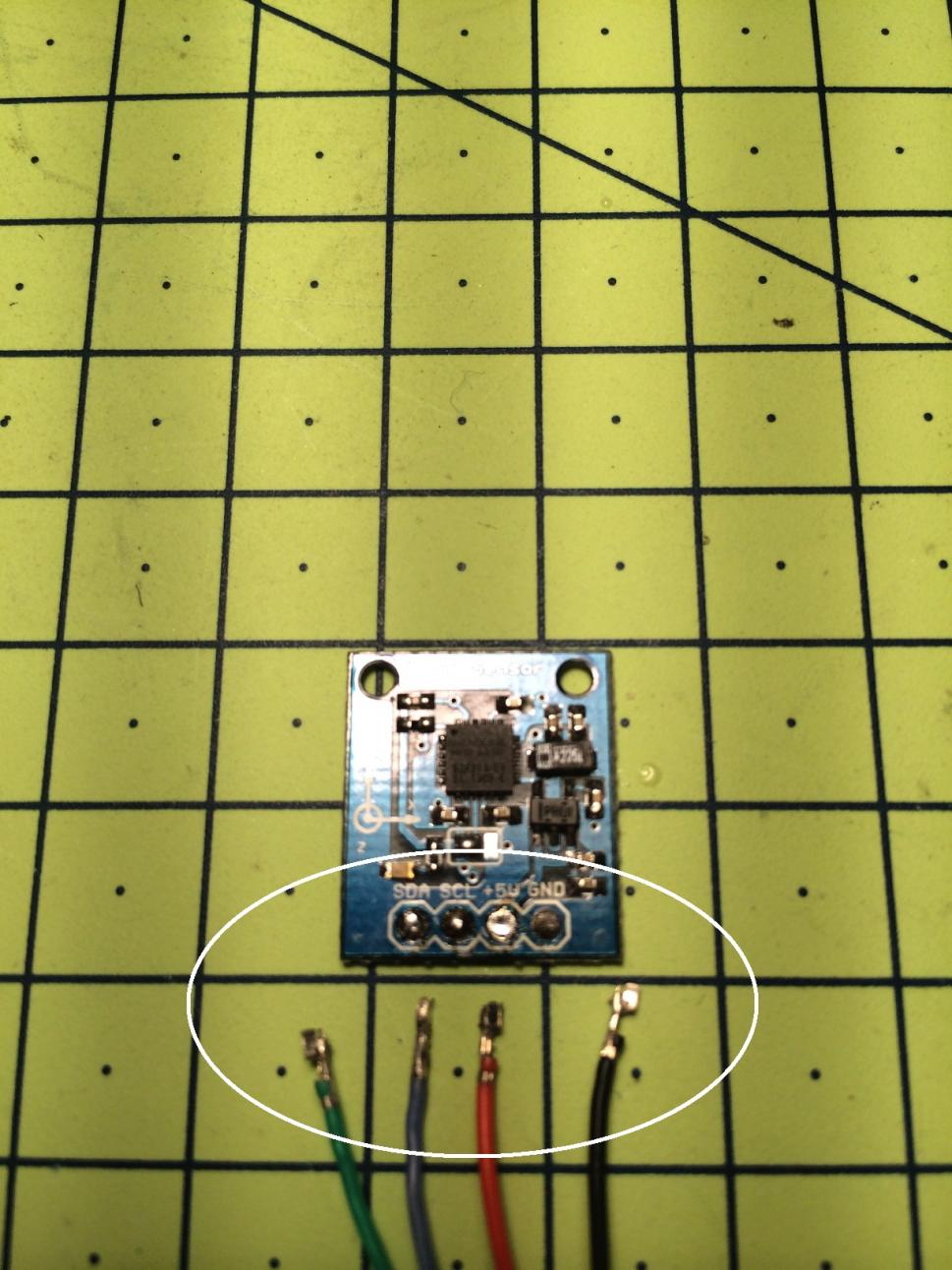

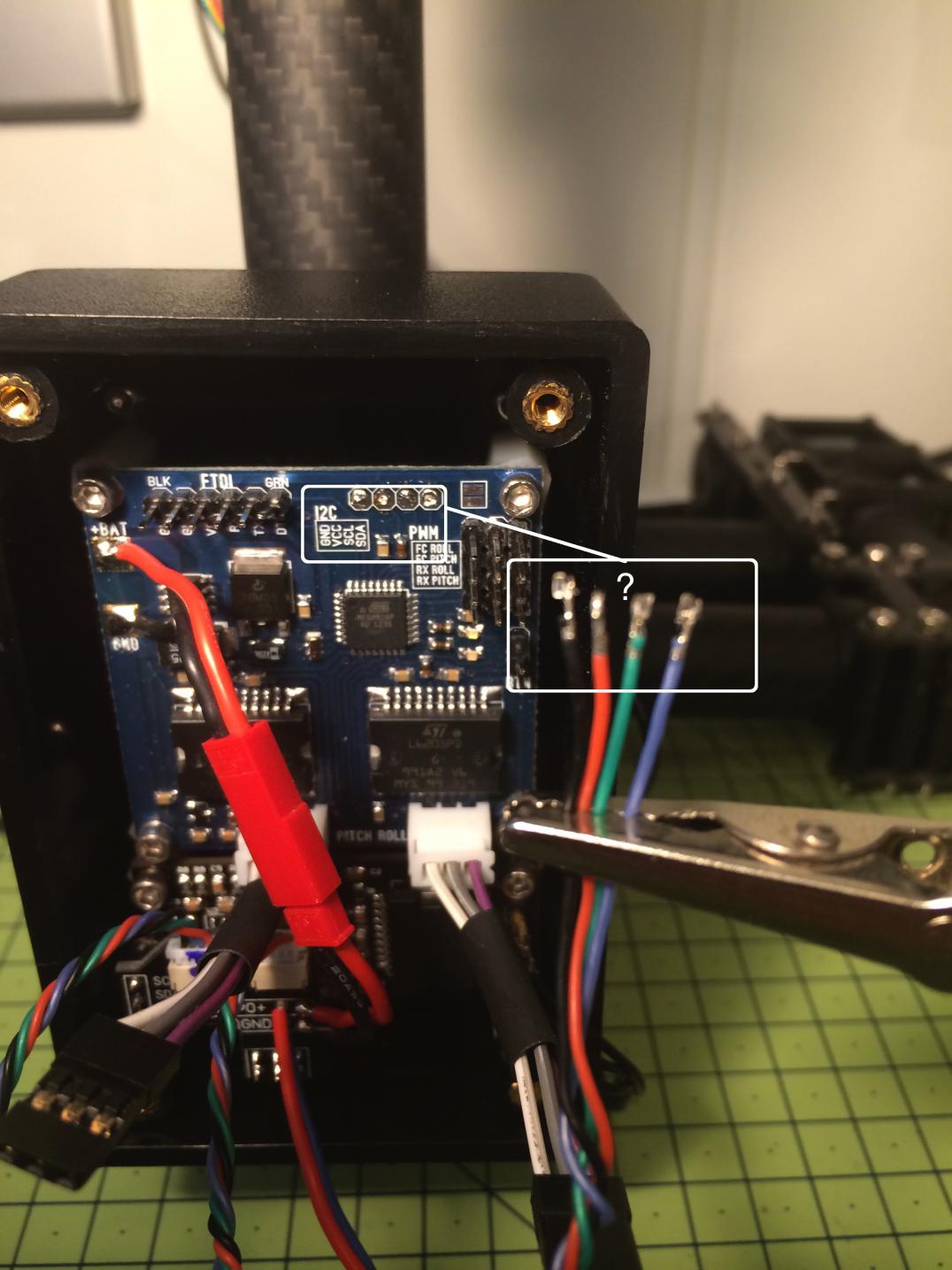

    I have V1 alexmos as I can see, but I have no indication of the wires coming out of the extended board to the third axis .
    So I need help on what color I should solder on the board, so I do not do anything stupid
    .
    . View attachment 17447 View attachment 17448 View attachment 17449
